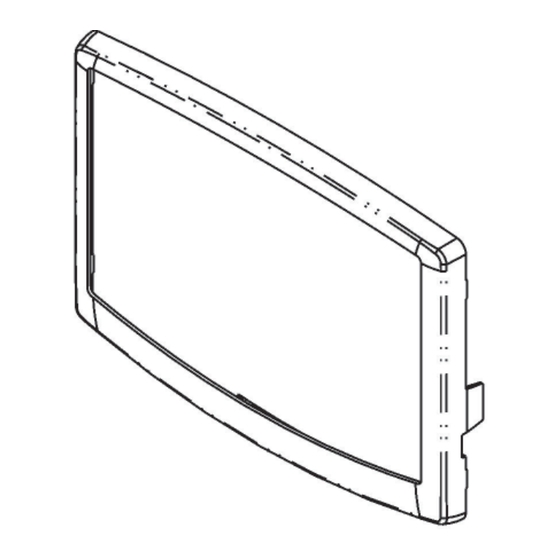

Carrier Touch Pilot 33CNTPILOT Installation And Operation Instructions Manual

Advertisement

Installation and Operation Instructions
Introduction ................................................................. 1
About this Manual .................................................. 1
Safety Considerations .................................................. 1
General ......................................................................... 1
Installation ................................................................... 1
Location ................................................................... 1
Power Transformer Wiring ...................................... 1
Carrier Network Communication Bus Wiring ........... 1
Communication Bus Wire Specifications ....... 1
Connection to the Communication Bus .......... 1
Mounting ................................................................ 2
Surface Mount ................................................ 2
Decorative Bezel ............................................. 2
Chiller Display Mounting ............................... 2
Operation ...................................................................... 4
Power-Up Display .................................................... 4
Default Device Designation ............................ 4
Default Group Designation ............................. 4
Group Display Screen .............................................. 4
To Remove a Point from a Group Display ....... 5
To Add a Point to a Group Display ................ 5
Navigation and Operation Pushbuttons .................. 5
BACK ............................................................. 5
HOME ............................................................. 5
MAIN MENU ................................................. 5
PREVIOUS ...................................................... 5
NEXT .............................................................. 5
OK .................................................................. 5
NO .................................................................. 5
CANCEL ......................................................... 5
CLEAR DATA ................................................ 5
RESET DATA ................................................. 5
ADD ............................................................... 5
REMOVE ........................................................ 5
INC, DEC ........................................................ 5
SCROLL UP, DOWN ...................................... 5
This document is the property of Carrier Corporation and is delivered on the express condition that it is not to be disclosed,
reproduced in whole or in part, or used for manufacture by anyone other than Carrier Corporation without its written consent, and
that no right is granted to disclose or so use any information contained in said document.
Carrier reserves the right to change or modify the information or product described without prior notice and without incurring any
liability.
© 2006, Carrier Corporation
Part Number 33CNTPILOT
Touch Pilot
PAGE UP, DOWN ........................................... 5
FORCE ............................................................ 5
AUTO ............................................................. 5
MODIFY ......................................................... 5
ALARM INDICATOR LIGHT ........................ 5
START/STOP BUTTON ................................. 6
Main Menu .............................................................. 6
LOGIN ............................................................. 6
LOGOUT ......................................................... 6
SETUP ............................................................ 6
ATTACH ........................................................ 6
TIME .............................................................. 6
ALARMS ....................................................... 7
RESET ............................................................. 7
SCHED ............................................................ 7
STATUS, SETPNT, SERVICE, MAINT OR
CONFIG .......................................................... 7
Setup Menu Screen ................................................. 7
Configuration Tables ................................................... 8
User Configuration (USERCONF) Table .................. 8
BACKLIGHT ALWAYS ON? ......................... 8
FULL ACCESS PASSWORD .......................... 8
LIMITED ACCESS PASSWORD ................... 8
ACTIVE LANGUAGE PASSWORD ............... 8
ACTIVE LANGUAGE ..................................... 8
TIME FORMAT ............................................. 8
DATE FORMAT ............................................ 8
UNITS BASE .................................................. 8
CONTRAST CONTROL ................................. 9
NETWORK MODE ......................................... 9
ALARM ACKNOWLEDGER ......................... 9
BROADCAST ACKNOWLEDGER ................ 9
EQUIPMENT CCN ADDRESS ....................... 10
BUS NUMBER ............................................... 10
ELEMENT NUMBER .....................................10
CONTROL VARIABLES ................................10
EQUIPMENT STATUS ................................. 10
EQUIPMENT START/STOP .........................10
ALARM STATUS ......................................... 10
ALARM RESET ............................................. 10
11-808-363-01 03/06

Advertisement

Table of Contents
loading

Summary of Contents for Carrier Touch Pilot 33CNTPILOT

  • Page 1 ALARM RESET ..........10 This document is the property of Carrier Corporation and is delivered on the express condition that it is not to be disclosed, reproduced in whole or in part, or used for manufacture by anyone other than Carrier Corporation without its written consent, and that no right is granted to disclose or so use any information contained in said document.
  • Page 3: Safety Considerations

    About this Manual – This manual provides instructions Perform the following steps to connect the power trans- for using the Touch Pilot as a Carrier communicating net- former: work (CCN) user interface. 1. Install the field-supplied transformer in an electrical en- closure that conforms to NEC and local codes.
  • Page 4: Mounting

    (D+). Connect the White (ground) wire to Terminal J2-2 (DGnd). Connect the Black (–) wire to Terminal J2-3 (D-). 4. If connecting to a Carrier communicating network bus, connect additional devices in a daisy chain fashion, fol- lowing the color coded wiring scheme in Table 2. See Figure 1 on page 3.
  • Page 5 Figure 1 — Carrier Communicating Network (CCN) Bus Wiring 1000 FT MAXIMUM DRAIN WIRE (TYP) BLK (TYP) WHT (TYP) RED (TYP) 1 2 3 6 5 4 1 2 3 1 2 3 1 2 3 COMM BYPASS ZONE SYSTEM...
  • Page 6: Operation

    Currently, only the 30XA AQUAFORCE chiller contains all 8 group displays. Going forward, more Carrier equipment will support this group functionality. Following installation and initial power-up, the installer should Login and then select the Setup option from the Main Menu to access the display's various setup and con- figuration functions.
  • Page 7: To Remove A Point From A Group Display

    Pilot contains the following pushbuttons to allow you to tures an LED alarm indicator light that is activated when a operate the display and to navigate within and between new alarm condition has occurred on the Carrier communi- screens. cating network. The alarm indicator light, located on the right side of the Display, remains activated until it is manu- BACK –...
  • Page 8: Start/Stop Button

    ing any changes. While the Display is performing an At- NOTE: In order for the Display to receive alarms from a CCN device, the CCN user interface bit in the device's Alarm tach process, however, the inactivity timeout feature will be Routing decision must be set to 1.
  • Page 9: Alarms

    fied values. Pressing will cancel the changes and re- ALARMS – Pressing the Main Menu's button turn you to the screen for further changes. will allow you to display device alarms from a selected Alarm Setup Menu Screen – This screen (shown in Figure 11) History table in the attached device or network alarms from is accessed by pressing the Main Menu's Setup button.
  • Page 10: Configuration Tables

    Contrast Control – Use this decision to enable or disable Display operation is controlled by decisions entered in the the following configuration tables, which are accessible from a Carrier front end such as the Network Service Tool or ComfortVIEW: •...
  • Page 11: Network Mode

    Figure 12 - User (USERCONF) Configuration Table Network Settings the Display's auto contrast adjustment feature. When en- Alarm Acknowledger – Use this decision to specify abled, the Display's contrast will be automatically adjusted whether the Touch Pilot will act as the alarm acknowledger as required, based on temperature.
  • Page 12: Equipment Ccn Address

    decision set to Yes for broadcast acknowledgement to be equipment's status display table. This decision will be ig- nored when the Display is in network mode. enabled. Allowable Entries: Up to 8 character CCN variable name Allowable Entries: 0 = No Valid characters include A to Z, 1 = Yes 0 to 9, dash and underscore...
