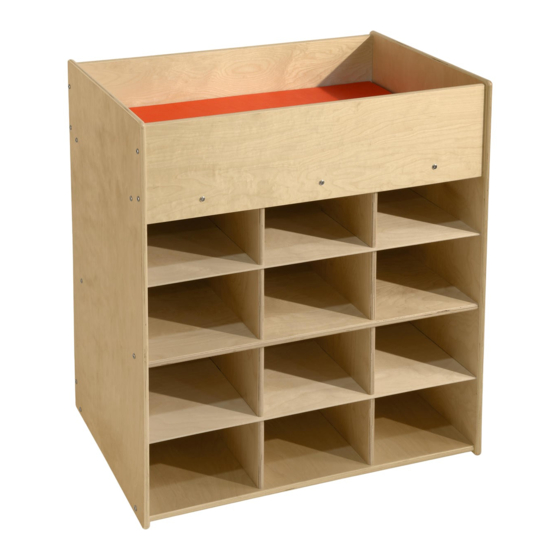

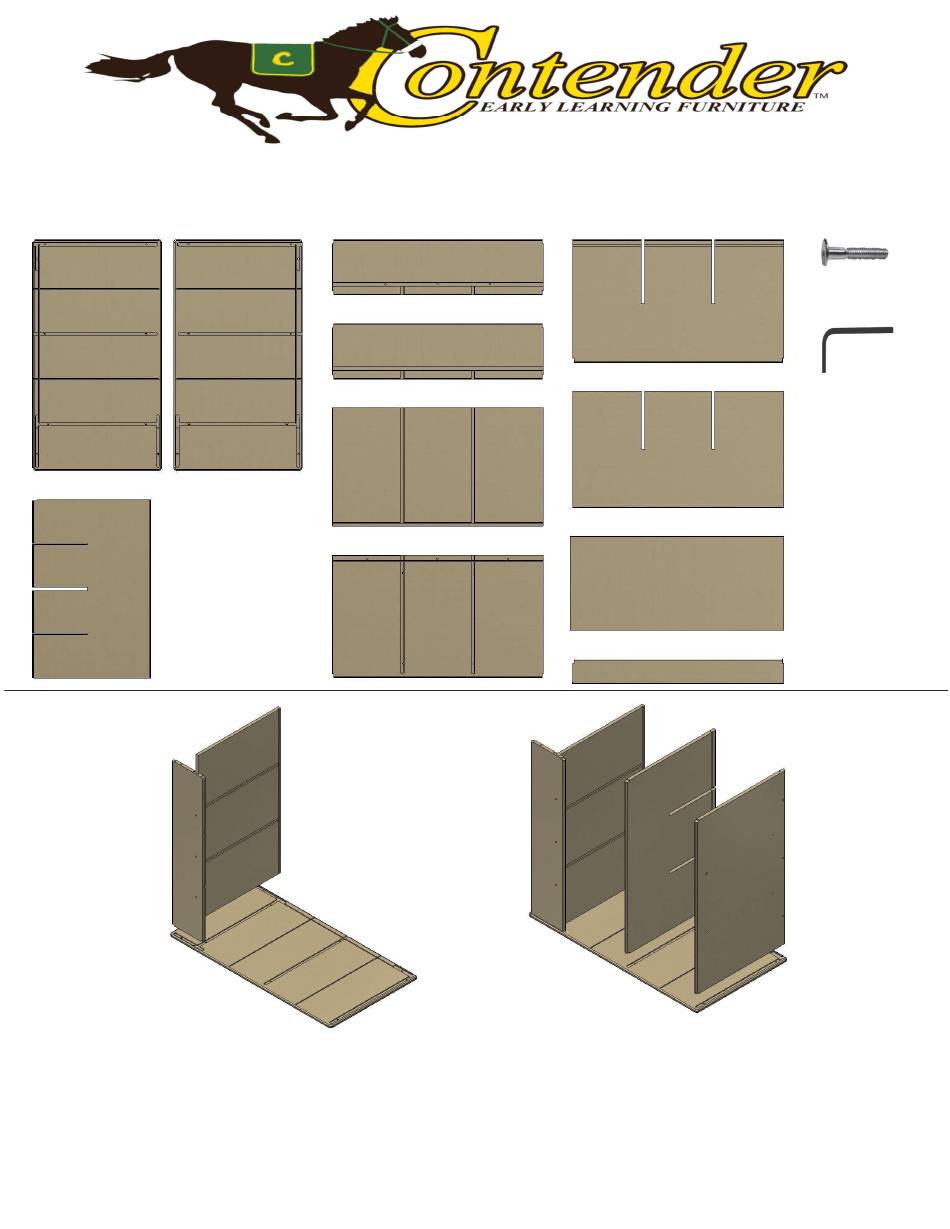

Parts:
Set of sides
Left side
Right side
(2) Dividers
Step 1: Attach Top and Front rail to Left side.
Grooves in underside of top align with grooves in
front rail. Attach each component to left side
using (2) hex screws and allen wrench provided.
Tighten down halfway. Back groove in top aligns
with 3/8" deep back groove in left side.
For assistance, call: Customer Service 1-800-247-8465
C21030 ASSEMBLY INSTRUCTIONS
Front rail
Back rail w/o (3) holes
Top
Bottom
Bottom of left side
15mm Shelf
(2) 4mm thick shelves
(2) Backs
Back Brace
Step 2: Attach Bottom and 15mm
Shelf to Left side. Back grooves in
new parts align with 3/8" deep back
groove in left side. Attach using (2)
hex screws and allen wrench for each
component.
Hardware:
(27) Hex screws
(1) Allen wrench
