Welcome to Follett
Follett equipment enjoys a well-deserved reputation for excellent performance, long-term reliability and outstanding
after-the-sale support. To ensure that this equipment delivers that same degree of service, review this guide
carefully before you begin your installation.
Should you need technical help, please call our Technical Service group at (877) 612-5086 or (610) 252-7301.
Please have your model number, serial number and complete and detailed explanation of the problem when
contacting Technical Service.
Getting Started
After uncrating and removing all packing material, inspect the equipment for concealed shipping damage. All freight
is to be inspected upon delivery. If visible signs of damage exist, please refuse delivery or sign your delivery receipt
"damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed
photos of the damage with the original packaging so that we may start the freight claim process.
801 Church Lane • Easton, PA 18040, USA
Toll free (877) 612-5086 • +1 (610) 252-7301
www.follettice.com

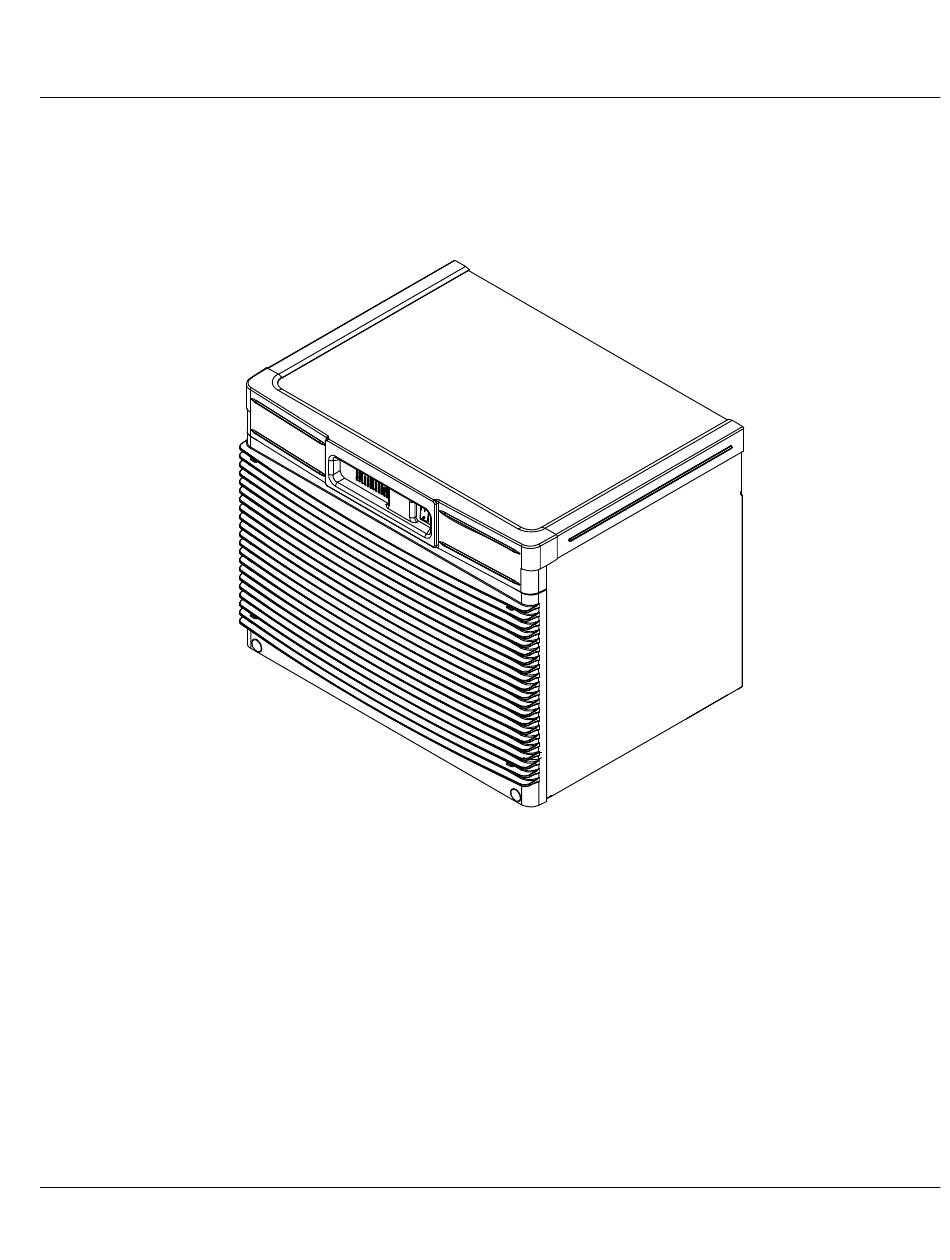

HCD710A, HMD710A, HCE710A, HME710A
Horizon Elite™ Ice Machines (Self-contained)
Please visit www.follettice.com/technicaldocuments
for the Operation and Service manual for your unit.
After Serial Number L60417
Installation and Service Videos:
www.follettice.com/servicevideolibrary
User Guide
01266543R04
Advertisement
Table of Contents
Related Manuals for Follett Horizon Elite HCD710A
Summary of Contents for Follett Horizon Elite HCD710A
- Page 1 If visible signs of damage exist, please refuse delivery or sign your delivery receipt "damaged." Follett Customer Service must be notified within 48 hours. Wherever possible, please include detailed photos of the damage with the original packaging so that we may start the freight claim process.
-
Page 2: Specifications
§ This appliance should be permanently connected by a qualified person in accordance with applicable codes. § Connect to potable water supply only. § Follett recommends a Follett water filter system be installed in the ice machine inlet water line (standard capacity #00130229, high capacity #00978957, carbonless high capacity #01050442). -
Page 3: Drain Plumbing
Drain plumbing § 3/4" MPT drain connection at the rear of the machine. § Drain must slope 1/4" per foot (6 mm per 30,4 cm). § Drain line should not be shared with any other piece of equipment. § Drain line cannot be reduced to a size smaller than 1". §... -
Page 4: Heat Rejection
Ambient Air temperature 100 F/38 C max. 50 F/10 C min. Water temperature 90 F/32 C max. 45 F/7 C min. Water pressure – potable 70 psi max. (483 kPa) 10 psi min. (89 kPa) Heat rejection Air-cooled 8,500 BTU/hr Ice production Horizon Elite 710 series, air-cooled 60 Hz Ambient air temperature F (C) -
Page 5: Dimensions And Clearances
Dimensions and clearances § Entire front of ice machine must be clear of obstructions/connections to allow removal. § 1" (26 mm) clearance above ice machine for service. § 1" (26 mm) minimum clearance on sides. § The intake and exhaust air grilles must provide at least 250 sq in (1615 sq cm) of open area. §... -
Page 6: Operation
Cleaning of the condenser can usually be performed by facility personnel. Cleaning of the icemaker system, in most cases, should be performed by your facility’s maintenance staff or a Follett authorized service agent. Regardless of who performs the cleaning, it is the operator’s responsibility to see that this cleaning is performed according to the schedule below. - Page 7 Fig. 2 2. Follow the directions on the SafeCLEAN Plus packaging to mix 1 gal. (3.8 L) of Follett SafeCLEAN Plus solution. Use 100 F (38 C) water. 3. Using a 1 quart (1L) container, slowly fill cleaning cup until CLEANER FULL light comes on. Do not overfill.
- Page 8 Fig. 5 7. Disconnect coupling as shown. Fig. 6 8. Using disposable foodservice grade gloves, insert dry SaniSponge cleaning sponge. 9. Insert SaniSponge cleaning sponge soaked in SafeCLEAN Plus (from Step 4). 10. Push both SaniSponge cleaning sponges down ice transport tube with supplied pusher tube.
- Page 9 Fig. 7 11. Remove and discard 16" (407 mm) pusher tube. Fig. 8 12. Reconnect coupling. Press power switch ON. Ice pushes SaniSponge cleaning sponges through ice transport tube. Fig. 9 13. Place a sanitary (2 gal. or larger) container in bin or dispenser to collect SaniSponge cleaning sponges and ice for 10 minutes.
- Page 10 Wiring diagram Horizon Elite 710 Self-Contained...
-
Page 11: Compressor Data
Compressor data 120 V 230 V Compressor current draw at 90 F/32.2 C 7.8A 1.9A Locked rotor amps 93.0A 21.0A Compressor start winding 2.23Ω 11Ω Compressor run winding 0.32Ω 5.15Ω Gearmotor data Gearmotor current 1.2A @ 120 V, 0.8 @ 230 V Gearmotor torque-out (high amp) trip point: 1.8A @ 120 V, 1.2 @ 230 V Resistance of windings... -
Page 12: Refrigeration System
Refrigeration system Refrigerant pressure data Air-cooled condensers (air) 60 F/16 C 70 F/21 C 80 F/27 C 90 F/32 C 100 F/38 C 120 V Pressure (psig) discharge/suction 190/32 225/34 258/36 292/39 325/41 230 V Pressure (psig) discharge/suction 180/17 195/19 225/22 256/24 310/26... - Page 13 Evacuation Evacuate the system to a level of 500 microns. When the 500 micron level is reached, close all valves. Allow the system to sit for approximately 20 minutes. During this period the system pressure should not rise. If the system pressure rises and stabilizes there is moisture in the system and further evacuation is needed.
-
Page 14: Troubleshooting
Troubleshooting Please see “Service” section for a description of each function. Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is in running 1. Defective compressor. 1. Replace compressor. condition but not making ice. 2. Defective start relay. 2. - Page 15 Ice machine disposition Possible causes Corrective action Legend: ON or OFF FLASHING Ice machine is making ice. 1. Failed water sensors. Processor 1. Clean or replace water probe Excessive water in bin or assumes there is no water when assembly. Check wiring coming into bin from transport there is water.
- Page 16 Warranty Registration and Equipment Evaluation Thank you for purchasing Follett Products LLC equipment. Our goal is to earn your complete satisfaction by delivering high-value products and services backed by outstanding customer and technical support. Please review the installation instructions thoroughly. It is important that the installation be performed to factory specifications so your equipment operates at its maximum efficiency.
