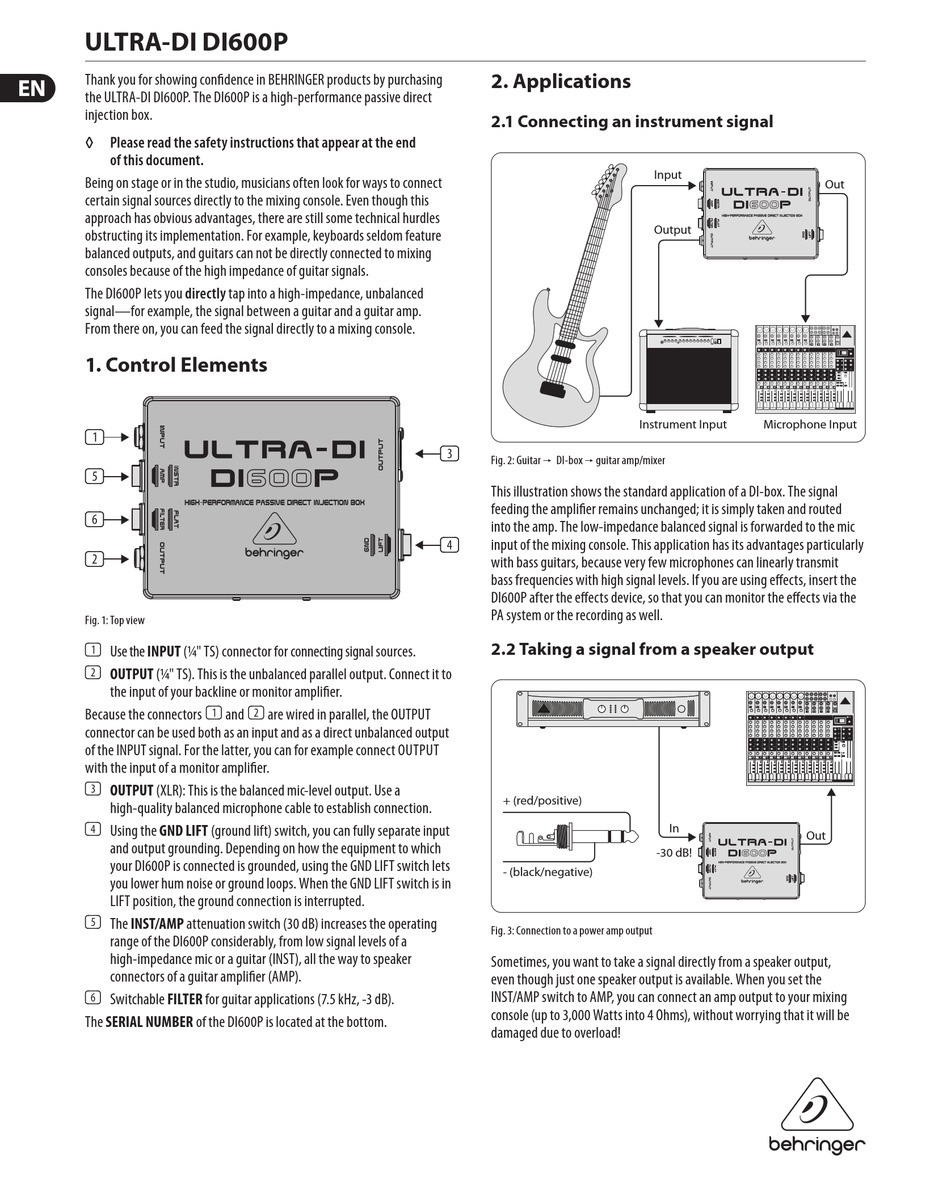

Behringer ULTRA-DI DI600P Quick Start Manual

ULTRA-DI DI600P
Thank you for showing confidence in BEHRINGER products by purchasing
the ULTRA-DI DI600P. The DI600P is a high-performance passive direct
injection box.
◊ Please read the safety instructions that appear at the end
of this document.
Being on stage or in the studio, musicians often look for ways to connect
certain signal sources directly to the mixing console. Even though this
approach has obvious advantages, there are still some technical hurdles
obstructing its implementation. For example, keyboards seldom feature
balanced outputs, and guitars can not be directly connected to mixing
consoles because of the high impedance of guitar signals.
The DI600P lets you directly tap into a high-impedance, unbalanced
signal—for example, the signal between a guitar and a guitar amp.
From there on, you can feed the signal directly to a mixing console.
1. Control Elements
(1)
(5)
(6)
(2)
Fig. 1: Top view
Use the INPUT (¼" TS) connector for connecting signal sources.
(1)
OUTPUT (¼" TS). This is the unbalanced parallel output. Connect it to
(2)
the input of your backline or monitor amplifier.
Because the connectors and
(1) (2)
connector can be used both as an input and as a direct unbalanced output
of the INPUT signal. For the latter, you can for example connect OUTPUT
with the input of a monitor amplifier.
OUTPUT (XLR): This is the balanced mic-level output. Use a
(3)
high-quality balanced microphone cable to establish connection.
Using the GND LIFT (ground lift) switch, you can fully separate input
(4)
and output grounding. Depending on how the equipment to which
your DI600P is connected is grounded, using the GND LIFT switch lets
you lower hum noise or ground loops. When the GND LIFT switch is in
LIFT position, the ground connection is interrupted.
The INST/AMP attenuation switch (30 dB) increases the operating
(5)
range of the DI600P considerably, from low signal levels of a
high-impedance mic or a guitar (INST), all the way to speaker
connectors of a guitar amplifier (AMP).
Switchable FILTER for guitar applications (7.5 kHz, -3 dB).
(6)
The SERIAL NUMBER of the DI600P is located at the bottom.
(3)
(4)
are wired in parallel, the OUTPUT
2. Applications
2.1 Connecting an instrument signal
Input
Output
Instrument Input
Fig. 2: Guitar DI-box guitar amp/mixer
 
This illustration shows the standard application of a DI-box. The signal
feeding the amplifier remains unchanged; it is simply taken and routed
into the amp. The low-impedance balanced signal is forwarded to the mic
input of the mixing console. This application has its advantages particularly
with bass guitars, because very few microphones can linearly transmit
bass frequencies with high signal levels. If you are using effects, insert the
DI600P after the effects device, so that you can monitor the effects via the
PA system or the recording as well.
2.2 Taking a signal from a speaker output
+ (red/positive)
In
-30 dB!
- (black/negative)
Fig. 3: Connection to a power amp output
Sometimes, you want to take a signal directly from a speaker output,
even though just one speaker output is available. When you set the
INST/AMP switch to AMP, you can connect an amp output to your mixing
console (up to 3,000 Watts into 4 Ohms), without worrying that it will be
damaged due to overload!
Out
Microphone Input
Out
