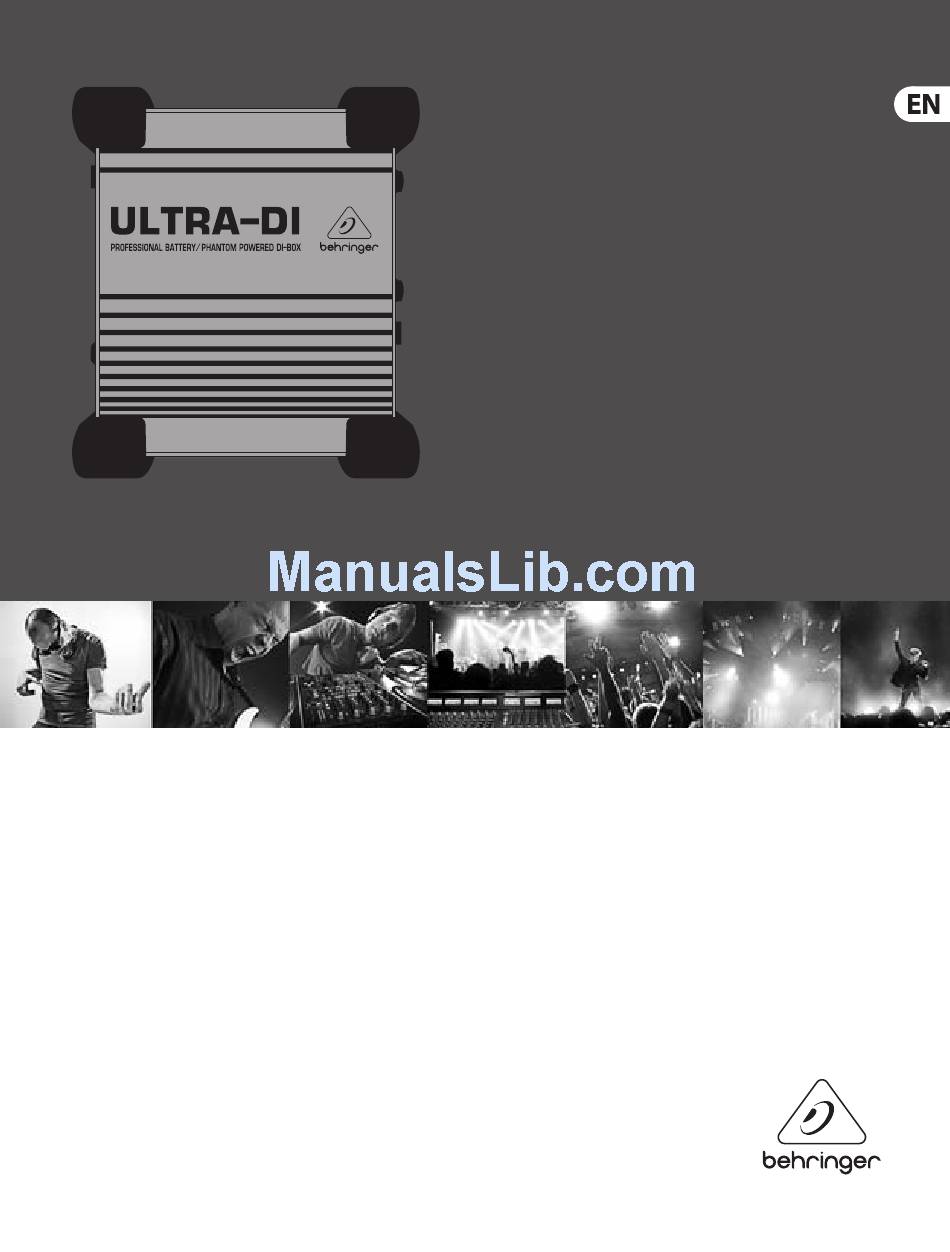

- Page 1 ULTRA-DI DI100 User Manual User Manual ULTRA-DI DI100 Professional Battery/Phantom Powered DI-Box...
-
Page 2: Table Of Contents
2.3 Converting a microphone from high impedance unbalanced to low impedance balanced ........10 2.4 Tapping a signal from a power amplifier output ....10 3. Specifications..............11 Thank you Thank you very much for expressing your confidence in Behringer products by purchasing the ULTRA-DI. - Page 3 ULTRA-DI DI100 User Manual Caution Important Safety To reduce the risk of fire or Instructions electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Page 4 ULTRA-DI DI100 User Manual 9. Do not defeat the safety purpose of the 15. The apparatus shall be connected to polarized or grounding-type plug. A polarized a MAINS socket outlet with a protective plug has two blades with one wider than the earthing connection.
-
Page 5: Limited Warranty
ULTRA-DI DI100 User Manual TRANSMITTED IN ANY FORM OR BY ANY MEANS, ELECTRONIC OR MECHANICAL, INCLUDING PHOTOCOPYING AND RECORDING OF ANY KIND, FOR ANY PURPOSE, WITHOUT THE EXPRESS WRITTEN PERMISSION OF MUSIC GROUP IP LTD. ALL RIGHTS RESERVED. © 2013 MUSIC GROUP IP LTD. TRIDENT CHAMBERS, WICKHAMS CAY, P.O. - Page 6 There is no sound alteration. The transformer used is BEHRINGER´s renowned OT-1 witch guarantees distortion free, clean sound and a flat frequency response. Furthermore the BEHRINGER ULTRA-DI can be powered by your console’s phantom power or by battery and switches automatically between these two.
-
Page 7: Control Elements
ULTRA-DI DI100 User Manual ◊ To avoid switching noise, you should mute the desk channel before activating the DI100. Same applies when switching between battery and phantom power and vice versa. The design of the DI100 includes four sturdy rubber feet which protect the unit (even during a unplanned drop) and allow cables to run underneath. -
Page 8: Di100 Configurations
ULTRA-DI DI100 User Manual ◊ Only use the -20 dB switches if you are sure the ULTRA-DI is clipping (overloading) and not your mic pre-amp. Always use as little attenuation as possible to get the best possible signal-to-noise ratio. (6) OUTPUT. This is the balanced microphone level output of the ULTRA-DI. Connection to the microphone input should be made with a standard high quality balanced cable. -
Page 9: Converting The Output Of A Keyboard / Dj-Mixer / Headphone Plug
ULTRA-DI DI100 User Manual This figure shows the standard application of any direct injection box. The signal to the amplifier is unaffected, it is just tapped off to be routed to the microphone input of the mixer. Especially bass guitars benefit from this application. It is difficult to find a microphone which handles high level low frequencies well and with a linear frequency response. -
Page 10: Converting A Microphone From High Impedance Unbalanced To Low Impedance Balanced
10 ULTRA-DI DI100 User Manual 2.3 Converting a microphone from high impedance unbalanced to low impedance balanced Sometimes all that’s available (especially when all other mics are in use) is a unbalanced high impedance microphone with an unbalanced jack. With the ULTRA-DI long cable runs to the console can be established without fear of picking up noise and hum. -
Page 11: Specifications
650 g BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or shown. - Page 12 We Hear You...
