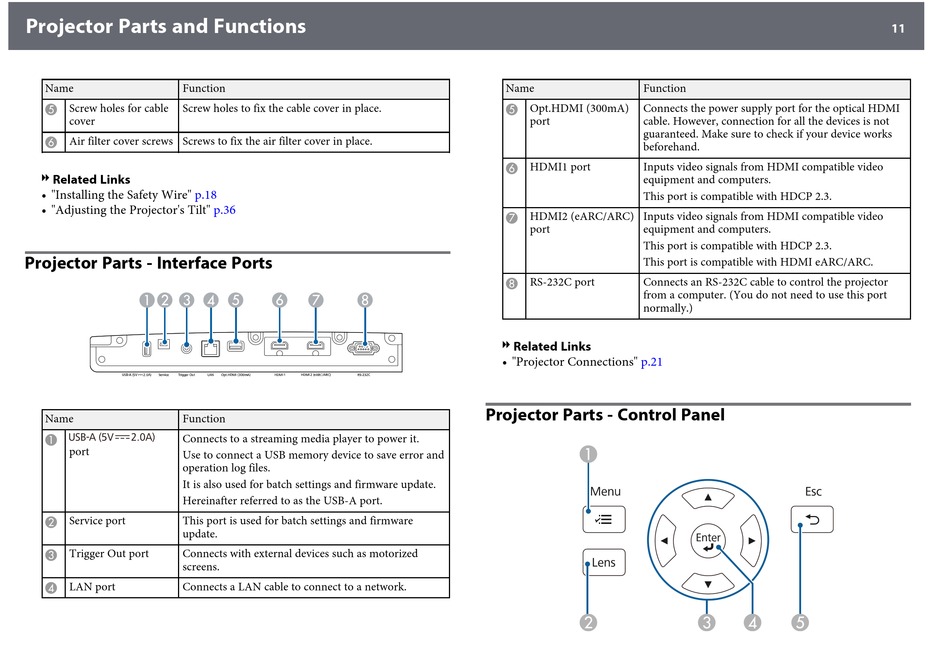

Projector Parts and Functions
Name
Function
Screw holes for cable
Screw holes to fix the cable cover in place.
E
cover
Air filter cover screws Screws to fix the air filter cover in place.
F
g g Related Links
• "Installing the Safety Wire"
p.18
• "Adjusting the Projector's Tilt"
Projector Parts - Interface Ports
Name
Function
Connects to a streaming media player to power it.
A
port
Use to connect a USB memory device to save error and
operation log files.
It is also used for batch settings and firmware update.
Hereinafter referred to as the USB-A port.
Service port
This port is used for batch settings and firmware
B
update.
Trigger Out port
Connects with external devices such as motorized
C
screens.
LAN port
Connects a LAN cable to connect to a network.
D
p.36
Name
Function
Opt.HDMI (300mA)
Connects the power supply port for the optical HDMI
E
port
cable. However, connection for all the devices is not
guaranteed. Make sure to check if your device works
beforehand.
HDMI1 port
Inputs video signals from HDMI compatible video
F
equipment and computers.
This port is compatible with HDCP 2.3.
HDMI2 (eARC/ARC)
Inputs video signals from HDMI compatible video
G
port
equipment and computers.
This port is compatible with HDCP 2.3.
This port is compatible with HDMI eARC/ARC.
RS-232C port
Connects an RS-232C cable to control the projector
H
from a computer. (You do not need to use this port
normally.)
g g Related Links
• "Projector Connections"
p.21
Projector Parts - Control Panel
11
