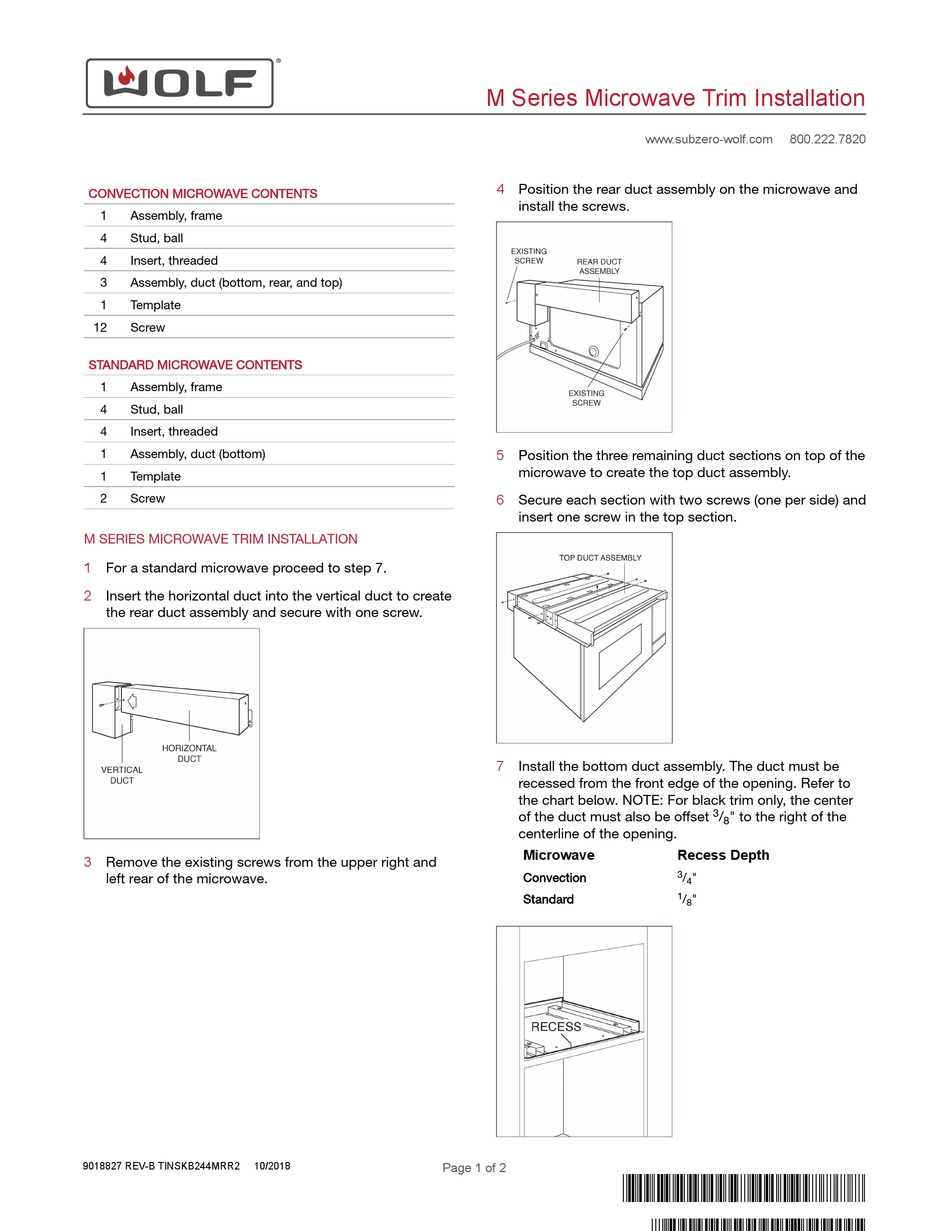

Wolf M Series Installation

CONVECTION MICROWAVE CONTENTS
1 Assembly, frame
4 Stud, ball
4 Insert, threaded
3 Assembly, duct (bottom, rear, and top)
1 Template
12 Screw
STANDARD MICROWAVE CONTENTS
1 Assembly, frame
4 Stud, ball
4 Insert, threaded
1 Assembly, duct (bottom)
1 Template
2 Screw
M SERIES MICROWAVE TRIM INSTALLATION
For a standard microwave proceed to step 7.
1
Insert the horizontal duct into the vertical duct to create
2
the rear duct assembly and secure with one screw.
Remove the existing screws from the upper right and
3
left rear of the microwave.
9018827 REV-B TINSKB244MRR2 10/2018
M Series Microwave Trim Installation
Position the rear duct assembly on the microwave and
4
install the screws.
Position the three remaining duct sections on top of the
5
microwave to create the top duct assembly.
6 Secure each section with two screws (one per side) and
insert one screw in the top section.
Install the bottom duct assembly. The duct must be
7
recessed from the front edge of the opening. Refer to
the chart below. NOTE: For black trim only, the center
of the duct must also be offset
centerline of the opening.
Microwave
Convection
Standard
Page 1 of 2
www.subzero-wolf.com 800.222.7820
3
/ " to the right of the
8
Recess Depth
3
/ "
4
1
/ "
8
