Introduction — Inventory Overview
2.
Inventory
a. Included items
The PoleVault System (PVS xxx) ships in two boxes. The larger box (42-1xx-xx) contain the devices and
hardware, individually boxed and labeled.
Each PVS system has the same quantities of speakers, hardware and devices, but differ in the number and type of
PoleVault A/V Source Input Wall Plates, and are shipped as follows:
• PVS 200 (part # 42-108-03) includes one PVT RGB D and one PVT CV D
• PVS 300 (part # 42-109-03) includes two PVT RGB D and one PVT CV D
• PVS 400 (part # 42-110-03) includes two PVT RGB D and two PVT CV D (see front cover of this manual)
Carefully check all the received items against the following lists.
PCM 240
PCM 240 White
60-772-03
PCM 240
Projector Ceiling Mount
(4)Turnbuckles
(5) Lag eyes screws
(5) Concrete anchors
(2) Cable clamps, Gal Steel
(1) Safety wire (15 ft 1/8" dia)
(2) Tie wire (30 ft, 14 AWG)
(4) Locking Screws
(4) Adhesive pads
(1) Hex key
1-6
PoleVault Systems Installation • Introduction — Inventory Overview
The smaller box (42-103-13) contains only the PV SI 3C LP speakers.

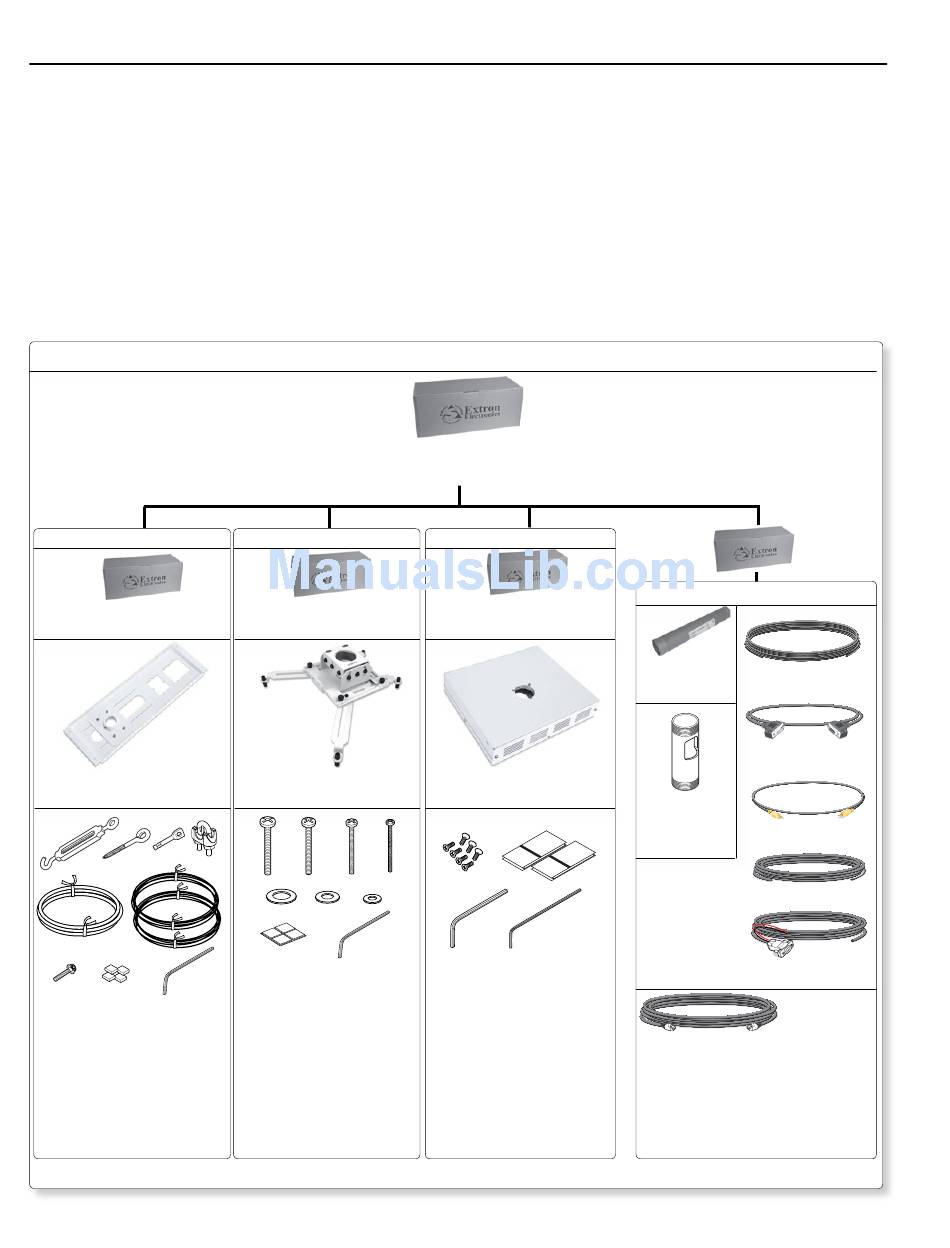

PoleVault System Devices and Hardware
PoleVault System
42-108-03 (or 42-109-03, or 42-110-03*)
UPB 25
UPB 25 White
60-773-03
UPB 25
Universal Projector Bracket
(4) M6 x 40 mm screws
(4) M5 x 40 mm screws
(4) M4 x 40 mm screws
(4) M3 x 40 mm screws
0.328 ID washers (4)
#10 washers (4)
#6 washers (4)
Adhesive pads (4)
Hex key (1)
PMK 450
PMK 450 White
70-618-03
PMK 450
Pole Mount Kit
(7) Replacement screws
(2) Velcro
pads
™
(1) Set screw Hex wrench
(1) Security screw Hex wrench
PMP
CABLES
PMP 6 White
(1) SPK 18, 25'
70-511-13
(1) MVGA M-M, 3'
PMP
Projector
(1) V RCA, 3'
Mounting Pole
(1) MLC, PW/RS232/VC, 50'
(1) IR SERIAL COMM, 50'
CAT5 T568A Patch, 50'
Quantity varies depending on
PVS system ordered.
These may be boxed separately or
loose inside larger box.
