Front Panels - Extron electronics IPL T SF Series Setup Manual

Hardware Setup

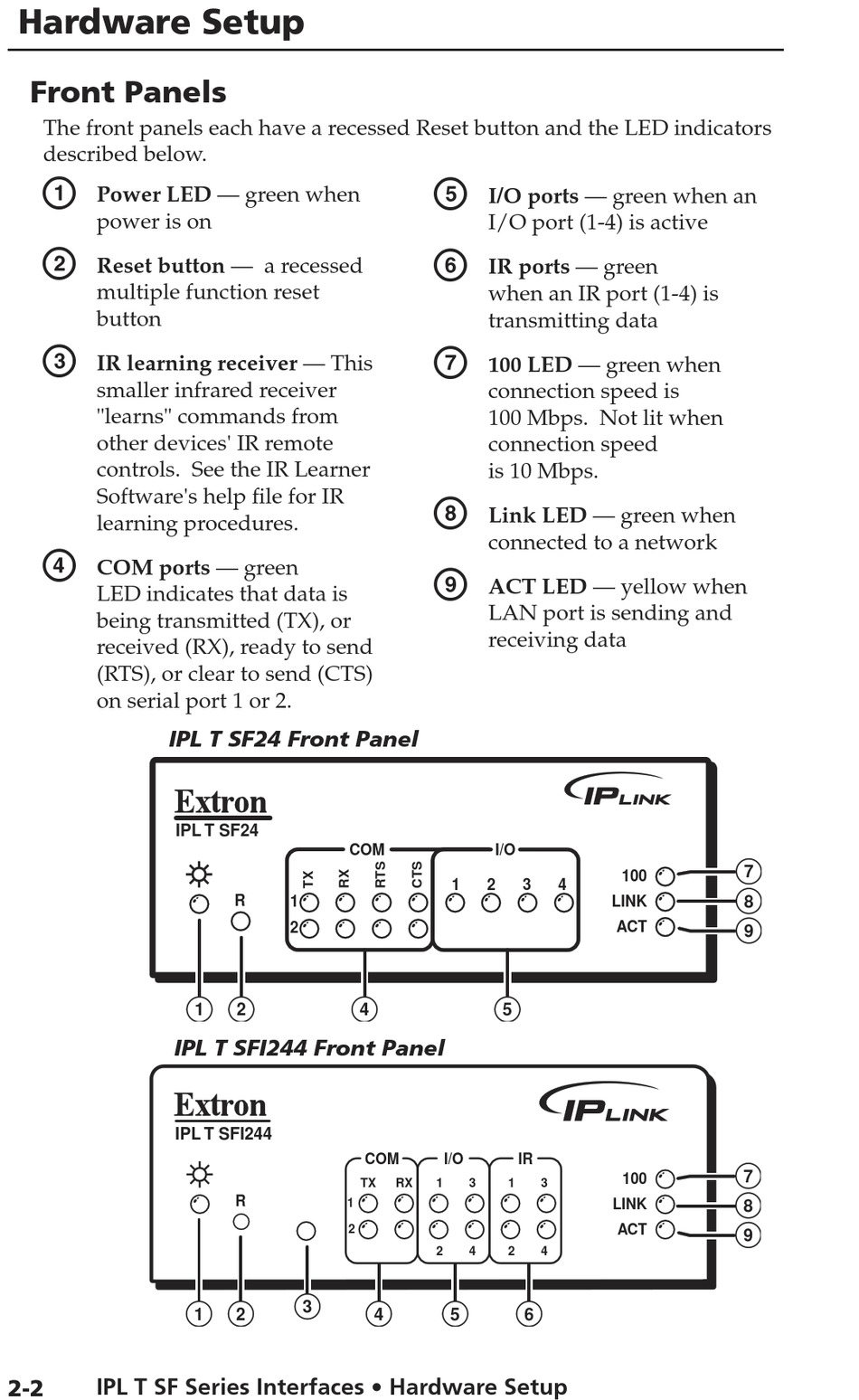

Front Panels

The front panels each have a recessed Reset button and the LED indicators
described below.
a
Power LED — green when
power is on
b
Reset button — a recessed
multiple function reset
button
c
IR learning receiver — This
smaller infrared receiver
"learns" commands from
other devices' IR remote
controls. See the IR Learner
Software's help file for IR
learning procedures.
d
COM ports — green
LED indicates that data is
being transmitted (TX), or
received (RX), ready to send
(RTS), or clear to send (CTS)
on serial port 1 or 2.
IPL T SF24 Front Panel
IPL T SF Series Interfaces • Hardware Setup
2-2
IPL T SF24
R 1
2
1
2
IPL T SFI244 Front Panel
IPL T SFI244
R
3
1
2
e
I/O ports — green when an
I/O port (1-4) is active
f
IR ports — green
when an IR port (1-4) is
transmitting data
g
100 LED — green when
connection speed is
100 Mbps. Not lit when
connection speed
is 10 Mbps.
h
Link LED — green when
connected to a network
i
ACT LED — yellow when
LAN port is sending and
receiving data
