Carrier 58MVC Owner's Manual

Carrier 58MVC Owner's Manual

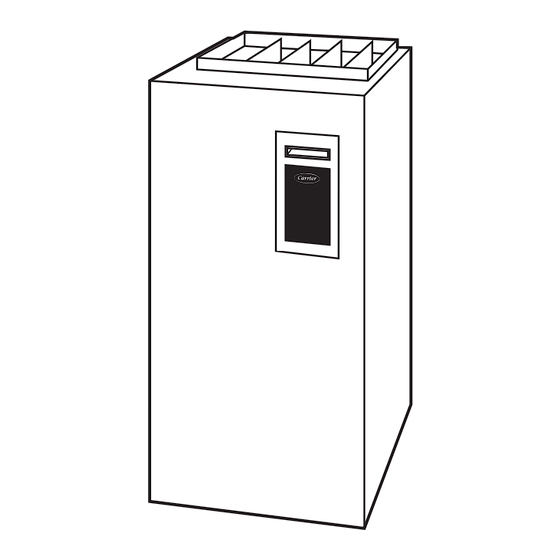

Infinity ics, model 58mvc direct vent 4-way multipoise modulating condensing gas furnace with idealcomfort idealhumidity
Hide thumbs Also See for 58MVC:

Advertisement

Table of Contents

INFINITY ICS, MODEL 58MVC
DIRECT VENT 4---WAY MULTIPOISE
MODULATING CONDENSING GAS FURNACE
WITH IDEALCOMFORTt IDEALHUMIDITYt
NOTE TO INSTALLER:
THIS MANUAL MUST BE LEFT WITH THE EQUIPMENT
USER.
USER: Please read all instructions in the manual and retain all
manuals for future reference.
WARNING
!
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in
injury, death, or property damage.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
- -Do not try to light any appliance.
- -Do not touch any electrical switch; do not use any
phone in your building.
- -Leave the building immediately.
- -Immediately call your gas supplier from a neighbor's
phone. Follow the gas supplier's instructions.
- -If you cannot reach your gas supplier, call the fire
department.
Installation and service must be performed by a qualified
installer, service agency or the gas supplier.
WARNING
!
CARBON MONOXIDE POISONING HAZARD
Failure to follow this warning could result in personal
injury and/or death.
Carbon Monoxide is invisible, odorless, and toxic! Carrier
Heating and Cooling Systems recommends a carbon
monoxide alarm in your home, even if you do not own a
gas appliance. Locate the carbon monoxide alarm in the
living area of your home and away from gas appliances and
doorways
to
attached
manufacturer's instruction included with the alarm.
Owner's Manual
garages.
Follow
the
alarm
Do not use this furnace if any part has been under water. A
flood- -damaged furnace is extremely dangerous. Attempts to
use the furnace can result in fire or explosion. A qualified
service agency should be contacted to inspect the furnace
and to replace all gas controls, control system parts,
electrical parts that have been wet or the furnace if deemed
necessary.
1
A05097

Advertisement

Table of Contents
loading

Related Manuals for Carrier 58MVC

Summary of Contents for Carrier 58MVC

  • Page 1 CARBON MONOXIDE POISONING HAZARD Failure to follow this warning could result in personal injury and/or death. Carbon Monoxide is invisible, odorless, and toxic! Carrier Heating and Cooling Systems recommends a carbon monoxide alarm in your home, even if you do not own a gas appliance.

  • Page 2: Table Of Contents

    A revolutionary design employs two heat exchangers to maximize the amount of heat from the fuel consumed. In fact, your new furnace is so efficient, up to 95%* of the heat generated during combustion is captured and delivered inside your home.

  • Page 3: Furnace Components

    (Location in furnace varies.) 10. Heavy- -duty blower. Circulates air across the heat exchangers to transfer heat into the home. Fig. 2 - - Model 58MVC Furnace 11. Everlastict Secondary condensing heat exchanger (inside). Wrings out more heat through condensation. Constructed with polypropylene- -laminated steel to ensure durability.

  • Page 4: Safety Considerations

    SAFETY CONSIDERATIONS Recognize safety information. This is the safety- -alert symbol . When you see this symbol on the furnace and in instructions or manuals, be alert to the potential for personal injury. Understand the signal words: DANGER, WARNING, and CAUTION.

  • Page 5: Starting And Shutting Down Your Furnace

    5 minutes. (See Fig. 11.) Then smell for gas, including near the floor. If you smell gas, STOP! Follow “B” on furnace label. If you don’t smell gas, go to next step. 6. After waiting 5 minutes, turn the control switch on the gas control to the ON position.
  • Page 6 After ignition A04151 and a time delay of about 30 sec, the furnace blower will start. Variable- -capacity furnaces start at medium speed until the control makes the necessary adjustments to operate the blower at either the low- -, medium- -, or high- -heat speed.

  • Page 7: Shutting Down Your Furnace

    Some thermostats have a FAN mode with 2 selections: AUTO and ON. When set on AUTO, the furnace blower cycles on and off. In the ON mode, the furnace blower runs continuously.

  • Page 8: Filtering Out Trouble

    The air filter is normally located in the blower compartment or in the factory- -supplied filter cabinet attached to the side or bottom of the furnace casing. If air filter has been installed in another location, contact your dealer for instructions. To inspect, clean, and/or replace the air filter(s), follow these steps: 1.
  • Page 9 Fig. 22 - - Removing Bottom Filter Cabinet Door Fig. 23 - - Sliding Filter Retainer Sideways Fig. 24 - - Slide Air Filter Out of Furnace Fig. 28 - - Slide Bottom Filter Out of Furnace A06191 Fig. 25 - - Removing Filter Retainer from Latch A93010 Fig.
  • Page 10 30.) or filter cabinet door. (Fig. 31 and 32.) 9. Turn on electrical supply to furnace. If your furnace air filter needs to be replaced, be sure to use a factory- -authorized filter of the same size that was originally the proper filter size.

  • Page 11: Combustion Area And Vent System

    Check the combustion- -air intake and vent pipe on the outside of your home for blockage. When dirt, soot, scale, or rust is allowed to build up, your furnace can suffer a loss of efficiency and perform improperly. Accumulations on the main burners can result in firing out of normal sequence.

  • Page 12: A Check- -Up Checklist

    Return- -air temperature must not exceed 85_F (29.4_C) db. If you choose to leave your furnace on during extended absences do not set your thermostat lower than the limits shown in the Caution box above.

  • Page 13: Before You Request Aservice Call

    BEFORE YOU REQUEST A SERVICE CALL If your furnace is not operating or not performing properly, you may save the expense of a service call by checking a few things yourself before calling for service. For Insufficient Airflow: Check for dirty air filter(s).

  • Page 14: Installation Data

    INSTALLATION INFORMATION: Date Installed ________________________________ DEALERSHIP CONTACT INFORMATION: Company Name_______________________________ Address______________________________________ _____________________________________________ Phone Number _______________________________ Technician Name _____________________________ _____________________________________________ _____________________________________________ NOTE TO INSTALLER: HEATING & COOLING Carrier Corporation S Indianapolis, IN 46231 Edition Date: 12/08 Catalog No: OM58---128 Replaces: OM58--- 124...
