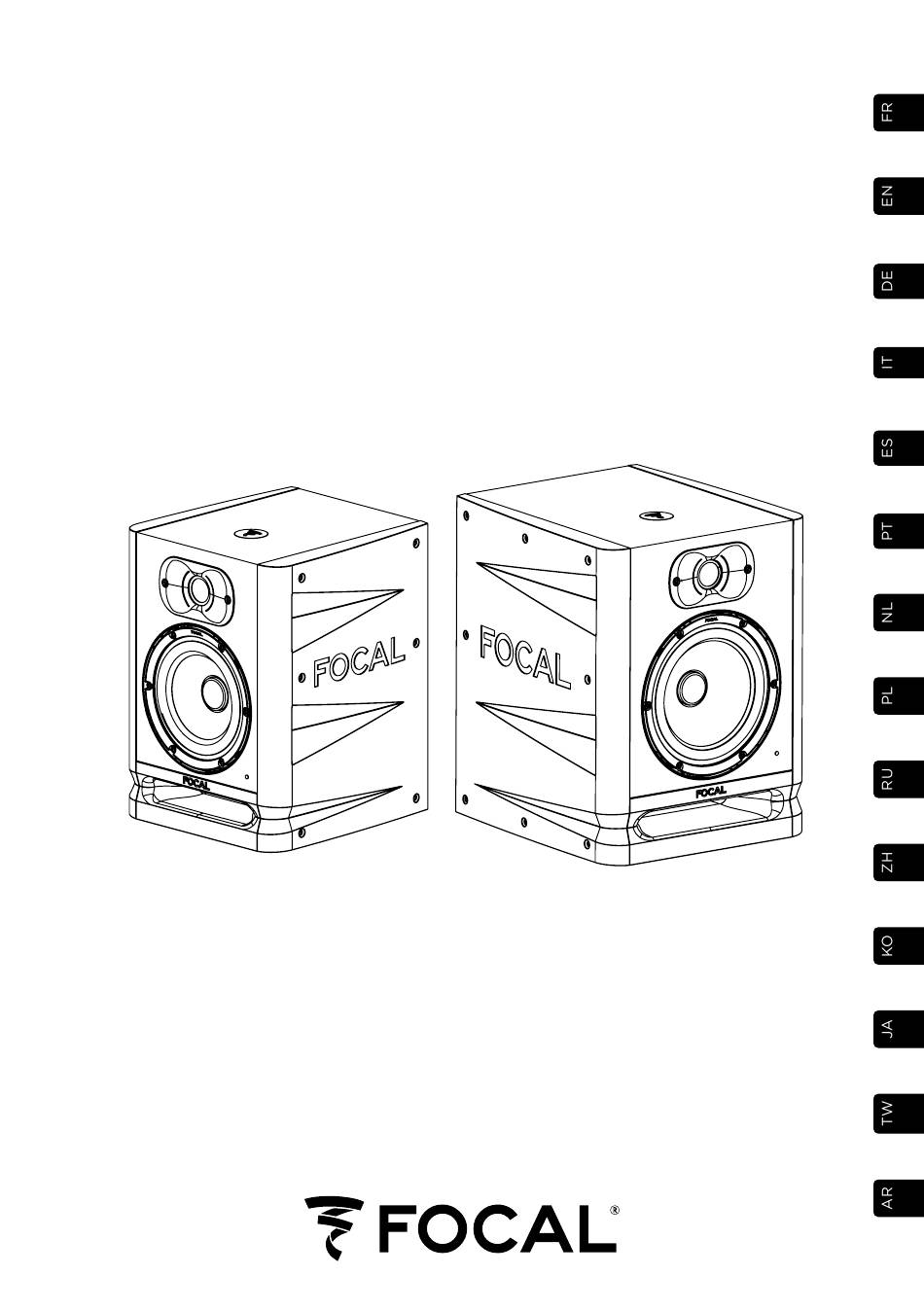

- Page 1 ALPHA ™ Manuel d’utilisation / User Manual / Gebrauchsanleitung / Manuale d’uso / Manual de uso / Manual de utilização / Handleiding / Instrukcja obsługi / Руководство по 使 用 手 册 / 사용 설명서 / эксплуатации / دليل المستخدم 取扱説明書 /...
- Page 2 English READ FIRST ! IMPORTANT SAFETY INSTRUCTIONS ! The bolt of lightning in an equilateral triangle Warning: To prevent any risk of electric shock, The exclamation mark in an equilateral triangle warns the user that the device has high do not remove the cover (or the back) from warns the user that the manual contains voltage that could result in a risk of electric the device.
- Page 3 Warranty terms and conditions All Focal loudspeakers are covered by warranty drawn up by the official Focal distributor in your country. Your distributor can provide all details concerning the conditions of warranty. Warranty cover extends at least to that granted by the legal warranty in force in the country where the original purchase invoice was issued.
- Page 4 ALPHA ™ U s e r m a n u a l Quick start guide 1. Before you do anything, check that the loudspeakers and audio source (console, etc.) are in the Off position and that all settings at the back of the loudspeakers are in the 0 position. Connect the audio signal from the source to the loudspeakers, using the XLR, RCA or TRS inputs.
- Page 5 ALPHA ™ U s e r m a n u a l ALPHA 50 EVO The ALPHA 50 EVO is an active 2-way near-field professional loudspeaker internal amplifiers), comprising a 51/8” (13cm) mid-bass speaker driver with Slatefiber cone, fitted with a large-section laminar port and an aluminium inverted dome tweeter (fig.
- Page 6 Automatic stand-by The ALPHA EVO monitors are equipped with a “Stand-by” mode. When you switch on the monitors, the “Stand-by” mode is enabled. To disable it, send an audio signal to the monitor by gradually increasing the volume of the audio source. After around 15 minutes without receiving an audio signal, the monitors automatically switch to “Stand-by”...
- Page 7 250° Running-in The transducers used in the ALPHA EVO loudspeakers are complex mechanical assemblies that require a running-in period to operate at their best and to become acclimatised to the temperature and humidity conditions of your environment. The length of time this takes can vary depending on the conditions and may extend over several weeks. Avoid listening to the loudspeakers at a high volume for the first few hours.
- Page 8 Inserting/removing the grilles The ALPHA EVO loudspeakers are supplied with one grille for the tweeter and one grille for the woofer. To remove a grille, simply use your fingers to pull on the notches above and below the grille, taking care not to damage the tweeter or woofer.
- Page 9 “ON-OFF” switch is in the “ON” position. 11 - WALL/CEILING MOUNTING The mounting points allow you to fix the ALPHA EVO monitors to the wall and/or ceiling using the K&M® accessories. The centre-to-centre distance is 70 mm for ALPHA 50 EVO and 65. Use M6 screws.
- Page 10 ALPHA ™ U s e r m a n u a l 1 COLOR PRINTING: Line thickness (frame only): PANTONE P877C 0.40mm(+/-0.05) CCC logo: Added after certi cation PRINTING NEW ALPHA 50 - SRDOS-190624/10...
- Page 11 ALPHA ™ U s e r m a n u a l System ALPHA 50 EVO ALPHA 65 EVO • Frequency response (+/- 3dB) 45Hz - 22kHz 40Hz - 22kHz • Maximum SPL 101dB SPL 104dB SPL (peak @ 393/8" (1m)) (peak @ 393/8"...
- Page 12 Élimination correcte de ce produit. Ce marquage indique que ce produit ne doit pas être éliminé avec les autres déchets ménagers au sein de l’UE. Par mesure de prévention pour l'environnement et pour la santé humaine, veuillez le recycler de manière responsable, pour favoriser la réutilisation des ressources matérielles.
- Page 13 Focal-JMlab - BP 374 - 108, rue de l'Avenir - 42353 La Talaudière cedex - France - www.focal.com ® Tel. (+33) 04 77 43 57 00 - Fax (+33) 04 77 43 57 04 - SCCG - 11/09/2020 - v2 - CODO1668/1669...
- Page 14 ALPHA EVO UNPACKING DÉBALLAGE ALPHA EVO...

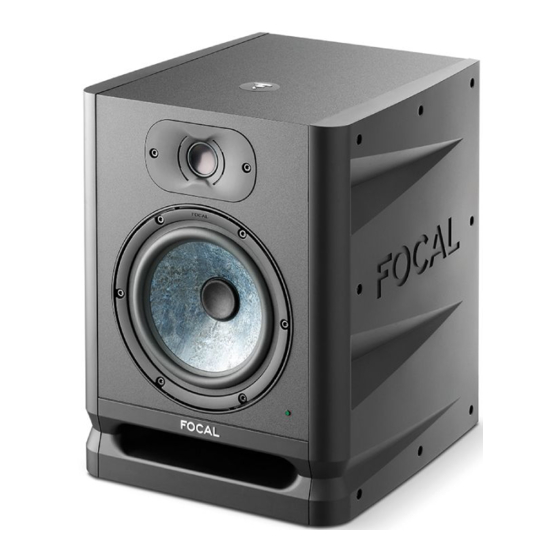

- Page 15 Alpha 50 Evo has a 1" (25mm) Aluminium tweeter and a 5" (13cm) woofer with Slatefiber cone developed and manufactured in Focal's workshops in France. This monitor features excellent dynamics and neutrality in its tonal balance. Thanks to new technologies and features, Alpha 50 Evo is highly versatile.
