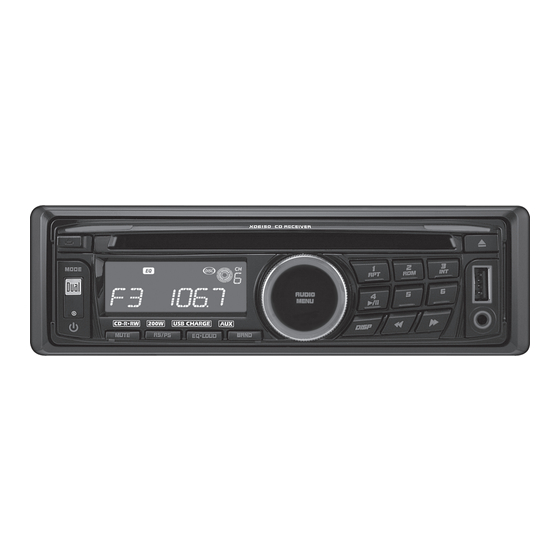

- Page 1 XD6150 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver with 3.5mm Auxiliary Input, USB Charging Port and Detachable Face Charge Port...
-
Page 2: Preparation
XD6150 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
R-CH RCA Cable (sold separately) Antenna Connector FUSE When replacing the fuse, make sure new fuse is the correct type and amperage. Using an incorrect fuse could damage the radio. The XD6150 uses one 10 amp AGC fuse located in-line. -
Page 4: Control Locations - Receiver
Preset 6 Eject The XD6150 has an easy-to-use interface that provides a rewarding experience, as well as support for your favorite tunes. Audio CD-R and CD-RW disc playback ensures compatibility with your music collection, and the RCA preamp output provides the right connections to expand your system. -
Page 5: Control Locations - Remote
Power ( ) Audio/Menu Volume Up Mode Tune/Track Up Volume Down Auto Store/Preset Scan Preset 3/Intro Preset 2/Random XD6150 OPERATION Control Locations - Remote Preset 6 Preset 5 Display Mute Preset 4/Play/Pause Preset 1/Repeat Band Tune/Track Down... -
Page 6: General Operation
XD6150 OPERATION General Operation Faceplate Removal Semi-Permanent Faceplate Installation Power On/Off Mode Auxiliary Input USB Charging Port Volume Mute Reset Display Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Remove trim ring and install supplied #1 x 7/32” Phillips head screw through left side of mounting frame into faceplate. -
Page 7: Setup Menu
MSG ON DEMO OFF Demonstration Mode DEMO ON XD6150 OPERATION With the unit on, press and hold DISP until the clock begins to flash, then release. Press TUNE TUNE to adjust the minutes. Press DISP momentarily to save the selected time. - Page 8 XD6150 OPERATION General Operation Audio Bass Treble Balance Fader Preset EQ Curves Loudness Press AUDIO/MENU momentarily to select between Volume (default), Bass, Treble, Balance and Fader. VOLUME BASS TREBLE Press AUDIO/MENU until BAS appears. Rotate the volume knob left/right to adjust (-6 minimum / +6 maximum).
-
Page 9: Am/Fm Tuner Operation
Seek Tuning Manual Tuning Band Storing and Recalling Station Presets Preset Scan Automatic Station Store XD6150 OPERATION AM/FM Tuner Operation Press TUNE or TUNE seek the next strong station. Press TUNE or TUNE frequency up or down one step at a time. Press and hold to advance quickly. Press BAND to select between FM1, FM2, FM3, AM1 and AM2 bands. -
Page 10: Cd Player Operation
XD6150 OPERATION CD Player Operation Insert CD Eject CD Track Select Fast Forward and Reverse Pause Repeat Random Intro CD-R/RW Compatibility With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Press EJECT to eject the CD. The unit will change to previous mode of operation (AM/FM or AUX). -
Page 11: Troubleshooting - General
Focus error or disc is in upside down on display CD mechanism position out of alignment Unit will not accept a disc CD transit screws still in place XD6150 OPERATION Troubleshooting - General Cause Check connections for proper voltage (11~16VDC) Check connection to ground Replace fuse Check connections at speakers... -
Page 12: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 13: Specifications
CEA-2006 Power Standard Specifications (reference: 14.4VDC +/- 0.2V, 20Hz~20kHz) Power Output: 17 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to Noise Ratio: 80dBA (reference: 1 watt into 4 ohms) XD6150 OPERATION Specifications 10Hz-20kHz >65dB 1 Bit 87.5MHz-107.9MHz... -
Page 14: Fcc Compliance
XD6150 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 15 XD6150 NOTES...
- Page 16 Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. Other trademarks and trade names are those of their respective owners. NSA0509-V01...
