Page 1

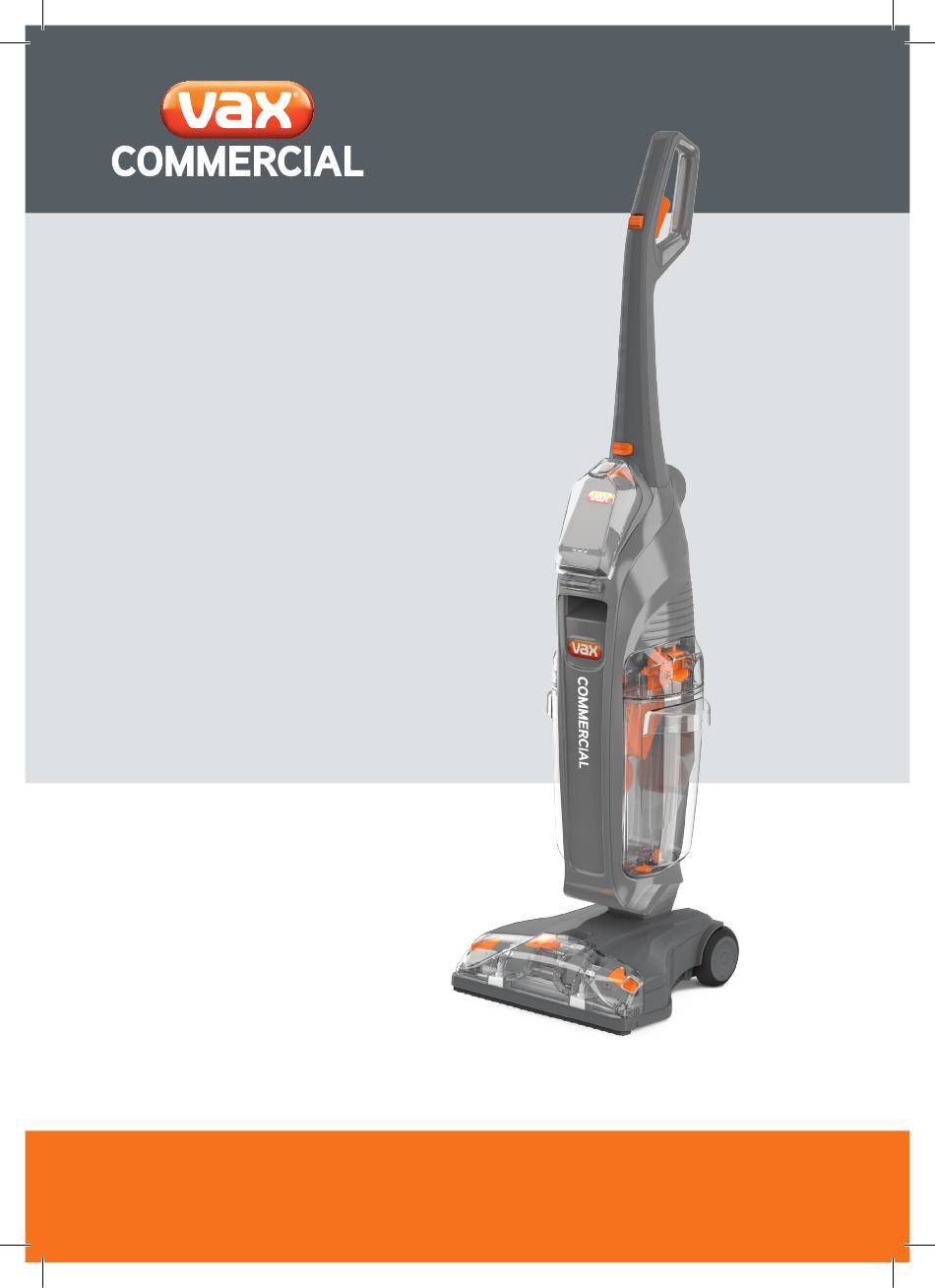

VCSD-03 User Guide Vax Commercial Careline: (UK) 0330 026 4275 vaxcommercial.co.uk A leading brand from one of the world’s VCSD-03 largest floorcare manufacturers. VCSD-03_HardFloor_Commercial_UG_[VAX001553]_PRINT_261114.indd 1 27/11/2014 08:32...
2. This machine is designed for use on indoor hard floors only. 3. Do not use charger if the cable is damaged. Contact Vax Commercial Careline: (UK) 0330 026 4275. 4. The machine should only be used by personnel who have received appropriate training.
Page 3
+ 10°C and +50°C. When using the machine under any condition the humidity must range between 30% and 95%. 10. Only Vax Commercial recommended detergents, tools and accessories should be used with this machine. 11. Never use or vacuum liquids, gases, dry dust, acids and solvents (e.g.
Page 4
Do not disassemble or heat above manufacturer’s maximum temperature limit (60° C/140°F) or incinerate. Replace battery with Vax battery only. Use of another battery may present a risk of fire or explosion. Dispose of used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire.
Machine Overview Detergent release trigger (hidden) Cleaning mode selector Handle Folding handle release button Battery cover Battery Carry handle Dirty water tank release button Clean water tank release button 10. Dirty water tank Clean water tank 12. Unit recline pedal Nozzle release latch 14.
INITAL SETUP: ASSEMBLING YOUR VCSD-03 Raise the machine to upright position Pull the nozzle release latch Lie the VCSD-03 on its back. Line until it clicks and locks into place. upwards and forwards to remove. up the spindle on the SpinScrub™...
(60°C/140°F) or incinerate. Replace the battery with a Vax Commercial battery only. Use of another battery may present a risk of fire or explosion. Dispose of the used battery promptly. Keep away from children. Do not disassemble and do not dispose of in fire. Do not attempt to disassemble the battery or remove any component projecting from the battery terminals.
Preparation FILLING THE CLEAN WATER TANK IMPORTANT: Only use Vax Commercial hard floor cleaning detergent. Using other cleaning detergent may cause excess foaming, which will prevent the machine from working effectively. Using other detergents will invalidate the warranty. Press the release button on the...
IMPORTANT: Please refer to floor manufacturer’s care recommendations before use, and test the flooring by cleaning a small hidden area with the VCSD-03. If no damage or discolouration has occurred once the area is dry, continue cleaning. Not suitable for use on water sensitive flooring. Vacuum the hard floor thoroughly prior to using your VCSD-03.
NOTE: The dirty water tank has an automatic shut off to prevent the tank from overflowing. If this is activated, the VCSD-03 will not pick up and the sound of the motor will change. The dirty water tank will need to be emptied.
CLEANING THE NOZZLE Pull the nozzle release latch up Remove the nozzle from the Remove any debris from the and forward. VCSD-03 and rinse under running squeegee by wiping with a water (max 40°C). damp cloth. CLEANING THE SPINSCRUB BRUSHES Press both of the brush Remove the brush assembly cover.
TIP: You may wish to charge the spare battery so it is ready to use. CARRYING AND STORAGE To lower the handle, press the handle The VCSD-03 can be carried by release button and fold the handle to lifting the carry handle on the front.
Page 14
• The battery or charger has an error. Remove the battery and unplug charger, wait 10 seconds then plug charger into socket and re-insert the battery. • Check terminals on battery and VCSD-03 are clean. vaxcommercial.co.uk VCSD-03_HardFloor_Commercial_UG_[VAX001553]_PRINT_261114.indd 14 27/11/2014 08:32...
9:00am to 5:00pm Any queries or concerns about using your Vax, call the Vax Commercial Careline. Calls are charged at the UK local rate. Please make a note of the serial number and model number of the hard floor cleaner before calling.
Page 16
COMMERCIAL Vax Ltd., 5th Floor 2 Colmore Square, 38 Colmore Circus, Queensway, Birmingham, B4 6BN, UK email: info@vaxcommercial.co.uk website: vaxcommercial.co.uk A leading brand from one of the world’s Version 1 largest floor care manufacturers. VCSD-03_HardFloor_Commercial_UG_[VAX001553]_PRINT_261114.indd 16 27/11/2014 08:32...
