Congratulations on purchasing
your new Hunter® ceiling fan! It will
provide comfort and performance
in your home or office for many
years. This installation and operation
manual contains complete
instructions for installing and
operating your fan.
We are proud of our work and
appreciate the opportunity to
supply you with the best ceiling fan
available anywhere in the world.
To register your fan, please visit:
www.HunterFan.com/register
Save your receipt for proof of purchase.

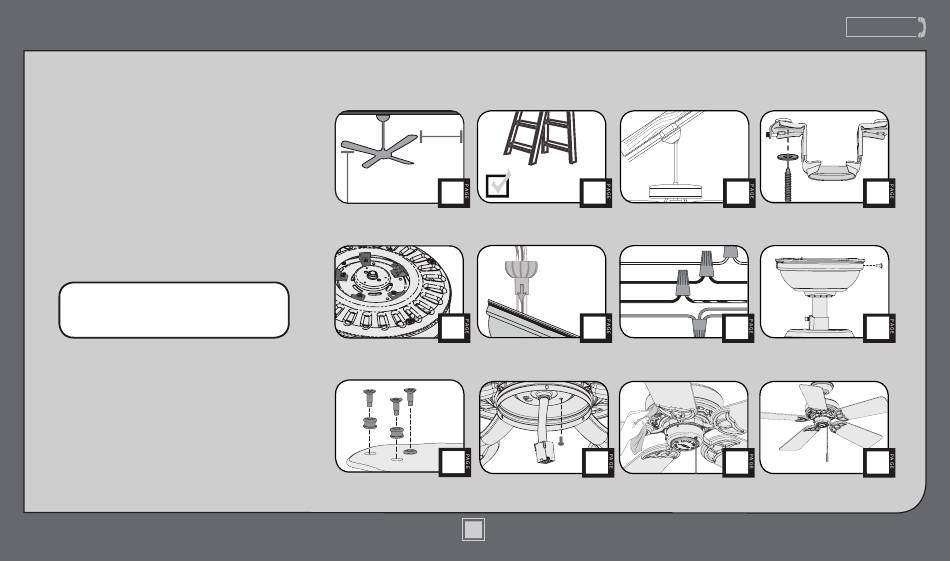

What to Expect with
Your Installation
Tools Needed
30 inches
7 feet
2
Preparation
Downrod
6
Blades
Switch Housing
12
1
M0075-01 • 01/07/19 • © 2019 Hunter Fan Company
www.HunterFan.com
Mounting Options
Ladder
3
Wiring
7
Maintenance &
Cleaning
13
1.888.830.1326
Ceiling Bracket
4
5
Canopy
10
11
Troubleshooting
?
?
?
15
16
Advertisement
Table of Contents
Related Manuals for Hunter Bridgeport Outdoor
Summary of Contents for Hunter Bridgeport Outdoor
- Page 1 To register your fan, please visit: www.HunterFan.com/register Save your receipt for proof of purchase. Maintenance & Blades Switch Housing Cleaning Troubleshooting M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
-
Page 2: What To Expect With Your Installation
10 feet or higher with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. Check box to see fan weight Assess ceiling angle Select a downrod length M0075-01 • 01/07/19 • © 2019 Hunter Fan Company... -
Page 3: Tools Needed
Tools Needed www.HunterFan.com 1.888.830.1326 Pliers Wire Strippers Screwdrivers Ladder Power Drill 9/64” Drill Bit (optional) (optional) If mounting to a support structure, you will also need these tools. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company... -
Page 4: Mounting Options
You need BOTH You need ONLY a Longer a Longer Downrod & Downrod an Angled Mounting Kit *most common M0075-01 • 01/07/19 • © 2019 Hunter Fan Company M0075-01 • 01/07/19 • © 2019 Hunter Fan Company... -
Page 5: Ceiling Bracket
To avoid possible electrical shock, before installing your fan, disconnect the power by turning off the circuit breakers to the outlet Refer to warning w.1 on pg. 2 box associated with the wall switch location. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company... - Page 6 Save the screws. They will be next couple of steps. needed for blade iron installation. Note: Some fans will have a shipping ring instead of shipping blocks. Please remove the ring and save the screws. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
- Page 7 Steps 1-5 to remove standard downrod pipe Longer Downrod for angled ceilings or ceilings 10’ or higher Shorter Downrod for fans installed close to ceiling Steps 6-10 to reassemble with new pipe M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
- Page 8 To prevent SERIOUS INJURY or DEATH: 8” 3/8” • ALWAYS tighten setscrew with pliers. • DO NOT hand tighten setscrew. • CHECK the setscrew is tight using pliers each time you change fan direction. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
- Page 9 CANOPY OR WIRES. Place the downrod of the fan. ball into the slot in the ceiling bracket. To prevent damage to fan, ALWAYS lift holding either the fan housing or the downrod. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
- Page 10 Spread the wires apart, with the grounded wires on one side of Refer to CAUTION c.1 on pg. 2 the outlet box and the ungrounded wires on the other side of the outlet box. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
- Page 11 Insert the two canopy screws lifted into place, the canopy fits into the screw holes are aligned. found in the hardware bag. the hanging bracket as shown. Note: Fan style may vary. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
- Page 12 M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
-
Page 13: Switch Housing
WARNING FAN FALL HAZARD Make sure screws are tight to secure the upper switch housing to the mounting plate. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company... - Page 14 Tighten all WARNING three screws. FAN FALL HAZARD Make sure screws are tight to secure the Note: Fan style may vary. light fixture. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
-
Page 15: Maintenance And Cleaning
Changing the direction of air Cleaning the fan - use soft flow - move the reverse switch brushes or cloths to prevent to the opposite position. scratching. Cleaning products may damage the finishes. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company... -
Page 16: Troubleshooting
• Check to see if any of the according to the wiring diagram blades are cracked. If so, replace on page 10. all of the blades. • Check the plug connection in the switch housing. M0075-01 • 01/07/19 • © 2019 Hunter Fan Company...
