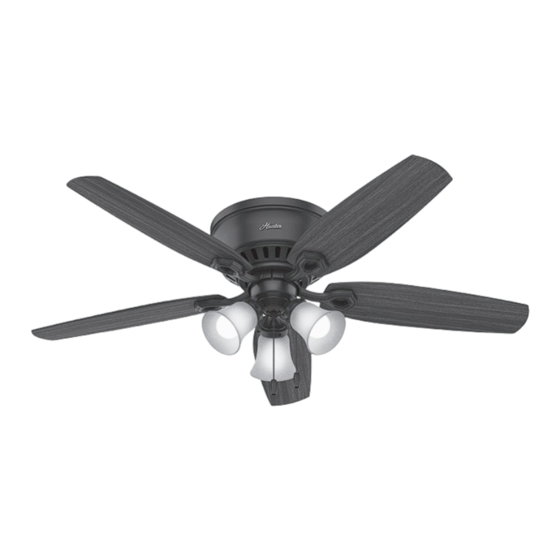

- Page 1 Builder Low Profile Installation Manual Model: 53326 Snow White 53327 New Bronze 53328 Brushed Nickel 51112 Brushed Nickel 51113 Matte Silver Fan weight ±2 lbs: 18.3 lbs (8.3 kg) ©2020 Hunter Fan Co. PG3651 060120...
- Page 2 - All wiring must be in accordance with national and local electrical codes ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualified electrician. c.2 - Use only Hunter replacement parts. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 We recommend that you pull everything out of the box and lay it out. We have grouped the drawn components below with the hardware you’ll need for those Hunter Pro Tip: parts. The screws below are drawn to scale to make it easier to identify what piece of hardware is needed to install each component.
-
Page 4: Choosing The Right Installation Location
31.8 kg (70 lbs) hardware bag. or less. Wood Screw Hunter Pro Tip: The machine screws are the ones that came with your outlet box. Ceiling Bracket Hanging Fan Wiring... - Page 5 Wiring the Fan We know wiring is hard. Let’s make it easier. Hunter Pro Tip: Follow these steps to get your fan wired quickly and safely. Follow the route be- Here is how to connect the wires: low that best matches your wall switch setup.
-
Page 6: Installing The Motor Housing
1886 Installing the Motor Housing Notch Motor Housing Screw Indentation Raise the motor housing up over the motor and ceiling bracket. Turn the motor housing so the screw holes align With a Phillips head screwdriver, install and the indentation in the housing locks into place with the four motor housing screws found in the notch in the ceiling bracket. - Page 7 Raise the shade to the light fixture. Tighten all thumbscrews securely. WARNING Repeat x3 Hunter Pro Tip: GLASS FALL HAZARD To prevent SERIOUS INJURY or DEATH, make Want to install your fan without a light kit? Note: sure that glass is properly secured.
- Page 8 1886 Installing the Pull Chains Feed the pull chains from the fan switch and the light switch down through the holes in the upper switch housing as shown. Attach the pull chain pendants to the light and fan pull chains. The fan pull chain controls the speed: from high to off.
-
Page 9: Troubleshooting
Hunter instructions, accidental damage caused by the fan owner or related parties, Please do not ship your fan or any fan parts to Hunter. Delivery will be refused. modifications to the fan, improper or incorrectly performed maintenance or repair,...
