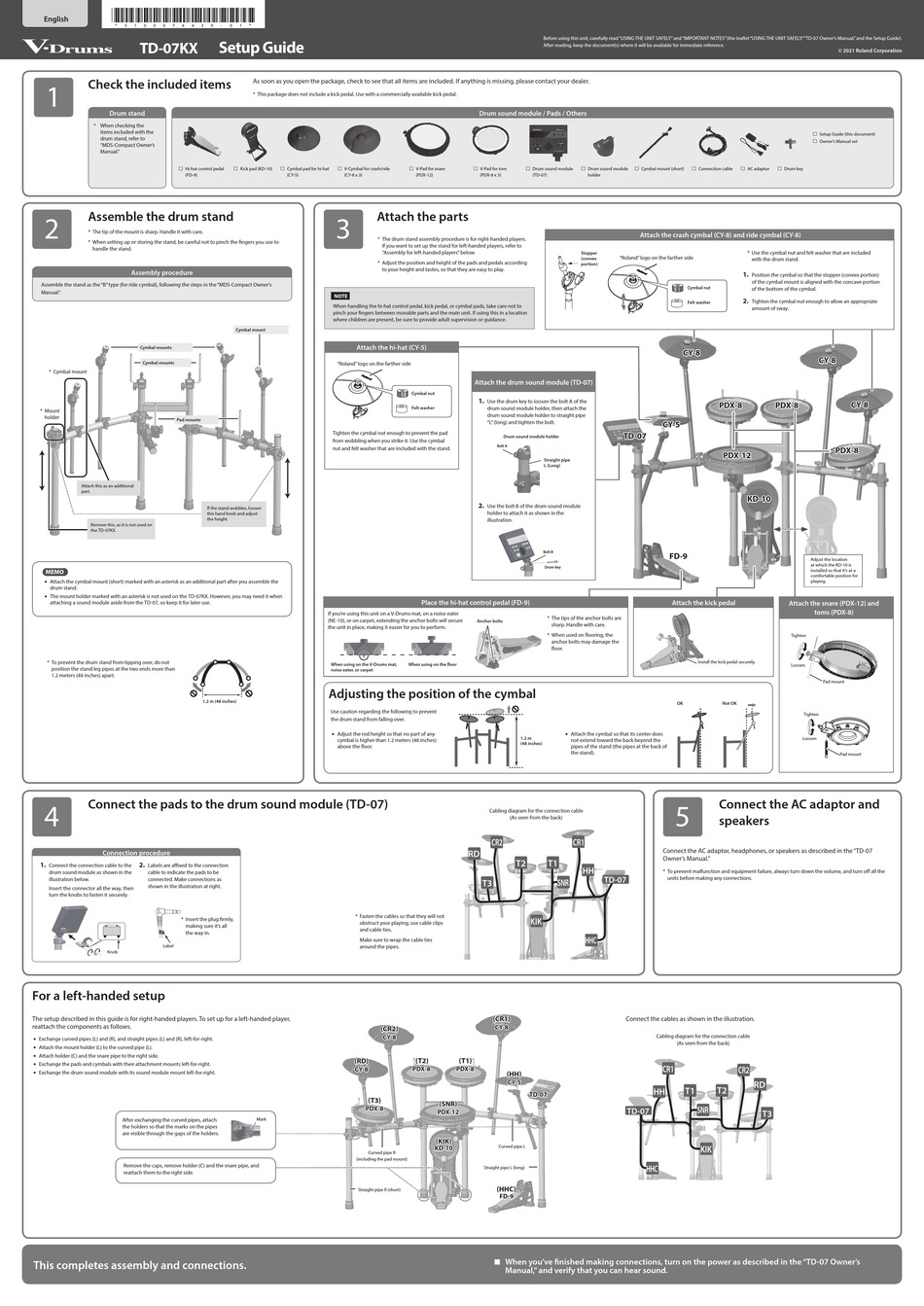

Roland V-Drums TD-07KX Setup Manual

* 5 1 0 0 0 7 6 4 3
TD-07KX
Check the included items
1
Drum stand
* When checking the
items included with the
drum stand, refer to
"MDS-Compact Owner's
Manual. "
8 Hi-hat control pedal
(FD-9)
Assemble the drum stand
2
* The tip of the mount is sharp. Handle it with care.
* When setting up or storing the stand, be careful not to pinch the fingers you use to
handle the stand.
Assembly procedure
Assemble the stand as the "B" type (for ride cymbal), following the steps in the "MDS-Compact Owner's
Manual. "
Cymbal mounts
Cymbal mounts
* Cymbal mount
* Mount
holder
Pad mounts
Attach this as an additional
part.
If the stand wobbles, loosen
this hand knob and adjust
the height.
Remove this, as it is not used on
the TD-07KX.
MEMO
5 Attach the cymbal mount (short) marked with an asterisk as an additional part after you assemble the
drum stand.
5 The mount holder marked with an asterisk is not used on the TD-07KX. However, you may need it when
attaching a sound module aside from the TD-07, so keep it for later use.
* To prevent the drum stand from tipping over, do not
position the stand leg pipes at the two ends more than
1.2 meters (48 inches) apart.
1.2 m (48 inches)
Connect the pads to the drum sound module (TD-07)
4
Connection procedure
1. 2.
Connect the connection cable to the Labels are affixed to the connection
drum sound module as shown in the cable to indicate the pads to be
illustration below. connected. Make connections as
shown in the illustration at right.
Insert the connector all the way, then
turn the knobs to fasten it securely.
* Insert the plug firmly,
making sure it's all
the way in.
Label
Knob
For a left-handed setup
The setup described in this guide is for right-handed players. To set up for a left-handed player,
reattach the components as follows.
5 Exchange curved pipes (L) and (R), and straight pipes (L) and (R), left-for-right.
5 Attach the mount holder (L) to the curved pipe (L).
5 Attach holder (C) and the snare pipe to the right side.
5 Exchange the pads and cymbals with their attachment mounts left-for-right.
5 Exchange the drum sound module with its sound module mount left-for-right.
After exchanging the curved pipes, attach
the holders so that the marks on the pipes
are visible through the gaps of the holders.
Remove the caps, remove holder (C) and the snare pipe, and
reattach them to the right side.
This completes assembly and connections.
9 - 0 1 *
Setup Guide
As soon as you open the package, check to see that all items are included. If anything is missing, please contact your dealer.
* This package does not include a kick pedal. Use with a commercially available kick pedal.
8 Kick pad (KD-10) 8 Cymbal pad for hi-hat 8 V-Cymbal for crash/ride
(CY-5) (CY-8 x 3)
Attach the parts
3
* The drum stand assembly procedure is for right-handed players.
If you want to set up the stand for left-handed players, refer to
"Assembly for left-handed players" below.
* Adjust the position and height of the pads and pedals according
to your height and tastes, so that they are easy to play.
NOTE
When handling the hi-hat control pedal, kick pedal, or cymbal pads, take care not to
pinch your fingers between movable parts and the main unit. If using this in a location
where children are present, be sure to provide adult supervision or guidance.
Cymbal mount
Attach the hi-hat (CY-5)
"Roland" logo on the farther side
Tighten the cymbal nut enough to prevent the pad
from wobbling when you strike it. Use the cymbal
nut and felt washer that are included with the stand.
If you're using this unit on a V-Drums mat, on a noise eater
(NE-10), or on carpet, extending the anchor bolts will secure
the unit in place, making it easier for you to perform.
When using on the V-Drums mat,
noise eater, or carpet
Adjusting the position of the cymbal
Use caution regarding the following to prevent
the drum stand from falling over.
5 Adjust the rod height so that no part of any
cymbal is higher than 1.2 meters (48 inches)
above the floor.
* Fasten the cables so that they will not
obstruct your playing; use cable clips
and cable ties.
Make sure to wrap the cable ties
around the pipes.
(CR2)
CY-8
(RD)
CY-8
(T3)
PDX-8
Mark
Curved pipe R
(including the pad mount)
Straight pipe R (short)
Before using this unit, carefully read "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (the leaflet "USING THE UNIT SAFELY, " "TD-07 Owner's Manual, " and the Setup Guide).
After reading, keep the document(s) where it will be available for immediate reference.
Drum sound module / Pads / Others
8 V-Pad for snare 8 V-Pad for tom 8 Drum sound module 8 Drum sound module
(PDX-12) (PDX-8 x 3) (TD-07)
Stopper
(convex
portion)
Attach the drum sound module (TD-07)
Cymbal nut
1.
Use the drum key to loosen the bolt A of the
Felt washer drum sound module holder, then attach the
drum sound module holder to straight pipe
"L" (long) and tighten the bolt.
Drum sound module holder
Bolt A
Straight pipe
L (Long)
2.
Use the bolt B of the drum sound module
holder to attach it as shown in the
illustration.
Bolt B
Drum key
Place the hi-hat control pedal (FD-9)
* The tips of the anchor bolts are
Anchor bolts
sharp. Handle with care.
* When used on flooring, the
anchor bolts may damage the
floor.
When using on the floor
5 Attach the cymbal so that its center does
1.2 m
not extend toward the back beyond the
(48 inches)
pipes of the stand (the pipes at the back of
the stand).
Cabling diagram for the connection cable
(As seen from the back)
CR2 CR1
RD
T2 T1
HH
T3 SNR
KIK
(CR1)
CY-8
(T2) (T1)
PDX-8 PDX-8
(HH)
CY-5
TD-07
(SNR)
PDX-12
(KIK)
KD-10 Curved pipe L
Straight pipe L (long)
(HHC)
FD-9
9
When you've finished making connections, turn on the power as described in the "TD-07 Owner's
Manual," and verify that you can hear sound.
8 Cymbal mount (short) 8 Connection cable 8 AC adaptor
holder
Attach the crash cymbal (CY-8) and ride cymbal (CY-8)
* Use the cymbal nut and felt washer that are included
"Roland" logo on the farther side
with the drum stand.
1.
Position the cymbal so that the stopper (convex portion)
of the cymbal mount is aligned with the concave portion
Cymbal nut of the bottom of the cymbal.
2.
Tighten the cymbal nut enough to allow an appropriate
Felt washer
amount of sway.
CY-8
PDX-8
CY-5
TD-07
PDX-12
KD-10
FD-9
Attach the kick pedal
Install the kick pedal securely.
OK Not OK
Connect the AC adaptor and
5
speakers
Connect the AC adaptor, headphones, or speakers as described in the "TD-07
Owner's Manual. "
* To prevent malfunction and equipment failure, always turn down the volume, and turn off all the
TD-07
units before making any connections.
HHC
Connect the cables as shown in the illustration.
Cabling diagram for the connection cable
(As seen from the back)
CR1
CR2
RD
T2
HH T1
SNR
TD-07
KIK
HHC
© 2021 Roland Corporation
8 Setup Guide (this document)
8 Owner's Manual set
8 Drum key
CY-8
CY-8
PDX-8
PDX-8
Adjust the location
at which the KD-10 is
installed so that it's at a
comfortable position for
playing.
Attach the snare (PDX-12) and
toms (PDX-8)
Tighten
Loosen
Pad mount
Tighten
Loosen
Pad mount
T3
