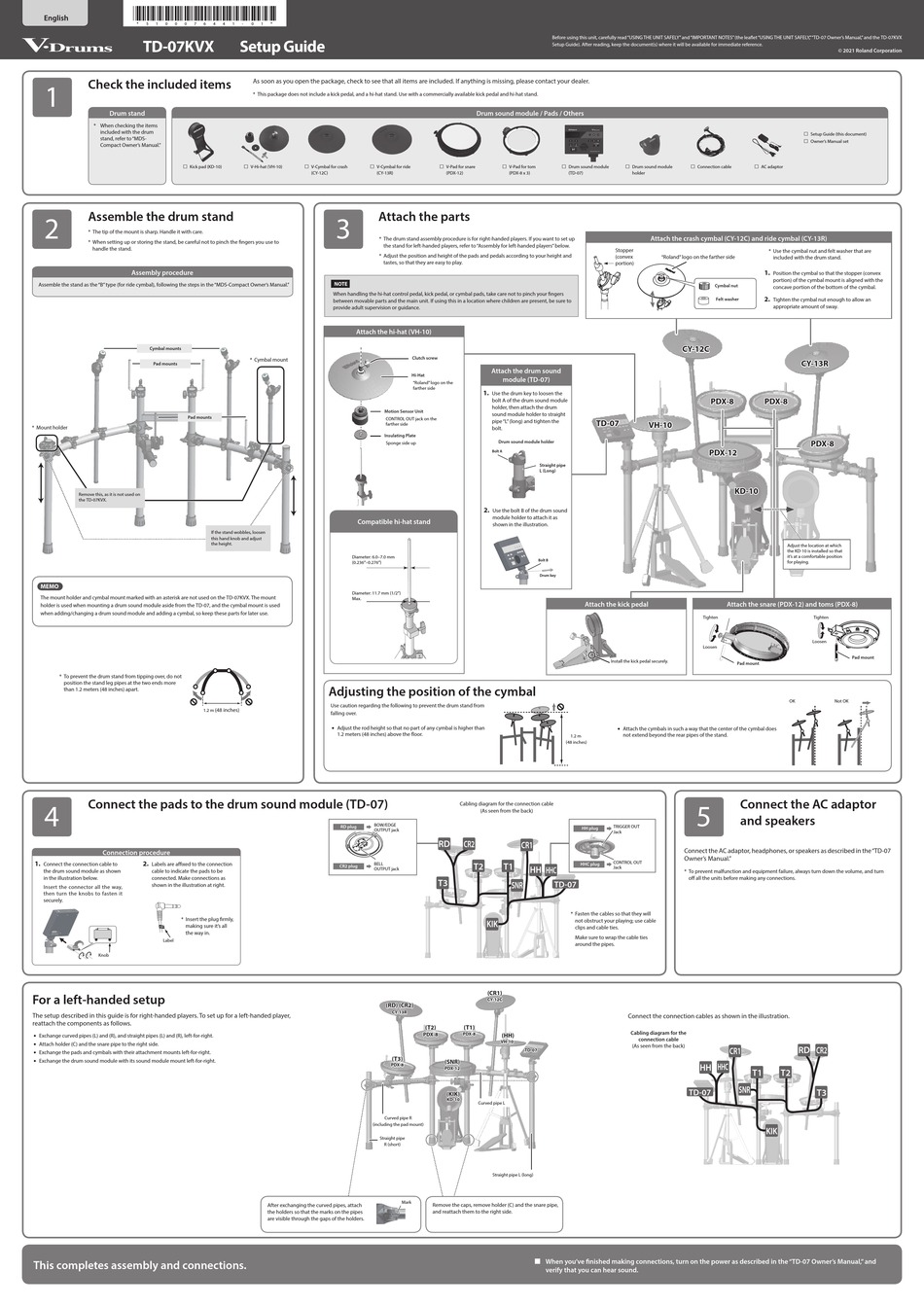

Roland V-Drums TD-07KVX Setup Manual

* 5 1 0 0 0 7 6
TD-07KVX
Check the included items
1
Drum stand
* When checking the items
included with the drum
stand, refer to "MDS-
Compact Owner's Manual. "
8 Kick pad (KD-10)
Assemble the drum stand
2
* The tip of the mount is sharp. Handle it with care.
* When setting up or storing the stand, be careful not to pinch the fingers you use to
handle the stand.
Assembly procedure
Assemble the stand as the "B" type (for ride cymbal), following the steps in the "MDS-Compact Owner's Manual. "
Cymbal mounts
Pad mounts
Pad mounts
* Mount holder
Remove this, as it is not used on
the TD-07KVX.
MEMO
The mount holder and cymbal mount marked with an asterisk are not used on the TD-07KVX. The mount
holder is used when mounting a drum sound module aside from the TD-07, and the cymbal mount is used
when adding/changing a drum sound module and adding a cymbal, so keep these parts for later use.
* To prevent the drum stand from tipping over, do not
position the stand leg pipes at the two ends more
than 1.2 meters (48 inches) apart.
1.2 m
Connect the pads to the drum sound module (TD-07)
4
Connection procedure
1. 2.
Connect the connection cable to Labels are affixed to the connection
the drum sound module as shown cable to indicate the pads to be
in the illustration below. connected. Make connections as
shown in the illustration at right.
Insert the connector all the way,
then turn the knobs to fasten it
securely.
* Insert the plug firmly,
making sure it's all
the way in.
Label
Knob
For a left-handed setup
The setup described in this guide is for right-handed players. To set up for a left-handed player,
reattach the components as follows.
5 Exchange curved pipes (L) and (R), and straight pipes (L) and (R), left-for-right.
5 Attach holder (C) and the snare pipe to the right side.
5 Exchange the pads and cymbals with their attachment mounts left-for-right.
5 Exchange the drum sound module with its sound module mount left-for-right.
This completes assembly and connections.
4 4 1 - 0 1 *
Setup Guide
As soon as you open the package, check to see that all items are included. If anything is missing, please contact your dealer.
* This package does not include a kick pedal, and a hi-hat stand. Use with a commercially available kick pedal and hi-hat stand.
8 V-Hi-hat (VH-10) 8 V-Cymbal for crash 8 V-Cymbal for ride
(CY-12C) (CY-13R)
Attach the parts
3
* The drum stand assembly procedure is for right-handed players. If you want to set up
the stand for left-handed players, refer to "Assembly for left-handed players" below.
* Adjust the position and height of the pads and pedals according to your height and
tastes, so that they are easy to play.
NOTE
When handling the hi-hat control pedal, kick pedal, or cymbal pads, take care not to pinch your fingers
between movable parts and the main unit. If using this in a location where children are present, be sure to
provide adult supervision or guidance.
Attach the hi-hat (VH-10)
* Cymbal mount
Motion Sensor Unit
CONTROL OUT jack on the
farther side
Insulating Plate
Sponge side up
Compatible hi-hat stand
If the stand wobbles, loosen
this hand knob and adjust
the height.
Diameter: 6.0–7.0 mm
(0.236"–0.276")
Diameter: 11.7 mm (1/2")
Max.
Adjusting the position of the cymbal
Use caution regarding the following to prevent the drum stand from
(48 inches)
falling over.
5 Adjust the rod height so that no part of any cymbal is higher than
1.2 meters (48 inches) above the floor.
BOW/EDGE
RD plug
OUTPUT jack
BELL
CR2 plug
OUTPUT jack
(RD) (CR2)
Curved pipe R
(including the pad mount)
Straight pipe
R (short)
After exchanging the curved pipes, attach
the holders so that the marks on the pipes
are visible through the gaps of the holders.
Before using this unit, carefully read "USING THE UNIT SAFELY" and "IMPORTANT NOTES" (the leaflet "USING THE UNIT SAFELY, " "TD-07 Owner's Manual, " and the TD-07KVX
Setup Guide). After reading, keep the document(s) where it will be available for immediate reference.
Drum sound module / Pads / Others
8 V-Pad for snare 8 V-Pad for tom 8 Drum sound module
(PDX-12) (PDX-8 x 3)
Clutch screw
Attach the drum sound
Hi-Hat
module (TD-07)
"Roland" logo on the
farther side
1.
Use the drum key to loosen the
bolt A of the drum sound module
holder, then attach the drum
sound module holder to straight
pipe "L" (long) and tighten the
bolt.
Drum sound module holder
Bolt A
Straight pipe
L (Long)
2.
Use the bolt B of the drum sound
module holder to attach it as
shown in the illustration.
Bolt B
Drum key
Cabling diagram for the connection cable
(As seen from the back)
RD CR2
CR1
T2 T1
HH
HHC
T3
SNR TD-07
KIK
(CR1)
CY-12C
CY-13R
(T2) (T1)
PDX-8 PDX-8 (HH)
VH-10
TD-07
(T3)
(SNR)
PDX-8
PDX-12
(KIK)
KD-10
Curved pipe L
Straight pipe L (long)
Mark
Remove the caps, remove holder (C) and the snare pipe,
and reattach them to the right side.
9 When you've finished making connections, turn on the power as described in the "TD-07 Owner's Manual," and
verify that you can hear sound.
8 Drum sound module 8 Connection cable
(TD-07) holder
Attach the crash cymbal (CY-12C) and ride cymbal (CY-13R)
Stopper
(convex
"Roland" logo on the farther side
portion)
Cymbal nut
Felt washer
CY-12C
PDX-8
TD-07
VH-10
PDX-12
KD-10
Attach the kick pedal Attach the snare (PDX-12) and toms (PDX-8)
Tighten
Loosen
Install the kick pedal securely.
Pad mount
5 Attach the cymbals in such a way that the center of the cymbal does
not extend beyond the rear pipes of the stand.
1.2 m
(48 inches)
5
TRIGGER OUT
HH plug
Jack
Connect the AC adaptor, headphones, or speakers as described in the "TD-07
Owner's Manual. "
CONTROL OUT
HHC plug
Jack
* To prevent malfunction and equipment failure, always turn down the volume, and turn
off all the units before making any connections.
* Fasten the cables so that they will
not obstruct your playing; use cable
clips and cable ties.
Make sure to wrap the cable ties
around the pipes.
Connect the connection cables as shown in the illustration.
Cabling diagram for the
connection cable
(As seen from the back)
CR1
HHC
HH
SNR
TD-07
© 2021 Roland Corporation
8 Setup Guide (this document)
8 Owner's Manual set
8 AC adaptor
* Use the cymbal nut and felt washer that are
included with the drum stand.
1.
Position the cymbal so that the stopper (convex
portion) of the cymbal mount is aligned with the
concave portion of the bottom of the cymbal.
2.
Tighten the cymbal nut enough to allow an
appropriate amount of sway.
CY-13R
PDX-8
PDX-8
Adjust the location at which
the KD-10 is installed so that
it's at a comfortable position
for playing.
Tighten
Loosen
Pad mount
OK Not OK
Connect the AC adaptor
and speakers
RD CR2
T1 T2
T3
KIK
