Kohler 8RESV Installation Instructions

Original Issue Date: 2/14
Model: 8/10/12RESV(L), 14/20RESA/RESAL, and 20RESC/RESCL
Market: Residential/Light Commercial
Subject: Mounting Pad Kits GM90969-KP1-QS, GM90969-KP2-QS,
Introduction

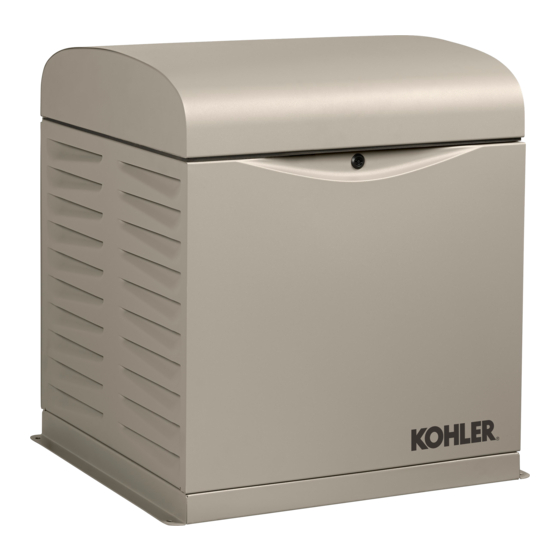

Concrete mounting pads allow easy installation of the
Kohlerr residential generator models listed above.
Mounting pads are available in 3 inch and 4 inch
thicknesses. The 4 inch hurricane pad has a wind rating
of 175 mph and is recommended for storm-prone areas.
Note: Refer to the generator Installation Manual for
important clearance information and location
requirements before installing the generator
mounting pad.
Read the entire installation procedure and compare the
kit parts with the parts list at the end of this publication
before beginning the installation. Perform the steps in
the order shown.
650 mm
(25.6 in.)
864 mm (34 in.)
GM92228-KP1-QS
869 mm (34.2 in.)
GM92228-KP2-QS
76 mm (3 in.) GM92228-KP1-QS
102 mm (4 in.) GM92228-KP2-QS
Figure 1 Mounting Pad Dimensions
INSTALLATION INSTRUCTIONS
GM92228-KP1-QS, and GM92228-KP2-QS
8/10/12RESV(L
)
940 mm (37 in.)
GM92228-KP1-QS
945 mm (37.2 in.)
GM92228-KP2-QS
750 mm
(29.5 in.)
3/8--16 insert, qty 4
Curved Edge
Specifications
Kit Number
GM90969-KP1-QS
14/20RESA(L)
Models
20RESC(L)
Thickness 76 mm (3 in.)
Weight, each 86 kg (190 lbs.)
Wind rating
Kit Number
GM92228-KP1-QS
8/10/12RESV(L)
Models
Thickness 76 mm (3 in.)
Weight, each 61 kg (135 lbs.)
Wind rating
14/20RESA(L
),
1190 mm
(46.9 in.)
270 mm
(10.6 in.)
620 mm
(24.4 in.)
471 mm
(18.6 in.)
1372 mm (54 in.)
TT-1619 7/15b
GM90969-KP2-QS
14/20RESA(L)
20RESC(L)
102 mm (4 in.)
125 kg (275 lbs.)
NA 175 mph
GM92228-KP2-QS
8/10/12RESV(L)
102 mm (4 in.)
84 kg (185 lbs.)
NA 175 mph
20RESC(L)
787 mm
(31 in.)
3/8--16 insert, qty 4
Curved Edge
76 mm (3 in.) GM90969-KP1-QS
102 mm (4 in.) GM90969-KP2-QS
