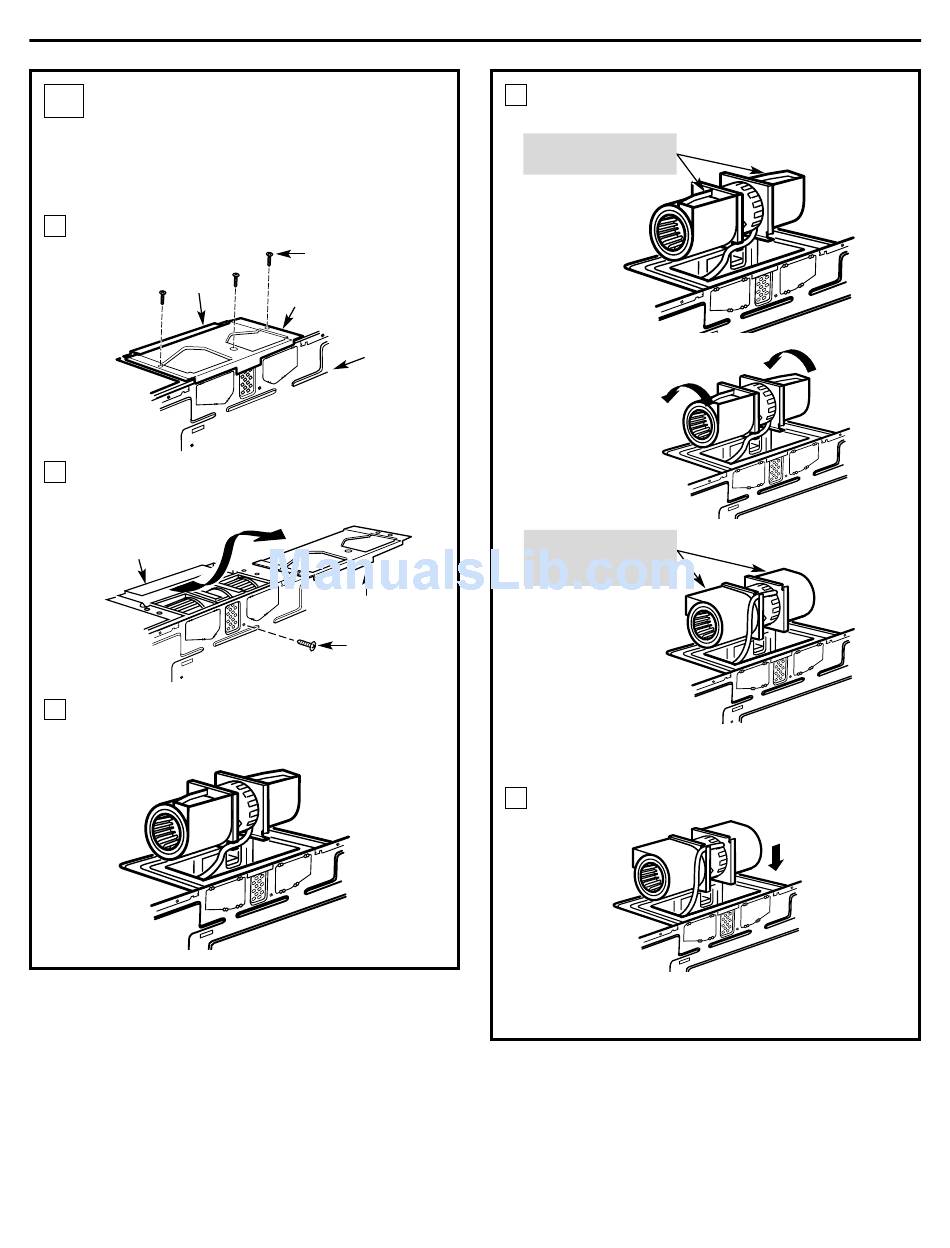

ADAPTING BLOWER FOR
C3
RECIRCULATION
NOTE: The exhaust adaptor with damper is not needed
for recirculating models. You may want to save them for
possible future use.
Remove and save screws that hold the blower plate
1
to the oven.
Retaining
Flange
Slide the blower plate from under its retaining flange
2
and lift it off. Remove and save screw that holds the
blower motor to oven.
Retaining Flange
Carefully pull out the blower unit. The wires will
3
extend far enough to allow you to adjust the
blower unit.
Installation Instructions
Blower Plate Screws
Blower Plate
Back of Oven
Blower Plate
Blower Motor
Screw
20
Roll the blower unit 90° so that fan blade openings
4
are facing toward the front of the oven.
BEFORE: Fan Blade
Openings Facing Up
AFTER: Fan Blade
Openings Facing
Forward
NOTE: Make sure wires remain routed in the grooves of
the motor frame.
Place the blower unit back into the opening.
5
CAUTION:
Do not pull or stretch the blower
unit wiring. Make sure the wires are not pinched.
Roll
