Tools Needed
2 Phillips head screwdrivers (#1 & #2)
Drill and 3/32" drill bit
Centerpunch or nail
Pencil and ruler
Knife

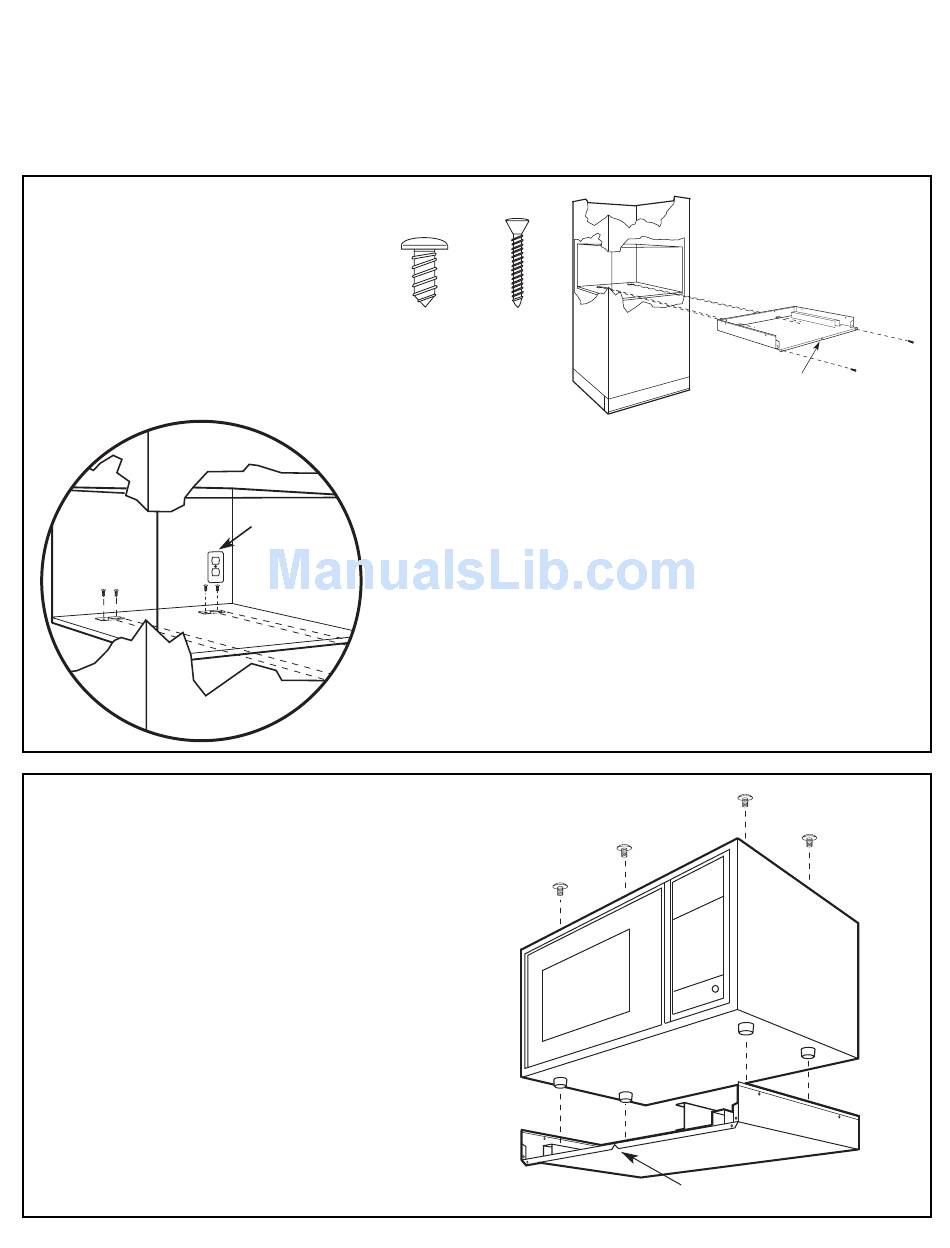

Step 1
Locating and Installing Rear
Holddown Supports
Set Base Pan (1) into the front cabinet
microwave oven cutout and center it right
and left. Push back until front flange is
against cabinet front wall. Use the V-notch
in the Base Pan front flange to center the
Base Pan. Bore two 3/32" diameter holes
into the wooden cabinet base front edge
Step 2
Installation of Base Pan
Disconnect microwave oven from recep-
tacle. Remove everything out of the
microwave oven (packing, glass shelf,
temperature probe, Use & Care books).
Remove the four top plug buttons from
the top of the Microwave Oven cabinet.
Use knife to pry up plug buttons using
care not to scratch the microwave oven.
A clear protective film has been applied to
some microwave oven cabinets. If applied,
remove the film. Place the microwave
oven on the base pan
(1) centered left to right.
Installation Procedure
Screw B
using the two holes in the Base Pan front flange as your guide
(center the drill in the base holes keeping the front flange
centered and tight against the cabinet front wall).
120V/60 Hertz
Grounded Power
Slide the two Rear Holddown Brackets (7) from the rear into
Outlet
the slots in the Base Pan. The tongues of the Rear Holddown
Brackets should be sticking into the base, be centered in the slot,
and be into the slot as far as it will go. Mark and drill four 3/32"
diameter holes. Mount the Rear Holddown Brackets using four
Screws (B). Both Rear Holddown Bracket tongues should now be
centered in the slotted holes in the base and be into the base as
far as they can go.
Remove the two screws in the Base Pan front flange and slide the
Base Pan straight out.
Screw C
Remove 4 Plug Buttons
V Notch
Drive two Screws
(C) into the Base
Pan front flange to
hold in place
temporarily.
V Notch
