Step 3

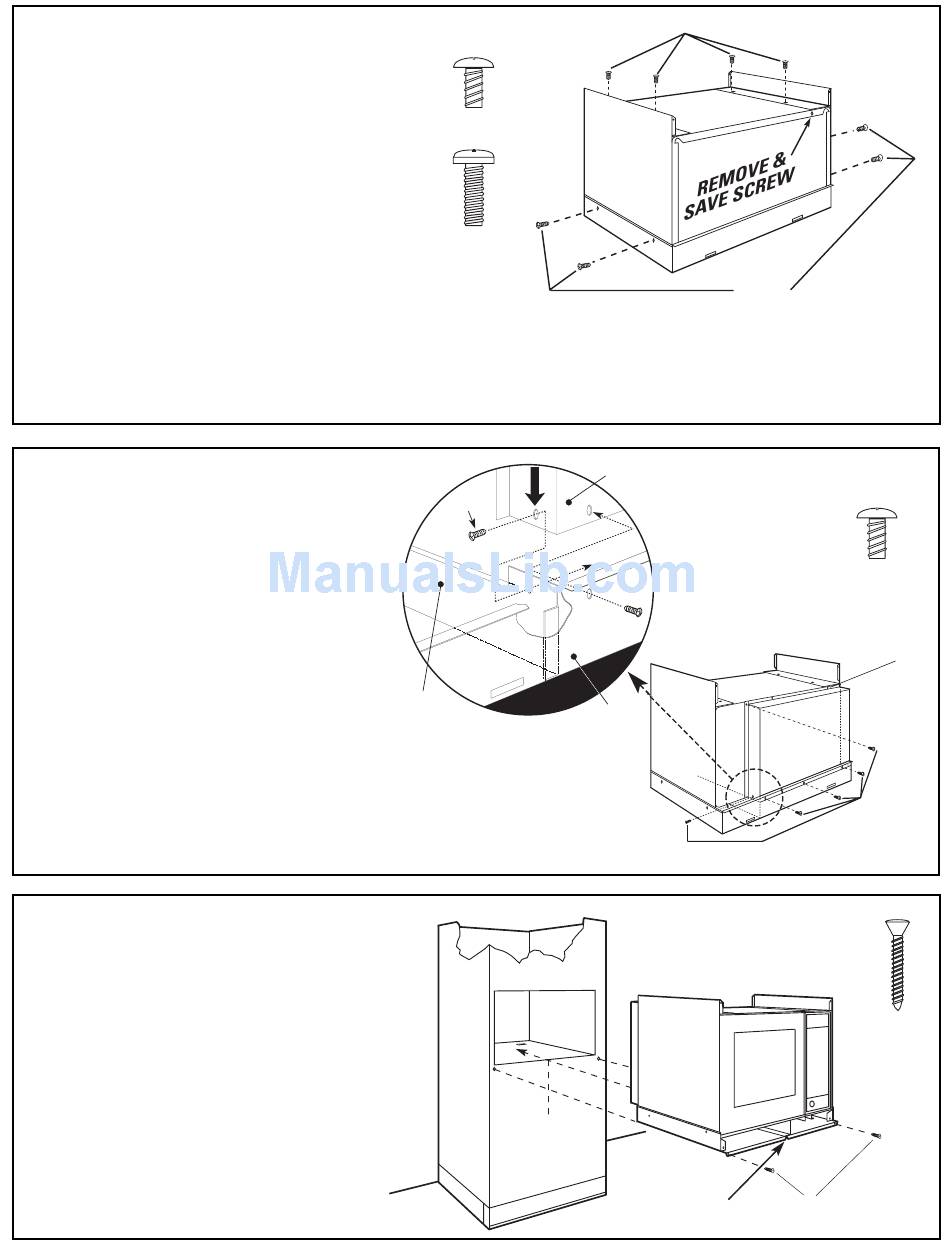

Installation of Side Cover
Install Side Covers by inserting the Side
Cover (3) bottom between the oven and
the side of the Base Pan. Drive two Screws
(A) through the Base Pan into the Side
Cover bottom. Drive two Screws (E)
through the Side Cover into the micro-
wave oven holes where the microwave
plug buttons were removed. Be sure the
side covers are tight against the sides of
the microwave oven (the trim frame
screws will not align unless the side covers
are tight against the microwave oven).
Complete side covers installation by
installing both side covers. Remove the
screw located on the top left back of the
microwave oven cabinet. Save and replace
it when installing the rear duct.
Step 4
Installation of Rear Duct
Install Rear Duct by inserting the Rear
Duct (2) bottom flange between the oven
and the back of the Base Pan. The Rear
Duct should be as far to the left as
possible. The Rear Duct back must go
between the Base Pan back flange and the
partition on the right side. Drive one
screw (A) through the rear duct into the
partition in the Base Pan. Drive one screw
(A) into the rear duct side flange near the
lamp cover. Drive three screws through
the Base Pan into the rear duct bottom.
Replace the screw removed from the top
left to complete the rear duct installation.
The Base Pan should be completely sealed
to the microwave oven in the back and all
screws installed in Steps 3 & 4 tightened.
Step 5
Installation of the Microwave Oven
Plug the power cord into the wall recep-
tacle. Slide the microwave oven assembly
gently into the cabinet using care not to
pinch the power cord, and to keep it
centered as it slides back to where the
holddown bracket's tongue goes through
the rear slots. The unit should now be
centered right to left in the opening and
the Base Pan front flange tight against the
cabinet. Drive two screws (C) through the
Base Pan front flange into the holes
initially drilled.
Screw A
Screw E
CAUTION: Start all screws in Steps 3 & 4
before tightening any one screw.
Screws A
Partition
in Base Pan
C L
Screws E
Screws A
Rear Duct
Base Pan
V Notch
Screw A
Replace screw,
removed in Step 3
Screws A
Screw C
Screw C
