Jumper Setting

The section explains how to set jumper for correct configuration of the mainboard.
Setting Jumper
Use the motherboard jumpers to set system configuration options. Jumpers with more Than one pin are
numbered. When setting the jumpers, ensure that the jumper caps are Placed on the correct pins.

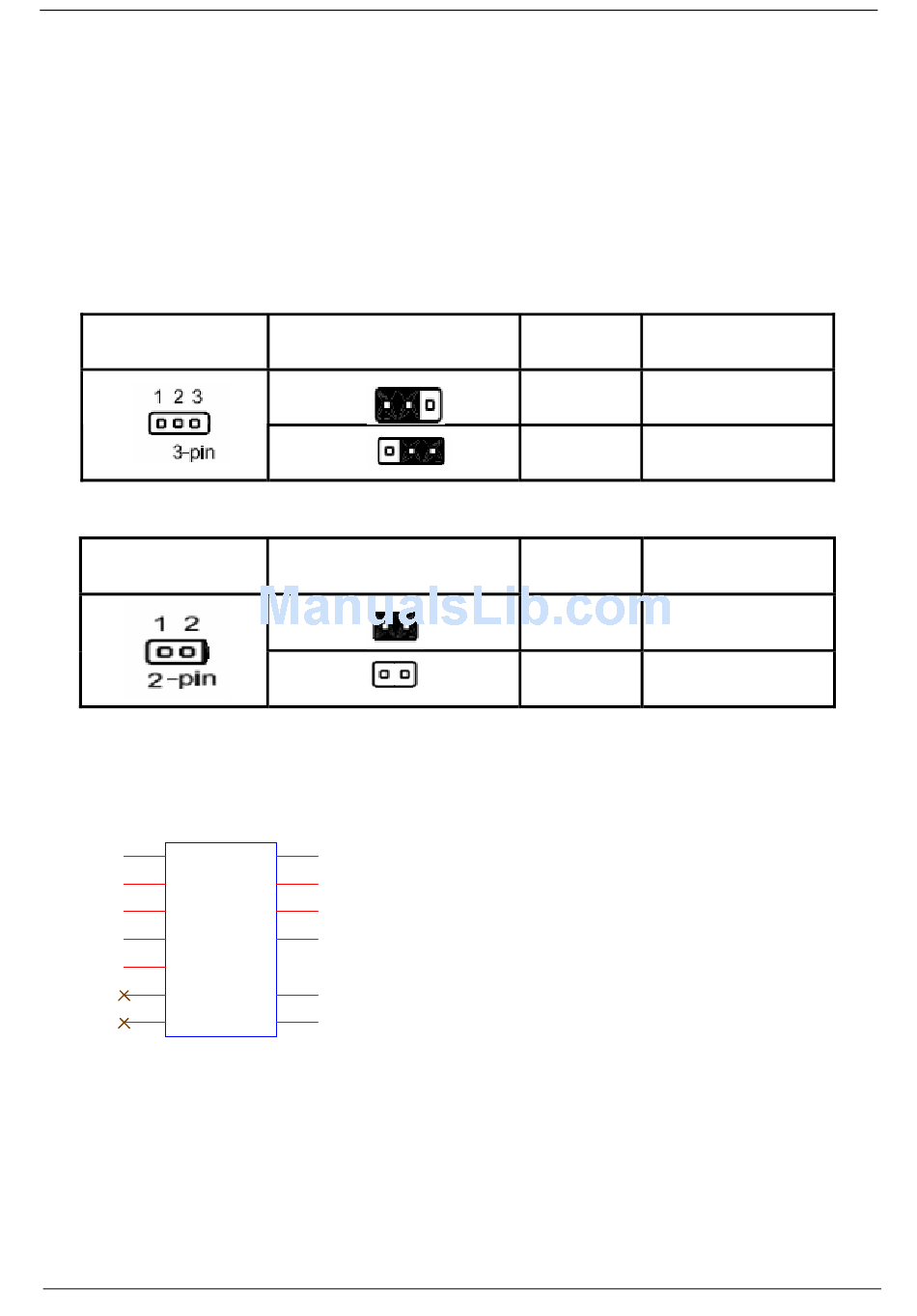

System Board Jumper Setting
CLR_CMOS
Jumper
INTR
Jumper
System Board Header Setting
Front Panel
FRONT PANEL
1
Orange0
3
Orange1
5
Blue0
7
Blue1
9
Black
11
Orange2
13
Orange3
Header_2X7_K10
Chapter 5
Symbol
Symbol
2
Green0
4
Green1
6
Red0
8
Red1
12
Green2
14
Green3
Description
Function
1-2 close
Clear CMOS
2-3 close
Normal (Default)
Description
Function
1-2 close
1-2 open
No Active (Default)
Active
63
