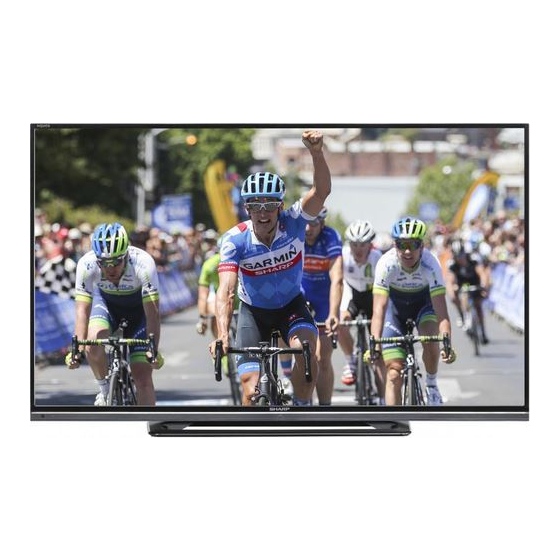

Sharp LC-32LD164E Service Manual
  1. Manuals
  2. Brands
  3. Sharp Manuals
  4. LCD TV
  5. LC-32LD164E
  6. Service manual

Sharp LC-32LD164E Service Manual

Led lcd colour television
Hide thumbs Also See for LC-32LD164E:
Table of Contents

Advertisement

Quick Links

Supplied accessories
DE Mitgeliefertes Zubehör
50mm
FR Accessoires fournis
IT Accessori forniti
NL Meegeleverde accessoires
ES Accesorios suministrados
EL Παρεχόμενα εξαρτήματα
40mm
PT Acessórios fornecidos
SV Medföljande tillbehör
SU Toimitukseen kuuluvat lisävarusteet
RU Аксессуары
DVB-T /T2/ DVB-C (HDTV), PAL
31.5mm
PL Dostarczone akcesoria
TR Verilen aksesuarlar
HU Mellékelt tartozékok
CS Dodávané příslušenství
25mm
20mm

TABLE OF CONTENTS .......................................................................................................................

ELECTRICAL SPECIFICATIONS .......................................................................................................
IMPORTANT SERVICE SAFETY PRECAUTIONS ................................................................................
OPERATION MANUAL ...........................................................................................................................
DIMENSIONS .................................................................................................................................... 13
INTRODUCTION ............................................................................................................................... 14
REMOVING MAJORS PARTS ......................................................................................................
CIRCUIT DESCRIPTIONS.................................................................................................................... 20
SERVICE ADJUSTMENTS.............................................................................................................. 35
SOFTWARE UPDATE .............................................................................................................................. 40
TROUBLESHOOTING ............................................................................................................................ 46
SCHEMATIC DIAGRAMS ........................................................................................................................ 53
PRINTED WIRING BOARD............................................................................................................. 76
OVERALL WIRING DIAGRAM ....................................................................................................... 81
CABINET AND MAIN COMPONENTS ............................................................................................... 82
REPLACEMENT PART LISTING.......................................................................................................... 87
PACKING ASSEMBLY ..................................................................................................................... 103
SK Dodané príslušenstvo
DA Medfølgende tilbehør
NO Tilbehør som følger med
ET Komplekti kuuluvad tarvikud
LV Komplektā ietvertie piederumi
LT Pateikiami priedai
Dobavljeni dodatki
SL
BU Принадлежности в комплекта
Isporučena dodatna oprema
SE
RO Accesorii furnizate
B/G, I
SR Приложена додатна опрема
UK Аксесуари в комплекті
KK Ұсынылатын қосымша керек-жарақтар
x 4
SHARP CORPORATION
SERVICE MANUAL
LED LCD
/ SECAM
SYSTEM COLOUR TELEVISION
B/G, D/K, L/L'
MODEL
LC-32LD164E
Operation Manual
LC-32LD165E
LC-32LD166K
LC-32LD165RU
In the interests of user safety (required by safety
regulations in some countries) the set should be re-
stored to its original condition and only parts identical
to those specified should be used.
x 4
1
SE00LC32LD164
Issued:12
COLOUR TELEVISION
Quick Start Guide
x 4
This document has been published to
be used for after sales service only.
The contents are subject to change without notice.
LC-32LD164
LC-32LD165
LC-32LD166
May 2014
th
2
3
4
7
16

Advertisement

Table of Contents
loading

Related Manuals for Sharp LC-32LD164E

Summary of Contents for Sharp LC-32LD164E

  • Page 1: Table Of Contents

    UK Аксесуари в комплекті HU Mellékelt tartozékok KK Ұсынылатын қосымша керек-жарақтар CS Dodávané příslušenství MODEL 25mm 20mm LC-32LD164E Operation Manual Quick Start Guide LC-32LD165E LC-32LD166K LC-32LD165RU In the interests of user safety (required by safety regulations in some countries) the set should be re- stored to its original condition and only parts identical to those specified should be used.

  • Page 2: Contents

    LC-32LD164 LC-32LD165 LC-32LD166 TABLE OF CONTENTS 1. SPECIFICATIONS…........................3 2. IMPORTANT SERVICE SAFETY PRECAUTIONS..............4 3. OPERATION MANUAL....................... 7 4. DIMENSIONS..........................13 5. INTRODUCTION ........................14 5.1. General Block Diagram ....................14 5.2. MB60 Placement of Blocks..................15 6. ASSY PANEL REMOVAL……………………………………………………………………………… 16 7.

  • Page 3: Electrical Specifications

    0°C to + 40°C • As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from...

  • Page 4: Important Service Safety Precautions

    LC-32LD164 LC-32LD165 LC-32LD166 IMPORTANT SERVICE SAFETY PRECAUTION Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow: WARNING 1. For continued safety, no modification of any circuit should be attempted. 2.
  • Page 5 LC-32LD164 LC-32LD165 LC-32LD166 PRECAUTIONS FOR USING LEAD-FREE SOLDER 1 Using lead-free wire solder When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks. As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
  • Page 6 If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

  • Page 7: Operation Manual

    LC-32LD164 LC-32LD165 LC-32LD166 OPERATION MANUAL Introduction Remote control unit VIDEO (ADJ) (k/l) Press to set the LCD TV to a Press to adjust the volume� predefined picture setting: 23. AUDIO (ADJ) Dynamic / Standard / Movie / Press to set the LCD TV to a Power Saver�...
  • Page 8 LC-32LD164 LC-32LD165 LC-32LD166 Operation Manual (Continued) Front view Power indicator Remote control sensor Control Button - Rear view Volume Programme (Channel) Input Source Common Interface slot Menu Power Headphone Output HDMI 2 HDMI 1 (ARC) Tuner Input LD166 / LD266 ENTERNET AUDIO SCART...
  • Page 9 LC-32LD164 LC-32LD165 LC-32LD166 Operation Manual (Continued) SCART AV INPUT RF cable Digital camera 75Ω Game console DVD recorder / VCR AV Composite cable 75Ω RF cable VIDEO IN SCART cable 75Ω Digital Audio out Amplifier with Speaker system Digital audio cable YPbPrLR Component cable DVD player...
  • Page 10 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 Operation Manual (Continued) Preparation Supplied Accessories Connecting external devices HDMI 1 / HDMI 2 DVD player Blu-ray player HDMI HDMI Out HDMI cable HDMI cable HDMI In SCART HDMI Out Amplifier with Speaker system HDMI cable Decoder SCART cable Note...
  • Page 11 LC-32LD164 LC-32LD165 LC-32LD166 Operation Manual (Continued) LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 Wall Mounting VESA-compatible wall bracket TV screen size (Inches) Screw type(Metric) (millimeters) (W x H) " 0 Preparation LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 Installing Batteries in the Remote Control Unit Using the Remote Control Unit 1 Remove the battery compartment from the remote control. Use the remote control unit by pointing towards the remote control sensor on the TV.
  • Page 12 LC-32LD164 LC-32LD165 VESA-compatible wall bracket TV screen size (Inches) Screw type(Metric) LC-32LD166 (millimeters) (W x H) " 0 Operation Manual (Continued) Preparation Installing Batteries in the Remote Control Unit 1 Remove the battery compartment from the remote control. 2 Insert two “ AAA” size batteries (supplied with the product). •...

  • Page 13: Dimensions

    LC-32LD164 LC-32LD165 LC-32LD166 DIMENSIONS 32” Dimensional Drawings 732.6 14.0 704.6 14.0 317.5 63.6 316.3 100.0 CAUTION ， TO PREVENT ELECTRIC SHOCK DO NOT REMOVE COVER. NO-USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. AUDIO IN VIDEO IN Engraved letter for 0.3mm and polish inside (include decorative gap). MT-11020...

  • Page 14: Introduction

    Block Diagram T P V ( Top Victory Electronics Co . , Ltd. ) G6173-M0A TPV MODEL 線 路 圖 編 號 Key Component 03_Block Diagram PCB NAME 715G6173-M0A 備註 <備註> Wednesday, January 22, 2014 Sheet Date...

  • Page 15: Mb60 Placement Of Blocks

    LC-32LD164 LC-32LD165 LC-32LD166 5.2 Placement of Blocks MAIN BOARD LD164 / LD165...

  • Page 16: Removing Majors Parts

    LC-32LD164 LC-32LD165 LC-32LD166 LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166 REMOVING OF MAJOR PARTS CHAPTER 2. REMOVING OF MAJOR PARTS 6. ASSY / PANEL REMOVAL [1] ASSY/PANEL REMOVAL Note: Put the TV face down on a safe surface that is covered by a soft and smooth cloth to avoid damaging LCD Panel. Front View Fig 1 Back View...
  • Page 17 LC-32LD164 LC-32LD165 LC-32LD166 LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166 Step 2. Remove the rear cover. Remove 18 screws as Fig 4. Fig 4 Step 3. Remove the power board. Remove 6 screws and unplug 2 cables as Fig 5. Fig 5...
  • Page 18 LC-32LD164 LC-32LD165 LC-32LD166 LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166 Step 4. Remove the scaler board and BKT. Remove 5 screws and unplug 4 cables as Fig 6. Fig 6 Step 5. Remove the speakers and connection wire as Fig 7. Fig 7 Step 6. Remove the bracket, keypad. Remove 8 screws as Fig 8.
  • Page 19 LC-32LD164 LC-32LD165 LC-32LD166 Fig 8 Step 7. Remove the Deco, IR board, LVDS cable. Remove 6 screws as Fig 9 and finish detaching. Fig 9...

  • Page 20: Circuit Descriptions

    LC-32LD164 LC-32LD165 LC-32LD166 CIRCUIT DESCRIPTIONS CHAPTER 5. MAJOR IC INFORMATIONS 7. MAJOR IC INFORMATION 7.1. U401 (MT5561JUDT) & U401 (MT5561PUDT only for LC-50LD266) General Description The MediaTek MT5561JUDT 1Gb & The MediaTek MT5561PUDT 2Gb family consists of a front-end demodulator, a backend decoder and a TV controller and offers high integration for advanced applications. It integrates a transport de-multiplexer, a high definition video decoder, an audio decoder, a two-link LVDS transmitter, a mini-LVDS transmitter, and an NTSC/PAL/SECAM TV decoder with a 3D comb filter (NTSC/PAL).
  • Page 21 LC-32LD164 LC-32LD165 LC-32LD166 • Full-HD 60FPS decoder H.264 HD Decoder • Full-HD 60P decoder Still Image decoding • JPEG decoder (base-line or progressive), hardware accelerator De-mosquito engine • For all AV inputs 2D Graphics • Supports multiple color modes • Direct color mode ARGB8888, ARGB4444, ARGB1555, RGB565 •...
  • Page 22 LC-32LD164 LC-32LD165 LC-32LD166 Audio ADC ♦ Supports 4-pair L/R input HDMI Receiver • Three-port two-channel HDMI 1.4b • Maximum data rate can be up to 2.97 GHz • Audio return channel • Video bypass • TV bypass • CVBS Monitor (any AV input) TV audio demodulator •...

  • Page 23: U101 (Cxd2837Er)

    LC-32LD164 LC-32LD165 LC-32LD166 • Excellent adjacent channel interference (ACI) rejection capability • Excellent co-channel interference (CCI) rejection capability • Fast channel lock time • Accept direct IF and low IF • Embedded SAW filter and IF Amplifier. Cost effective TV front-end structure and no more cost on: ♦...

  • Page 24: U405 (Tc58Nvg0S3Htai0)

    LC-32LD164 LC-32LD165 LC-32LD166 • Automatically-calculated constant-rate TS output (using L1 signalling and ISSY) • Frequency offset detection range up to +/-600 kHz allows acquisition and performance optimization via tuner frequency offset compensation • Stream processor for automatic common-PLP and data-PLP combination •...

  • Page 25: U414 (74Hc4052Pw)

    LC-32LD164 LC-32LD165 LC-32LD166 Register. 2176 Page size 2176 bytes Block size (128K 8K) bytes • Modes Read, Reset, Auto Page Program, Auto Block Erase, Status Read, Page Copy • Mode control Serial input/output Command control • Number of valid blocks Min 1004 blocks Max 1024 blocks ‧...

  • Page 26: Ic9101 (Ssc9522S-Tl)

    LC-32LD164 LC-32LD165 LC-32LD166 The TAS5721 is a slave-only device, receiving all clocks from external sources. The TAS5721 operates with a PWM carrier frequency between a 384-kHz switching rate and a 288-KHz switching rate, depending on the input sample rate. Oversampling, combined with a fourth-order noise shaper, provides a flat noise floor and excellent dynamic range from 20 Hz to 20 kHz.

  • Page 27: Detailed Ics Information

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 8 DETAILED ICS INFORMATION [2] DETAILED ICS INFORMATION 8.1 U401 (MT5561JUDT) & (MT5561PUDT only for LC-50LD266) Block Diagram...
  • Page 28 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 Pin Connections and Short Description...
  • Page 29 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266...

  • Page 30: U101 (Csd2837Er)

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 8.2 U101 (CXD2837ER except for LC-50LD264) Block Diagram Pin Connections and Short Description...

  • Page 31: U405 (Tc58Nvg053Htai0)

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 8.3 U405 (TC58NVG0S3HTAI0 only for LC-50LD266) Block Diagram Pin Connections and Short Description...

  • Page 32: U414 (74Hc4052Pw)

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 8.4 U414 (74HC4052PW) Block Diagram Pin Connections and Short Description...

  • Page 33: U601 (Tas5721)

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 8.5 U601 (TAS5721) Block Diagram Pin Connections and Short Description...

  • Page 34: Ic9101 (Ssc9522S-Tl)

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 8.6 IC9101 (SSC9522S-TL) Block Diagram Pin Connections and Short Description...

  • Page 35: Service Adjustments

    LC-32LD164 LC-32LD165 LC-32LD166 SERVICE ADJUSTMENTS CHAPTER 3. ADJUSTMENT PROCEDURE 9. ADJUSTMENT PROCEDURE [1] ADJUSTMENT PROCEDURE 9.1 OSD Menu 1. OSD Menu OSD tree - As following Level 1 Level 2 Level 3 Level 4 Level 5 Attributes Picture Smart Picture Dynamic/ Standard/ Movie/ Power Saver Backlight 0~50~100...
  • Page 36 LC-32LD164 LC-32LD165 LC-32LD166 Germany/ Danish/ Polish/ Serbian/ English/ Welsh/ Swedish/ Czech/ Croatian/ French/ Gaelic/ Norwegian/ Hungarian/ Slovenian/ Italian/ Finnish/ 2nd Audio Slovakia/ Latvian/ Spanish/ Turkish/ Bulgarian/ Estonian/ Portuguese/ Greek/ Romanian/ Lithuanian/ Dutch/ Basque/ Catalan/ Gallegan/ Russian/ Irish/ Original/ Local/ Undefined Auto CH Search Scan Mode Full / Quick / Advanced...
  • Page 37 LC-32LD164 LC-32LD165 LC-32LD166 Auto/GMT+ 0:00/GMT+ 1:00/ GMT+ 2:00/GMT+ 3:00/GMT+ 3:30/GMT+ 4:00/ GMT+ 4:30/GMT+ 5:00/GMT+ 5:30/GMT+ 5:45/GMT+ 6:00/GMT+ 6:30/GMT+ 7:00/GMT+ 8:00/GMT+ 9:00/GMT+ Time Zone 9:30/GMT+ 10:00/GMT+ 11:00/GMT+ 12:00/GMT+ 12:45/GMT+ 13:00/GMT12:00/GMT- 11:00/GMT- 10:00/GMT- 9:00/GMT- 8:00/GMT- 7:00/GMT- 6:00/GMT- 5:00/GMT- 4:00/GMT- 3:30/GMT- 3:00/GMT- 2:00/GMT- 1:00 Time Auto On/ Off...
  • Page 38 LC-32LD164 LC-32LD165 LC-32LD166 CEC Setup CEC Function On/ Off Auto Turn Off On/ Off Location Store/ Home E-POP On/ Off Input Labels Icon Light Up On/ Off Setting Version Info Reset Parental Password CH Block Channel list Time Interval Lock None/ Everyday/ Sunday/ Monday/ Tuesday/ Lock Type Wednesday/ Thursday/ Friday/ Saturday...

  • Page 39: Adc Adjustment And White Balance Adjustament

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 2. ADC Adjustment and White Balance Adjustment It’s no need to do the ADC, do only white balance. White balance adjustment: Turn on the TV, press “Menu”, then press number key 1 + 9 + 9 + 9 and “PRE PR”, it will achieve the factory mode. Current Source is "component", and then choose Color temp as Warm / Normal / Cool, use remote control to choose “WD Pattern”...

  • Page 40: Software Update

    SOFTWARE UPDATE Table of Contents 10.1 Introduction 10.2 Connect to ISP Board to upgrade the boot loader 10.3 Connect to TV USB port to upgrade the software firmware 10.4 Connect by USB Flash Memory 2K14 SHARP EU/EU_2G/UK Family TYPE BRAND...

  • Page 41: 10.1 Introduction

    (USB to UART/HDMI) MT5561 USB Port UART Board /HDMI USB Cable ► Unzip USB2COM Driver .zip to C:\ I. PL2303_Prolific_DriverInstaller_v1.7.0.exe II. Double click exe file to install driver. ► Unzip FlashTool .zip to C:\ 2K14 SHARP EU/EU_2G/UK Family TYPE BRAND Yolin Chen...
  • Page 42 II. Set (MT53XX → RS232 → COM_Port → 115200 → Connect → FW_Upgrade → Flash). (Hint: In above highlight section, if your TV is SHARP_EU & SHARP_EU_2G you must select Nor Flash, and if your TV is SHARP_UK, you must select Nand Flash) 2K14 SHARP EU/EU_2G/UK Family TYPE BRAND...
  • Page 43 (Hint: If your TV is SHARP_UK, you must enter “ef” command in the “Load Bin File” field and Click ‘Upgrade’ button to erase Nand Flash memory at first, and next step to select *_loader.bin to Upgrade) IV. Finish Upgrade. 2K14 SHARP EU/EU_2G/UK Family TYPE...

  • Page 44: Connect To Usb Port To Upgrade The Software

    III. TV AC power off → AC power on IV. TV will upgrade by detecting the correct *.pkg file. Hint: prefix text of *.pkg file name to judge different models, the following is TV detects the different models prefix text. 2K14 SHARP EU/EU_2G/UK Family...
  • Page 45 TPV OEM 50/46/42LD266, 32LD166 series (UK) SHARP_2K14_MT5561_NUCLEUS_EU_2G_ TPV OEM 46LD264/265 series (EU_2G) Example: a) SHARP_2K14_MT5561_NUCLEUS_EU_V0.42.1_20131214.pkg : for SHARP EU b) SHARP_2K14_MT5561_NUCLEUS_UK_V0.42.1_20131214.pkg : for SHARP UK c) SHARP_2K14_MT5561_NUCLEUS_EU_2G_V0.42.1_20131214.pkg : for SHARP EU_2G V. TV’s LED will ash during upgrade process, after finished upgrade process, TV will reboot by itself.

  • Page 46: Troubleshooting

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 TROUBLESHOOTING CHAPTER 4. TROUBLESHOOTING TABLE [1] TROUBLESHOOTING TABLE 11. TROUBLESHOOTING TABLE Power unit operation check. ↓ Are the power cord and harness in the unit properly connected? Connect the power cord and harness properly, and turn on the power.
  • Page 47 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 No sound (during the reception of TV broadcasting) ↓ Does not the sound go out though the picture has come out when TV is received? ↓ MAIN UNIT: Is the DIF signal output from pin (5/6) of Tuner (TU101)? Check the tuner and its peripheral circuits.
  • Page 48 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 No sound from external input devices (3) ↓ Does not the sound of the audio signal input to (SCART) go out? ↓ MAIN UNIT: Is the audio signal properly sent to pin (2) (SCT1_AUR_IN) and pin Check the connection to CN151 and the external input device.
  • Page 49 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 No picture on the display (1) ↓ The picture doesn't appear in all modes. ↓ MAIN UNIT: Is LVDS signal output from 1st_channel and 2nd_channel of IC Check IC U401 and its peripheral control circuits. U401 in each mode? ↓...
  • Page 50 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 <External input AV (Composite)>No picture on the display (4) ↓ Does not the picture of the composite video signal input to AV(Composite) go out? ↓ TERMINAL UNIT: Is COMP_Y signal sent to pin (2) of AV (CN116) ? Check the setting of an external input device that connects of CN116.
  • Page 51 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 <External input SCART>No picture on the display (7) ↓ Does not the picture of the SCART video signal input to SCART go out? ↓ TERMINAL_UNIT: Check the setting of an external input device that connects of Is AV signal sent to pin (20)/ SCT1_AV_IN, pin (15)/ SCT1_R_IN, pin (11)/ SCT1_G_IN, pin (7) SCT1_B_IN of AV1(CN116) ? CN151.

  • Page 52: Power Tree

    LC-32LD164 LC-32LD165 LC-32LD166 POWER TREE POWER TREE 12. POWER TREE T P V ( Top Victory Electronics Co . , Ltd. ) OEM MODEL 2K14 EU Size G6173-M0A-001-0040 TPV MODEL 2k14 EU 線 路 圖 編 號 Key Component 02_Power Tree PCB NAME 715G6173-M0A-001-0040 備註...

  • Page 53: Schematic Diagrams

    LC-32LD164 LC-32LD165 LC-32LD166 SCHEMATIC DIAGRAMS 13. Schematic Diagrams SYSTEM POWER 1/19 +5V Switch +5V_SW 6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 CN701 +5VSB +12V FB703 120R 6A +12V_P +12V_P 3V3SB +12V_P R707 +12V +12V 9,11,13,14,16,19,20,21 +5V_SW +5V_SW +5VSB 6,9,21 +5VSB C706 FB701 120R 6A 6,10,13,17 3V3SB 3V3SB Q702 R708...
  • Page 54 LC-32LD164 LC-32LD165 LC-32LD166 MEMORIES 2/19 U401B NAND Flash 5,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 PDD0 OSCL0 DVDD3V3 PDD0 OSCL0 128MB PDD1 OSDA0 PDD1 OSDA0 U405 PDD2 OSCL1 +5VSB 5,9,21 +5VSB PDD2 OSCL1 PDD3 OSDA1 NOR Flash 3V3SB PDD3 OSDA1 NC28 5,10,13,17 3V3SB PDD4 5,7,8,9,10,13,14,15,17,19,20,21,22,23 DVDD3V3 DVDD3V3 PDD4 NC27...
  • Page 55 LC-32LD164 LC-32LD165 LC-32LD166 AUDIO In/Line-Out/HP 3/19 5,6,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 C686 FB405 U401C 120R/500mA 5,6,8,9,10,13,14,15,17,19,20,21,22,23 AVDD3V3 AVDD3V3 22PF 50V SCART1_R_IN DVDD3V3 AIN_R0 5,6,8,9,10,13,14,15,17,19,20,21,22,23 DVDD3V3 FB407 SPDIF_OUT SCART1_L_IN ASPDIFO AIN_L0 120R ARC_SPDIF YPBPR_R_IN Audio Input Interface ASPDIFI AIN_R1 YPBPR_L_IN AIN_L1 AOMCLK R601 22 OHM 1/16W MCLK AOMCLK AIN_R2...
  • Page 56 LC-32LD164 LC-32LD165 LC-32LD166 AUDIO AMPLIFIER 4/19 DVDD3V3 AMP3V3 FB603 FB604 120R 3A 5,6,7,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23 FB602 PVDD OUTA +12V 120R 3A L601 5,6,7,9,10,13,14,15,17,19,20,21,22,23 DVDD3V3 DVDD3V3 120R 6A C618 33uH C619 10/25 R605 C620 1UF 25V C609 C616 18R 1/10W 5% 10/25 C617 330UF 35V 100N 50V 330pF 50V...
  • Page 57 LC-32LD164 LC-32LD165 LC-32LD166 AUDIO MUTE 5/19 5,6,7,8,10,11,12,13,14,15,16,17,18,19,20,21,22,23 AC OFF 5,6,7,8,10,13,14,15,17,19,20,21,22,23 DVDD3V3 DVDD3V3 BAS316WS +5VSB D602 +5VSB 5,6,21 +5VSB DC OFF 5,11,13,14,16,19,20,21 +5V_SW +5V_SW R664 C681 1K 1/16W 1% +5V_SW 100UF 16V GPIO Control Mute R672 5.1K 1% A_MUTE 11/18 HP_Mute HP_Mute R668 470R 1/16W 5%...
  • Page 58 LC-32LD164 LC-32LD165 LC-32LD166 YPbPr VIDEO INPUT 6/19 U401D 5,6,7,8,9,11,12,13,14,15,16,17,18,19,20,21,22,23 Analog 1.2V Power Merged Analog 3.3V Power VGA_SCL TR103 NC/TP-0.9 RF_AGC VGA_SDA IFAGC_Scaler 3V3SB 5,6,13,17 3V3SB IF_AGC VSYNC AVDD1V2 HSYNC 5,17,20 AVDD1V2 ADCINN_DEMOD 5,6,7,8,9,13,14,15,17,19,20,21,22,23 DVDD3V3 DVDD3V3 ADCINN_DEMOD ADCINP_DEMOD ADCINP_DEMOD AVDD1V2 AVDD12_DEMOD 3V3SB 3V3SB YPbPr Audio Input...
  • Page 59 LC-32LD164 LC-32LD165 LC-32LD166 SPDIF 7/19 5,6,7,8,9,10,12,13,14,15,16,17,18,19,20,21,22,23 5,9,13,14,16,19,20,21 +5V_SW +5V_SW SPDIF OUT CO-LAY SPDIF_OUT SPDIF_OUT R654 C602 CN604 NC/RCA JACK SPDIF_OUT NC/240 OHM +-5% 1/16W NC/100N 16V R624 NC/100R 1/16W 5% C603 ZD601 NC/33P 50V NC/MLVG0402 COAXIAL +5V_SW CN603 R655 33R 1/16W 5% C601 100N 16V JACK 3P...
  • Page 60 LC-32LD164 LC-32LD165 LC-32LD166 SCART 1 8/19 SCART 1(Full SCART) -- CVBS+SV+RGB+TV OUT 5,6,7,8,9,10,11,13,14,15,16,17,18,19,20,21,22,23 SCART CVBS IN Near CONNECTOR Near MT53xx Near MT5561 Near CONNECTOR SCART CVBS OUT SCART Audio Output 2.2UH 0R05 1/16W C119 R120 SCART1R_PA L101 SCART1R_PA R122 TUNER_BYPASS_OUT SCT1_AV_OUT SCART1L_PA SCART1L_PA...
  • Page 61 LC-32LD164 LC-32LD165 LC-32LD166 LVDS Keypad- IR 9/19 LVDS Connector 5,6,7,8,9,10,11,12,14,15,16,17,18,19,20,21,22,23 CN408 +12V U401G +12V 5,9,11,14,16,19,20,21 +5V_SW +5V_SW TX_AO0P 11/7 3V3SB AO0P 5,6,10,17 3V3SB TX_AO0N 5,6,7,8,9,10,14,15,17,19,20,21,22,23 DVDD3V3 DVDD3V3 AO0N DEMOD_RST TX_AO1P LNB_12V TCON0 AO1P LNB_12V DMD_TSERR TX_AO1N +12V_P +12V_P TCON1 AO1N HP_Mute TX_AO2P TX_AE2N...
  • Page 62 LC-32LD164 LC-32LD165 LC-32LD166 TUNER 10/19 S2 Silicon Tuner 5,6,7,8,9,10,11,12,13,15,16,17,18,19,20,21,22,23 CO-LAY with TU101 +5V_SW 5,9,11,13,16,19,20,21 +5V_SW TU 102 DVDD3V3 5,6,7,8,9,10,13,15,17,19,20,21,22,23 DVDD3V3 R154 0R05 1/16W TU103 TUNER3.3V ANT_5V IF Interface Ant.PWR TUNER3.3V +B1(3.3V) FAT_IN- ADCINN_DEMOD T_SDA C139 ANT_5V FAT_IN+ ANT_5V/GND ADCINP_DEMOD 10 T_SCL 100N 16V Control Interface...
  • Page 63 LC-32LD164 LC-32LD165 LC-32LD166 SONY T2 / S2 DEMOD 11/19 C158 15PF 50V DEMOD_RST 5,6,7,8,9,10,11,12,13,14,16,17,18,19,20,21,22,23 R168 C194 CVDD_1V1 FB105 DVDD3V3 5,6,7,8,9,10,13,14,17,19,20,21,22,23 DVDD3V3 DVDD3V3 41.0MHz X101 CVDD_1V1 CVDD_1V1 100N 16V 499R 1% 120R 3A R169 R170 10K 1/16W 5% To SoC parts CXD2837 CXD2842 C159...
  • Page 64 LC-32LD164 LC-32LD165 LC-32LD166 DDR3 12/19 DDRV U401A Main Chip Ref Voltage. DRAM POWER DDRV 5,6,7,8,9,10,11,12,13,14,15,17,18,19,20,21,22,23 +5V_SW DDRV DDRV 5,6,10,13,17 3V3SB 3V3SB DDRV 5,9,11,13,14,19,20,21 +5V_SW +5V_SW DDRV U411 L401 DDRV DDRV 2.2uH DDRV DDRV R456 R455 C425 RVREF C428 R480 C426 C427 1K 1/16W 1% NC/100N 16V...
  • Page 65 LC-32LD164 LC-32LD165 LC-32LD166 HDMI 13/19 U401E 5,6,7,8,9,10,11,12,13,14,15,16,18,19,20,21,22,23 REAR HDMI Port2 HDMI_1_RX_CB RX_0_CB 5,10,20 AVDD1V2 AVDD1V2 HDMI_0_RX_CB HDMI_1_RX_C RX_0_C +5V_SW HDMI_0_RX_C HDMI_1_RX_0B 5,9,11,13,14,16,19,20,21 +5V_SW RX_0_0B 100ohm differential impedance +5VSB HDMI_0_RX_0B HDMI_1_RX_0 5,6,9,21 +5VSB RX_0_0 for TMDS traces. CN501 5,6,10,13 3V3SB 3V3SB HDMI_0_RX_0 HDMI_1_RX_1B RX_0_1B...
  • Page 66 LC-32LD164 LC-32LD165 LC-32LD166 GPIO 14/19 U401I 5,6,7,8,9,10,11,12,13,14,15,16,17,19,20,21,22,23 LED_POWER_RED OPCTRL0 LED_PWR_GREEN LVDS_PWR_EN OPCTRL1 GPIO0 BL_ON/OFF OPCTRL2 GPIO1 USB_PWR_EN0 OPCTRL3 GPIO2 OPCTRL4 GPIO3 SYS_EEPROM_WP GPIO4 HP_DET# LVDS_PWR_EN GPIO5 LVDS_PWR_EN 13 BL_ON/OFF SCART_FS0 BL_ON/OFF ADIN0 USB_PWR_EN0 ADIN1 USB_PWR_EN0 20 SYS_EEPROM_WP FB410 120R CI_PWR_OC ADIN2 OPWM2 SYS_EEPROM_WP 6...
  • Page 67 LC-32LD164 LC-32LD165 LC-32LD166 INTERNAL CI 15/19 U401H CI_D0 CI_D0 5,6,7,8,9,10,11,12,13,14,15,16,17,18,20,21,22,23 CI_D1 CI_D1 M_CI_OUTCLK CI_D2 CI_DVDD3V3 CI_DVDD3V3 CI_DVDD3V3 CI2_VCC CI2_VCC CI_DVDD3V3 CI_MCLKO CI_D2 M_CI_OUTVALID CI_D3 DVDD3V3 CI_MOVAL CI_D3 5,6,7,8,9,10,13,14,15,17,20,21,22,23 DVDD3V3 M_CI_OUTSYNC CI_D4 5,9,11,13,14,16,20,21 +5V_SW +5V_SW CI_MOSTRT CI_D4 M_CI_OUTDATA0 CI_D5 R192 R193 R194 R195 R196...
  • Page 68 LC-32LD164 LC-32LD165 LC-32LD166 USB/ ETHERNET 16/19 5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,21,22,23 5,9,11,13,14,16,19,21 +5V_SW +5V_SW U401F DVDD3V3 5,6,7,8,9,10,13,14,15,17,19,21,22,23 DVDD3V3 5,6,7,8,9,10,13,14,15,17,19,21,22,23 AVDD3V3 AVDD3V3 USB_DM0 DVDD3V3 AVDD1V2 USB_DP0 5,10,17 AVDD1V2 USB_DM_P1 8.5 mm USB_DM1 USB_DP_P1 USB_DP1 +5V_SW Control Interface R1024 10K 1/16W 5% RXVN_1 RXVN RXVP_1 HI = > POWER ON USB_DP_P1 USB_PWR_OCP0 RXVP...
  • Page 69 LC-32LD164 LC-32LD165 LC-32LD166 DEBUG PORT 17/19 Factory UART & I2C Switch IC 5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,22,23 5,9,11,13,14,16,19,20 +5V_SW +5V_SW +5VSB 5,6,9 +5VSB DVDD3V3 5,6,7,8,9,10,13,14,15,17,19,20,22,23 DVDD3V3 +5VSB HDMI_SCL2 HDMI_SCL2 HDMI_SDA2 HDMI_SDA2 HDMI_SCL2/RX HDMI_SCL2/RX 17 HDMI_SDA2/TX R406 HDMI_SDA2/TX 17 10K 1/16W 5% to HDMI Pin-14 for ARC U0TX U0TX U0RX...
  • Page 70 LC-32LD164 LC-32LD165 LC-32LD166 VCCK & DVSS 18/19 U401J VCC3IO 5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,23 DVDD3V3 5,6,7,8,9,10,13,14,15,17,19,20,21,23 DVDD3V3 DVSS VCC3IO VCCK VCCK DVSS VCC3IO 3.3V IO Power DVSS VCC3IO DVSS VCCK DVSS Close to Main Chip DVDD3V3 VCC3IO DVSS DVSS VCCK DVSS VCCK DVSS VCCK C446 C463 DVSS...
  • Page 71 LC-32LD164 LC-32LD165 LC-32LD166 INTERSIL LNB POWER SUPPLY 19/19 5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22 LNB_12V LNB_12V DVDD3V3 5,6,7,8,9,10,13,14,15,17,19,20,21,22 DVDD3V3 TUNER_LNB TUNER_LNB DISEQC_OUT DISEQC_OUT LNB_LINEDROP LNB_LINEDROP 13/18V_SW 13/18V_SW LNB_EN 14,15 LNB_EN TUN_LNB TUN_LNB LNB POWER SUPPLY LNB_12V L704 L705 NC/22uH D703 NC/1.0UH 4.5A ESD & Surge NC/FB340M C740 C743...
  • Page 72 LC-32LD164 LC-32LD165 LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166 [2] POWER SCHEMATIC DIAGRAM LC-32LD166 01 Power POWER SCHEMATIC DIAGRAM 1/2 R9118 100R COLD R9119 100R BD9101 TS6K80-02 FB9101 R9120 100R BEAD FB9910 C9108 C9910 R9104 R9106 1NF 500V +12V 75K 1/4W 75K 1/4W C9102 C9101 C9105 56uF 450V 56uF 450V 56uF 450V...
  • Page 73 LC-32LD164 LC-32LD165 LC-32LD166 POWER SCHEMATIC DIAGRAM 2/2 ( LED DRIVER) LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166 02 LED Driver L8501 FB8501 D8501 BEAD +12V VLED+ 33uH SR810-05 C8525 C8526 C8501 C8502 C8512 C8513 C8514 C8517 C8518 330UF 35V 330UF 35V 330UF 50V 330UF 50V 100N 50V R8508 R8506 100NF 250V...
  • Page 74 LC-32LD164 LC-32LD165 LC-32LD166 KEY SCHEMATIC DIAGRAM LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 [3] KEY SCHEMATIC DIAGRAM SW01 VOL+ 2.722V~3.008V TACT SW FWRD H1.5MM 7K5 1/8W +/-1% SW02 VOL- 2.385V~2.636V TACT SW FWRD H1.5MM 2K7 1/8W 1% SW03 2.074V~2.292V TACT SW FWRD H1.5MM 1K8 +/-1% 1/8W SW04 1.667~1.843V TACT SW FWRD H1.5MM...
  • Page 75 LC-32LD164 LC-32LD165 LC-32LD166 IR SCHEMATIC DIAGRAM LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 [4] IR SCHEMATIC DIAGRAM LED201 081G 14 24 EL LED_R R202 220 OHM 1/10W LED_B CN201 R203 220 OHM 1/10W U201 356GS927057 R201 15K 1/10W IRM-H938M3/TR2 C201 CONN 0.1uF 50V 033G8032 5F...

  • Page 76: Printed Wiring Board

    LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 PRINTED WIRING BOARD CHAPTER 7. PRINTED WIRING BOARD 14. MAIN UNIT Side A [1] MAIN UNIT PRINTED WIRING BOARD MAIN UNIT(Side-A) FB705 D704 GND4 GND3 R744 R745 C738 R734 L705 FB402 C739 L704 R404 R405 R415 C401 R401 R402 R403 C412...
  • Page 77 LC-32LD164 LC-32LD165 LC-32LD166 LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 MAIN UNIT Side B MAIN UNIT(Side-B)
  • Page 78 LC-32LD164 LC-32LD165 LC-32LD166 POWER UNIT SIDE A GND1 IC9102 C9127 C9905 C9119 J9112 J9113 D9103 C9910 C9103 FB9910 SG9902 R8501 SG9901 SG9903 FB9901 J9108 J9103 J9104 C9903 J9105 J9106 J9107 SG9904 CN9101 GND4 GND5...
  • Page 79 LC-32LD164 LC-32LD165 LC-32LD166 POWER UNIT SIDE B C9120 R9132 R8527 R8511 C8503 R8521 R9107 R9105 R9106 R9104 R8517 C8517 C8504 R8509 IC8501 C9108 R9120 C8518 R9118 R9119 R8506 C8509 R9111 R9109 R9110 R9121 R9125 C9109 R9122 R9101 C9110 C9117 R9102 R9128 R9103 RJ9101...
  • Page 80 LC-32LD164 LC-32LD165 LC-32LD166 KEY UNIT AND IR UNIT LC-50LD264–LC-50LD265–LC-50LD265RU–LC-50LD266 [3] KEY UNIT PRINTED WIRING BOARD KEY UNIT (Side-A) POWER UNIT SIDE B KEY UNIT (Side-B) [4] IR UNIT PRINTED WIRING BOARD IR UNIT (Side-A) IR UNIT (Side-B) U201 CN201 R201...

  • Page 81: Overall Wiring Diagram

    LC-32LD164 LC-32LD165 LC-32LD166 LC-32LD164–LC-32LD165–LC-32LD165RU–LC-32LD166 15. OVERALL WIRING DIAGRAM 32” [2] WIRING DIAGRAM CN8501 395G801830XC49 395G801314DC06 CN408 CN9101 CN701 CN401 CN601 395G801408DC08 395G801404XC77 CN201...

  • Page 82: Cabinet And Main Components

    LC-32LD164 LC-32LD165 LC-32LD166 16 CABINET AND MAIN COMPONENTS 32”...
  • Page 83 LC-32LD164 LC-32LD165 LC-32LD166 MODEL:LC-32LD164E Item Parts Code Description 1 750TBV315V2000 PANEL TPT315B5-XVN02 900G XM TPV X 2 P34T1535ADT01T0100 DECO_BEZEL 3 378G0110567YAT SPEAKER 4 X15T875220100000AJ BKT_STAND 5 X15T875320100000AJ BKT_STAND 6 P33T0486ADTJ1T0100 COVER_KEY 7 P34T2099ADT0100 STAND BASE 8 X15T934910100000AJ BKT_CHASIS R 9 X15T934810100000AJ...
  • Page 84 LC-32LD164 LC-32LD165 LC-32LD166 MODEL:LC-32LD165E Item Parts Code Description 1 750TBV315V2000 PANEL TPT315B5-XVN02 900G XM TPV X 2 P34T1535ADT01T0100 DECO_BEZEL 3 378G0110567YAT SPEAKER 4 X15T875220100000AJ BKT_STAND 5 X15T875320100000AJ BKT_STAND 6 P33T0486ADTJ1T0100 COVER_KEY 7 P34T2099ADT0100 STAND BASE 8 X15T934910100000AJ BKT_CHASIS R 9 X15T934810100000AJ BKT_CHASIS L 10 Q12G6300 25 1 FOOT PAD...
  • Page 85 LC-32LD164 LC-32LD165 LC-32LD166 MODEL:LC-32LD165RU MAIN_COMPONENTS_42LD264 Parts Code Description 1 750TBV315V2000 PANEL TPT315B5-XVN02 900G XM TPV X 2 P34T1535ADT01T0100 DECO_BEZEL 3 378G0110567YAT SPEAKER 4 X15T875220100000AJ BKT_STAND 5 X15T875320100000AJ BKT_STAND 6 P33T0486ADTJ1T0100 COVER_KEY 7 P34T2099ADT0100 STAND BASE 8 X15T934910100000AJ BKT_CHASIS R 9 X15T934810100000AJ BKT_CHASIS L 10 Q12G6300 25 1 FOOT PAD...
  • Page 86 LC-32LD164 LC-32LD165 LC-32LD166 MODEL:LC-32LD166K Item Parts Code Description 1 750TBV315V2000 PANEL TPT315B5-XVN02 900G XM TPV X 2 P34T1535ADT01T0100 DECO_BEZEL 3 378G0110567YAT SPEAKER 4 X15T875220100000AJ BKT_STAND 5 X15T875320100000AJ BKT_STAND 6 P33T0486ADTJ1T0100 COVER_KEY 7 P34T2099ADT0100 STAND BASE 8 X15T934910100000AJ BKT_CHASIS R 9 X15T934810100000AJ BKT_CHASIS L 10 Q12G6300 25 1 FOOT PAD...

  • Page 87: Replacement Part Listing

    5. CODE 6. QUANTITY ZD108 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ MARK * : SPARE DELIVERY SECTION ( P: SHARP SMPL / T: TPV RUSSIAN) ZD109 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ PRICE ZD110 093G 64S500 SU ESD MLVG04025R0QV05BP INPAQ CODE REF No.
  • Page 88 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION FB609 071G 59S121 M HIP BEAD 120R/500MA C406 065G040215031JF CAP 0402 15PF J 50V NPO FB701 071G 56K121 M CHIP BEAD 0805 120R 25% MGLB2012E121T-L C407 065G040215031JF CAP 0402 15PF J 50V NPO...
  • Page 89 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION C624 065G060333332K A CAP CHIP 0603 33NF K 50V X7R R1006 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO C625 065G060333332K A CAP CHIP 0603 33NF K 50V X7R R1007 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO...
  • Page 90 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION R130 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN R460 061G04022202FT RST CHIP 22K 1/16W 1% TZAI YUAN R131 061G0402000 JT RST 0402 0.05R MAX 1/16W - R461 061G04021001FY RST CHIP 1K 1/16W 1%...
  • Page 91 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION R675 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN U501 056G 662 21 ESD PROTECT AOZ8804DI DFN-10 R676 061G0402223 JT RST CHIP 22K 1/16W 5% TZAI YUAN U502 056G 662 21 ESD PROTECT AOZ8804DI DFN-10...
  • Page 92 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION L401 373G0806229CNM CHIP IND 2.2UH 30% 1.2A 0.15R MGFL2016F C127 065G040210332KY CAP CHIP 0402 10N 50V X7R +/-10% L601 073G253S 81 M SMD CHOKE 10UH 20% 2.5A 0.047R 00036888 C128 065G040210031JY CAP 0402 10PF 5% 50V NP0...
  • Page 93 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION C427 065G040210412KY CAP 0402 100NF 10% 16V X7R C634 065G060310522KA CAP 0603 1UF 10% 25V X7R CL10B105KA8NNN C635 065G040210412KY CAP 0402 100NF 10% 16V X7R C428 065G060322515KA 0603 2.2UF K 16V X5R...
  • Page 94 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION R1009 061G0402220 JY RST CHIPR 22 OHM +-5% 1/16W YAGEO R125 061G0402000 JT RST 0402 0.05R MAX 1/16W - R101 061G0402000 JT RST 0402 0.05R MAX 1/16W - R126 061G0402101 JT RST CHIP 100R 1/16W 5% TZAI YUAN...
  • Page 95 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION R198 061G0603000 JT RST CHIP MAX 0R05 1/10W TZAI YUAN R512 061G0402750 JY RST 0402 75R 5% 1/16W RC0402JR-0775RL R199 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R513 061G0402104 JY RST CHIPR 100KOHM +-5% 1/16W YAGEO...
  • Page 96 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION R728 061G0402000 JT RST 0402 0.05R MAX 1/16W - Q504 057G 761516 SMALLTRAN BC847C 0.1 50 SOT-23 R729 061G04028202FT RST 0402 82K 1/16W 1% TZAI YUAN Q506 057G 761516 SMALLTRAN BC847C 0.1 50 SOT-23...
  • Page 97 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION FB407 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 C152 065G060310512KA CAP 0603 1UF 10% 16V X7R GRM188R71C105K FB409 371G042P121M02 CHIP BEAD 0402 120R 25% MGLB1005M121T1R3 C153 065G040222031JT CAP 0402 22PF 5% 50V NP0 UMK105 CG220JV...
  • Page 98 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION C660 065G040268232KF CAP 0402 6.8NF 10% 50V X7R R1022 061G0402470 JY RST CHIPR 47 OHM 5% 1/16W YAGEO C661 065G040268232KF CAP 0402 6.8NF 10% 50V X7R R1023 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA...
  • Page 99 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION R140 061G0402000 JT RST 0402 0.05R MAX 1/16W - R420 061G0402103 JT RST CHIP 10K 1/16W 5% TZAI YUAN R143 061G0402303 JY RST CHIP R 30KOHM 1/16W +/-5% YAGEO R421 061G0402472 JF RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA...
  • Page 100 RST CHIPR 10 OHM 5% 1/10W FENGHUA HDCP-U406 070GHDCP500HDC HDCP CODE R626 061G0603100 JF RST CHIPR 10 OHM 5% 1/10W FENGHUA MAC-U406 370G0MAC615SHP CD SHARP EU TV MAC ADDRESS R655 061G0402330 JT RST CHIP 33R 1/16W 5% TZAI YUAN P90T0059202 HEAT SINK R657...
  • Page 101 LC-32LD164 LC-32LD165 LC-32LD166 PRICE PRICE CODE CODE REF No. PARTS DESCRIPTION REF No. PARTS DESCRIPTION C8508 065G080510232K Y CAP CHIP 0805 1N 50V X7R +/-10% R8518 061G0805104 JT RST CHIPR 100KOHM +- 5% 1/8W TZAI YUAN C8509 065G080522522K M CAP 0805 2.2UF 10% 25V X7R R8519 061G08051001FT RST CHIP 1K 1/8W 1%...
  • Page 102 LC-32LD164 LC-32LD165 LC-32LD166 PRICE CODE REF No. PARTS DESCRIPTION J9103 095G 90 23 JUMP WIRE - - J9104 095G 90 23 JUMP WIRE - - J9105 095G 90 23 JUMP WIRE - - J9106 095G 90 23 JUMP WIRE - - J9107 095G 90 23 JUMP WIRE - -...

  • Page 103: Packing Assembly

    LC-32LD164 LC-32LD165 LC-32LD166 18. PACKING ASSEMBLY 32”...
  • Page 104 LC-32LD164 LC-32LD165 LC-32LD166 MODEL:LC-32LD164E Item Parts Code Description PRICE CODE SPAKCH540WJZZ PACKING CASE SPAKXE264WJZZ PACKING FORM BOTTOM SPAKPB437WJZZ POLYETHYLENE BAG MAIN SET SSAKAA111WJZZ ACCESORIES BAG 392GB1JA1A3E2C BATTERY 705TXDSWN0100X SCREWS STAND BAG TINS-G123WJZZ OWNERS MANUAL 389G217A15NLSS AC POWER CORD 398GR10BESP00T REMOTE CONTROL...
  • Page 105 LC-32LD164 LC-32LD165 LC-32LD166 MODEL:LC-32LD165RU Item Parts Code Description PRICE CODE SPAKCH541WJZZ PACKING CASE SPAKXE264WJZZ PACKING FORM BOTTOM SPAKPB437WJZZ POLYETHYLENE BAG MAIN SET SSAKAA111WJZZ ACCESORIES BAG 392GB1JA1A3E2C BATTERY 705TXDSWN0100X SCREWS STAND BAG X41G50MV84302A OWNERS MANUAL 389G217A15NLSS AC POWER CORD 398GR10BESP00T REMOTE CONTROL 705TXESBQ0100X REMOTE CONTROL SET (With batteries ) SPAKXE263WJZZ...
  • Page 106 LC-32LD165 125mm LC-32LD166 100mm 80mm 63mm COPYRIGHT © 2014 BY SHARP CORPORATION 50mm ALL RIGHTS RESERVED No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical,...
