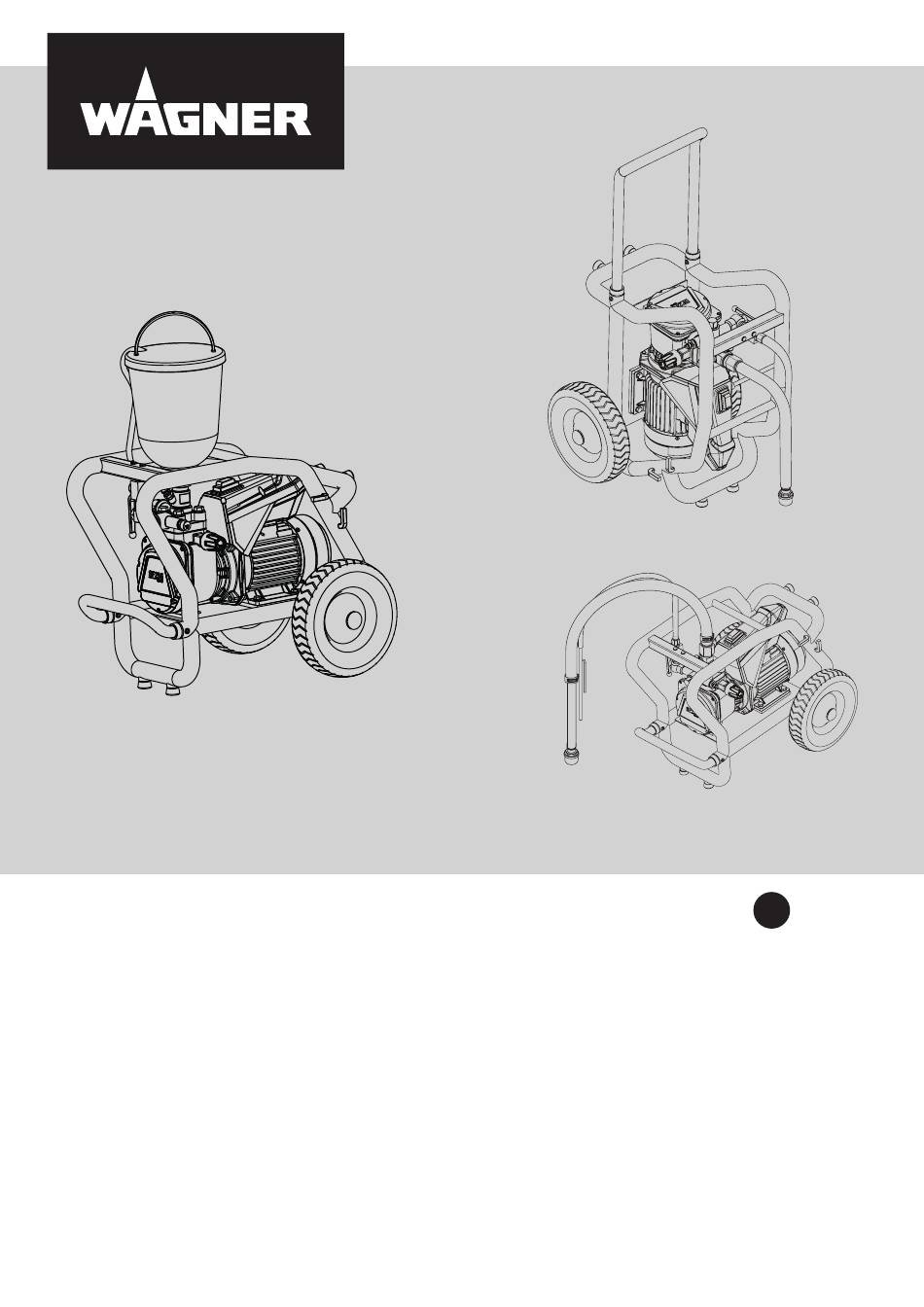

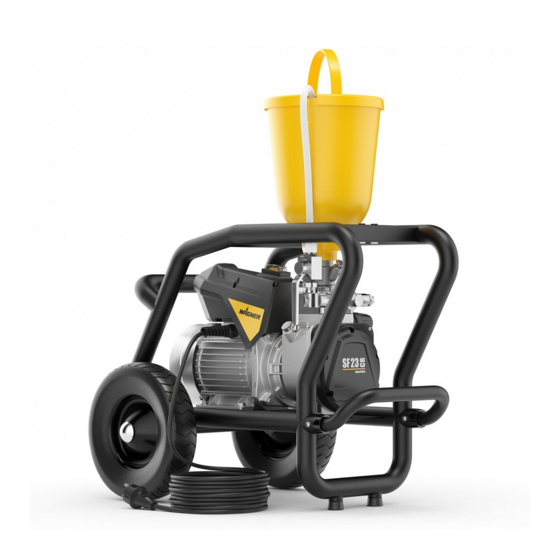

- Page 1 SUPER FINISH 23 CR AIRLESS HIGH-PRESSURE SPRAYING UNIT - GB - Operating manual wagner-group.com...
- Page 2 1. Faulty units may not be used. 2. Secure a Wagner spray gun with the securing lever at the trigger guard. 3. Ensure earthing. 4. Check the permissible operating pressure of the high-pressure hose and spray gun.
-
Page 3: Table Of Contents
GENERAL VIEW OF APPLICATION ____________ 32 11.1 Super Finish 23 CR accessories _________________ 44 Application ________________________________ 32 11.2 Spare parts list Super Finish 23 CR _____________ 49 Coating material ____________________________ 32 11.3 Spare parts List Trolley _______________________ 50 2.2.1 Coating materials with sharp-edged additional 11.4... -
Page 4: Safety Regulations For Airless Spraying
Super Finish 23 CR SAFETY REGULATIONS FOR DANGER OF INJURY FROM THE SPRAY JET AIRLESS SPRAYING Attention, danger of injury by injection! Never point the spray gun at yourself, other persons or animals. All local safety regulations in force must be observed. -
Page 5: Max. Operating Pressure
Super Finish 23 CR SAFETY REGULATIONS 1.12 MAX. OPERATING PRESSURE USE OF UNITS ON BUILDING SITES AND WORKSHOPS The permissible operating pressure for the spray gun, spray gun accessories, unit accessories and high-pressure hose The unit may only be connected to the mains network via a... -
Page 6: Work At Electrical Components
This im- pairs the durability of these wearing parts considerably. APPLICATION Super Finish 23 CR is an electric driven unit for the airless at- 2.2.2 FILTERING (FOR SPRAY WORK) omization of different painting materials. -
Page 7: Description Of Unit
FUNCTIONING OF THE UNIT TWO-POSITION OPERATION The following section contains a brief description of the tech- The Super Finish 23 CR can be used both horizontally and ver- nical construction for better understanding of the function: tically. Super Finish 23 CR is an electrically driven high-pressure paint spraying equipment. -
Page 8: Explanatory Diagram
Super Finish 23 CR DESCRIPTION OF UNIT EXPLANATORY DIAGRAM Material ball cock:* Open: The material can be fed Closed: The material cannot be fed Whip hose for injection work (a)* Tip guard with airless tip for spray work (b)* Gun*... -
Page 9: Technical Data
Super Finish 23 CR DESCRIPTION OF UNIT / STARTUP TECHNICAL DATA STARTUP Voltage : 230-240 V AC, 50 Hz Fuses : 16 A time-lag 1. Screw either the whip hose (1 for injection work) or the Unit connecting line : 6 m long, 3 x 1.5 mm²... -
Page 10: High Pressure Hose And Pressure Gauge
Super Finish 23 CR STARTUP SUCTION SYSTEM 2. Screw the high pressure hose (9) onto the hose connec- tion or the pressure gauge. 1. Ensure that the sealing surfaces of the connections are 3. Screw the gun (10) or the material ball cock onto the high clean. -
Page 11: Connection To The Mains Network
Super Finish 23 CR STARTUP CONNECTION TO THE MAINS NETWORK Connection must always be carried out via an appropriately grounded safety outlet with residual-current-operated circuit-breaker. Before connecting the unit to the mains supply, ensure that the line voltage matches that specified on the unit’s rating plate. -
Page 12: Transportation
Never pull on the high-pressure hose to move the device. Make sure that the high-pressure hose cannot twist. This can be avoided by using a Wagner spray gun with a swivel joint and a hose system. When using the high-pressure hose while... -
Page 13: Cleaning The Unit
Super Finish 23 CR CLEANING THE UNIT CLEANING THE UNIT A clean state is the best method of ensuring operation with- 13. Pour new detergent into the container and repeat the out problems. After you have finished work, clean the unit. -
Page 14: Cleaning The Airless Spray Gun
Super Finish 23 CR CLEANING THE AIRLESS SPRAY GUN SERVICING 1. Rinse the Airless spray gun with a suitable cleaning agent under lower operating pressure. GENERAL SERVICING 2. Secure the spray gun, refer to the operating manual of the spray gun. -
Page 15: Repairs At The Unit
Super Finish 23 CR REPAIRS AT THE UNIT REPAIRS AT THE UNIT 10.2 INLET VALVE 1. Place the enclosed 30 mm wrench on the trigger housing (1). Switch the unit off. 2. Loosen the trigger housing (1) with light blows of a ham- Before all repair work: Unplug the power mer on the end of the wrench. -
Page 16: Outlet Valve
Super Finish 23 CR 10.3 10.4 OUTLET VALVE PRESSURE CONTROL VALVE 1. Use a 22 mm wrench to screw the outlet valve from the Only have the pressure control valve (1) re- paint section. placed by the customer service. 2. Carefully pull of the clasp (1) using the enclosed screw- The max. -
Page 17: Remedy In Case Of Faults
Super Finish 23 CR REPAIRS AT THE UNIT 10.6 REMEDY IN CASE OF FAULTS TYPE OF MALFUNCTION WHAT ELSE? POSSIBLE CAUSE MEASURES FOR ELIMINATING THE MALFUNCTION Unit does not start Indicating lamp does No voltage applied Check voltage supply not illuminate... -
Page 18: Spare Parts And Accessories
The guarantee certificate is valid as confirmation, as is the Wagner or one of our dealers will take back your used Wagner waste electrical or electronic equipment and will dispose of original purchase document that carries the date of the pur- it for you in an environmentally friendly way. - Page 19 Super Finish 23 CR GUARANTEE DECLARATION claims must be made immediately, or at the latest within a The above regulations manage the legal relationship to us period of 2 weeks. concludingly. Additional claims, in particular for damages and The authorised specialist shop that delivered the device is enti- losses of any type, which occur as a result of the product or tled to accept guarantee claims.
