Campbell Hausfeld FP2028999TT Operating Instructions And Parts Manual

See Warranty on page 8 for important information about commercial use of this product.
Operating Instructions and Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.

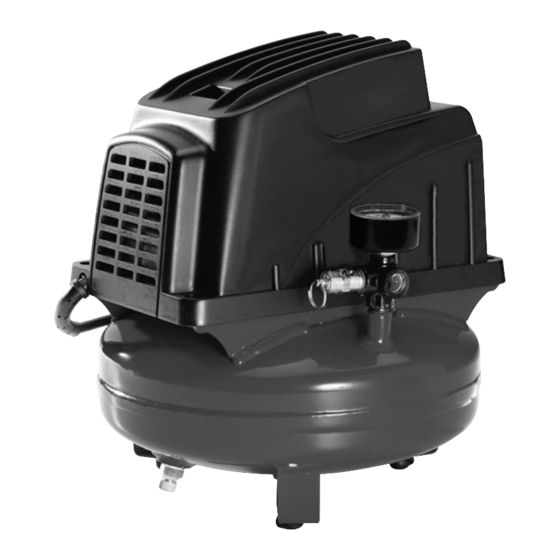

Oilless Compressors
Description
Oilless compressors are designed for
do-it-yourselfers with a variety of home
and automotive jobs. These units
operate without oil. Compressed air
from this unit will contain moisture.
Install a water filter or air dryer if
application requires dry air.
Safety Guidelines
This manual contains information that is
very important to know and understand.
This information is provided for SAFETY
and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following
symbols.
an imminently hazardous situation
which, if not avoided, WILL result in
death or serious injury.
a potentially hazardous situation
which, if not avoided, COULD result in
death or serious injury.
a potentially hazardous situation which,
if not avoided, MAY result in minor or
moderate injury.
important information, that if not
followed, MAY cause damage to
equipment.
Unpacking
After unpacking the unit, inspect
carefully for any damage that may
have occurred during transit. Make
sure to tighten fittings, bolts, etc.,
before putting unit into service. In case
of questions, damaged or missing parts,
please call 1-800-543-6400 for customer
assistance.
REMINDER: Keep your dated proof of purchase for warranty purposes!
© 2007
STOP!
Record the Model No., Serial No. and
date of purchase located on the base
below the pump in the space below.
Danger
Model No. ____________________
indicates
Date Code ____________________
Date of purchase _________________
Warning
indicates Retain these numbers for future
reference.
Have the date code, model number,
Caution
and parts list (with missing parts circled
indicates
before calling.)
Notice
unit if damaged during shipping,
indicates
handling or use. Damage may result in
bursting and cause injury or property
damage.
General Safety
Information
Since the air compressor and other
components used (filters, lubricators,
hoses, etc.), make up a high pressure
pumping system, the following safety
precautions must be observed at all
times:
Attach it to this manual or file it for safekeeping.
FP202999DB, FP202999DQ, and FP2028999TT
DO NOT RETURN THE
PRODUCT TO THE
RETAILER! CALL
1-800-543-6400
Do not
operate
FP202801, FP202901, FP202897,
Breathable Air Warning
This compressor/pump is not
equipped and should not be
used "as is" to supply breathing
quality air. For any application
of air for human consumption,
the air compressor/pump will
need to be fitted with suitable
in-line safety and alarm
equipment. This additional
equipment is necessary to
properly filter and purify the air
to meet minimal specifications
for Grade D breathing as
described in Compressed Gas
Association Commodity
Specification G 7.1 - 1966, OSHA
29 CFR 1910. 134, and/or
Canadian Standards
Associations (CSA).
DISCLAIMER OF WARRANTIES
In the event the compressor is
used for the purpose of
breathing air application and
proper in-line safety and alarm
equipment is not
simultaneously used, existing
warranties shall be voided, and
the company disclaims any
liability whatsoever for any
loss, personal injury or damage.
1. Read all manuals included
with this product carefully.
Be thoroughly familiar
with the controls and the
proper use of the equipment.
2. Follow all local electrical and safety
codes as well as in the US, National
Electrical Codes (NEC) and Occupational
Safety and Health Act (OSHA).
3. Only persons well acquainted with
these rules of safe operation should
be allowed to use the compressor.
IN614205AV 11/07
