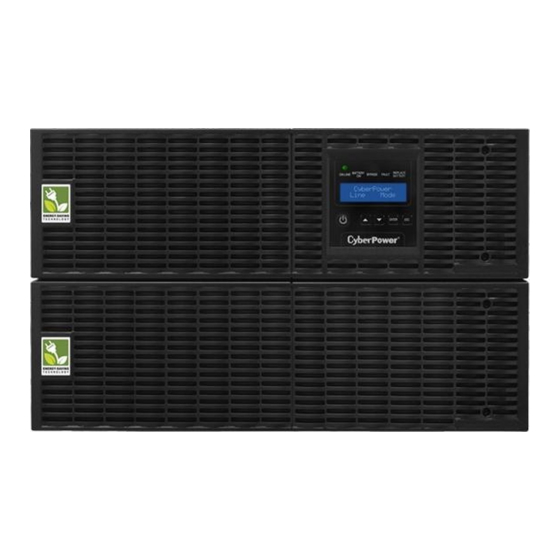

- Page 1 User’s Manual OL6000ERT3UD OL8000ERT3UD OL10000ERT3UD OL6KERT3UDPM OL8KERT3UDPM OL10KERT3UDPM Cyber Power Systems Inc. www.cyberpower.com K01-0000424-03...
- Page 2 重要安全警語 本手冊包含重要的操作說明，應遵循安裝並維護 UPS 和電池。請仔細閱讀並遵守所有的安裝指引與 警示。安裝前需仔細閱讀本手冊再進行安裝與操作。 注意！ UPS 須接到具地線的電源插座，並有保險絲或斷路器等過電流保護器。 注意！ 如需關閉連接到 UPS 的設備時，請先關閉 UPS 電源再拔掉插頭。 注意！ 不得使用在醫療或生命維護設備！ CyberPower 並不銷售產品在生命維護或醫療應用上， 注意！ 在 UPS 電池模式下，電池接頭斷開可以切斷危險的帶電元件。 任何影響生命維護、醫療應用或病人護理等皆不得使用。 注意！ 為了防止火災或觸電危險，UPS 需安裝在溫度和濕度合理控制下的室內環境。 （請參閱規格 可接受的溫度和濕度範圍） 。 注意！ 為了避免觸電危險，在更換電池或作為電腦設備備用電源前，請先關閉 UPS 電源開關。 注意！ 為了減少觸電危險，勿取下上蓋。除電池可替換外，內部無其他可供使用者維修的零件。 注意！ 不得使用在水族箱或相關水源設備上！為降低發生火災的風險，任何有潛在水源處皆不得 注意！ 交流輸出電纜使用長度不得超過 10 米。...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS Smart App Online UPS 輸入 AC 200V-240V(＋6%/－10%), 30A MAX, 50/60Hz OL6KERT3UDPM / 型號 額定電壓/電流 最大功率 OL6000ERT3UD 輸出 AC 200V-240V, 30A MAX, 50/60Hz 6000VA/5400W 輸入 AC 200V-240V(＋6%/－10%), 40A MAX, 50/60Hz OL8KERT3UDPM / OL8000ERT3UD 輸出 AC 200V-240V, 40A MAX, 50/60Hz 8000VA/7200W 輸入...
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate the UPS. CAUTION! The UPS must be connected to a grounded AC power CAUTION! Wiring must be done by qualified personnel. - Page 5 Screw hole dust covers (10) * 2 sets USB communication cable Power cord * PowerPanel® Business Edition software is available Serial Interface Cable (RS-232) on our website. Please visit www.cyberpower.com go to the Software Section for FREE download. Copyright © 2018 Cyber Power Systems, Inc.
-
Page 6: Hardware Installation
HARDWARE INSTALLATION Step 3: Rackmount rail Installation HARDWARE INSTALLATION The rails adjust to mount in 48-cm (19-inch) panel racks from 52 to These versatile UPS systems can be mounted in a rackmount or vertical 91.5cm (20.5 to 36 inches) deep. Select the proper holes in the rack for tower orientation. - Page 7 HARDWARE INSTALLATION Step 4: Adjust rackmount rails to fit your rack How to Slide out UPS from rail Adjust the rail depth to match your rack depth. Attach the rackmount rail The UPS will be secured by a safety locking mechanism midway of to your rack with two screws and two plastic washers at the front of the pulling it out of the rack.
-
Page 8: Vertical/Tower Installation
HARDWARE INSTALLATION VERTICAL/TOWER INSTALLATION Step 1: Adhere the rubber feet on the bottom side of base stands Adhere the protective rubber feet on the bottom side of base stands (rackmount ears) and UPS and Battery pack. Step 2: Attach the base stands and attach the dust covers Secure the tie bracket with the screws (M5X7*4pcs). -
Page 9: Installing Your Ups System
INSTALLING YOUR UPS SYSTEM SYSTEM BLOCK DIAGRAM Bypass Input Inverter Output Input Output Filter AC/DC DC/AC Filter LCD Module Charger Control Battery & USB & DB9 AC/DC Monitoring SNMP Slot Line Mode Battery Mode Bypass Mode HARDWARE INSTALLATION GUIDE Battery charge loss may occur during shipping and storage. Before This UPS is equipped with an auto-charge feature. -
Page 10: Hardwiring The Input/ Output Terminals
HARDWIRING THE INPUT/ OUTPUT TERMINALS CHECK CIRCUIT BREAKER/WIRING Check branch circuit breaker rating and wiring dimensions with the following table. UPS Capacity Branch Circuit Breaker Wiring AWG Wiring mm 6KVA 10 AWG 5.5 mm 8KVA 8 AWG 8.0 mm 10KVA 6 AWG 14.0 mm SINGLE INPUT CONFIGURATION... - Page 11 HARDWIRING THE INPUT/ OUTPUT TERMINALS Step 1: Separate the top and bottom covers Connect the three wires to the bypass terminal block (L / N / G). Loosen the two screws to separate the top and bottom covers. Step 2: Fix the bottom cover on the terminal block Tighten the two screws to fix the bottom cover on the terminal block.
- Page 12 HARDWIRING THE INPUT/ OUTPUT TERMINALS Connect the three wires to the input terminal block. Connect the three wires to the output terminal block. Step 5: Output configuration Step 6: Fix the top cover on the bottom cover Insert the output cable through the appropriate cable gland (not included) Tighten the six screws to fix the top cover on the bottom cover.
-
Page 13: Backfeed Protection
1. If the Bypass circuit is shorted and the UPS is running in Line Mode or Battery Mode, backfeed protection will be active and the external isolation device (Magnetic Contactor) will open. 2. Save your data and perform a controlled shutdown. 3. Contact CyberPower for repair. WITHOUT BACKFEED PROTECTION CONFIGURATION 1. Hardwire the input terminals as shown in the following diagram. -
Page 14: Basic Operation
11. Surge Protected Communication Ports RJ-45/RJ-11 14. Extended Runtime Battery Module Connector These ports are used to protect standard RJ-45/RJ-11 Connection for additional CyberPower XL Battery modules. based products (ADSL, LAN, Phone/ Modem-Lines) and cabling systems from surges. 15. EPO (Emergency Power Off) Connector Enables an emergency UPS Power-Off from a remote location. - Page 15 BASIC OPERATION BATTERY MODULE FRONT/REAR PANEL DESCRIPTION 1. On-board Replaceable Fuse Cover Replaceable fuse is accessible from the rear panel. It must be done by qualified personnel. 2. Input Connector Use this input connector to daisy chain the next Battery module.
- Page 16 BASIC OPERATION CONNECTION #2 : POWER MODULE WITH MULTIPLE BATTERY MODULES Step 1: Connect the 1 Battery module to the Power module using the instructions above. Step 2: Loosen the two screws to remove the battery cable retention bracket of the 1 battery module.
-
Page 17: Led Indicators - Ups Status
OPERATION INSTRUCTIONS FOR LCD MODULE LED INDICATORS – UPS STATUS LED Indicators Color UPS Status Description ON/OFF White UPS power is on. ON-LINE Green UPS is operating in Line Mode. BATTERY ON Yellow UPS is operating in Battery Mode. BYPASS Yellow UPS is operating in Bypass Mode, Manual Bypass or ECO (Economy) Mode. -
Page 18: Lcd Setup Functions
LCD SETUP FUNCTIONS MULTI-FUNCTION LCD MAIN MENU Press “Enter” button to activate “MAIN MENU”. MAIN MENU submenu Function Description Information Displays the UPS information. Configure Displays the UPS settings that can be configured by the user. Displays most recent events, event count, time... -
Page 19: Lcd Event Log
LCD SETUP FUNCTIONS LCD EVENT LOG 3 Event Logs of UPS can be recorded. Press the “ENTER” button to activate the “MAIN MENU”. Press the “▲” and “▼” buttons to scroll to the “Event Log” option. Press the “ENTER” button to select the “Event Log” submenu. Press the “▲”... -
Page 20: Silencing Audible Alarms
LCD SETUP FUNCTIONS Configure Submenu Available Settings Default Setting Output Voltage = [200V] [208V] [220V] [230V] [240V] 230V* Range= [+/- 1%] [+/- 2%] [+/- 3%] [+/- 4%] [+/- 5%] Sync Freq Window +/- 5% [+/- 6%] [+/- 7%] [+/- 8%] [+/- 9%] [+/-10%] Range= [+10%/-10%] [+10%/-15%] [+10%/-20%] Bypass V Window +10%/-15%... -
Page 21: Lcd Module Remote Control And Wall-Mounting Instructions
LCD MODULE REMOTE CONTROL and WALL-MOUNTING INSTRUCTIONS REMOTE CONTROL WALL-MOUNTING INSTRUCTIONS Step 1: Remove the Multifunction LCD Module Step 1: Remove the Multifunction LCD Module Unscrew the right panel of the Power module. Separate the right panel Unscrew the right panel of the Power module. Separate the right panel from the UPS. -
Page 22: Maintenance
Please refer to the front side of the Battery module for the model number who are familiar with the procedures and safety precautions. Make a note of the correct replacement batteries. For battery procurement, log onto of the replacement Battery module number. www.cyberpower.com,or contact your local dealer. Safety Precautions Battery Disposal CAUTION! -
Page 23: Technical Specifications
TECHNICAL SPECIFICATIONS Model OL6000ERT3UD OL8000ERT3UD OL10000ERT3UD Configuration Capacity (VA) 6000VA 8000VA 10000VA Capacity (Watts) 6000W 8000W 10000W Form Factor Rackmount / Tower Energy-saving Technology Yes, ECO Mode Efficiency > 95% Input 120~139Vac for 0~ 25% Load 140~159Vac for 0~ 50% Load Input Voltage Range 160~179Vac for 0~ 75% Load... -
Page 24: Troubleshooting
Over Charge Battery is overcharged. charger voltage. Charger Failure Charger has failed. 2. Contact CyberPower for repair. High O/P V Output voltage is too high. 1. Shut down UPS and turn off input breaker. Low O/P V Output voltage is too low. - Page 25 設備名稱：不斷電系統，型號 （型式） ：OL6000ERT3UD，OL8000ERT3UD ，OL10000ERT3UD OL6KERT3UDPM，OL8KERT3UDPM，OL10KERT3UDPM Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 六價鉻 多溴聯苯 多溴二苯醚 單元 Ｕnit Lead Mercury Cadmium 鉛 汞 鎘 Hexavalent Polybrominated Polybrominated chromium biphenyls diphenyl ethers (Pb) (Hg) (Cd) (PBB) (PBDE) 電路板...
