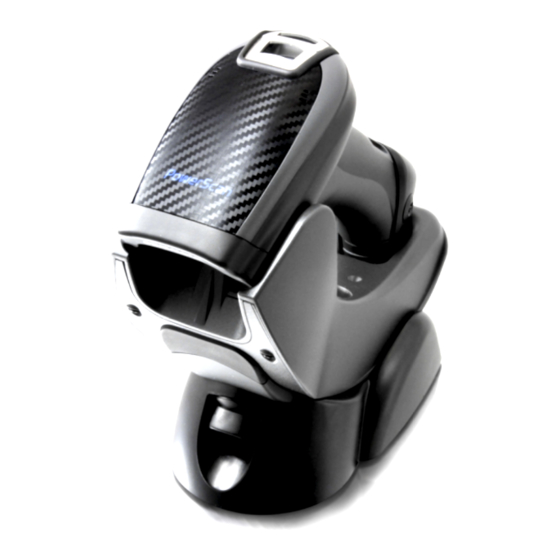

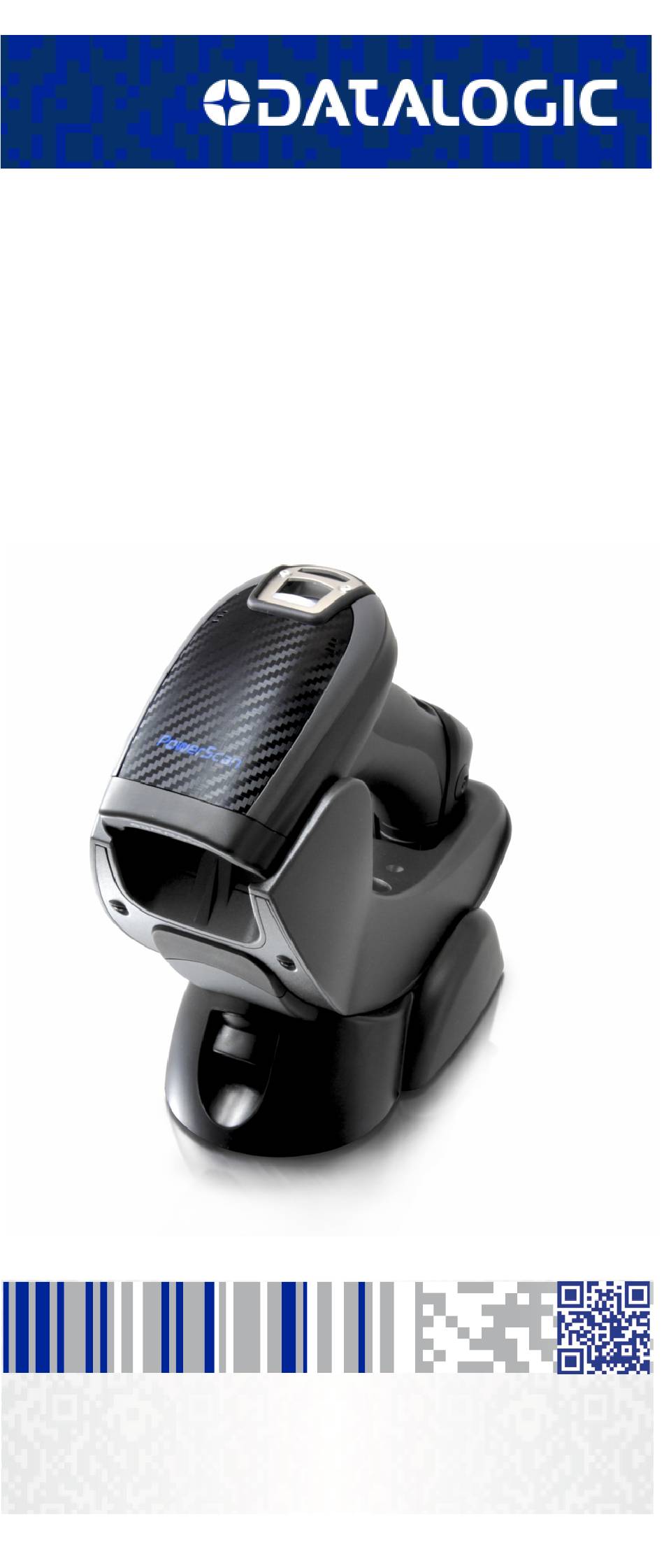

- Page 1 PowerScan™ Retail PM9500-RT Industrial Cordless Handheld Area Imager Bar Code Reader Quick Reference Guide...
- Page 2 Datalogic has taken reasonable measures to provide informa- tion in this manual that is complete and accurate, however, Datalogic reserves the right to change any specification at any time without prior notice. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A.
-
Page 3: Table Of Contents
Resetting Product Defaults ..........8 Compatibility with the PowerScan™ 8000 family ....9 Set Date and Time ................9 Linking the Reader ................10 Link Datalogic RF Devices to Base......10 Power Off ..................10 Reading Parameters ..............11 Good Read Green Spot Duration ........11 Digital Watermark Reading ..........12... - Page 4 PowerScan™ Retail PM9500-RT...
-
Page 5: End User Software License Agreement (Eula)
2. Scope Of License Granted 2.1 Datalogic grants to End User a personal non-exclusive, non-transferable, per- petual license to use the Software, solely on the Datalogic Product in which it is embedded ("designated Datalogic Product"), in machine-readable form only, solely for End User's internal business purposes. This Agreement does not convey ownership of the Software to End User. - Page 6 3.2 End User shall not sell, assign, sublicense, distribute, lend, rent, give, or other- wise transfer the Datalogic Product to any third party unless such third party agrees with Datalogic in writing to be bound by the terms and conditions of this Agreement. Any such transfer of the Datalogic Product absent such agreement shall be null and void.
- Page 7 52.227-19 or in the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013(c)(1)(ii), whichever is applicable. 9.2 If End User is using the Datalogic Product outside of the United States, End User must comply with the applicable local laws of the country in which the Datalogic Product is used, with U.S.
-
Page 8: Software Product Policy
The Court of Hong Kong shall have exclusive jurisdiction over all matters regarding this Agreement, except that Datalogic shall have the right, at its absolute discretion, to initiate pro- ceedings in the courts of any other state, country, or territory in which End User resides, or in which any of End User's assets are located. -
Page 9: Description
Powerscan™ PM9500-RT Description The PowerScan™ Retail 9500 series is the first handheld scanners family on the market capable of reading digital watermarks, including Digimarc® Barcode. The PowerScan™ PM9500-RT is a feature-rich and rugged area imager reader. It is offered in several different mod- els to better fit the different needs of each customer. -
Page 10: Using The Powerscan™ Pm9500-Rt
The reader can be set up to select and output a subset of data elements from USA Driver License PDF417 barcodes. This feature can be USA Driver License enabled using either Datalogic Aladdin™ or the Parsing barcodes in the USA Driver License Parsing Quick Reference Guide (QRG), available on the Datalogic website. -
Page 11: Installing The Battery Pack
To install, charge and/or do any other action on the bat- tery, follow the instructions in this manual. To charge the Battery Pack, See “Charging the Batteries” on page 6. Datalogic recommends annual replacement of rechargeable battery packs to ensure NOTE maximum performance. - Page 12 Use only the authorized power supplies, bat- tery pack, chargers, and docks supplied by CAUTION your Datalogic reseller. The use of any other power supplies can damage the device and void your warranty. Do not disassemble or modify the battery.
- Page 13 Installing the Battery Pack Do not replace the battery pack when the device is turned on. Do not remove or damage the battery pack’s label. CAUTION Do not use the battery pack if it is damaged in any part. Battery pack usage by children should be supervised.
-
Page 14: Charging The Batteries
Installing the Battery Pack Charging the Batteries Once the BC 90x0 is powered, you can charge the reader's ™ batteries. Place the PowerScan M9500 into the BC 90x0 cradle. The Reader LED on the cradle/battery charger turns red. The battery is completely charged when the Reader LED on the cradle/battery charger turns green. - Page 15 Installing the Battery Pack Do not incinerate, disassemble, short ter- minals or expose to high temperature. Risk of fire, explosion. Use specified charger only. Risk of explosion if the battery is replaced by an incorrect type. Dispose of WARNING the batteries as required by the relevant laws in force.
-
Page 16: Programming
Programming Programming The reader is factory-configured with a set of standard default features. Customize your reader through use of the programming bar codes available in the PowerScan™ PM9500-RT. Check the corresponding features section for your interface, and also the Data Editing and Symbologies chapters of the PRG. -
Page 17: Compatibility With The Powerscan™ 8000 Family
Set Date and Time Compatibility with the PowerScan™ 8000 family The PM9500-RT can be programmed to operate in a mode compatible with the PowerScan™ 8000 family. For further details and for the relevant configuration strings and labels, refer to the PRG. Set Date and Time Scan the Enter/Exit Programming bar code below to set date and time. -
Page 18: Linking The Reader
Linking the Reader Linking the Reader Link Datalogic RF Devices to Base For RF devices, before configuring the interface it is nec- essary to link the handheld with the base. To link the handheld and the base, press the trigger to wake up the handheld, and mount it on the base. -
Page 19: Reading Parameters
Reading Parameters Reading Parameters Move the reader toward the target and center the aiming pattern and illumination system to capture and decode the image. See Using the PowerScan™ PM9500-RT on page 2 for more information. The aiming system will briefly switch off after the acquisi- tion time, and if no code is decoded will switch on again before the next acquisition. -
Page 20: Digital Watermark Reading
Reading Parameters Digital Watermark Reading ENTER/EXIT PROGRAMMING MODE Disable Enable PowerScan™ Retail PM9500-RT... -
Page 21: Operating Mode
Operating Mode Operating Mode Scan Mode The imager can be set to operate in one of several scan- ning modes. See the PRG for more information and set- tings for any of the options: Trigger Single (Default) — When the trigger is pulled, scan- ning is activated until one of the following occurs: •... - Page 22 Operating Mode Operating Mode (continued) ENTER/EXIT PROGRAMMING MODE Scan Mode = Scan Mode = Trigger Pulse Multiple Trigger Single Scan Mode = Flashing Scan Mode = Trigger Hold Multiple Scan Mode = Stand Mode Scan Mode = Always On PowerScan™ Retail PM9500-RT...
-
Page 23: Motion Aiming Control
Pick Mode Motion Aiming Control This feature configures the ability of the scanner to Enable/Disable the Aiming system when motion is detected (Motionix™ motion-sensing technology). Scan the Enter/Exit Programming bar code above, then either of the bar codes below. Motion Aiming Control = Enable Motion Aiming Control = Disable Pick Mode Pick Mode is a Decoding and Transmission process where bar codes that are not within the configurable distance... -
Page 24: Multiple Label Reading
Multiple Label Reading Multiple Label Reading The reader offers a number of options for multiple label reading. See the PRG or software configuration tool for descriptions of these features and programming labels. Technical Specifications The following tables contain Physical and Performance Characteristics, User Environment and Regulatory infor- mation. - Page 25 Technical Specifications PERFORMANCE CHARACTERISTICS Light Source Roll (Tilt) Tolerance ± 180° Pitch Tolerance ± 40° Skew (Yaw) Toler- ± 40° ance Print Contrast Mini- 15% minimum reflectance Max resolution 1D: 4 mils Resolution Max resolution 2D: 7.5 mils DEPTH OF FIELD (TYPICAL) Symbology Working Ranges 4 mils: 6-17 cm...
- Page 26 Technical Specifications USER ENVIRONMENT Operating Temperature -4° to 122° F (-20° - +50° C ) Storage Temperature -40° to 158° F (-40° to 70° C) Humidity 0 to 95% non-condensing Scanner withstands >50 times 6.5' (2 m) Drop Specifications drops to concrete Ambient Light Immu- 100,000 Lux nity...
-
Page 27: Led And Beeper Indications
LED and Beeper Indications LED and Beeper Indications The reader’s beeper sounds and its LED illuminates to indicate various functions or errors on the reader. An optional “Green Spot” also performs useful functions. The following tables list these indications. One exception to the behaviors listed in the tables is that the reader’s func- tions are programmable, and so may or may not be turned on. - Page 28 LED and Beeper Indications Table 3. Error Indicators INDICATION DESCRIPTION BEEPER The reader is try- Link Attempt ing to link to the Slow Flashes base Reader and Base Configuration are aligning the Fast Flashes Alignment parameters' con- figuration The reader has 3 beeps of Link successfully...
- Page 29 LED and Beeper Indications Programming Mode - The following indications ONLY occur when the reader is in Programming Mode. INDICATION DESCRIPTION BEEPER Label Pro- A valid program- LED blinks Reader sounds gramming ming label has continu- four low fre- Mode Entry been scanned.
-
Page 30: Error Codes
Error Codes Error Codes Upon startup, if the reader sounds a long tone, this means the reader has not passed its automatic Selftest and has entered FRU (Field Replaceable Unit) isolation mode. If the reader is reset, the sequence will be repeated. Press and release the trigger to hear the FRU indication code. -
Page 31: Cleaning
Cleaning Cleaning Exterior surfaces and scan windows exposed to spills, smudges or debris require periodic cleaning to ensure best performance during scanning. Use a soft, dry cloth to clean the product. If the product is very soiled, clean it with a soft cloth moistened with a diluted non-aggressive cleaning solution or diluted ethyl alcohol. -
Page 32: Datalogic Limited Factory Warranty
Datalogic service center, with shipping charges prepaid. Datalogic shall pay for the return of the product to Customer if the shipment is to a location within the country in which the Da-... - Page 33 No attempted assignment or transfer in violation of this provision shall be valid or binding upon Datalogic. DATALOGIC' S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATU- TORY OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGEMENT.
-
Page 34: Ergonomic Recommendations
Risk of Loss Customer shall bear risk of loss or damage for product in transit to Datalogic. Datalogic shall assume risk of loss or damage for product in Datalogic’s possession. In the absence of specific writ- ten instructions for the return of product to Customer, Datalogic will select the carrier, but Datalogic shall not thereby assume any liability in connection with the return shipment. -
Page 35: Support Through The Website
Support Through the Website Support Through the Website Datalogic provides several services as well as technical support through its website. Log on to www.datalogic.com and click on the SUPPORT > General Duty Handheld Scanners category link. From this page you can select your product model from the drop-... -
Page 36: Hex-Numeric Keypad
Hex-Numeric Keypad Hex-Numeric Keypad Use the barcodes that follow to enter numbers or alpha characters as you would select characters from a keypad. PowerScan™ Retail PM9500-RT... - Page 37 Hex-Numeric Keypad Hex-Numeric Keypad (continued) Quick Reference Guide...
- Page 38 Hex-Numeric Keypad Hex-Numeric Keypad (continued) PowerScan™ Retail PM9500-RT...
- Page 39 Hex-Numeric Keypad NOTES Quick Reference Guide...
- Page 40 Hex-Numeric Keypad NOTES PowerScan™ Retail PM9500-RT...
- Page 41 Hex-Numeric Keypad NOTES Quick Reference Guide...
- Page 42 Hex-Numeric Keypad NOTES PowerScan™ Retail PM9500-RT...
- Page 44 ©2013-2017 Datalogic S.p.A. and/or its affiliates. All rights reserved. Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many countries, including the U.S.A. and the E.U. Datalogic USA, Inc 959 Terry Street | Eugene, OR 97402 |USA...
