FREEZE PROTECTION
FOR POOLS, SPAS
AND WATER FEATURES
Model: PF1103 FREEZE PROTECTION CONTROL
IN RAINPROOF (TYPE 3R) ENCLOSURE
Model: PF1103M FREEZE PROTECTION CONTROL MECHANISM
SUITABLE FOR POOL/SPA EQUIPMENT CONTROL
INPUT VOLTAGE: 120 VOLT - 60 HZ OR 240 VOLT - 60 HZ.
ELECTRICAL RATING: 3 HP - 240 VOLT AC.
...do not permit children to operate the Control Unit or use the Pool/Spa unless they are closely supervised at all times.
...test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA! Contact a qualified
service technician.
...always disconnect electricity before servicing this control or the equipment(s) connected to it. THIS CONTROL IS NOT
TO BE USED AS A POWER DISCONNECT.

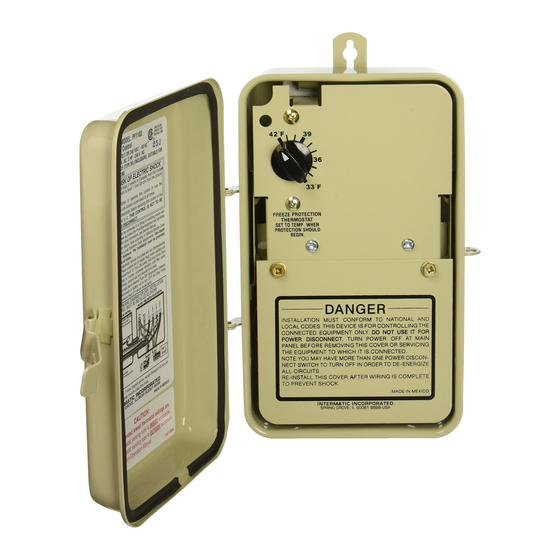

Model PF1103 Freeze Protection Control is self-contained in an indoor-outdoor, beige, rainproof
enclosure and designed to be connected to a timing or switching device. Together, they control as well
as protect the Pool/Spa equipment and
plumbing against freeze damage. The Control,
if wired according to instructions, turns ON
the Filter Pump when the air
temperature (where this Control is
located) drops below the temperature
set by the thermostat dial (between
32˚F and 45˚F). Nevertheless, the
Control is not intended to be a
substitute for the insulation, coverings or
maintenance.
Model PF1103M is a mechanism only,
functions just like Model PF1103 and
fits (snaps into) any Intermatic Pool
Panel, Models T10000R, T30000R or
T40000R Series. Both models are
designed to operate either on 120 Volt
or 240 Volt, 60 cycle. When used on
240 Volt however, the neutral wire must be
installed and it is not recommended for
controlling 240 Volt GFCI protected
equipment. For such application, use
Model PF1102 or PF1102M Freeze
Protection Control.
