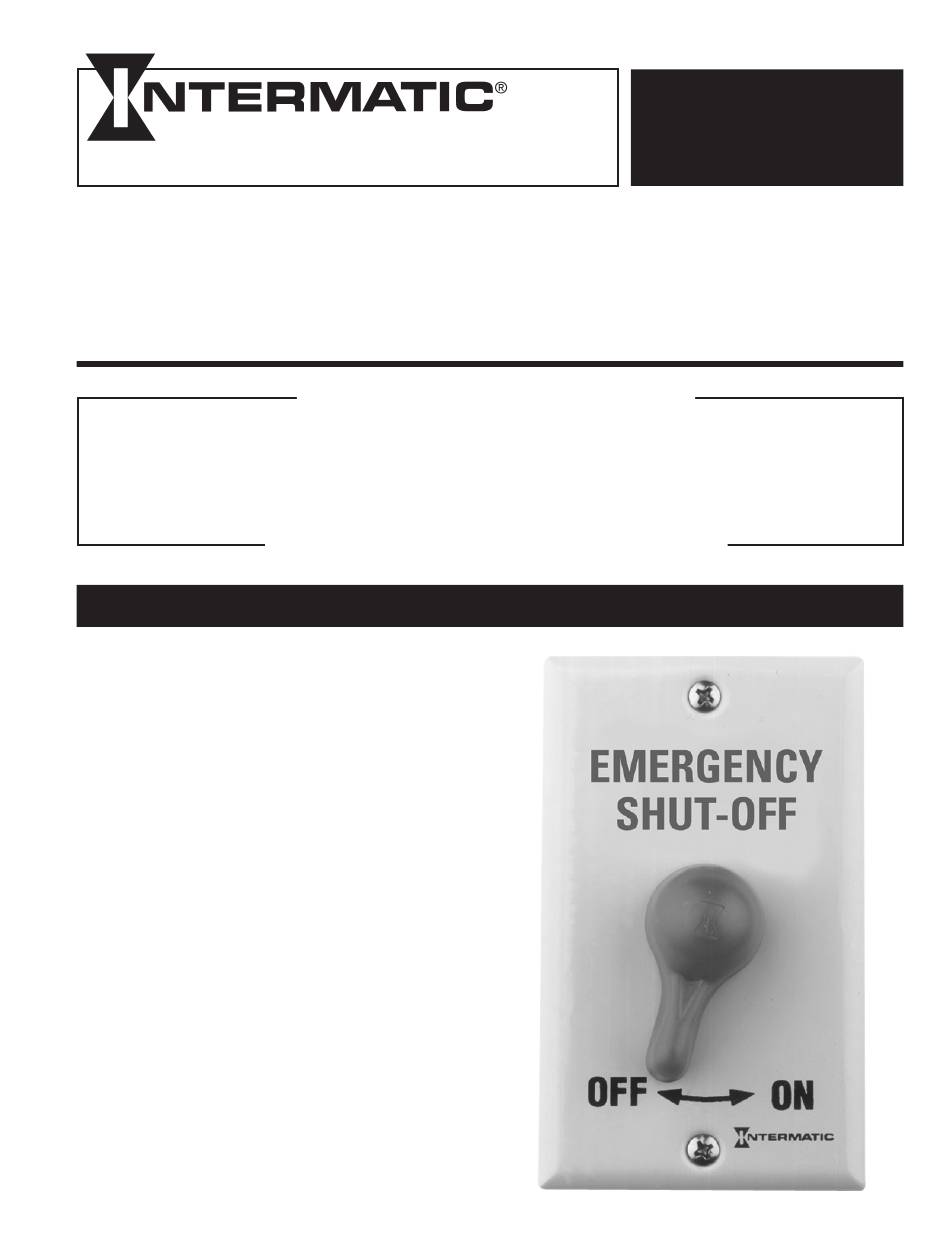

PA SERIES
EQUIPMENT CONTROLS
EMERGENCY SHUT-OFF / POWER DISCONNECT
Model: PA600
For indoor and outdoor use, suitable for Pool/Spa equipment control
ElEctrical rating: 1HP-120Vac, 3HP-240Vac, 20a-120/240Vac 840 Watt tungsten
Double Pole Single throw
1. This Control must be installed by a qualified electrician, according to National and Local Electrical Codes.
2. USE COPPER CONDUCTORS ONLY. If applicable, install this Control not less than 5 feet (U.S.) 3 meters (Canada) from
inside edge of pool or spa, in line of sight from pool or spa.
3. Do not exceed the maximum ratings of individual components, wiring devices and current carrying capacity of conductors.
4. For grounding of the installation, refer to section 250 and 680 of the National Electrical Code.
5. Always disconnect electricity at main panel before servicing this Control.

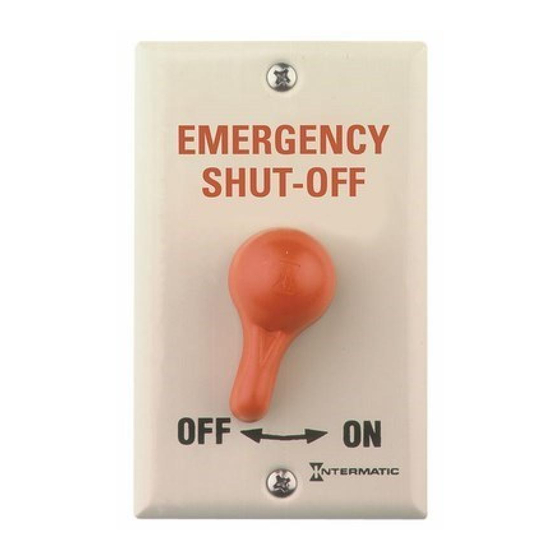

this Switch is intended for disconnecting electrical
equipment from its power source quickly and safely,
in the case of emergency. any person, even if not
familiar with the installation or safety procedures,
can shutdown the connected equipment by simply
moving the large red lever to the OFF position,
clearly indicated on the face of the switch.
the Switch is an enclosed construction, double
insulated switching device, suitable for indoor
or outdoor use and conforms to nEc article
680-12 & 680-38 requirements for disconnects and
emergency shut-off. it is ideal for new construction,
as well as for retrofitting existing installations, in
order to comply with the latest safety requirements
of the code. it can be used to disconnect any 120 or
240 volt resistive (r), tungsten (t) or motor (HP)
loads up to its rated capacity. it fits in a single gang
junction box and features pressure terminals for
convenient and secure field connections
IMPORTANT SAFETY INSTRUCTIONS
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL
GENERAL INFORMATION
SERVICE MANUAL
1
INSTALLATION
OPERATION &
