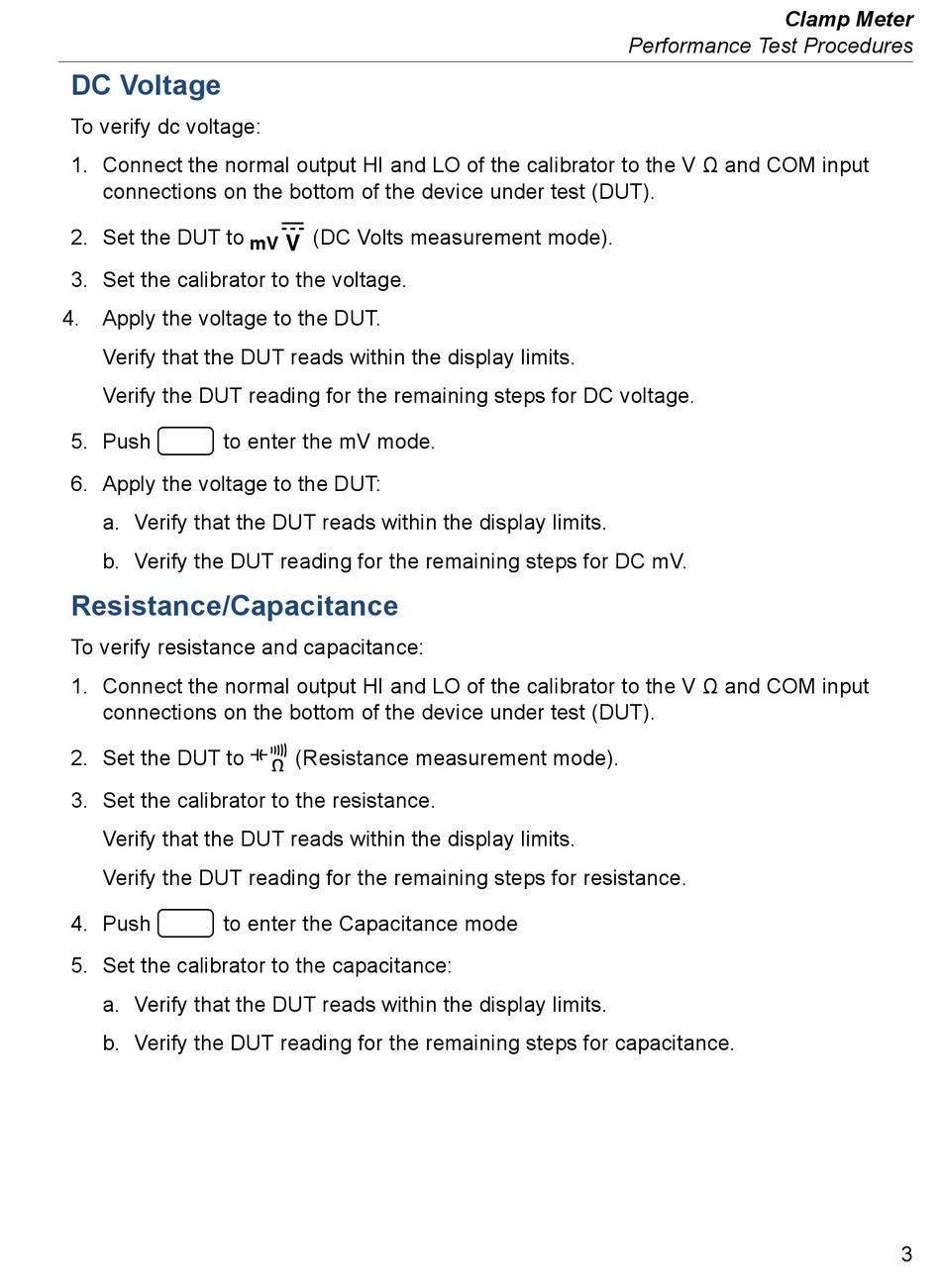

Dc Voltage; Resistance/Capacitance - Fluke 377 Calibration Manual

DC Voltage

To verify dc voltage:
1. Connect the normal output HI and LO of the calibrator to the V Ω and COM input
connections on the bottom of the device under test (DUT).
2. Set the DUT to
3. Set the calibrator to the voltage.
4. Apply the voltage to the DUT.
Verify that the DUT reads within the display limits.
Verify the DUT reading for the remaining steps for DC voltage.
B
5. Push to enter the mV mode.
6. Apply the voltage to the DUT:
a. Verify that the DUT reads within the display limits.
b. Verify the DUT reading for the remaining steps for DC mV.

Resistance/Capacitance

To verify resistance and capacitance:
1. Connect the normal output HI and LO of the calibrator to the V Ω and COM input
connections on the bottom of the device under test (DUT).
2. Set the DUT to
3. Set the calibrator to the resistance.
Verify that the DUT reads within the display limits.
Verify the DUT reading for the remaining steps for resistance.
B
4. Push to enter the Capacitance mode
5. Set the calibrator to the capacitance:
a. Verify that the DUT reads within the display limits.
b. Verify the DUT reading for the remaining steps for capacitance.
N
(DC Volts measurement mode).
D
(Resistance measurement mode).
Clamp Meter
Performance Test Procedures
3
