Summary of Contents for FWE FOOD SENTRY UHST Series
- Page 1 OPERATING INSTRUCTIONS HEATED HOLDING CABINETS “UHST” SERIES - Universal Servers “TST” SERIES - Tray Servers “PST” SERIES - Pan Servers “BT” SERIES - Banquet Cabinets “UHST-GN” SERIES - Banquet Cabinets...

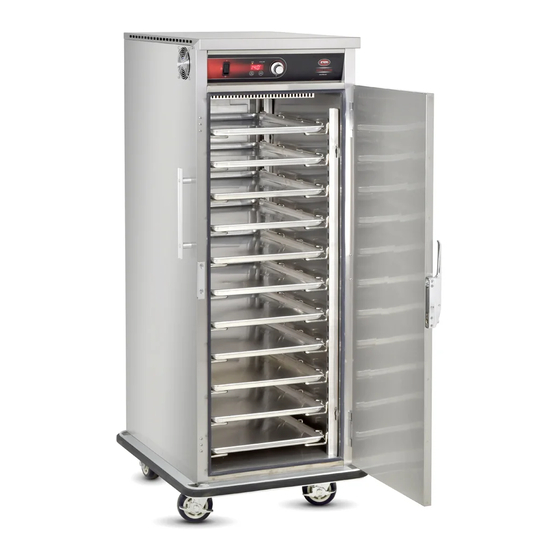

- Page 2 Shelves have Tray Slides CONGRATULATIONS..and thank you for purchasing an FWE Top Mount heated serving cabinet. Your unit has been designed and manufactured under rigid controls to assure you the most efficient service. It is a full time unit, and may be used continuously.
- Page 3 ON/OFF TEMPERATURE OF SET DIAL FOR Button TEMPERATURE CABINET UICK- TART G U I D E On/Off Switch A.) Turns cabinet on and off. FOOD SENTRY SYSTEM B.) °Celsius and °Fahrenheit Scale: You may change the Digital thermometer scale to either °C or °F as follows: RECALL While unit is “Off”, press and hold the INDICATOR...
-
Page 4: Installation And Care
ELECTRICAL REQUIREMENTS AND GROUNDING FWE standard models operate on 110/120 volt, 60 Hz, 1 ph, A.C. (unless ordered otherwise), and are equipped with a three prong grounding cord plug for your protection against possible shock hazards. - Page 5 CLEANING Keep your cabinet clean by simply wiping the interior and exterior, as needed, with a damp cloth or sponge and a mild soapy solution. NEVER USE ABRASIVES, ACIDS, OR STRONG CLEANERS. Do not flood or allow electrical parts to become wet. The interior tray slide assemblies and humidifier pans are removable for easy cleaning.
- Page 6 GENERAL OPERATING INSTRUCTIONS PREHEAT CABINET BEFORE LOADING HOT FOOD 1) PLUG CABINET INTO A PROPERLY GROUNDED POWER RECEPTACLE. Press ON/OFF icon. The power indicating light will come on and remain on until ON/OFF icon is pressed again, or the unit is unplugged. 2) SELECT A TEMPERATURE SETTING.
- Page 7 GENERAL OPERATING INSTRUCTIONS PUT HOT FOOD INTO A HOT CABINET DO NOT PUT COLD FOODS INTO A HOT CABINET! 5) TRANSPORTING HOT FOODS. Your cabinet is equipped with a positive transportation latch to assure safety during transportation. Before moving the cabinet, keep it plugged in and wait until the cycling light goes off.
-
Page 8: Parts List
PARTS LIST FWE PARTS DEPARTMENT: 815 459 7500 REPLACEMENT PARTS PART NUMBER Knob for thermostat KNB H7 Push handle, aluminum bar, 12.5” HDL 12.5 AL Push handle, aluminum bar, 21.5” HDL 21.5 AL Spacers for push handles SPCR125x.330 Bolts, hex head for handles... - Page 9 FWE TOP MOUNT MOBILE HEATED CABINETS SERVICE RECORD Model Number ______________________ Serial Number ______________________ Date of Purchase ______________________ Notes: ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________...
-
Page 10: Wiring Diagram
FWE TOP MOUNT MOBILE HEATED CABINETS WIRING DIAGRAM BT-200... - Page 11 FWE TOP MOUNT MOBILE HEATED CABINETS LIMITED TWO YEAR WARRANTY FWE / Food Warming Equipment Company, Inc. (Seller) warrants to the original purchaser, subject to the exceptions and conditions below, that FWE manufactured equipment shall be free from defects in material or factory workmanship, under ordinary use for the purpose for which it is designed.
- Page 12 Food Warming Equipment Company, Inc. P.O. Box 1001 Crystal Lake, IL 60039-1001 Manufacturing Facilities: 7900 S. Route 31 Crystal Lake, IL 60014 FWE Parts Department: FAX: Errors subject to correction. All specifications subject to change without notice. 815 459 7989 815 459 7500 ©...
