- Page 1 OPERATING INSTRUCTIONS MOBILE HUMI-TEMP CABINETS HEATED HOLDING CABINETS “P” SERIES: Banquet Servers “UHS” SERIES: Universal Servers “TS” SERIES: Tray Servers “PS” SERIES: Pan Servers “TS PIZZA” SERIES: 16'' Pizzas Open/Boxed/Pan...

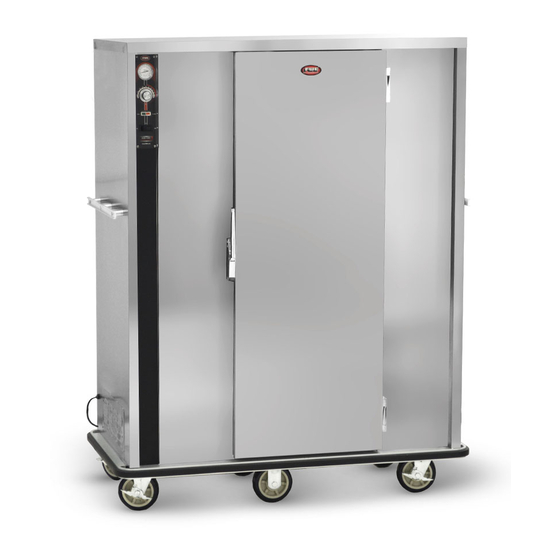

- Page 2 UHS-12 Banquet Cabinet CONGRATULATIONS..and thank you for purchasing an FWE Mobile “HUMI-TEMP” serving cabinet. Your unit has been designed and manufactured under rigid controls to assure you the most efficient service. It is a full time unit, and may be used continuously.
- Page 3 FWE MOBILE HUMI-TEMP HEATED HOLDING CABINETS INSTALLATION AND CLEANING SERIAL AND MODEL NUMBER These numbers are found on the nameplate (serial tag) affixed near the electrical cord portal. Please record them in this booklet, in the space provided on page 5. When ordering parts and/or service, you will need to provide this information.
- Page 4 FWE MOBILE HUMI-TEMP HEATED HOLDING CABINETS WARNINGS AND CABINET CARE ELECTRICAL REQUIREMENTS AND GROUNDING FWE HUMI-TEMP models operate on 110/120 volt, 60 Hz, 1 ph, A.C. (unless ordered otherwise), and are equipped with a three prong grounding cord plug for your protection against possible shock hazards.
-
Page 5: Service Record
FWE MOBILE HUMI-TEMP HEATED HOLDING CABINETS SERVICE RECORD Model Number ______________________ Serial Number ______________________ Date of Purchase ____________________ Notes: ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________ ___________________________________________________... - Page 6 GENERAL OPERATING INSTRUCTIONS PREPARING THE CABINET BEFORE LOADING FOOD PLUG CABINET INTO OUTLET, MAKING SURE THAT IT IS A PROPERLY GROUNDED POWER RECEPTACLE. The red indicating light will come on and remain on until the unit is unplugged. FILL THE HUMIDIFIER PAN WITH HOT WATER. This pan is located on the inside bottom of the unit, and pulls out from the tunnel cover protecting the heating element.
- Page 7 GENERAL OPERATING INSTRUCTIONS LOAD HOT FOOD INTO A PRE-HEATED CABINET LOAD THE CABINET. During the loading procedure, keep the doors closed as much as possible. After loading is completed, do not open doors again until you are ready to serve. TRANSPORTING HOT FOODS.
-
Page 8: Troubleshooting Chart
* * NOTE: CALIBRATION IS EXCLUDED FROM FWE WARRANTY. Thermostats on all units are calibrated at the factory prior to shipping. Due to conditions in transit, beyond our control, occasionally units will need to be re-calibrated prior to use. -
Page 9: Parts List
PARTS LIST FWE PARTS DEPARTMENT: 815 459 7500 REPLACEMENT PARTS Part Number Motor 115 volt MTR JK120 92 Motor 220 volt MTR JK220 93 Motor Mounting Bracket 4009 3'' fan blade BLD FAN AL 2.5'' fan blade BLD FAN 2.5B... -
Page 10: Wiring Diagram
FWE MOBILE HUMI-TEMP HEATED HOLDING CABINETS WIRING DIAGRAM SWH RCK WHITE T-STAT PILOT LIGHT HEATER WHITE WHITE BLACK BLOWER MOTOR WHITE BLACK TERMINAL BLOCK POWER CORD... -
Page 11: Limited Two-Year Warranty
FWE MOBILE HUMI-TEMP HEATED HOLDING CABINETS LIMITED TWO YEAR WARRANTY FWE / Food Warming Equipment Company, Inc. (Seller) warrants to the original purchaser, subject to the exceptions and conditions below, that FWE manufactured equipment shall be free from defects in material or factory workmanship, under ordinary use for the purpose for which it is designed. - Page 12 Food Warming Equipment Company, Inc. P.O. Box 1001 Crystal Lake, IL 60039-1001 Manufacturing Facilities: 7900 S. Route 31 Crystal Lake, IL 60014 FWE Parts Department: FAX: Errors subject to correction. All specifications subject to change without notice. 815 459 7989 815 459 7500 ©...
