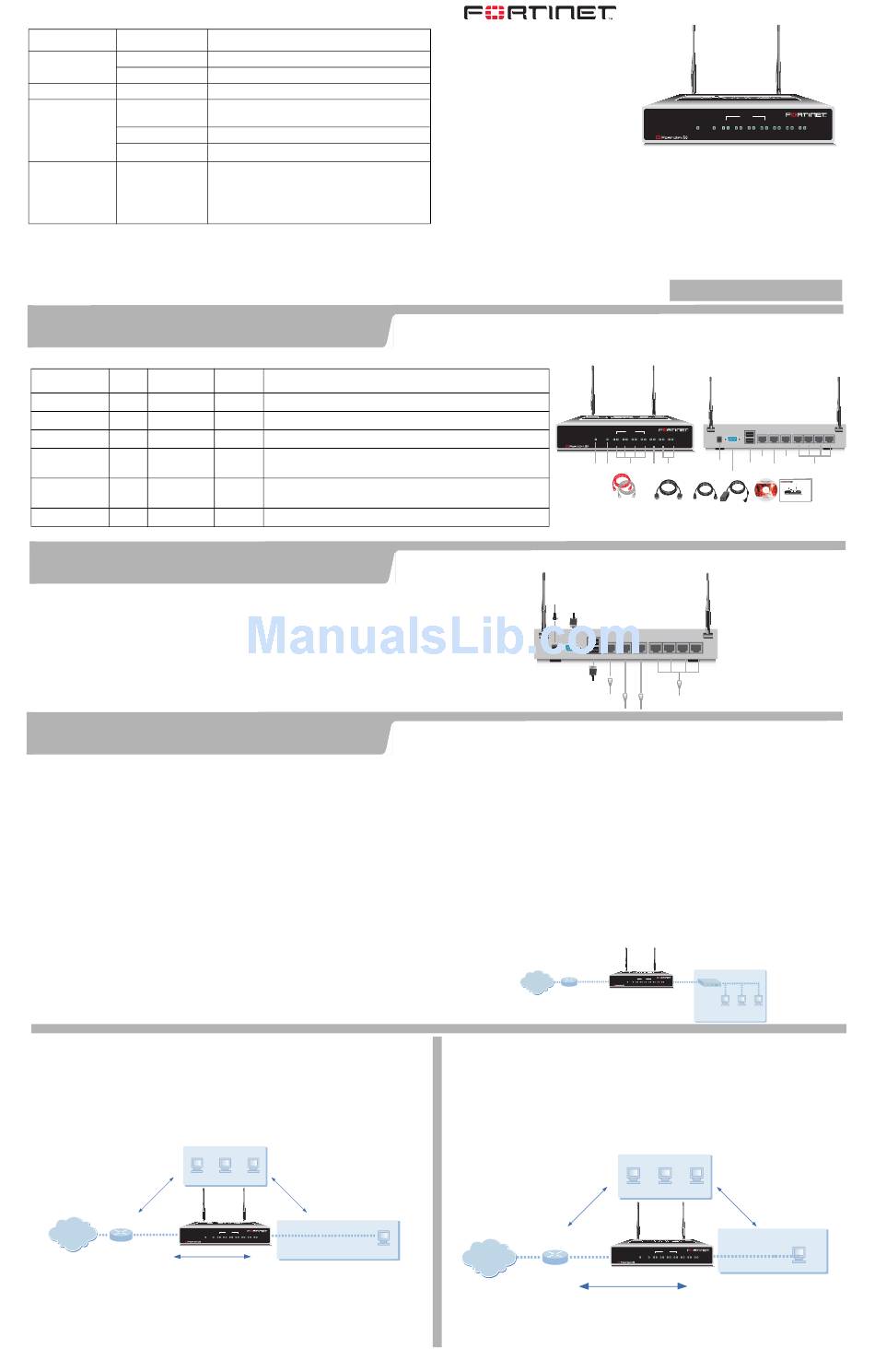

Fortinet FortiWiFi FortiWiFi-60 Quick Start Manual

FortiWiFi-60 LED Indicators
LED State
Power Green
Off
WLAN Green
Link Green
(Internal
DMZ
Flashing Green
WAN1
Off
WAN2)
100 Green
(Internal
DMZ
WAN1
WAN2)
1

Checking the package contents

Checking the package contents
Connector Type Speed
Internal (1 – 4) RJ-45 10/100Base-T Ethernet
WLAN Antenna
WAN1 and 2 RJ-45 10/100Base_T Ethernet
DMZ RJ-45 10/100Base-T Ethernet
CONSOLE DB-9 9600 bps
USB USB —
2
Connecting the FortiWiFi-60
• Place the unit on a stable surface. It requires 1.5 inches
(3.75 cm) clearance above and on each side to allow for cooling.
• Locate the FortiWiFi-60 in a prominent location within a room for maximum
coverage, rather than in a corner.
• Be aware of the construction of your environment, concrete and metal walls can
hamper signal strength.
Keep the AP and wireless devices at least 10 feet away from appliances such
•
as microwave ovens and cordless phones.
3
Planning the configuration
Quick configuration using the default settings
You can quickly set up your FortiWiFi unit for a home or small office using the web-
based manager and the default settings in NAT/Route mode.
All you need to do is set your network computers to use DHCP, access the web-based
manager, and configure the required settings for the WAN1 interface. You can also
configure DNS and a default route if needed. The FortiWiFi unit automatically assigns
IP addresses to up to 100 computers in the internal network.
1. Connect the FortiWiFi unit to the network.
2. Set the all the network computers to use DHCP to automatically obtain an IP
address.
The FortiWiFi internal interface acts as a DHCP server for the internal network and
assigns IP addresses to all computers in the range 192.168.1.110 –192.168.1.210.
3. From the management computer browse to https://192.168.1.99.
4. Go to System > Network > Interface and select Edit for the WAN1 interface.
5. Select one of the following Addressing modes
• Manual: enter a static IP address and netmask, select OK, and go to step 6
• DHCP: to get an IP address from the ISP select DHCP and go to step 9
• PPPoE: to get an IP address from the ISP select PPPoE and go to step 9
NAT/Route mode
In NAT/Route mode, the FortiWiFi-60 is visible to the networks that it is connected to.
All of its interfaces are on different subnets. You must configure the internal and WAN1
interfaces with IP addresses. Optionally, you can also configure the WAN2 and DMZ
interfaces.
You would typically use NAT/Route mode when the FortiWiFi-60 is deployed as a
gateway between private and public networks. In its default NAT/Route mode
configuration, the unit functions as a firewall. Firewall policies control communications
through the FortiWiFi-60 unit.
NAT mode policies controlling
traffic between WLAN and
external networks.
WAN1
204.23.1.5
Internet
FortiWiFi-60 Unit
in NAT/Route mode
NAT mode policies controlling
traffic between internal and
external networks.
In NAT/Route mode, firewall policies can operate in NAT mode or in Route mode. In
NAT mode, the FortiWiFi-60 performs network address translation before IP packets
are sent to the destination network. In Route mode, no translation takes place. By
default, the unit has a single NAT mode policy that allows users on the internal network
to securely access and download content from the Internet. No other traffic is possible
until you have configured more policies.
Refer to the Documentation CD-ROM for information on how to control traffic, and how to configure HA, antivirus protection, Web content filtering, Spam filtering, intrusion
prevention (IPS), and virtual private networking (VPN).
Description
The FortiWiFi unit is powered on.
The FortiWiFi unit is powered off.
Traffic on WLAN link.
The correct cable is in use and the connected
equipment has power.
Network activity at this interface.
No link established.
The interface is connected at 100 Mbps.
Protocol Description
Connections to the internal network.
802.11b/g Wireless connections to LAN.
Redundant connections to the Internet.
Optional connection to a DMZ network or to other FortiWiFi-60 units
for high availability (HA).
RS-232 Optional connection to the management computer.
serial Provides access to the command line interface (CLI).
USB Optional connection to a modem for standalone or backup operation.
Wireless network
192.168.40.4
NAT mode policies controlling
traffic between WLAN and
internal networks.
WLAN
192.168.40.1
Internal network
INTERNAL
PWR WLAN 1 2 3 4 DMZ WAN1 WAN2
192.168.1.3
LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100
Internal
192.168.1.99
FortiWiFi-60
QuickStart Guide
© Copyright 2004 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks or registered trademarks of their respective holders.
Regulatory Compliance
FCC Class A Part 15 CSA/CUS
03 November 2004
For technical support please visit http://www.fortinet.com.
Check that the package contents are complete.
Connect the FortiWiFi-60 unit to power outlets and to the internal and external networks.
Power cable connects to power supply
DC+12V
Optional connection to a serial modem
Optional redundant connection to Internet
Straight-through Ethernet cable connects
to Internet (public switch, router or modem)
Before configuring the FortiWiFi-60, you need to plan how to integrate the unit into your network.
You can select NAT/Route mode (the default) or Transparent mode. In NAT/Route mode you can
also use the default settings to quickly configure the unit on your network.
6. Go to System > Network > DNS.
7. Select one of the following DNS settings
• Obtain DNS server address automatically: select to get the DNS addresses
from the ISP, select Apply
• Use the following DNS server addresses: select and enter the DNS server
addresses given to you by the ISP, select Apply
8. Go to Router > Static, select Create New, enter the default gateway address and
select OK.
Network configuration is complete. Proceed to part 7 of this Quick Start Guide.
9. Select Retrieve default gateway from server and Override internal DNS options if
your ISP supports them, select OK, and proceed to part 7 of this Quick Start Guide.
Go to step 6 if you are not selecting these options.
Internet

Transparent mode

In Transparent mode, the FortiWiFi-60 is invisible to the network. All of its interfaces are
on the same subnet. You only have to configure a management IP address so that you
can make configuration changes.
You would typically use the FortiWiFi-60 in Transparent mode on a private network
behind an existing firewall or behind a router. In its default Transparent mode
configuration, the unit functions as a firewall. By default, the unit has a single firewall
policy that allows users on the internal network segment to connect to the WAN 1
network segment. No other traffic is possible until you have configured more policies.
Transperent mode policies controlling
traffic between WLAN and
internal networks.
Gateway to
public network
204.23.1.5
10.10.10.2
Internet
(firewall, router)
You can connect up to four network segments and one wireless network to the
FortiWiFi-60 unit to control traffic between these network segments.
PWR WLAN 1
LINK 100
01-28005-0044-20041103
Front
INTERNAL
DC+12V
PWR WLAN 1 2 3 4 DMZ WAN1 WAN2
LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100
Console
Power
Connection
Power WLAN Internal DMZ WAN 1,2
LED LED Interface Interface Interface
RS-232 Serial
Connection
Ethernet Cables:
Null-Modem Cable
Orange - Crossover
(RS-232) Power Cable Power Supply
Grey - Straight-through
Optional null modem cable connects to serial
port on management computer
4 3 2 1
Console
USB WAN2 WAN1 DMZ Internal
Straight-through Ethernet cables connect
to computers on internal network
Optional connection to DMZ network
FortiWiFi-60 Unit
Internal network
INTERNAL
PWR WLAN 1 2 3 4 DMZ WAN1 WAN2
LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100
WAN1 interface Internal interface
Configure Manual IP, DHCP, or 192.168.1.99
PPPoE addressing
DHCP server and DNS server
Obtain IP address and
for the internal network
DNS server IP address
automatically
Wireless network
10.10.10.5
Transparent mode policies controlling
10.10.10.1
Management IP
WLAN
Internal
WAN1
INTERNAL
PWR WLAN 1 2 3 4 DMZ WAN1 WAN2
LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100
FortiWiFi-60 Unit
in Transparent mode
Transparent mode policies
controlling traffic between
internal and external networks.
INTERNAL
2 3 4 DMZ WAN1 WAN2
LINK 100 LINK 100 LINK 100 LINK 100 LINK 100 LINK 100
Back
4 3 2 1
USB WAN2 WAN1 DMZ Internal
DMZ
WAN2
USB WAN1 Internal Interface,
switch connectors
1,2,3,4
FortiWiFi-60
INTERNAL
PWR WLAN LINK 100 1 2 LINK 100 LINK 100 LINK 100 3 4 DMZ LINK 100 WAN1 LINK 100 WAN2 LINK 100
QuickStart Guide
Copyright 2003 Fortinet Incorporated. All rights reserved.
Trademarks
Products mentioned in this document are trademarks.
Documentation
traffic between WLAN and
internal networks.
Internal network
10.10.10.3
