Configuring the modem interface

Configuring modem settings

FortiGate-50A Installation Guide
5 Select Dial Up.
The FortiGate unit initiates dialing into each dialup account in turn until the modem
connects to an ISP.
Configure modem settings so that the FortiGate unit uses the modem to connect to
your ISP dialup accounts. You can configure the modem to connect to up to three
dialup accounts. You can also enable and disable FortiGate modem support,
configure what the modem dials, and select the FortiGate interface that the modem is
redundant for.

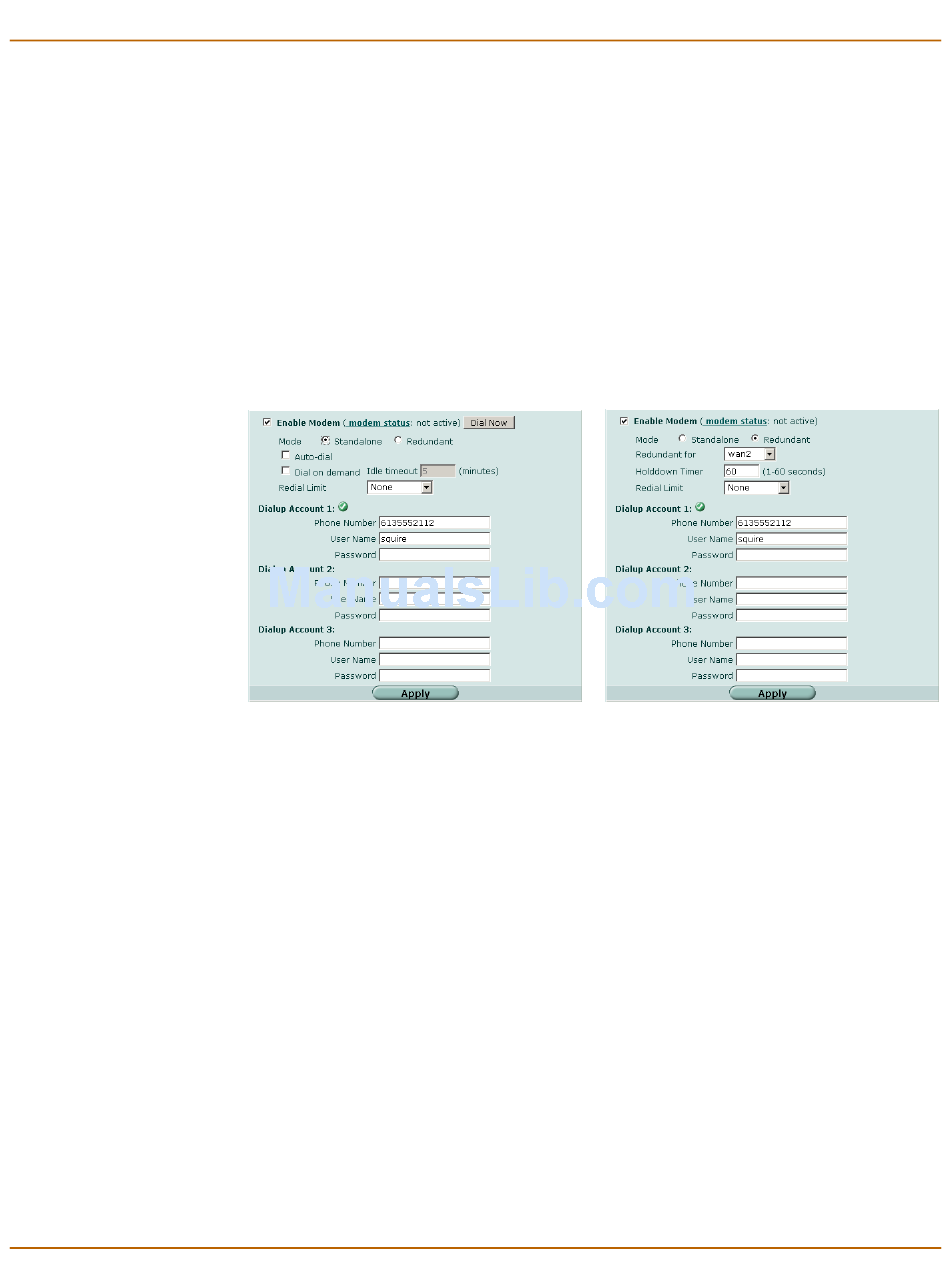

Figure 12: Modem settings (Standalone and Redundant)
Enable Modem or
Enable USB Modem
Modem status
Dial Now/Hang Up
Mode
Auto-dial
Redundant for
Dial on demand
Idle timeout
Select to enable the FortiGate modem. Depending on the model, the
modem is internal or it is a USB-connected external modem.
The modem status shows one of: "not active", "connecting",
"connected", "disconnecting" or "hung up" (Standalone mode only).
(Standalone mode only) Select Dial Now to manually connect to a
dialup account. If the modem is connected, you can select Hang Up to
manually disconnect the modem.
Select Standalone or Redundant mode. In Standalone mode, the
modem is an independent interface. In Redundant mode, the modem is
a backup facility for a selected Ethernet interface.
(Standalone mode only) Select to dial the modem automatically if the
connection is lost or the FortiGate unit is restarted. You cannot select
Auto-dial if Dial on demand is selected.
(Redundant mode only) Select the ethernet interface for which the
modem provides backup service.
(Standalone mode only) Select to dial the modem when packets are
routed to the modem interface. The modem disconnects after the idle
timeout period. You cannot select Dial on demand if Auto-dial is
selected.
(Standalone mode only) Enter the timeout duration in minutes. After this
period of inactivity, the modem disconnects.
