Operation; Know The Generator - Generac Power Systems GP Series Owner's Manual

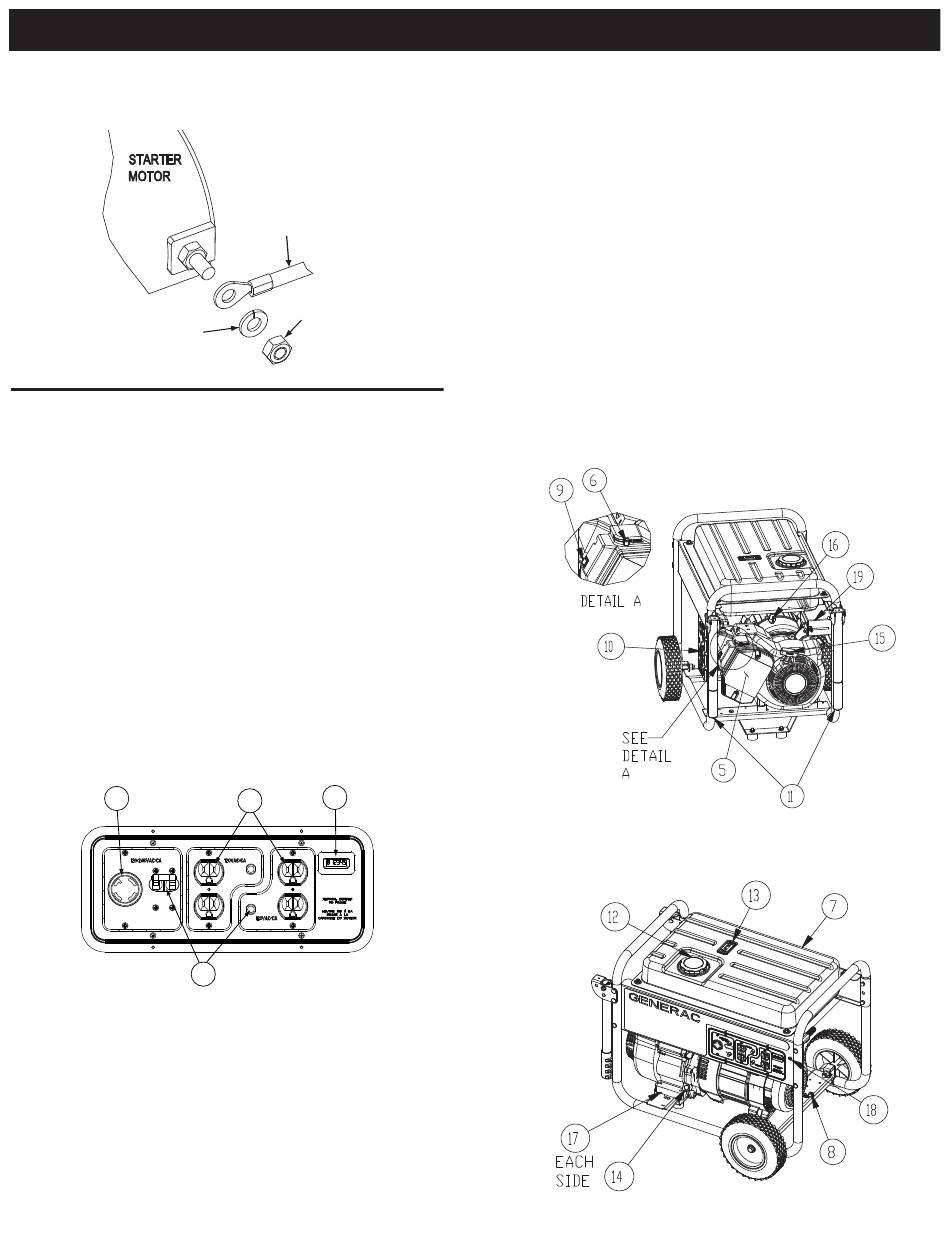

Figure 3 - Starter Connection
M6-1.0
LOCK WASHER

2.1 KNOW THE GENERATOR

Read the Owner's Manual and Safety Rules before operating
this generator.
Compare the generator to Figures 4 through 6 to become
familiarized with the locations of various controls and adjustments.
Save this manual for future reference.
1. 120 Volt AC, 20 Amp, Duplex Receptacle – Supplies electrical
power for the operation of 120 Volt AC, 20 Amp, single-phase,
60 Hz electrical lighting, appliance, tool and motor loads.
2. 120/240 Volt AC, 30 Amp Locking Receptacle – Supplies
electrical power for the operation of 120 and/or 240 Volt AC,
30 Amp, single-phase, 60 Hz, electrical lighting, appliance,
tool and motor loads.
3. Circuit Breakers (AC) – Each receptacle is provided with
a circuit breaker to protect the generator against electrical
overload.
Figure 4 - Control Panel
2
4. Hourmeter – Tracks hours of operation.
5. Air Filter – Filters intake air as it is drawn into the engine.
6. Choke Knob – Used when starting a cold engine.
7. Fuel Tank – Tank holds 8.0 U.S. gallons of fuel.
8. Grounding Lug – Ground the generator to an approved earth
ground here. See "Grounding the Generator" for details.
9. Run/Stop Switch – Controls the operation of the pull-start
generator.
* Run/Stop/Start Switch – Controls the operation of the
electric start generator.
POSITIVE BATTERY
CABLE (RED)
M6-1.0 NUT
4
1
3
10. Muffler – Quiets the engine.
11. Handles – Pivot and retract for storage. Press the spring-
loaded button to move handles.
12. Gas Cap – Fuel fill location.
13. Fuel Gauge – Shows fuel level in tank.
14. Oil Fill – Add oil here.
15. Recoil Starter – Use to start engine manually.
16. Fuel Shut Off – Valve between fuel tank and carburetor.
17. Oil Drain – Use to drain engine oil.
18*. Battery Charger Input – This receptacle allows the capability
to recharge the 12 volt DC storage battery provided with the 12
Volt Adaptor Plug Charger which is included in the Accessory
Box.
19*. Battery – Powers the electric starter.
* Electric start only.
Figure 5 - Generator Controls
Figure 6 - Generator Controls

Operation

5
