Long-distance Proximity Sensor
Safe Mounting with Greater Sensing
Distance and Easy Wiring with No
Polarity
Ensures a sensing distance approximately 1.5 to 2
times larger than that of any conventional OMRON
Sensor.
Offers greater design flexibility and ease for the
detection of large-sized or non-ferrous sensing
objects.
Problems such as the collision of workpieces are
eliminated.
The E2EM has no polarity, thus eliminating
problems associated with reversed wiring.
Ordering Information
DC 2-wire/Pre-wired Models
Type
ype
Size
S e
Shielded
S e ded
M12
M18
M30
Unshielded
M18
M30
Note: Connector relay models (cable length of 300 mm) are available.
DC 3-wire/Pre-wired Models
Type
ype
Size
S e
S e ded
Shielded
M8
M12
M18
M30
DC 3-wire/Connector Models
Type
Size
Shielded
S e ded
M8
M12
M18
M30
M8
M12
M18
M30
Note: Models with output configuration of NPN NC and PNP NC are also available.
Sensing distance
Se s g d s a ce
4 mm
8 mm
15 mm
16 mm
30 mm
Sensing distance
Se s g d s a ce
2 mm
4 mm
8 mm
15 mm
Sensing distance
2 mm
4 mm
8 mm
15 mm
2 mm
4 mm
8 mm
15 mm
NO
E2EM-X4X1 (see note)
E2EM-X8X1 (see note)
E2EM-X15X1 (see note)
E2EM-X16MX1
E2EM-X30MX1
NPN NO
PNP NO
E2EM-X2C1
E2EM-X2B1
E2EM-X4C1
E2EM-X4B1
E2EM-X8C1
E2EM-X8B1
E2EM-X15C1
E2EM-X15B1
Output configuration
NPN NO
O
PNP NO
O
E2EM
Model
NC
E2EM-X4X2
E2EM-X8X2
E2EM-X15X2
E2EM-X16MX2
E2EM-X30MX2
Model
NPN NC
PNP NC
E2EM-X2C2
E2EM-X2B2
E2EM-X4C2
E2EM-X4B2
E2EM-X8C2
E2EM-X8B2
E2EM-X15C2
E2EM-X15B2
Model
E2EM-X2C1-M1
E2EM-X4C1-M1
E2EM-X8C1-M1
E2EM-X15C1-M1
E2EM-X2B1-M1
E2EM-X4B1-M1
E2EM-X8B1-M1
E2EM-X15B1-M1
1
Advertisement
Table of Contents
Related Manuals for Omron E2EM
Summary of Contents for Omron E2EM

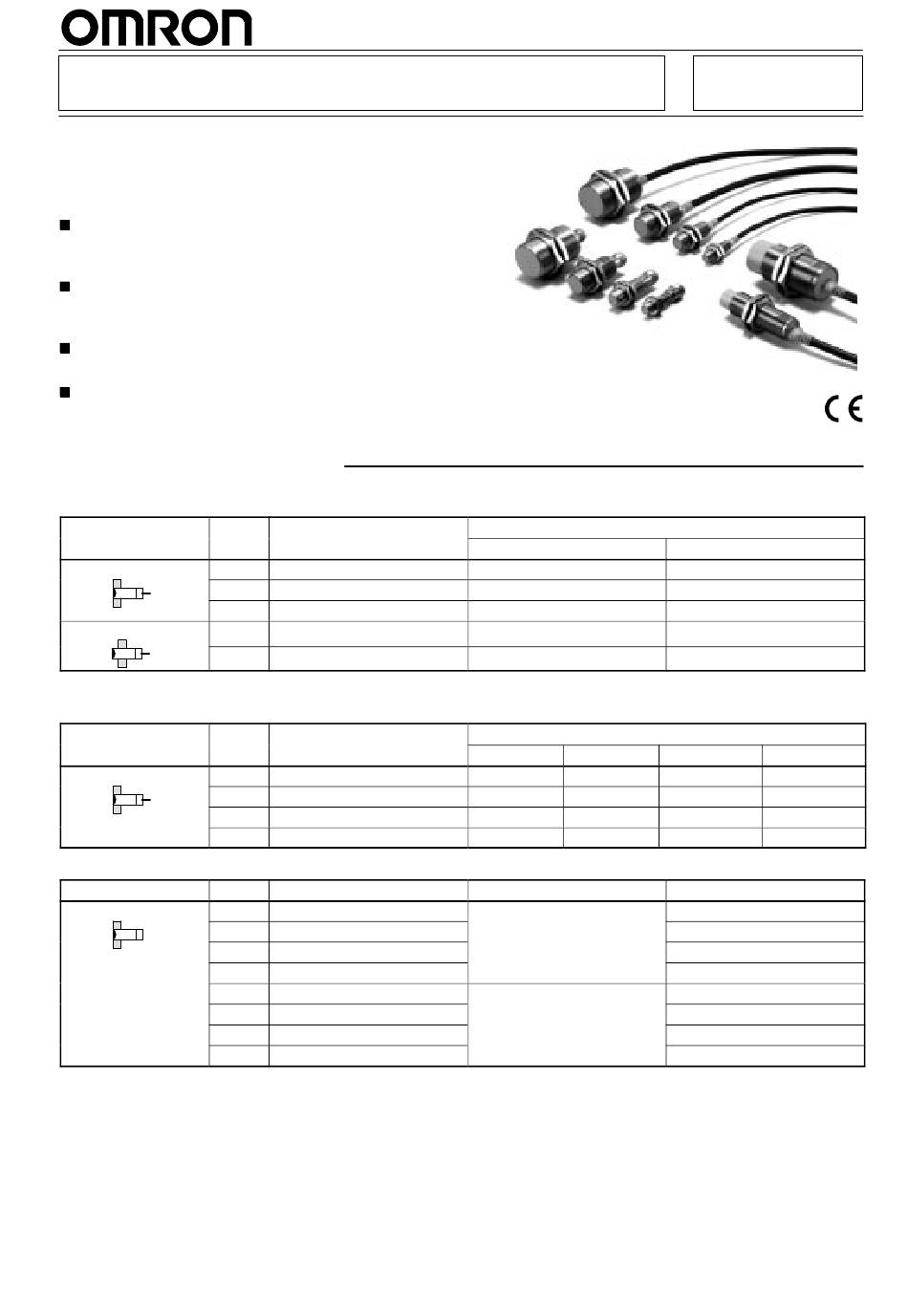

- Page 1 Safe Mounting with Greater Sensing Distance and Easy Wiring with No Polarity Ensures a sensing distance approximately 1.5 to 2 times larger than that of any conventional OMRON Sensor. Offers greater design flexibility and ease for the detection of large-sized or non-ferrous sensing objects.
-
