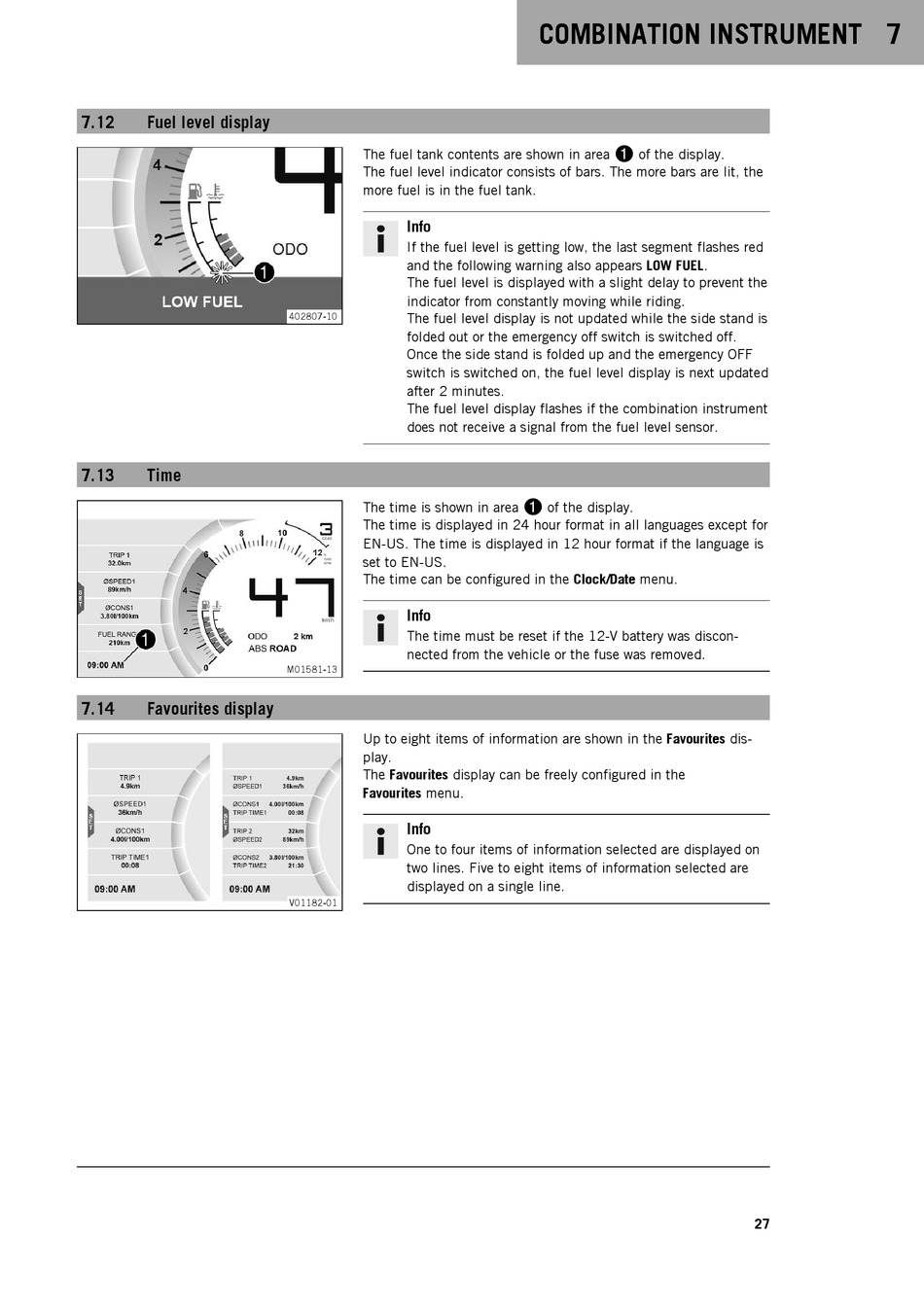

7.12
Fuel level display
7.13
Time
7.14
Favourites display
The fuel tank contents are shown in area
The fuel level indicator consists of bars. The more bars are lit, the
more fuel is in the fuel tank.
Info
If the fuel level is getting low, the last segment flashes red
and the following warning also appears LOW FUEL.
The fuel level is displayed with a slight delay to prevent the
indicator from constantly moving while riding.
The fuel level display is not updated while the side stand is
402807-10
folded out or the emergency off switch is switched off.
Once the side stand is folded up and the emergency OFF
switch is switched on, the fuel level display is next updated
after 2 minutes.
The fuel level display flashes if the combination instrument
does not receive a signal from the fuel level sensor.
The time is shown in area
The time is displayed in 24 hour format in all languages except for
EN-US. The time is displayed in 12 hour format if the language is
set to EN-US.
The time can be configured in the Clock/Date menu.
Info
The time must be reset if the 12-V battery was discon-
nected from the vehicle or the fuse was removed.
M01581-13
Up to eight items of information are shown in the Favourites dis-
play.
The Favourites display can be freely configured in the
Favourites menu.
Info
One to four items of information selected are displayed on
two lines. Five to eight items of information selected are
displayed on a single line.
V01182-01
COMBINATION INSTRUMENT 7
1
of the display.
1
of the display.
27
