Lennox Hearth Products 36ABF Installation Instructions

INSTALLATION INSTRUCTIONS FOR ABF BI-FOLD GLASS DOORS
36ABF, 36ABF-BB, 36ABF-BS, 42ABF, 42ABF-BB, 42ABF-BS
The ABF Series bi-fold glass door assemblies have been designed for use
with and may be easily fitted to all of Lennox's Merit Plus Series 36 and
42 inch models.
Do not alter or modify these door assemblies or a fireplace malfunction
or a fire hazard may result.
Models ABF doors have been tested and listed by Warnock Hersey Inc.
PLEASE RETAIN THIS MANUAL FOR FUTURE REFERENCE.
GENERAL INFORMATION
The door assembly consists of a right and left glass panel assembly with
the door handles factory mounted. There are no additional parts that are
required to install the ABF doors. Fireplaces and gas appliances listed on
the front page of this document, have been designed to accept the ABF
doors with minimum effort.
TOOLS REQUIRED
Medium Phillips Screwdriver • ³⁄₈" Open-end wrench
INSTALLATION PROCEDURE

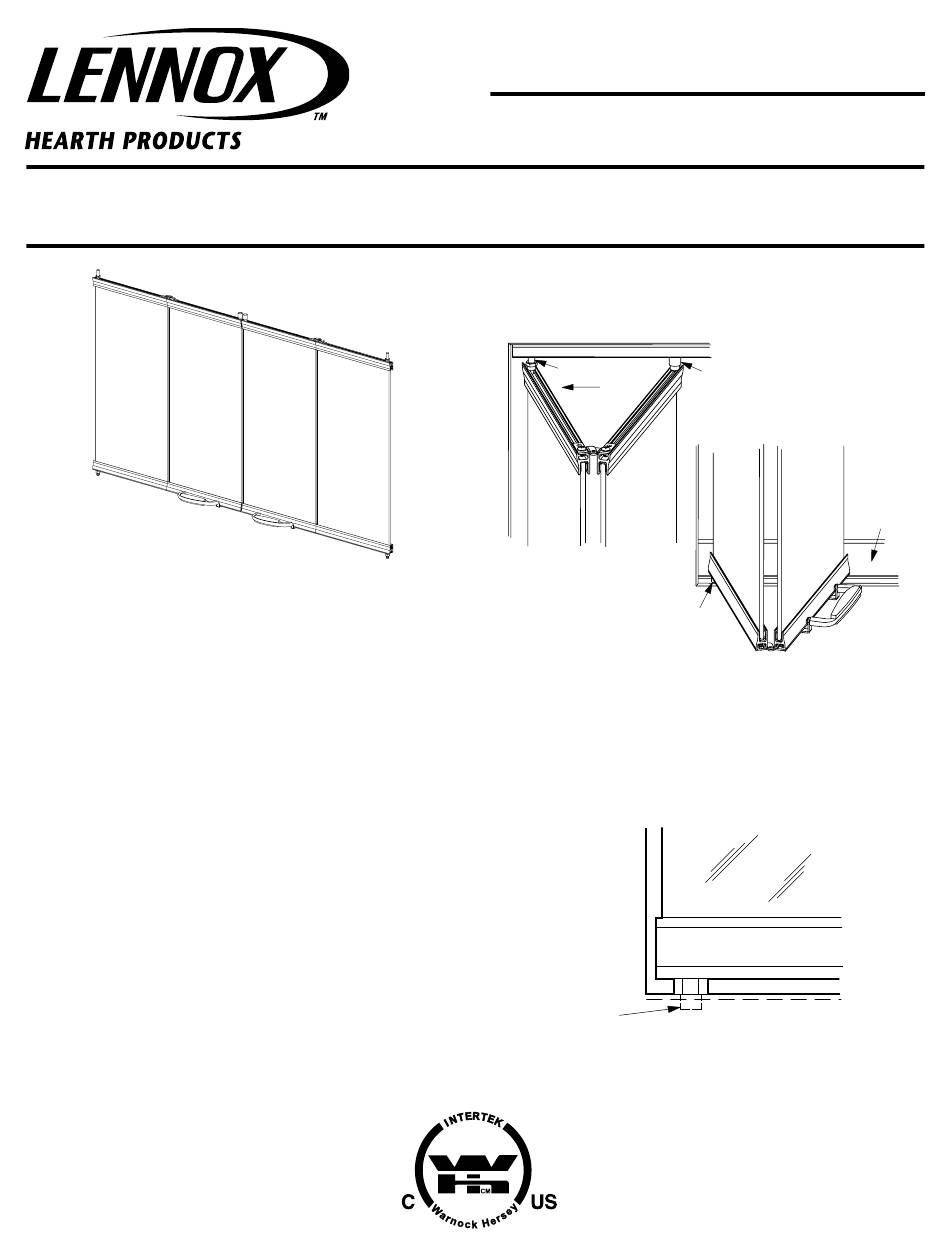

Step 1. Starting with the lower end of either the right or left hand door
hold the door at a slight angle to the door frame outer edge with the
top tilted toward the center.
750,000M
REV. C 01/2007
Swing the lower corner of the door over the hole in the lower frame
and engage the lower pivot pin into the hole on the lower frame of the
firebox opening ( Figures 1 and 2 ).
Figure 1
Step 2. Tilt the top of the door into place and carefully ensure that the
upper pivot pin and roller pin is in the upper door guide track.
Step 3. Continue to tilt the top of the door into place until the upper
pivot pin engages the spring clip and the pivot pin locks into place
within the hole of the spring clip ( see Figure 3 ).
Figure 2
Step 4. Repeat this procedure for the opposite door assembly.
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE
AND ACCESSORIES
BI-FOLD GLASS DOORS
Pivot Pin
Roller Pin
Lock
Pivot
Point
Lower
Pivot Pin
FIREPLACE KITS
Lower
Frame
