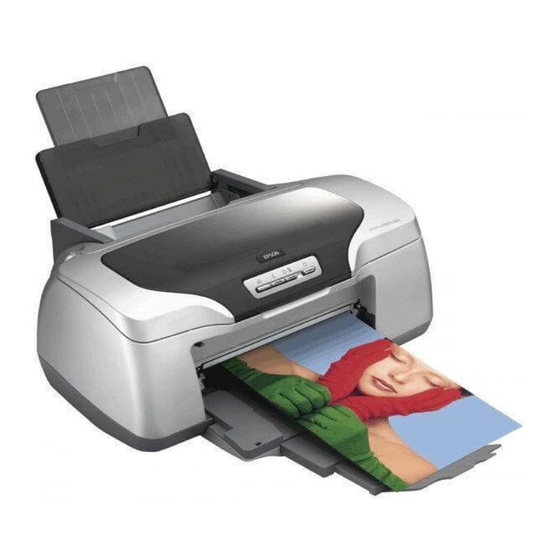

Epson Stylus Photo R800 Product Information

Epson stylus photo r800: product information
Hide thumbs Also See for Stylus Photo R800:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual, Reference Manual

Printer Parts

Paper support
and extension
Left edge
guide
Output tray
extensions
Output tray
CD/DVD tray
(in upper position)
Control panel
Paper support
(closed)
Roll paper holder
Sheet feeder
Printer
cover
Output tray
(in lower
position)
CD position
check disc
CD adapter ring
Ink cartridge
holder (in home
position)
Roll paper
edge guide
IEEE 1394
USB
(FireWire) port
port

User Replaceable Parts

User replaceable part
CD tray
CD adapter ring
CD dummy sheet
Roll paper holder (R)
Roll paper holder (L)
Accessories
Ink Cartridges
Cartridge
Yellow
Magenta
Cyan
Matte Black
Photo Black
Red
Blue
Gloss Optimizer
Caution: To ensure good results, use genuine Epson ink cartridges
and do not refill them. Other products may cause damage to your
printer not covered by Epson's warranty.
1/04
Epson Stylus Photo R800
Reference number
Part number
12
1262744
8
1264619
13
1236444
11
1274012
10
1274011
Part number
T054420
T054320
T054220
T054820
T054120
T054720
T054920
T054020
Epson Stylus Photo R800
- 1

Advertisement

Table of Contents
loading

Related Manuals for Epson Stylus Photo R800

Summary of Contents for Epson Stylus Photo R800

  • Page 1: Printer Parts

    Ink cartridge Gloss Optimizer holder (in home position) Caution: To ensure good results, use genuine Epson ink cartridges and do not refill them. Other products may cause damage to your printer not covered by Epson’s warranty. Roll paper edge guide...

  • Page 2: Printer Specifications

    * Availability of paper types varies by location. See page 11 or your paper instructions to select the Type or Media Type setting. If you load paper not listed as a setting in your printer software, you may see smears, roller marks, misting, or other problems.

  • Page 3: Ink Cartridges

    Weight 20 lb (75 g/m²) to 24 lb (90 g/m²) See page 2 for a list of special paper distributed by Epson. Caution: Poor quality paper may reduce print quality and cause paper jams or other problems. If you encounter problems, switch to a higher grade of paper.
  • Page 4 CD/DVD 12-cm CD/DVD Caution: Do not set the inner diameter at 21 mm, although Epson Print CD allows you to. Printing inside of 43 mm may damage your CD/DVD drive. 1/04 Pressing the z roll paper button after printing prints the cutting guideline.

  • Page 5: Control Panel

    P power button. Hold down the ) paper button until the P power light flashes. 4. A test page prints the printer’s ROM version number and a nozzle check pattern. ❏ If the check page prints, the problem probably lies in your software settings, interface cable, or computer, or your software may not be installed correctly.

  • Page 6: Installing The First Ink Cartridges

    2 1/2 minutes. Caution: Don’t turn off the printer or interrupt charging, or you’ll waste ink. If the power and ink lights don’t turn off after 5 minutes, and the printer isn’t making any noise, you can turn it off. 1/04...

  • Page 7: Loading Special Paper

    ❏ Load letterhead or preprinted paper into the printer top edge first. ❏ Don’t load paper above the arrow on the left edge guide. Loading Special Paper You can load the following number of sheets of Epson special media: Paper type Epson Enhanced Matte Paper...

  • Page 8: Loading Envelopes

    1. Turn on the printer and remove any paper loaded in the sheet feeder at the top of the printer.

  • Page 9: Loading And Printing Cds And Dvds

    Caution: Don’t load roll paper into the sheet feeder at the top of the printer. 8. Push the paper into the feeder as far as it will go; the printer feeds the paper automatically. 9. To verify that the paper is loaded straight, open the printer cover and look into the printer.

  • Page 10: Inserting A Cd Or Dvd

    10 - 4. Lift the output tray as shown below, then place one hand on the top of the printer and pull up on the output tray until it stops. Lay the tray down in the upper position. 5. Place the CD or DVD on the CD tray with the white or printable side face-up.

  • Page 11: Selecting The Media Type Setting

    Print head cleaning uses ink, so clean it only if quality declines. Caution: When you don’t turn on your printer for a long time, print quality can decline, so turn it on at least once a month to maintain good print quality.

  • Page 12: Running The Head Cleaning Utility

    Running the Head Cleaning Utility 1. Make sure the printer is turned on but not printing, and the red H ink light is off. (If the H ink light is flashing or on, you need to replace a cartridge; see page 11.) 2.

  • Page 13: Replacing An Ink Cartridge

    H ink light is off. Caution: Don’t open Epson Status Monitor or respond to any on-screen, low ink messages when your printer is in the middle of a print job.

  • Page 14: Removing And Installing Ink Cartridges

    You can replace a cartridge whether the red H ink light is off, flashing, or on. 1. Make sure the printer is turned on (the green P power light should be on, but not flashing). Then open the printer cover.

  • Page 15: Automatically Aligning The Print Head

    13. Press the H ink button. The printer begins charging the ink delivery system. The green P power light and red H ink lights flash and the printer makes noise. Charging takes about 90 seconds. When it’s finished, the green P power light stops flashing and stays on, and the red H ink light goes out.

  • Page 16: Cleaning The Printer

    Keep the paper support and printer cover closed as you clean the printer. 4. If you need to clean ink out of the inside of the printer, use a soft cloth to clean only the black plastic area shown below:...
