PAC RPK4-CH4102 Manual

RPK4-CH4102
Introduction and Features
The RPK4-CH4102 is a complete radio replacement kit with integrated climate control retention for the 2014-2020
Dodge Durango. All modules and cables are included to retain important features of the factory system including:
steering wheel-mounted radio controls, factory reverse camera, and AM/FM reception.
A secondary 5.2" LCD screen is added for additional vehicle features and controls including: vehicle performance
gauges and information, climate controls, vehicle settings, factory amplifier control, and forced camera activation.
Simplified installation and setup menus allow direct programming of camera triggers, steering wheel controls, and
other settings of the kit and RP4.2-CH4102 interface. Features provided by the LCD screen will vary based on the
vehicle features. See Important Notes (next section) for additional information.
Four hard buttons added to the radio dash bezel (below the 5.2" LCD screen) allow the user to set presets to control
functions including: specific climate controls, forced camera activation, and LCD screen controls. Options for hard
buttons will vary based on vehicle features and which cameras are installed.
Button inserts and seven button openings on the radio dash bezel allow for retention of functions that would
typically be lost when replacing the factory radio.
Some advanced features require additional accessories (sold separately).
Important Notes
We recommend reading this manual thoroughly to familiarize yourself with the entire process
1. D oes Not Retain:
Cluster Display Features
• Compass
• Clock
• Phone pop-ups
• Navigation pop-ups
Factory Amplifier Features
• Speed Controlled Volume
2. In vehicles equipped with parking sensors, you must use the included external speaker in order to continue hearing
parking sensor chimes. If the vehicle has a factory amplified system and parking sensors, the speaker is not necessary
unless the factory amplifier is no longer being used. In cases where the factory amplifier and aftermarket amplifier are
being used (for example, using an aftermarket amplifier for the front speakers and using the factory amplifier for the rear
speakers), the RPK4-CH4102 allows the chime output to the external speaker to be set to the channels that are being
driven off of the aftermarket amplifier.
3. I f you are adding additional cameras, PAC part number RPA-16P5V (sold separately) must be used to connect
up to 5 total cameras.
4. I t is very important that the vehicle's accessory buttons be programmed and tested right away. If they do not
operate, it is likely because the incorrect CAN wire connections are being used.

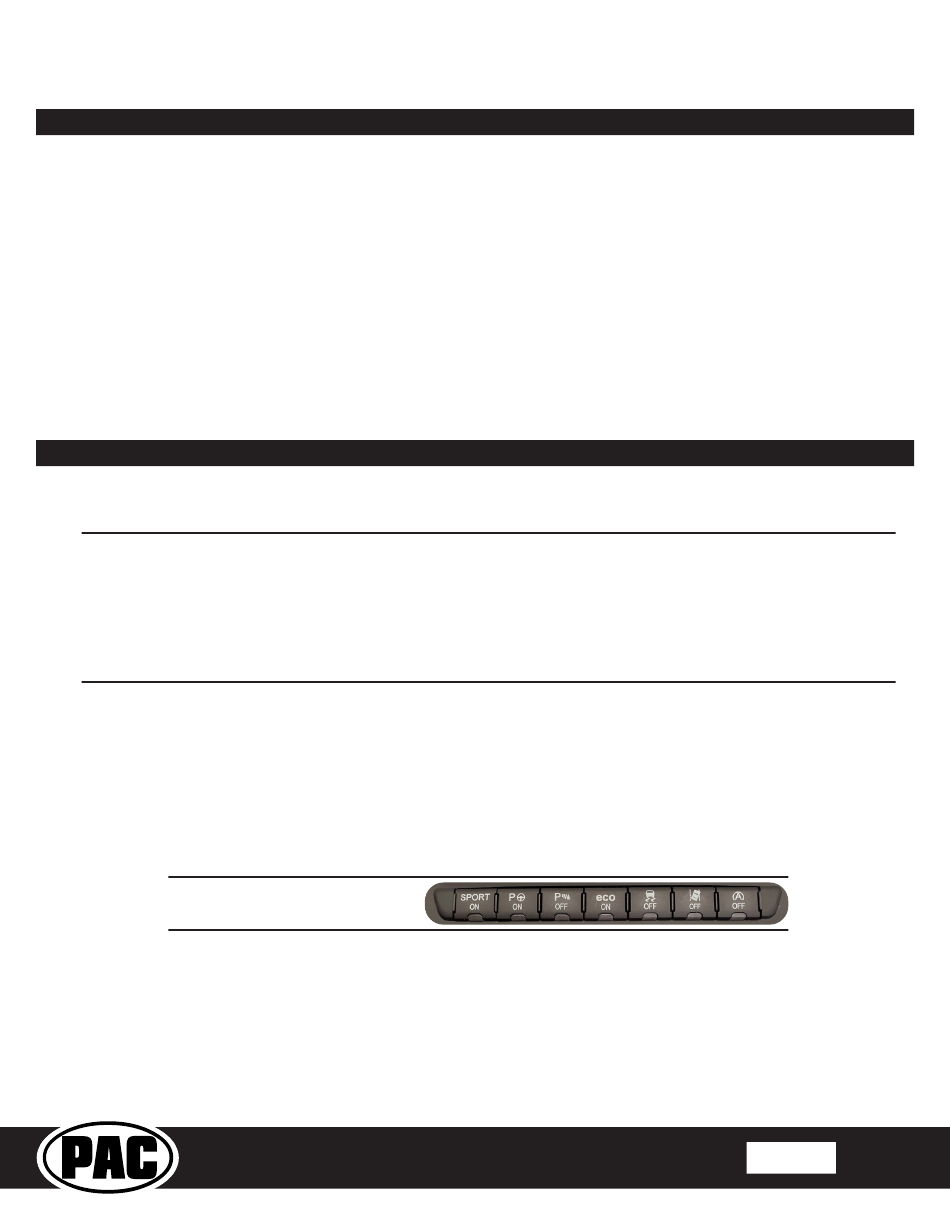

Vehicle Accessories Buttons:
In 2018+ vehicles, the CAN connections must be made at the vehicle's star connector (see page 10 for details). Failure
to do so will cause the vehicle's accessory buttons to not operate and may cause the vehicle's battery to drain.
5. In newer (2018+) vehicles, the factory amplifier may not work or the audio level will be low until the ignition is
cycled. Make sure the aftermarket radio's volume level is turned down prior to cycling the ignition to prevent
excess volume after the ignition cycle!
6. O nly in some 2014 Durangos: All vehicle settings options will be listed in the vehicle settings menu, including vehicle
settings that are not available for your vehicle. The only settings options that can be changed and saved, are options
that were available through the factory radio.
®
Pacific Accessory Corporation
prior to beginning the installation.
© 2020 AAMP Global. All rights reserved. PAC is a Power Brand of AAMP Global.
PAC-audio.com
Complete Radio Replacement Kit with
Integrated Climate Control Retention for Select
Uconnect Features
• Uconnect Access Remote Start / Lock / Unlock
• SOS / Assist
• Vehicle Location Service
• WiFi-Hotspot
SiriusXM Guardian Services
Rear Seat Entertainment (RSE)
2014–2020 Dodge Durango
Rev: v.1
Page 1
Date: 011021
