Heat & Glo SL-550F Instructions

Log Set Assembly: LOGS-550F
Models: SL-550F, SL-550F-LP, SL-5F, SL-5F-IFT
4 4
5 5
3 3

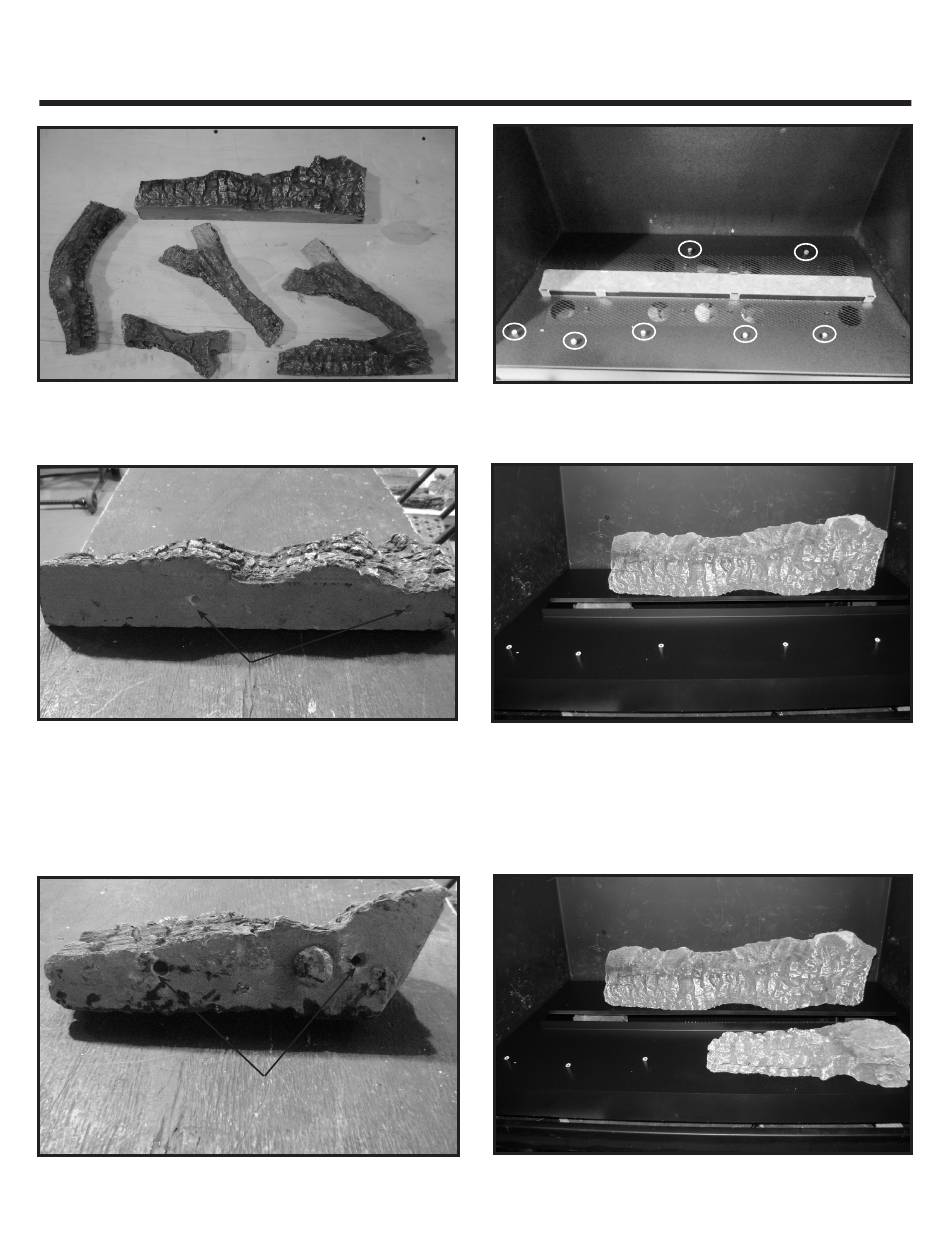

Figure 1.
CAUTION: Logs are fragile, handle with care. Log #1 (SRV2297-700): Place Log #1 into position by holding it upright and
placing it onto the pins on the back of the basepan. See Figure 3. Log #1 will sit upright as shown in Figure 4.
HOLES FOR LOG LOCATION PINS HOLES FOR LOG LOCATION PINS
Figure 3. Log #1 - Bottom View
Log #2 (SRV2033-709): Log #2 has holes on the bottom side that will be used for positioning them in the firebox. See
Figure 5. Place Log #2 on the pins in the front of the firebox as shown in Figure 6.
HOLES FOR LOG LOCATION PINS HOLES FOR LOG LOCATION PINS
Figure 5. Log #2 - Bottom View
1 1
5 5
2 2
Heat & Glo • LOGS-550F Log Instructions • 2297-983 Rev. F • 2/20
LOG PLACEMENT INSTRUCTIONS
LOG PLACEMENT PINS LOG PLACEMENT PINS
(CIRCLED) (CIRCLED)
1 1
Figure 2. Location of Log Placement Pins and Corresponding Log #'s
Figure 4. Log #1 in Position
Figure 6. Log #2 in Position
1 1
1 1
1 1
2 2
1
