Crestron 4-Series Quick Start

CP4 and CP4N
4-Series™ Control System

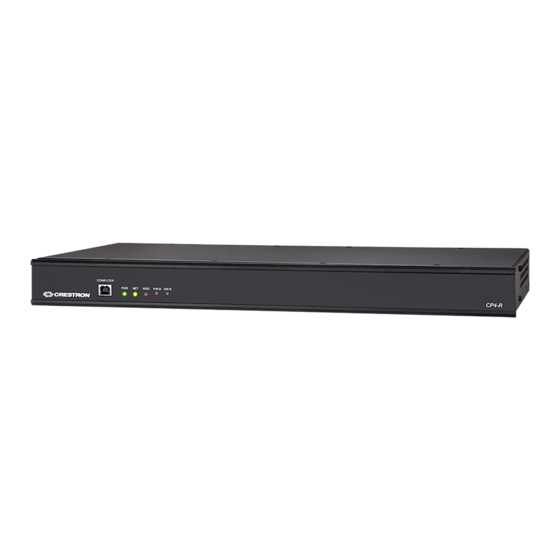

The Crestron® CP4 and CP4N are secure, high-performance control
processors with a powerful 4-Series™ control engine. The CP4 and
CP4N are designed to integrate and automate technology within any
modern networked home, commercial building, or government facility.
An isolated control subnet port provides a Gigabit Ethernet
LAN dedicated to Crestron devices (CP4N Only).
NOTE: The CP4 and CP4N are functionally similar. For simplicity within
this guide, the term "control system" is used to refer to both the CP4
and CP4N unless otherwise noted.
In the Box
1 CP4 or CP4N, 4-Series Control System
Additional Items
2 Bracket, Rack Ear (2032122)
4 Foot, Rubber (2002389)
2 Connector, 3-Pin (2003575)
1 Connector, 4-Pin (2003576)
1 Connector, 5-Pin (2003577)
4 Connector, 8-Pin (2003580)
1 Connector, 9-Pin (2003581)
1 Power Cord, 5 ft, 10 in. (1.78 m) (2042043)
1 Power Pack, 24 VDC, 100–240 VAC (2045873)
Install the Control System
The control system may be mounted into a rack or placed onto a flat
surface.

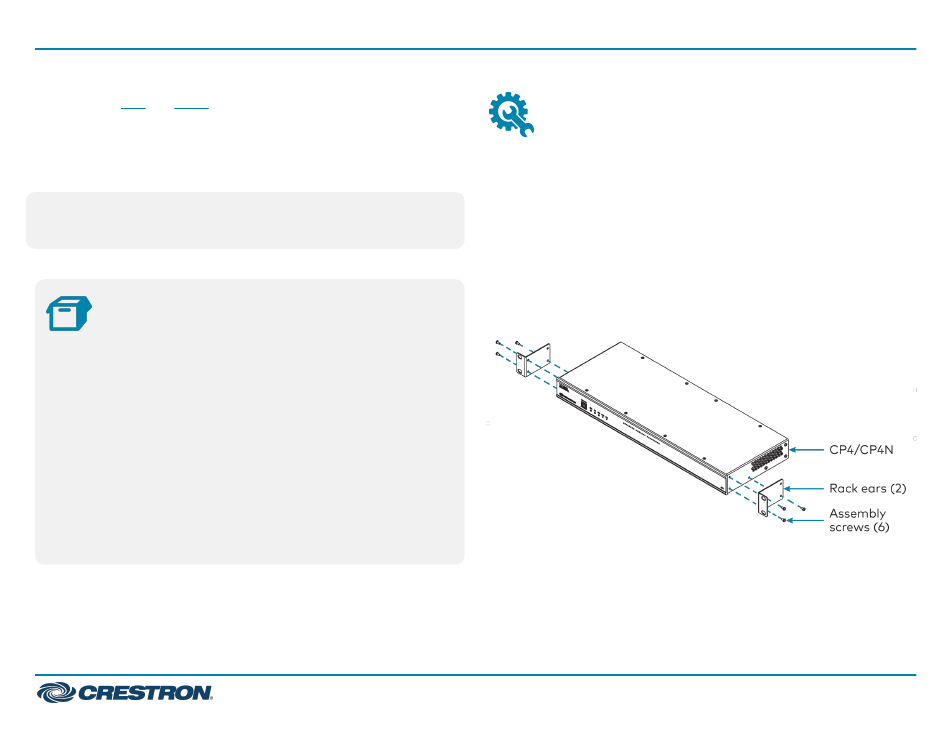

Rack Mounting
The control system occupies 1U of rack space.
1. Use a #1 Phillips screwdriver to remove the six required screws from
the control system assembly (shown in the illustration below).
2. Attach the two included rack ears with the removed screws.
3. Mount the control system into the rack with four mounting screws
(not included).
Surface Placement
1. Attach the four adhesive rubber feet near the corners on the
underside of the control system.
2. Place onto a flat surface or stack with other equipment.
Quick Start
1
