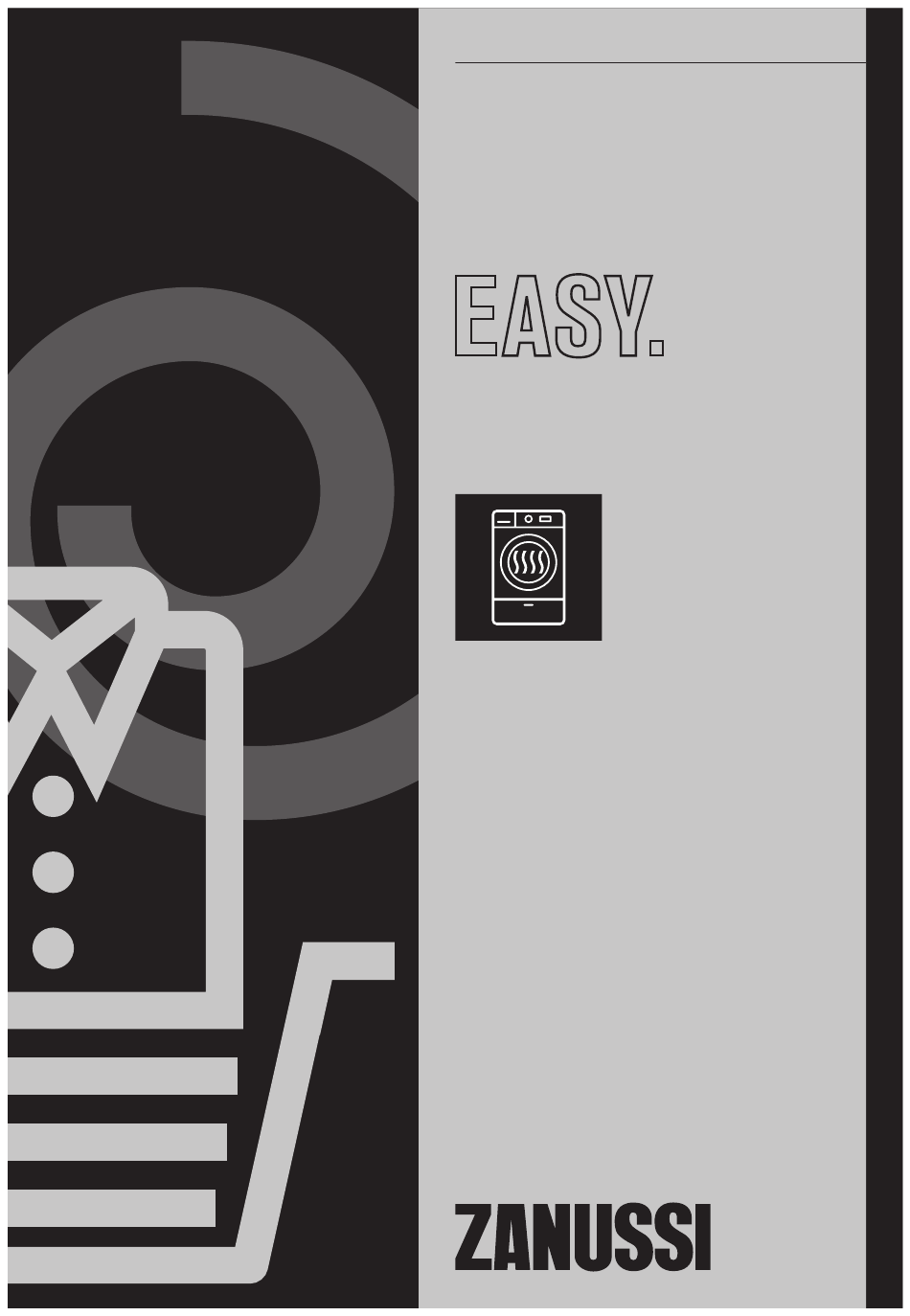

User Manual
GETTING
STARTED?
EASY.
ZWT816PCWA
EN User Manual
Washer Dryer

Advertisement

Table of Contents
loading

Related Manuals for Zanussi ZWT816PCWA

Summary of Contents for Zanussi ZWT816PCWA

  • Page 1 User Manual GETTING STARTED? EASY. ZWT816PCWA EN User Manual Washer Dryer...

  • Page 2: Safety Information

    SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damages that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.
  • Page 3 by clients in hotels, motels, bed & breakfast and other – residential type environments; areas for communal use in blocks of flats or in launderettes. – The appliance shall be installed as a freestanding product or • below the kitchen worktop if space margins permit. Do not install the appliance behind a lockable door, a sliding •...

  • Page 4: Safety Instructions

    Items that have been soiled with substances such as vegetable • or mineral oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed separately with an extra amount of detergent before being dried in the washer dryer. Do not use the appliance if items have been soiled with •...

  • Page 5: Electrical Connection

    • The floor area on which the appliance is to be • Do not put flammable products or items that are installed must be flat, stable, heat resistant and wet with flammable products in, near or on the clean. appliance. •...
  • Page 6 BE PREPARED FOR INSTALLATION THE APPLIANCE IS EQUIPPED WITH ... It is recommended that installation is carried out by two persons. UNPACKING WARNING! Use the gloves. WARNING! Remove all the packaging and the transit bolts before installing the appliance. 1. Put two polystyrene packaging elements on the floor under the appliance.
  • Page 7 4. Return the appliance in vertical position and remove the socket polystyrene protection. 5. Remove the power supply cable and the drain hose from the hose holders. It is possible to see water flowing from the drain hose. This is due to the testing with water of the appli- ance in factory.

  • Page 8: Positioning And Levelling

    POSITIONING AND LEVELLING 1. Install the appliance on a flat hard floor. WARNING! Make sure that carpets do not stop the air circulation below the ap- pliance. Bring the appliance near the furniture recess before levelling it. For more de- tails, refer to paragraph "Building in".
  • Page 9 The inlet hose 1. Remove the inlet hose from inside the drum. 2. To connect the water inlet hose towards the prop- er direction and with the proper inclination, check the position of the water tap before connecting it to the back of the appliance.
  • Page 10 To a stand pipe with vent-hole Directly into a drain pipe at a height of not less than Ø 40 mm 60 cm (23.6”) and not more than 100 cm (39.3”). The end of the drain hose must always be ventilated , i.e.
  • Page 11 If hoses run behind the appliance, make 596 mm 553 mm sure that nothing closes the small re- cess indicated with the measures 50 x 50 mm. 819 mm 50 mm 50 mm 140 mm 76 mm The appliance is also equipped with an adhesive sponge pad H that you can find inside the drum.
  • Page 12 Factory pre setting The appliance is originally pre set for the assembly of a cupboard door opening from right to left. The best solution would be to screw the upper hinge to the upper hole of the top plate and the lower hinge to the lower hole of the bottom plate.
  • Page 13 Cupboard door preparation For countersinking the door, it is recom- mended to call a professional. Align the cupboard door to the furniture correctly. Measure the distance X to fix the height of the hole to countersink the upper hinge. The centre of the hole Y should be at the same height of the stroke on the hinge support.

  • Page 14: Product Description

    Mounting the door Fix the hinges to the hinge supports on the appli- ance by means of the two supplied screws B. The hinges can be adjusted to compen- sate for possible uneven thickness of the door. Counter-magnet The appliance is pre set for a magnetic closure. For a correct closure: 1.

  • Page 15: Control Panel Description

    Plate with rubber beater Mains cable Drain pump filter Inlet hose connection Front feet for levelling the appliance Back feet for levelling the appliance Drain hose CONTROL PANEL CONTROL PANEL DESCRIPTION 90° Algod. NonStop 60min Auto 60° Denim Algod. ECO 40°...
  • Page 16 DISPLAY Door locked indicator. The digital indicator can show: • Programme duration (e. g. , washing and/or drying phase). • Delay time (e. g. • Cycle end ( • Warning code (e.g. • Error indicator ( Flextime indicator. Extra Rinse indicator. The spin area: Spin speed indicator No Spin indicator.

  • Page 17: Dial And Buttons

    DIAL AND BUTTONS INTRODUCTION Set this option to deactivate all spin phases. The appliance performs the only draining phase The options/functions are not available of the selected washing programme. Set this with all washing programmes. Check option for very delicate fabrics. The rinses phase the compatibility between options/ uses more water for some washing programmes functions and washing programmes in...
  • Page 18 FLEXTIME CHILD LOCK With this option you can reduce the programme With this option you can prevent children from duration depending on the load size and the degree playing with the control panel. of soiling. To activate/deactivate this option, hold the When you set a washing programme, the display Flextime button pressed until the indicator shows the default duration and...

  • Page 19: Programme Chart

    PROGRAMMES PROGRAMME CHART Reference Programme Maxi- spin speed Programme description Default temperature Spin speed (Type of load and soil level) Temperature range load range Washing programmes 1600 rpm 8 kg White cotton and coloured cotton. Normal, (1600- heavy and light soil. Algod.
  • Page 20 Reference Programme Maxi- spin speed Programme description Default temperature Spin speed (Type of load and soil level) Temperature range load range 1600 rpm 8 kg All fabrics, except woollens and very delicate (1600- fabrics. Programme for rinsing and spinning the Aclarado/Enxag.
  • Page 21 Reference Programme Maxi- spin speed Programme description Default temperature Spin speed (Type of load and soil level) Temperature range load range 1200 rpm 2 kg Do not use fabric softener and make (1200- Outdoor sure that there is no softener residue in 400 rpm) 30 °C the detergent dispenser.
  • Page 22 Programme options compatibility Programme ■ ■ ■ ■ ■ ■ ■ Algod. ■ ■ ■ ■ ■ ■ ■ Algod. Eco ■ ■ ■ ■ ■ ■ ■ Sintéticos ■ ■ ■ ■ ■ Delicados ■ ■ ■ ■ Lana/Lãs ■...

  • Page 23: Automatic Drying

    AUTOMATIC DRYING Dryness Level Type of fabric Load Cottons and Linen up to 4 kg (bathrobes, bath towels, etc) Extra Dry For towelling materials Denim garments up to 3 kg Cottons and Linen up to 4 kg (bathrobes, bath towels, etc) Cupboard Dry Synthetics and mixed fab- up to 3 kg...

  • Page 24: Timed Drying

    TIMED DRYING Spin Load Suggested du- Dryness Level Type of fabric speed (kg) ration (mins) (rpm) Extra Dry Cottons and Linen 1600 170 - 190 For towelling (bathrobes, bath towels, etc) 1600 110 - 120 materials 1600 65 - 75 Denim garments 1200 Cupboard Dry...

  • Page 25: Before First Use

    BEFORE FIRST USE 1. Make sure that the electrical power is available 4. Set and start a programme for cotton at the and the water tap is open. highest temperature without any laundry in the 2. Pour 2 litres of water into the detergent drum.

  • Page 26: Setting A Programme

    CHECK THE POSITION OF THE DETERGENT SETTING A PROGRAMME FLAP 1. Turn the programme dial to select the desired 1. Pull out the detergent dispenser until it stops. washing programme. The indicator of Modo - Lavar button illuminates. The indicator of the Inicio/Pausa button flashes.

  • Page 27: Interrupting A Programme And Changing The Options

    Changing the delay start after the countdown INTERRUPTING A PROGRAMME AND has started CHANGING THE OPTIONS To change the delay start: When the programme is running, you can change only some options: 1. Touch the Inicio/Pausa button to pause the appliance.

  • Page 28: Daily Use - Washing & Drying

    END OF THE PROGRAMME 1. If necessary, touch the Centrifug. button to decrease the spin speed proposed by the When the programme has finished, the appliance appliance. stops automatically. The acoustic signals operate (if 2. Press the Inicio/Pausa button: the they are active).

  • Page 29: Washing And Timed Drying

    2. Set the NonStop 60min programme by means 2. Touch button Inicio/Pausa to start the of the programme dial. programme. The AutoAdjust estimation starts. 3. Touch the Inicio/Pausa button to start the In the display the door locked indicator comes programme.

  • Page 30: Preparation To Drying

    PREPARATION TO DRYING the "Timed drying" table the "Programmes" 1. Press the On/Off button for some seconds to chapter). The drying level indicator goes off activate the appliance. and the indicator comes on. 2. Load the laundry one item at a time. Each time you tap on this button the time value 3.

  • Page 31: Hints And Tips

    • Clean the drum, the gasket and the door with a If the appliance is frequently used, wet cloth. carry out the cleaning programme • Set the Limpieza/Limpeza Máquina programme regularly. and the Modo - Secar together to activate the anti-fluff action.

  • Page 32: Additional Drying

    PREPARE THE DRYING CYCLE • = The item can not be tumble dried. • Open the water tap. • Check if the drain hose is connected properly. DRYING CYCLE DURATION Refer to installation chapter for more The drying time can change depending on: information.

  • Page 33: Cleaning The Detergent Dispenser

    drum and the tub. This could generate bad odours 3. Add a small quantity of powder detergent into and mildew. To eliminate these deposits and clean the empty drum, in order to rinse out any left the inner part of the appliance, run a maintenance residues.

  • Page 34: Cleaning The Drain Pump

    CLEANING THE DRAIN PUMP Use a small brush to clean the recess. WARNING! Disconnect the mains plug from the mains socket. Regularly check the drain pump filter and make sure that it is clean. Clean the drain pump if: • The appliance does not drain the water.
  • Page 35 2. Place a suitable bowl below the drain pump access to collect the water that flows out. Always keep a rag nearby to dry up any water spill- ages when removing the filter. 180˚ 3. Turn the filter 180 degrees in anti-clockwise direc- tion to open it, without removing.
  • Page 36 8. Clean the filter under the water tap. 9. Put the filter back into the special guides by turning it clockwise. Make sure that you tighten the filter cor- rectly to prevent leakages. 10. Close the pump cover. When you drain the water with the emergency drain procedure, you must activate the drain system again: 1.

  • Page 37: Emergency Drain

    CLEANING THE INLET HOSE AND THE VALVE FILTER 45° 20° EMERGENCY DRAIN 1. Disconnect the mains plug from the mains socket. If the appliance cannot drain the water, carry out 2. Close the water tap. the same procedure, described in 'Cleaning the 3.

  • Page 38: Possible Failures

    First try to find a solution to the problem (refer to the table). If the problem persists, contact the Authorised Service Centre. WARNING! Deactivate the appliance before carrying out any check. In case of major problems, the acoustic signals operate, the display shows an alarm code and the Inicio/Pausa button may flash continuously: •...
  • Page 39 Problem Possible solution • Make sure that the water tap is open. • Make sure that the pressure of the water supply is not too low. For this information, contact your local water authority. The appliance does not fill • Make sure that the water tap is not clogged.

  • Page 40: Emergency Door Opening

    Problem Possible solution • The AutoAdjust System is able to adjust the programme duration The programme duration according to the type and the laundry load size. Refer to "The Au- increases or decreases during programme execu- toAdjust System load detection" in "Daily Use" chapter. tion.

  • Page 41: Consumption Values

    2. Disconnect the mains plug from the mains 4. Take out the laundry and then close the socket. appliance door. 3. Pull twice the emergency unlock trigger downward and open the appliance door. The emergency unlock trigger is located where indicated by the following picture.

  • Page 42: Technical Data

    TECHNICAL DATA Dimension Width/ Height/ Depth/ To- 596 mm/ 819 mm/ 540 mm/ 553 mm tal depth Electrical connection Voltage 230 V Overall power 2000 W Fuse 10 A Frequency 50 Hz Level of protection against ingress of solid particles and IPX4 moisture ensured by the protective cover, except where the low voltage equipment has no protection against...
  • Page 44 WWW.ZANUSSI.COM/SHOP...
