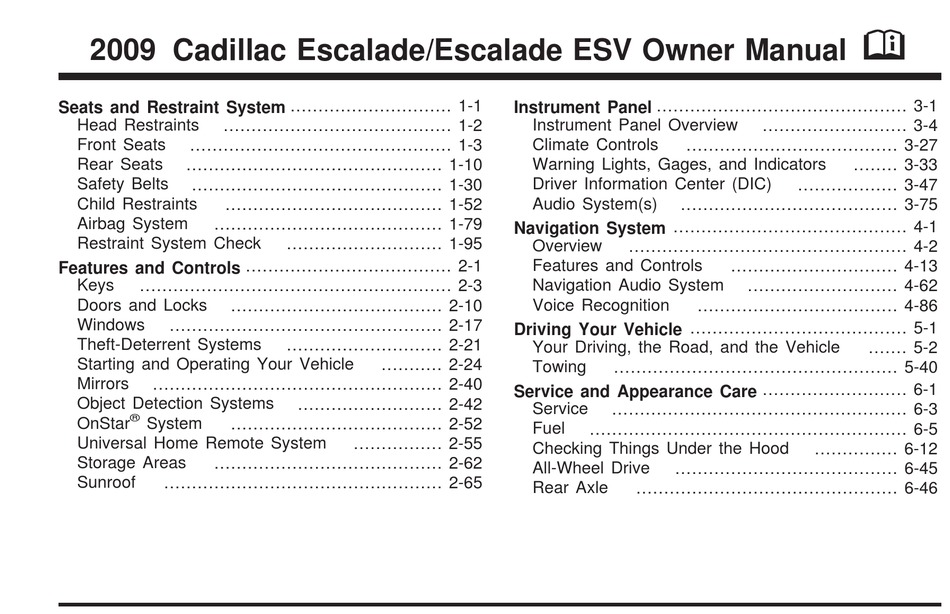

Page 1 2009 Cadillac Escalade/Escalade ESV Owner Manual Seats and Restraint System ... 1-1 Head Restraints ... 1-2 Front Seats ... 1-3 Rear Seats ... 1-10 Safety Belts ... 1-30 Child Restraints ... 1-52 Airbag System ... 1-79 Restraint System Check ... 1-95 Features and Controls ...
Page 2 Front Axle ... 6-47 Headlamp Aiming ... 6-48 Bulb Replacement ... 6-51 Windshield Wiper Blade Replacement Tires ... 6-56 Appearance Care ... 6-96 Vehicle Identiﬁcation ... 6-104 Electrical System ... 6-105 Capacities and Speciﬁcations Maintenance Schedule ... 7-1 Maintenance Schedule Customer Assistance Information ...
Page 3: Canadian Owners
GENERAL MOTORS, GM, the GM Emblem, CADILLAC, the CADILLAC Crest & Wreath, and the names ESCALADE and ESV are registered trademarks of General Motors Corporation. This manual includes the latest information at the time it was printed. GM reserves the right to make changes after that time without notice.
Page 4: Vehicle Symbols
Safety Warnings and Symbols A circle with a slash through it is a safety symbol which means “Do Not,” “Do not do this,” or “Do not let this happen.” A box with the word CAUTION is used to tell about things that could hurt you or others if you were to ignore the warning.
Page 5 Vehicle Symbol Chart Here are some additional symbols that may be found on the vehicle and what they mean. For more information on the symbol, refer to the index. : Adjustable Pedals : Airbag Readiness Light : Air Conditioning : Antilock Brake System (ABS) : Audio Steering Wheel Controls or OnStar : Brake System Warning Light "...
Page 6 ✍ NOTES...
Page 7: Table Of Contents
Section 1 Head Restraints ...1-2 Front Seats ...1-3 Power Seats ...1-3 Power Lumbar ...1-4 Heated Seats ...1-5 Heated and Cooled Seats ...1-6 Memory Features ...1-7 Power Reclining Seatbacks ...1-8 Center Seat ...1-10 Rear Seats ...1-10 Heated Seats ...1-10 60/40 Split Bench Seat (Second Row) ...1-11 Bucket Seats (Second Row) ...1-17 Third Row Seat ...1-25 Safety Belts ...1-30...
Page 8: Head Restraints
Head Restraints The front seats have adjustable head restraints in the outboard seating positions. CAUTION: With head restraints that are not installed and adjusted properly, there is a greater chance that occupants will suffer a neck/spinal injury in a crash. Do not drive until the head restraints for all occupants are installed and adjusted properly.
Page 9: Power Seats
Pull the head restraint up to raise it. To lower the head restraint, press the button, located on the top of the seatback, and push the restraint down. Push down on the head restraint after the button is released to make sure that it is locked in place. The head restraints are not designed to be removed.
Page 10: Power Lumbar
• Raise or lower the rear part of the seat cushion by moving the rear of the control up or down. • Raise or lower the entire seat by moving the entire control up or down. The power reclining seatback control is located behind the power seat control on the outboard side of the seats.
Page 11 Let go of the control when the lower seatback reaches the desired level of support. Your vehicle has a memory function which allows seat settings to be saved and recalled. See Memory Features on page 1-7 for more information. Keep in mind that as your seating position changes, as it may during long trips, so should the position of your lumbar support.
Page 12 Heated and Cooled Seats If the front seats have the heated and cooled seat feature, the buttons used to control this feature are located on the climate control panel. (Cooled Seat): To cool the entire seat, press the button with the cooled seat symbol. This symbol will appear on the climate control display to indicate that the feature is on.
Page 13 Memory Features Your vehicle has the memory package. The controls for this feature are located on the driver’s door, and are used to program and recall memory settings for the driver’s seat, outside mirrors, steering wheel position, and the adjustable throttle and brake pedal feature, if your vehicle has it.
Page 14: Power Reclining Seatbacks
Easy Exit Seat The control for this feature is located on the driver’s door between buttons 1 and 2. With the vehicle in P (Park), the exit position can be recalled by pressing the exit button. You will hear a single beep. The driver’s seat will move back. If the easy exit seat feature is on in the Driver Information Center (DIC), automatic seat movement will occur when the key is removed from the ignition.
Page 15 CAUTION: Sitting in a reclined position when your vehicle is in motion can be dangerous. Even if you buckle up, your safety belts cannot do their job when you are reclined like this. The shoulder belt cannot do its job. In a crash, you could go into it, receiving neck or other injuries.
Page 16: Heated Seats
Center Seat Your vehicle may have a front center seat. The seatback doubles as an armrest and cupholder/storage area for the driver and passenger when the center seat is not used. Do not use it as a seating position when the seatback is folded down.
Page 17: Second Row
60/40 Split Bench Seat (Second Row) If your vehicle has a 60/40 split bench, the seat(s) can be folded for additional cargo space or folded and tumbled for easy entry and exit to the third row seats, if your vehicle has them. These seats will have either the manual fold and tumble feature or the automatic seat release fold and tumble feature.
Page 18 The seatback will fold forward automatically. Leaving the seatback in this position creates a ﬂat load ﬂoor. If the seatback cannot fold ﬂat, try moving the front seat forward and/or put the front seatback in the upright position. 1-12 3. Lift the same lever again to release the rear of the seat from the ﬂoor.
Page 19 Returning the Seat(s) to the Sitting Position To return the seat to the sitting position, do the following: 1. Pull the seat down until it latches to the ﬂoor. The seatback cannot be raised if the seat is not latched to the ﬂoor.
Page 20: Third Row Seats
Folding and Tumbling the Seat(s) from the Third Row Seats CAUTION: Using the third row seating position while the second row is folded, or folded and tumbled, could cause injury in a sudden stop or crash. Be sure to return the seat to the passenger seating position. Push and pull on the seat to make sure it is locked into place.
Page 21 Power Release Fold and Tumble Feature The transmission must be in (P) Park for this feature to work. Folding and Tumbling the Seat(s) CAUTION: Automatically folding and tumbling the seat when someone is sitting in the seat, could cause injury to the person sitting there.
Page 22 Returning the Seat(s) to the Sitting Position To return the seat to the sitting position, do the following: 1. Pull the seat down until it latches to the ﬂoor. The seatback cannot be raised if the seat is not latched to the ﬂoor.
Page 23 Folding and Tumbling the Second Row Seat(s) from the Third Row Seats or Outside CAUTION: Using the third row seating position while the second row is folded, or folded and tumbled, could cause injury in a sudden stop or crash. Be sure to return the seat to the passenger seating position.
Page 24: Reclining Seatbacks
Reclining Seatbacks To recline the seatback, do the following: 1. Lift the lever located on the outboard side of the seat. 2. Move the seatback to the desired position, then release the lever to lock the seatback in place. 3. Push and pull on the seatback to make sure it is locked.
Page 25 Manual Fold and Tumble Feature Folding and Tumbling the Seat(s) To fold and tumble the seat, do the following: 1. Make sure that there is nothing under, in front of, or on the seat. Notice: Folding a rear seat with the safety belts still fastened may cause damage to the seat or the safety belts.
Page 26 3. Lift the lever again to release the rear of the seat from the ﬂoor. The seat will tumble forward. 1-20 Returning the Seat(s) to the Sitting Position To return the seat to the sitting position, do the following: 1. Pull the seat down until it latches to the ﬂoor. The seatback cannot be raised if the seat is not latched to the ﬂoor.
Page 27 Folding and Tumbling the Seat(s) from the Third Row Seats CAUTION: Using the third row seating position while the second row is folded, or folded and tumbled, could cause injury in a sudden stop or crash. Be sure to return the seat to the passenger seating position. Push and pull on the seat to make sure it is locked into place.
Page 28 Power Release Fold and Tumble Feature The transmission must be in (P) Park for this feature to work. Folding and Tumbling the Seat(s) CAUTION: Automatically folding and tumbling the seat when someone is sitting in the seat, could cause injury to the person sitting there.
Page 29 Returning the Seat(s) to the Sitting Position To return the seat to the sitting position, do the following: 1. Pull the seat down until it latches to the ﬂoor. The seatback cannot be raised if the seat is not latched to the ﬂoor.
Page 30 Folding and Tumbling the Second Row Seat(s) from the Third Row Seats or Outside CAUTION: Using the third row seating position while the second row is folded, or folded and tumbled, could cause injury in a sudden stop or crash. Be sure to return the seat to the passenger seating position.
Page 31: Third Row Seat
Third Row Seat If the vehicle has a third row seat, the seatback(s) can be folded and the entire seat can be tumbled, or removed from the vehicle. Folding the Seatback(s) To fold the seatback, do the following: 1. Open the liftgate to access the controls for the seat. 2.
Page 32 Unfolding the Seatback(s) To return the seatback to the upright position, do the following: 1. Open the liftgate to access the controls for the seat. 2. Pull up on the seatback until it locks into the upright position. CAUTION: If either seatback is not locked, it could move forward in a sudden stop or crash.
Page 33 6. Tilt the seat fully forward to lock it into place. 7. Push and pull on the seat to make sure it is locked. Put the seat in this position only when necessary for additional cargo space. Returning the Third Row Seat from a Tumbled Position To return the seat to the normal seating position, do the following:...
Page 34 Removing the Third Row Seat To remove the seat, do the following: 1. Open the liftgate to access the controls for the seat. 2. Fold the seatback forward using the instructions listed under “Folding the Seatbacks” previously. The seat cannot be removed unless the seatback is folded.
Page 35 CAUTION: If either seatback is not locked, it could move forward in a sudden stop or crash. That could cause injury to the person sitting there. Always push and pull on the seatbacks to be sure they are locked. 6. Push and pull on the seatback to make sure it is locked.
Page 36 Safety Belts Safety Belts: They Are for Everyone This section of the manual describes how to use safety belts properly. It also describes some things not to do with safety belts. CAUTION: Do not let anyone ride where a safety belt cannot be worn properly.
Page 37: Why Safety Belts Work
After more than 40 years of safety belts in vehicles, the facts are clear. In most crashes buckling up does matter... a lot! Why Safety Belts Work When you ride in or on anything, you go as fast as it goes. Put someone on it.
Page 38 Get it up to speed. Then stop the vehicle. The rider does not stop. 1-32 The person keeps going until stopped by something. In a real vehicle, it could be the windshield...
Page 39 or the instrument panel... or the safety belts! With safety belts, you slow down as the vehicle does. You get more time to stop. You stop over more distance, and your strongest bones take the forces. That is why safety belts make such good sense. 1-33...
Page 40 Questions and Answers About Safety Belts Will I be trapped in the vehicle after a crash if I am wearing a safety belt? You could be — whether you are wearing a safety belt or not. But your chance of being conscious during and after an accident, so you can unbuckle and get out, is much greater if you are belted.
Page 41 How to Wear Safety Belts Properly This section is only for people of adult size. Be aware that there are special things to know about safety belts and children. And there are different rules for smaller children and infants. If a child will be riding in the vehicle, see Older Children on page 1-52 or Infants and Young Children on page 1-55.
Page 42 What is wrong with this? The shoulder belt is too loose. It will not give as much protection this way. 1-36 CAUTION: You can be seriously hurt if your shoulder belt is too loose. In a crash, you would move forward too much, which could increase injury.
Page 43 What is wrong with this? The lap belt is too loose. It will not give nearly as much protection this way. CAUTION: You can be seriously hurt if your lap belt is too loose. In a crash, you could slide under the lap belt and apply force on your abdomen.
Page 44 What is wrong with this? The belt is buckled in the wrong buckle. 1-38 CAUTION: You can be seriously injured if your belt is buckled in the wrong place like this. In a crash, the belt would go up over your abdomen. The belt forces would be there, not on the pelvic bones.
Page 45 What is wrong with this? The belt is over an armrest. CAUTION: You can be seriously injured if your belt goes over an armrest like this. The belt would be much too high. In a crash, you can slide under the belt. The belt force would then be applied on the abdomen, not on the pelvic bones, and that could cause serious or fatal injuries.
Page 46 What is wrong with this? The shoulder belt is worn under the arm. It should be worn over the shoulder at all times. 1-40 CAUTION: You can be seriously injured if you wear the shoulder belt under your arm. In a crash, your body would move too far forward, which would increase the chance of head and neck injury.
Page 47 What is wrong with this? The belt is behind the body. CAUTION: You can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, you would not be restrained by the shoulder belt. Your body could move too far forward increasing the chance of head and neck injury.
Page 48 What is wrong with this? The belt is twisted across the body. 1-42 CAUTION: You can be seriously injured by a twisted belt. In a crash, you would not have the full width of the belt to spread impact forces. If a belt is twisted, make it straight so it can work properly, or ask your dealer/retailer to ﬁx it.
Page 49 Lap-Shoulder Belt All seating positions in the vehicle have a lap-shoulder belt except for the center front passenger position, if equipped, which has a lap belt. See Lap Belt on page 1-50 for more information. The lap-shoulder belts for the ﬁrst and second row seating positions are equipped with free-falling latch plates.
Page 50 Engaging the child restraint locking feature in the right front seating position may affect the passenger sensing system. See Passenger Sensing System on page 1-87 for more information. If the belt stops before it reaches the buckle, for lap-shoulder belts with cinching latch plates, tilt the latch plate and keep pulling the safety belt until it can be buckled.
Page 51 5. To make the lap part tight, pull up on the shoulder belt. It may be necessary to pull stitching on the safety belt through the latch plate to fully tighten the lap belt on smaller occupants. To unlatch the belt, push the button on the buckle. The belt should return to its stowed position.
Page 52 Shoulder Belt Height Adjuster The vehicle has a shoulder belt height adjuster for the driver and right front passenger positions. Adjust the height so that the shoulder portion of the belt is centered on the shoulder. The belt should be away from the face and neck, but not falling off the shoulder.
Page 53: Rear Safety Belt Comfort Guides
Rear Safety Belt Comfort Guides Rear shoulder belt comfort guides may provide added safety belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the belt away from the neck and head.
Page 54 2. Place the guide over the belt, and insert the 3. Be sure that the belt is not twisted and it lies ﬂat. two edges of the belt into the slots of the guide. The elastic cord must be under the belt and the guide on top.
Page 55 CAUTION: A safety belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.
Page 56 Safety Belt Use During Pregnancy Safety belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear safety belts. A pregnant woman should wear a lap-shoulder belt, and the lap portion should be worn as low as possible, below the rounding, throughout the pregnancy.
Page 57 To make the belt shorter, pull its free end as shown until the belt is snug. If the belt is not long enough, see Safety Belt Extender on page 1-51. Make sure the release button on the buckle is positioned so you would be able to unbuckle the safety belt quickly if necessary.
Page 58 Child Restraints Older Children Older children who have outgrown booster seats should wear the vehicle’s safety belts. 1-52 The manufacturer’s instructions that come with the booster seat, state the weight and height limitations for that booster. Use a booster seat with a lap-shoulder belt until the child passes the below ﬁt test: •...
Page 59 What is the proper way to wear safety belts? An older child should wear a lap-shoulder belt and get the additional restraint a shoulder belt can provide. The shoulder belt should not cross the face or neck. The lap belt should ﬁt snugly below the hips, just touching the top of the thighs.
Page 60 CAUTION: Never do this. Never allow a child to wear the safety belt with the shoulder belt behind their back. A child can be seriously injured by not wearing the lap-shoulder belt properly. In a crash, the child would not be restrained by the shoulder belt.
Page 61 Infants and Young Children Everyone in a vehicle needs protection! This includes infants and all other children. Neither the distance traveled nor the age and size of the traveler changes the need, for everyone, to use safety restraints. In fact, the law in every state in the United States and in every Canadian province says children up to some age must be restrained while in a vehicle.
Page 62 CAUTION: Never do this. Never hold an infant or a child while riding in a vehicle. Due to crash forces, an infant or a child will become so heavy it is not possible to hold it during a crash. For example, in a crash at only 40 km/h (25 mph), a 5.5 kg (12 lb) infant will suddenly become a 110 kg (240 lb) force on a person’s arms.
Page 63 CAUTION: Never do this. Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Never put a rear-facing child restraint in the right front seat. Secure a rear-facing child restraint in a rear seat.
Page 64 What are the different types of add-on child restraints? Add-on child restraints, which are purchased by the vehicle’s owner, are available in four basic types. Selection of a particular restraint should take into consideration not only the child’s weight, height, and age but also whether or not the restraint will be compatible with the motor vehicle in which it will be used.
Page 65: Child Restraint Systems
CAUTION: A young child’s hip bones are still so small that the vehicle’s regular safety belt may not remain low on the hip bones, as it should. Instead, it may settle up around the child’s abdomen. In a crash, the belt would apply force on a body area that is unprotected by any bony structure.
Page 66 A booster seat (C-D) is a child restraint designed to improve the ﬁt of the vehicle’s safety belt system. A booster seat can also help a child to see out the window. 1-60 Securing an Add-On Child Restraint in the Vehicle CAUTION: A child can be seriously injured or killed in a crash if the child restraint is not properly secured in the...
Page 67: Where To Put The Restraint
When securing an add-on child restraint, refer to the instructions that come with the restraint which may be on the restraint itself or in a booklet, or both, and to this manual. The child restraint instructions are important, so if they are not available, obtain a replacement copy from the manufacturer.
Page 68 A label on your sun visor says, “Never put a rear-facing child seat in the front.” This is because the risk to the rear-facing child is so great, if the airbag deploys. CAUTION: A child in a rear-facing child restraint can be seriously injured or killed if the right front passenger airbag inﬂates.
Page 69: Lower Anchors And Tethers For Children (Latch)
CAUTION: A child in a child restraint in the center front seat can be badly injured or killed by the frontal airbags if they inﬂate. Never secure a child restraint in the center front seat. It is always better to secure a child restraint in a rear seat.
Page 70: Top Tether Anchor
Lower Anchors Lower anchors (A) are metal bars built into the vehicle. There are two lower anchors for each LATCH seating position that will accommodate a child restraint with lower attachments (B). 1-64 Top Tether Anchor A top tether (A, C) anchors the top of the child restraint to the vehicle.
Page 71 Some child restraints with top tethers are designed for use with or without the top tether being attached. Others require the top tether always to be attached. In Canada, the law requires that forward-facing child restraints have a top tether, and that the tether be attached.
Page 72 For models with a three passenger third row seat, see the information following for installing a child restraint with a top tether in the third row, if your vehicle has one. Never install two top tethers using the same top tether anchor.
Page 73 Second Row Seat — 60/40 For models with 60/40 second row seating, the top tether anchors are located at the bottom rear of the seat cushion for each seating position in the second row. Be sure to use an anchor located on the same side of the vehicle as the seating position where the child restraint will be placed.
Page 74: Securing A Child Restraint Designed For The Latch System
According to accident statistics, children and infants are safer when properly restrained in a child restraint system or infant restraint system secured in a rear seating position. See Where to Put the Restraint on page 1-61 for additional information. Securing a Child Restraint Designed for the LATCH System CAUTION: If a LATCH-type child restraint is not attached to...
Page 75 Notice: Do not let the LATCH attachments rub against the vehicle’s safety belts. This may damage these parts. If necessary, move buckled safety belts to avoid rubbing the LATCH attachments. Do not fold the empty rear seat with a safety belt buckled.
Page 76 If the position you are using does not have a headrest or head restraint and you are using a dual tether, route the tether over the seatback. If the position you are using has an adjustable headrest or head restraint and you are using a dual tether, route the tether around the headrest or...
Page 77: Securing A Child Restraint In A Rear Seat Position
Securing a Child Restraint in a Rear Seat Position When securing a child restraint in a rear seating position, study the instructions that came with the child restraint to make sure it is compatible with this vehicle. If the child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-63 for how and where to install the child restraint using LATCH.
Page 78 The vehicle’s lap-shoulder belts for the ﬁrst and second row seating positions are equipped with free-falling latch plates. If the vehicle has a third row, the lap-shoulder belts have either free-falling or cinching latch plates. Use the following pictures to determine the latch plate style: Free-Falling Latch Plate 1-72...
Page 79 For third row seating positions, with cinching latch plates, tilt the latch plate to adjust the belt if needed. 3. Push the latch plate into the buckle until it clicks. Position the release button on the buckle so that the safety belt could be quickly unbuckled if necessary.
Page 80 4. For passenger seating positions with a lap-shoulder belt and a free-falling latch plate, pull the rest of the shoulder belt all the way out of the retractor to set the lock. When installing a child restraint using a lap-shoulder belt and a cinching latch plate, skip Step 4 and proceed to Step 5.
Page 81: Securing A Child Restraint In The Center Front Seat Position
6. If the child restraint has a top tether, follow the child restraint manufacturer’s instructions regarding the use of the top tether. See Lower Anchors and Tethers for Children (LATCH) on page 1-63 for more information. 7. Push and pull the child restraint in different directions to be sure it is secure.
Page 82: Securing A Child Restraint In The Right Front Seat Position
Securing a Child Restraint in the Right Front Seat Position This vehicle has airbags. A rear seat is a safer place to secure a forward-facing child restraint. See Where to Put the Restraint on page 1-61. In addition, the vehicle has a passenger sensing system which is designed to turn off the right front passenger frontal airbag under certain conditions.
Page 83 If the child restraint has the LATCH system, see Lower Anchors and Tethers for Children (LATCH) on page 1-63 for how and where to install the child restraint using LATCH. If a child restraint is secured using a safety belt and it uses a top tether, see Lower Anchors and Tethers for Children (LATCH) on page 1-63 for top tether anchor locations.
Page 84 5. Pull the rest of the shoulder belt all the way out of the retractor to set the lock. 1-78 6. To tighten the belt, push down on the child restraint, pull the shoulder portion of the belt to tighten the lap portion of the belt and feed the shoulder belt back into the retractor.
Page 85: Airbag System
If the airbag is off, the off indicator in the passenger airbag status indicator will come on and stay on when the vehicle is started. If a child restraint has been installed and the on indicator is lit, see “If the On Indicator is Lit for a Child Restraint”...
Page 86 Here are the most important things to know about the airbag system: CAUTION: You can be severely injured or killed in a crash if you are not wearing your safety belt — even if you have airbags. Airbags are designed to work with safety belts, but do not replace them.
Page 87: Where Are The Airbags
CAUTION: Children who are up against, or very close to, any airbag when it inﬂates can be seriously injured or killed. Airbags plus lap-shoulder belts offer protection for adults and older children, but not for young children and infants. Neither the vehicle’s safety belt system nor its airbag system is designed for them.
Page 88: Instrument Panel
The right front passenger’s frontal airbag is in the instrument panel on the passenger’s side. 1-82 Driver Side shown, Passenger Side similar The roof-rail airbags for the driver, right front passenger, and second row outboard passengers are in the ceiling above the side windows.
Page 89 Driver Side shown, Passenger Side similar If your vehicle has roof-rail airbags and a third row passenger seat, the airbags are located in the ceiling above the rear windows for the outboard passenger positions in the third row. CAUTION: If something is between an occupant and an airbag, the airbag might not inﬂate properly or it might force the object into that person causing severe injury or even death.
Page 90: When Should An Airbag Inﬂate
When Should an Airbag Inﬂate? Frontal airbags are designed to inﬂate in moderate to severe frontal or near-frontal crashes to help reduce the potential for severe injuries mainly to the driver’s or right front passenger’s head and chest. However, they are only designed to inﬂate if the impact exceeds a predetermined deployment threshold.
Page 91: What Makes An Airbag Inﬂate
Roof-rail airbags are not intended to inﬂate in rear impacts. Both roof-rail airbags will deploy when either side of the vehicle is struck, or if the sensing system predicts that the vehicle is about to roll over, or in a severe frontal impact. In any particular crash, no one can say whether an airbag should have inﬂated simply because of the damage to a vehicle or because of what the repair costs...
Page 92: What Will You See After An Airbag Inﬂates
What Will You See After an Airbag Inﬂates? After the frontal airbags inﬂate, they quickly deﬂate, so quickly that some people may not even realize an airbag inﬂated. Roof-rail airbags may still be at least partially inﬂated for some time after they deploy. Some components of the airbag module may be hot for several minutes.
Page 93: Passenger Sensing System
In many crashes severe enough to inﬂate the airbag, windshields are broken by vehicle deformation. Additional windshield breakage may also occur from the right front passenger airbag. • Airbags are designed to inﬂate only once. After an airbag inﬂates, you will need some new parts for the airbag system.
Page 94 The passenger sensing system works with sensors that are part of the right front passenger seat and safety belt. The sensors are designed to detect the presence of a properly-seated occupant and determine if the right front passenger frontal airbag should be enabled (may inﬂate) or not.
Page 95 The passenger sensing system is designed to turn off the right front passenger frontal airbag if: • The right front passenger seat is unoccupied. • The system determines an infant is present in a child restraint. • A right front passenger takes his/her weight off of the seat for a period of time.
Page 96 If the On Indicator is Lit for a Child Restraint If a child restraint has been installed and the on indicator is lit: 1. Turn the vehicle off. 2. Remove the child restraint from the vehicle. 3. Remove any additional items from the seat such as blankets, cushions, seat covers, seat heaters, or seat massagers.
Page 97 If the Off Indicator is Lit for an Adult-Size Occupant If a person of adult-size is sitting in the right front passenger seat, but the off indicator is lit, it could be because that person is not sitting properly in the seat. If this happens, use the following steps to allow the system to detect that person and enable the right front passenger frontal airbag:...
Page 98 Additional Factors Affecting System Operation Safety belts help keep the passenger in position on the seat during vehicle maneuvers and braking, which helps the passenger sensing system maintain the passenger airbag status. See “Safety Belts” and “Child Restraints” in the Index for additional information about the importance of proper restraint use.
Page 99: Servicing Your Airbag-Equipped Vehicle
Servicing Your Airbag-Equipped Vehicle Airbags affect how the vehicle should be serviced. There are parts of the airbag system in several places around the vehicle. Your dealer/retailer and the service manual have information about servicing the vehicle and the airbag system. To purchase a service manual, see Service Publications Ordering Information on page 8-15.
Page 100: Adding Equipment To Your Airbag-Equipped Vehicle
Adding Equipment to Your Airbag-Equipped Vehicle Is there anything I might add to or change about the vehicle that could keep the airbags from working properly? Yes. If you add things that change the vehicle’s frame, bumper system, height, front end or side sheet metal, they may keep the airbag system from working properly.
Page 101: Restraint System Check
Restraint System Check Checking the Restraint Systems Safety Belts Now and then, check that the safety belt reminder light, safety belts, buckles, latch plates, retractors, and anchorages are all working properly. Look for any other loose or damaged safety belt system parts that might keep a safety belt system from doing its job.
Page 102: Replacing Restraint System Parts After A Crash
Replacing Restraint System Parts After a Crash CAUTION: A crash can damage the restraint systems in your vehicle. A damaged restraint system may not properly protect the person using it, resulting in serious injury or even death in a crash. To help make sure your restraint systems are working properly after a crash, have them inspected and any necessary replacements made as soon as...
Page 103: Features And Controls
Section 2 Keys ...2-3 Remote Keyless Entry (RKE) System ...2-4 Remote Keyless Entry (RKE) System Operation ...2-5 Remote Vehicle Start ...2-8 Doors and Locks ...2-10 Door Locks ...2-10 Power Door Locks ...2-10 Delayed Locking ...2-10 Programmable Automatic Door Locks ...2-11 Rear Door Security Locks ...2-11 Lockout Protection ...2-12 Liftgate/Liftglass ...2-12...
Page 104 Section 2 Object Detection Systems ...2-42 Ultrasonic Rear Parking Assist (URPA) ...2-42 Side Blind Zone Alert (SBZA) ...2-44 Rear Vision Camera (RVC) ...2-48 ® OnStar System ...2-52 Universal Home Remote System ...2-55 Universal Home Remote System Operation (With Three Round LED) ...2-55 Features and Controls Storage Areas ...2-62 Glove Box ...2-62...
Page 105: Keys
Keys CAUTION: Leaving children in a vehicle with the ignition key is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function with the keys in the ignition and children could be seriously injured or killed if caught in the path of a closing window.
Page 106: Remote Keyless Entry (Rke) System
Remote Keyless Entry (RKE) System The Remote Keyless Entry (RKE) system operates on a radio frequency subject to Federal Communications Commission (FCC) Rules and with Industry Canada. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
Page 107: Remote Keyless Entry (Rke) System Operation
Remote Keyless Entry (RKE) System Operation The Remote Keyless Entry (RKE) transmitter functions work up to 195 feet (60 m) away from the vehicle. There are other conditions which can affect the performance of the transmitter. See Remote Keyless Entry (RKE) System on page 2-4. With Remote Start and Power Liftgate and Liftglass (Without...
Page 108: Programming Transmitters To The Vehicle
Pressing on the RKE transmitter disarms the content theft-deterrent system. See Content Theft-Deterrent on page 2-21. (Remote Vehicle Start): For vehicles with this feature, press to start the engine from outside the vehicle using the RKE transmitter. See Remote Vehicle Start on page 2-8 for additional information.
Page 109: Battery Replacement
Battery Replacement Replace the battery if the REPLACE BATTERY IN REMOTE KEY message displays in the DIC. See “REPLACE BATTERY IN REMOTE KEY” under DIC Warnings and Messages on page 3-56 for additional information. Notice: When replacing the battery, do not touch any of the circuitry on the transmitter.
Page 110: Remote Vehicle Start
Remote Vehicle Start This feature allows you to start the engine from outside of the vehicle. It may also start up the vehicle’s heating or air conditioning systems and rear window defogger. Normal operation of the system will return after the key is turned to the ON/RUN position.
Page 111 3. If it is the ﬁrst remote start since the vehicle has been driven, repeat these steps, while the engine is still running, to extend the engine running time by 10 minutes. Remote start can be extended one time. After entering the vehicle during a remote start, insert and turn the key to ON/RUN to drive the vehicle.
Page 112: Doors And Locks
Doors and Locks Door Locks CAUTION: Unlocked doors can be dangerous. • Passengers, especially children, can easily open the doors and fall out of a moving vehicle. When a door is locked, the handle will not open it. The chance of being thrown out of the vehicle in a crash is increased if the doors are not locked.
Page 113: Programmable Automatic Door Locks
Programmable Automatic Door Locks Vehicles with an automatic lock/unlock feature enable you to program the vehicle’s power door locks. You can program this feature through the Driver Information Center (DIC). See DIC Vehicle Customization on page 3-65 for more information on DIC programming. Rear Door Security Locks Your vehicle has rear door security locks.
Page 114: Lockout Protection
Lockout Protection This feature protects you from locking the key in the vehicle when the key is in the ignition and a front door is open. If the driver’s side power door lock switch is pressed when the driver’s door is open and the key is in the ignition, all of the doors will lock and then the driver’s door will unlock.
Page 115 See Power Liftgate on page 2-14 for more information on how to use the power liftgate. To unlock the liftgate, use the power door lock switch or press the door unlock button on the Remote Keyless Entry (RKE) transmitter twice. See Remote Keyless Entry (RKE) System Operation on page 2-5.
Page 116: Power Liftgate
Power Liftgate Power Liftgate Operation CAUTION: Exhaust gases can enter the vehicle if it is driven with the liftgate, trunk/hatch open, or with any objects that pass through the seal between the body and the trunk/hatch or liftgate. Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled.
Page 117 The power liftgate can be power opened and closed in the following ways: • Press and hold the power liftgate button on the Remote Keyless Entry (RKE) transmitter until the liftgate starts moving. Remote Keyless Entry (RKE) System Operation on page 2-5 for more information.
Page 118: Power Assist Steps
Manual Operation of Power Liftgate To change the liftgate to manual operation, press the switch on the overhead console to the OFF position. With the power liftgate disabled and all of the doors unlocked, the liftgate can be manually opened and closed.
Page 119: Windows
Windows CAUTION: Leaving children, helpless adults, or pets in a vehicle with the windows closed is dangerous. They can be overcome by the extreme heat and suffer permanent injuries or even death from heat stroke. Never leave a child, a helpless adult, or a pet alone in a vehicle, especially with the windows closed in warm or hot weather.
Page 120: Power Windows
Power Windows CAUTION: Leaving children in a vehicle with the keys is dangerous for many reasons, children or others could be badly injured or even killed. They could operate the power windows or other controls or even make the vehicle move. The windows will function and they could be seriously injured or killed if caught in the path of a closing window.
Page 121 Express-Down/Up Windows Windows with the express feature allow the windows to be raised and lowered all the way without holding the switch. Press or pull the switch fully and release it to activate the express feature. The express mode can be canceled at any time by brieﬂy pressing or pulling the switch.
Page 122: Sun Visors
Programming the Power Windows If the battery on the vehicle has been recharged, disconnected, or is not working, you will need to reprogram each front power window for the express-up feature to work. Before reprogramming, replace or recharge the vehicle’s battery. To program each front window, follow these steps: 1.
Page 123: Theft-Deterrent Systems
Theft-Deterrent Systems Vehicle theft is big business, especially in some cities. This vehicle has theft-deterrent features, however, they do not make it impossible to steal. Content Theft-Deterrent Your vehicle has a content theft-deterrent alarm system. This is the security light. To arm the theft-deterrent system: 1.
Page 124: Pass-Key Iii+ Electronic Immobilizer
Testing the Alarm To test the alarm: 1. From inside the vehicle, lower the driver’s window and open the driver’s door. 2. Activate the system by locking the doors with the power door lock switch while the door is open, or with the RKE transmitter.
Page 125: Pass-Key Iii+ Electronic Immobilizer Operation
® PASS-Key III+ Electronic Immobilizer Operation ® Your vehicle has PASS-Key III+ (Personalized Automotive Security System) theft-deterrent system. ® PASS-Key III+ is a passive theft-deterrent system. The system is automatically armed when the key is removed from the ignition. The system is automatically disarmed when the key is turned to ON/RUN, ACC/ACCESSORY or START from the LOCK/OFF position.
Page 126: Starting And Operating Your Vehicle
See your dealer/retailer or a locksmith who can service ® PASS-Key III+ to get a new key blank that is cut exactly as the ignition key that operates the system. To program the new additional key: 1. Verify that the new key has a 2.
Page 127: Ignition Positions
Ignition Positions The ignition switch has four different positions. To shift out of P (Park), the ignition must be in ON/RUN or ACC/ACCESSORY and the regular brake pedal must be applied. A (LOCK/OFF): This position locks the ignition. It may also lock the steering wheel and automatic transmission.
Page 128: Starting Procedure
Retained Accessory Power (RAP) The following vehicle accessories can be used for up to 10 minutes after the engine is turned off: • Audio System • Power Windows • ® OnStar System (if equipped) • Sunroof (if equipped) These features work when the key is in ON/RUN or ACC/ACCESSORY.
Page 129: Adjustable Throttle And Brake Pedal
2. If the engine does not start after 5-10 seconds, especially in very cold weather (below 0°F or −18°C), it could be ﬂooded with too much gasoline. Try pushing the accelerator pedal all the way to the ﬂoor and holding it there as you hold the key in START for up to a maximum of 15 seconds.
Page 130: Engine Coolant Heater
Engine Coolant Heater The engine coolant heater can provide easier starting and better fuel economy during engine warm-up in cold weather conditions at or below 0°F (− 18°C). Vehicles with an engine heater should be plugged in at least four hours before starting. An internal thermostat in the plug-end of the cord may exist which will prevent engine coolant heater operation at temperatures above 0°F (−18°C).
Page 131: Automatic Transmission Operation
Automatic Transmission Operation If the vehicle is a Two-mode Hybrid, see the Two-mode Hybrid manual for more information. ® The vehicle has a Hydra-Matic 6L80 automatic transmission, and has an electronic shift position indicator within the instrument panel cluster. The electronic shift position indicator displays when the shift lever is moved out of P (Park).
Page 132 R (Reverse): Use this gear to back up. Notice: Shifting to R (Reverse) while the vehicle is moving forward could damage the transmission. The repairs would not be covered by the vehicle warranty. Shift to R (Reverse) only after the vehicle is stopped.
Page 133 M (Manual Mode): This position lets drivers select the range of gears appropriate for current driving conditions. See Driver Shift Control (DSC) later in this section. Notice: Spinning the tires or holding the vehicle in one place on a hill using only the accelerator pedal may damage the transmission.
Page 134: Driver Information Center (Dic)
Driver Shift Control (DSC) The vehicle has Driver Shift Control (DSC). DSC controls the vehicle’s transmission and vehicle speed while driving down hill or towing a trailer by allowing you to select a desired range of gears. 2-32 To use this feature, do the following: 1.
Page 135: Tow/Haul Mode
Tow/Haul Mode The vehicle has a tow/haul mode. The tow/haul mode adjusts the transmission shift pattern to reduce shift cycling, providing increased performance, vehicle control, and transmission cooling when towing or hauling heavy loads. Press the button located on the end of the shift lever to turn the tow/haul on or off.
Page 136: Parking Brake
Cruise Grade Braking Cruise Grade Braking assists when driving on a downhill grade. It maintains vehicle speed by automatically implementing a shift schedule that uses the engine and the transmission to slow the vehicle. Cruise Grade Braking operates while Cruise Control is engaged in Tow/Haul mode to assist in maintaining vehicle speed under loaded vehicle conditions.
Page 137 If the ignition is on when the parking brake is released, the brake system warning light goes off. Notice: Driving with the parking brake on can overheat the brake system and cause premature wear or damage to brake system parts. Make sure that the parking brake is fully released and the brake warning light is off before driving.
Page 138: Shifting Into Park
Shifting Into Park CAUTION: It can be dangerous to get out of the vehicle if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set. The vehicle can roll. If you have left the engine running, the vehicle can move suddenly.
Page 139: Shifting Out Of Park
Torque Lock If you are parking on a hill and you do not shift the transmission into P (Park) properly, the weight of the vehicle can put too much force on the parking pawl in the transmission. It might be difficult to pull the shift lever out of P (Park).
Page 140: Parking Over Things That Burn
Parking Over Things That Burn CAUTION: Things that can burn could touch hot exhaust parts under the vehicle and ignite. Do not park over papers, leaves, dry grass, or other things that can burn. Engine Exhaust CAUTION: Engine exhaust contains Carbon Monoxide (CO) which cannot be seen or smelled.
Page 141: Running The Vehicle While Parked
Running the Vehicle While Parked It is better not to park with the engine running. But if you ever have to, here are some things to know. CAUTION: Idling a vehicle in an enclosed area with poor ventilation is dangerous. Engine exhaust may enter the vehicle.
Page 142: Mirrors
Mirrors Manual Rearview Mirror Hold the inside rearview mirror in the center to move it for a clearer view behind your vehicle. Adjust the mirror to avoid glare from the headlamps behind you. Push the tab forward for daytime use and pull it for nighttime use. Automatic Dimming Rearview Mirror This vehicle may have an automatic dimming inside ®...
Page 143: Park Tilt Mirrors
Resetting the Power Foldaway Mirrors Reset the power foldaway mirrors if: • The mirrors are accidentally obstructed while folding. • They are accidentally manually folded/unfolded. • The mirrors will not stay in the unfolded position. • The mirrors vibrate at normal driving speeds. Fold and unfold the mirrors one time using the mirror controls to reset them to their normal position.
Page 144: Outside Heated Mirrors
Outside Heated Mirrors < (Rear Window Defogger): Press to heat the mirrors. See “Rear Window Defogger” under Dual Automatic Climate Control System on page 3-27 for more information. Object Detection Systems Ultrasonic Rear Parking Assist (URPA) For vehicles with the Ultrasonic Rear Parking Assist (URPA) system, it operates at speeds less than 5 mph (8 km/h), and assists the driver with parking and avoiding objects while in R (Reverse).
Page 145: How The System Works
The display is located near the passenger side rear window and can be seen by looking over your right shoulder. URPA uses three color-coded lights to provide distance and system information. How the System Works URPA comes on automatically when the shift lever is moved into R (Reverse).
Page 146: Side Blind Zone Alert (Sbza)
When the System Does Not Seem to Work Properly If the URPA system will not activate due to a temporary condition, the message PARK ASSIST OFF will be displayed on the DIC and a red light will be shown on the rear URPA display when the shift lever is moved into R (Reverse).
Page 147 The manufacturer is not responsible for any radio or TV interference caused by unauthorized modiﬁcations to this equipment. Such modiﬁcations could void the user’s authority to operate the equipment. CAUTION: SBZA is only a lane changing aid and does not replace driver vision.
Page 148 How the System Works Left Side Mirror Display When the vehicle is started, both outside mirror displays will brieﬂy come on to indicate that the system is operating. When the vehicle is moving forward, the left or right side mirror SBZA display will light up if a vehicle is detected in that blind zone.
Page 149 SBZA does not operate when the left or right corners of the rear bumper are covered with mud, dirt, snow, ice, slush, or in heavy rainstorms. For cleaning instructions, see Washing Your Vehicle on page 6-100. If the DIC still displays the SIDE BLIND ZONE SYSTEM UNAVAILABLE message after cleaning the bumper, see your dealer/retailer.
Page 150: Rear Vision Camera (Rvc)
Rear Vision Camera (RVC) This vehicle may have a Rear Vision Camera system. Read this entire section before using it. The rear vision camera system is designed to help the driver when backing up by displaying a view of the area behind the vehicle.
Page 151: Adjusting The Brightness And Contrast Of The Screen
Adjusting the Brightness and Contrast of the Screen To adjust the brightness and contrast of the screen, press the CONFIG hard key while the rear vision camera image is on the display. Any adjustments made will only affect the rear vision camera screen. (Brightness): Touch the + (plus) or –...
Page 152 Rear Vision Camera System Unavailable: Displays when the system is not receiving information it requires from other vehicle systems. If any other problem occurs or if a problem persists, see your dealer/retailer. CAUTION: The Rear Vision Camera (RVC) system does not replace driver vision.
Page 153 When the System Does Not Seem To Work Properly The rear vision camera system might not work properly or display a clear image if: • The RVC is turned off. See “Turning the Rear Camera System On or Off” earlier in this section. •...
Page 154: Onstar System
® OnStar System OnStar uses several innovative technologies and live advisors to provide a wide range of safety, security, information, and convenience services. If the airbags deploy, the system is designed to make an automatic call to OnStar Emergency advisors who can request emergency services be sent to your location.
Page 155 OnStar Services Available with the Safe & Sound Plan • Automatic Notiﬁcation of Airbag Deployment • Advanced Automatic Crash Notiﬁcation (AACN) (If equipped) • Link to Emergency Services • Roadside Assistance • Stolen Vehicle Location Assistance • Remote Door Unlock/Vehicle Alert •...
Page 156: Onstar Virtual Advisor
OnStar Virtual Advisor OnStar Virtual Advisor is a feature of OnStar Hands-Free Calling that uses minutes to access location-based weather, local traffic reports, and stock quotes. Press the phone button and give a few simple voice commands to browse through the various topics. See the OnStar Owner’s Guide for more information.
Page 157: Universal Home Remote System
Your Responsibility Increase the volume of the radio if the OnStar advisor cannot be heard. If the light next to the OnStar buttons is red, the system may not be functioning properly. Press the OnStar button and request a vehicle diagnostic. If the light appears clear (no light is appearing), your OnStar subscription has expired and all services have been deactivated.
Page 158 This system provides a way to replace up to three remote control transmitters used to activate devices such as garage door openers, security systems, and home automation devices. Do not use this system with any garage door opener that does not have the stop and reverse feature. This includes any garage door opener model manufactured before April 1, 1982.
Page 159 2. Locate in the garage, the garage door opener receiver (motor-head unit). Locate the “Learn” or “Smart” button. It can usually be found where the hanging antenna wire is attached to the motor-head unit and may be a colored button. Press this button. After pressing this button, complete the following steps in less than 30 seconds.
Page 160 To program up to three devices: 1. To verify that the garage door opener is a Fixed Code unit, remove the battery cover on the hand held transmitter supplied by the manufacturer of the garage door opener motor. If there are a row of dip switches similar to the graphic above, the garage door opener is a Fixed Code unit.
Page 161 Example of Eight Dip Switches with Three Positions The panel of switches might not appear exactly as they do in the examples above, but they should be similar. The switch positions on the hand-held transmitter could be labeled, as follows: •...
Page 162 4. The indicator lights will blink slowly. Enter each switch setting from Step 2 into your vehicle’s Universal Home Remote. You will have two and one-half minutes to complete Step 4. Now press one button on the Universal Home Remote for each switch setting as follows: •...
Page 163: Reprogramming Universal Home Remote Buttons
Using Universal Home Remote Press and hold the appropriate button for at least half of a second. The indicator light will come on while the signal is being transmitted. Reprogramming Universal Home Remote Buttons Any of the three buttons can be reprogrammed by repeating the instructions.
Page 164: Storage Areas
Storage Areas Glove Box Pull the bottom of the glove box handle upward to open it. Use the key to lock and unlock the glove box. Cupholders Cupholders are located in the center console for the front passengers. Press down on the access door release to open and use the front cupholders.
Page 165: Center Console Storage
Rear Passenger Cupholders Pull down on the lid to access the cupholders in the rear ﬂoor console. Vehicles with the rear seat armrest may also contain cupholders. Pull down the armrest to use the cupholders. Center Console Storage A console compartment is located between the bucket seats.
Page 166: Luggage Carrier
Luggage Carrier For vehicles with a luggage carrier, items can be loaded on top of the vehicle. The luggage carrier has siderails attached to the roof and crossrails, if equipped, which can be moved back and forth to help secure cargo. To adjust them, turn the knob located at each end of the crossrail counterclockwise until the crossrail can move freely.
Page 167: Rear Storage Area
Rear Storage Area For vehicles with a rear storage area, it is located in the rear cargo area of the vehicle on the driver’s side trim panel. Turn the knobs and swing the storage door to access the storage compartment. The door can be removed. Rear Seat Armrest For vehicle with an armrest/storage compartment located by the second row seat, pull the loop at the top of the...
Page 168 Express-Open/Express-Close: To express-open the sunroof, fully press and release the rear of the driver’s side switch. The sunroof will open automatically. To stop the sunroof partway, press the switch a second time. To express-close the sunroof, fully press and release the front of the driver’s side switch.
Page 169: Instrument Panel Overview
Section 3 Instrument Panel Overview ...3-4 Hazard Warning Flashers ...3-6 Horn ...3-6 Tilt Wheel ...3-6 Heated Steering Wheel ...3-6 Turn Signal/Multifunction Lever ...3-7 Turn and Lane-Change Signals ...3-8 Headlamp High/Low-Beam Changer ...3-8 Flash-to-Pass ...3-9 Windshield Wipers ...3-9 Rainsense™ II Wipers ...3-10 Windshield Washer ...3-11 Rear Window Wiper/Washer ...3-12 Cruise Control ...3-13...
Page 170: Audio System(S)
Section 3 Security Light ...3-45 Fog Lamp Light ...3-45 Lights On Reminder ...3-45 Cruise Control Light ...3-46 Highbeam On Light ...3-46 Tow/Haul Mode Light ...3-46 Fuel Gage ...3-46 Driver Information Center (DIC) ...3-47 DIC Operation and Displays ...3-48 DIC Compass ...3-53 DIC Warnings and Messages ...3-56 DIC Vehicle Customization ...3-65 Instrument Panel...
Page 171 ✍ NOTES...
Page 172: Instrument Panel Overview
Instrument Panel Overview United States version shown; Canada similar.
Page 173 The main components of the instrument panel are the following: A. Outlet Adjustment on page 3-31. B. Turn Signal/Multifunction Lever on page 3-7. C. Instrument Panel Cluster on page 3-34. D. Hazard Warning Flashers on page 3-6. E. Shift Lever and Range Selection Mode. See Automatic Transmission Operation on page 2-29.
Page 174: Hazard Warning Flashers
Hazard Warning Flashers (Hazard Warning Flasher): Press this button located on top of the steering column, to make the front and rear turn signal lamps ﬂash on and off. This warns others that you are having trouble. Press again to turn the ﬂashers off.
Page 175: Turn Signal/Multifunction Lever
Turn Signal/Multifunction Lever The lever on the left side of the steering column includes the following: : Turn and Lane Change Signals : Headlamp High/Low-Beam Changer : Windshield Wipers : Windshield Washer : Rear Wiper Delay : Rear Wiper : Rear Wiper Wash Flash-to-Pass Feature.
Page 176: Turn And Lane-Change Signals
Turn and Lane-Change Signals An arrow on the instrument panel cluster ﬂashes in the direction of the turn or lane change. Move the lever all the way up or down to signal a turn. Raise or lower the lever for less than one second until the arrow starts to ﬂash to signal a lane change.
Page 177: Flash-To-Pass
Flash-to-Pass This feature lets you use the high-beam headlamps to signal a driver in front of you that you want to pass. It works even if the headlamps are in the automatic position. To use it, pull the turn signal lever toward you, then release it.
Page 178: Rainsense™ Ii Wipers
Rainsense™ II Wipers The vehicle has Rainsense™ II windshield wipers. These wipers automatically turn on when a sensor, mounted next to the inside rearview mirror, detects moisture on the windshield. When active, these wipers are able to detect moisture on the windshield and automatically turn on the wipers.
Page 179: Windshield Washer
Windshield Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. (Washer Fluid): There is a paddle marked with the windshield washer symbol at the top of the multifunction lever.
Page 180: Rear Window Wiper/Washer
Rear Window Wiper/Washer CAUTION: In freezing weather, do not use your washer until the windshield is warmed. Otherwise the washer ﬂuid can form ice on the windshield, blocking your vision. The rear wiper control is located on the turn signal/multifunction lever. To turn the rear wiper on, slide the lever to a wiper position.
Page 181: Cruise Control
Cruise Control CAUTION: Cruise control can be dangerous where you cannot drive safely at a steady speed. So, do not use the cruise control on winding roads or in heavy traffic. Cruise control can be dangerous on slippery roads. On such roads, fast changes in tire traction can cause excessive wheel slip, and you could lose control.
Page 182: Setting Cruise Control
Cruise Control shown with Heated Steering Wheel Button (If Equipped) The cruise control buttons are located on left side of the steering wheel. (On/Off): Turns the system on or off. The indicator light is on when cruise control is on and turns off when cruise control is off.
Page 183 Resuming a Set Speed If the cruise control is set at a desired speed and then the brakes are applied, this shuts off the cruise control. But it does not need to be reset. Once the vehicle speed reaches about 25 mph (40 km/h) or more, press the +RES button on the steering wheel.
Page 184: Exterior Lamps
Using Cruise Control on Hills How well the cruise control will work on hills depends upon the vehicle speed, load, and the steepness of the hills. When going up steep hills, you might have to step on the accelerator pedal to maintain the vehicle’s speed.
Page 185 The exterior lamps control has four positions: (Off): Turns off the automatic headlamps and daytime running lamps (DRL). Turning the headlamp control to the off position again will turn the automatic headlamps or DRL back on. For vehicles ﬁrst sold in Canada, the off position only works when the vehicle is shifted into the P (Park) position.
Page 186 ® IntelliBeam Intelligent High-Beam Headlamp Control System For vehicles with this feature, be sure to read this entire section before using it. ® IntelliBeam is an enhancement to the vehicle’s headlamp system. Using a digital light sensor on the rearview mirror, this system will turn the vehicle’s high-beam headlamps on and off according to surrounding traffic conditions.
Page 187 • The exterior lamp control is turned to any setting except AUTO. When this occurs, IntelliBeam the control is turned back to the AUTO position. • ® The IntelliBeam system is turned off at the inside rearview mirror. ® IntelliBeam may not turn off the high-beams if the system cannot detect other vehicle’s lamps because of any of the following:...
Page 188: Light Sensor
Disabling and Resetting IntelliBeam the Rearview Mirror ® IntelliBeam can be disabled by using the controls on the inside rearview mirror. AUTO (On/Off): To disable the system, press this button on the inside rearview mirror. The IntelliBeam indicator will turn off and will not come back on until the ®...
Page 189: Headlamps On Reminder
Headlamps on Reminder If a door is open, a reminder chime will sound when the headlamps or parking lamps are manually turned on and the key is out of the ignition. To turn off the chime, turn the headlamp switch to off or AUTO and then back on, or close and re-open the door.
Page 190: Fog Lamps
There is a delay in the transition between the daytime and nighttime operation of the Daytime Running Lamps (DRL) and the automatic headlamp systems so that driving under bridges or bright overhead street lights does not affect the system. The DRL and automatic headlamp system is only affected when the light sensor detects a change in lighting lasting longer than the delay.
Page 191: Instrument Panel Brightness
Instrument Panel Brightness (Instrument Panel Brightness): This feature controls the brightness of the instrument panel lights and is located next to the exterior lamp control. Push the knob to extend out and then it can be turned. Turn the knob clockwise or counterclockwise to brighten or dim the instrument panel lights.
Page 192: Reading Lamps
Reading Lamps If the vehicle has reading lamps, press the button located next to the lamp to turn it on or off. The vehicle may also have reading lamps in other locations. The lamps cannot be adjusted. Electric Power Management The vehicle has Electric Power Management (EPM) that estimates the battery’s temperature and state of charge.
Page 193: Battery Run-Down Protection
Battery Run-Down Protection This feature shuts off the dome lamps if they are left on for more than 10 minutes when the ignition is in LOCK/OFF. This helps to prevent the battery from running down. Accessory Power Outlet(s) The accessory power outlets let you plug in auxiliary electrical equipment, such as a cellular telephone.
Page 194: Ashtray(S) And Cigarette Lighter
Ashtray(s) and Cigarette Lighter The front ashtray and cigarette lighter are located in the center console near the cupholders, if the vehicle has them. Press on the access door to open it and use the ashtray and lighter. Notice: If papers, pins, or other ﬂammable items are put in the ashtray, hot cigarettes or other smoking materials could ignite them and possibly damage the vehicle.
Page 195: Climate Controls
Climate Controls Dual Automatic Climate Control System The heating, cooling, and ventilation in the vehicle can be controlled with this system. The vehicle also has a ﬂow-through ventilation system described later in this section. Climate Control with Cooled and Heated Seats shown A.
Page 196: Automatic Operation
Automatic Operation AUTO (Automatic): When automatic operation is active the system will control the inside temperature, the air delivery, and the fan speed. Use the steps below to place the entire system in automatic mode: 1. Press the AUTO button. When AUTO is selected, the display will change to show the current temperature(s) and AUTO come on the display.
Page 197: Manual Operation
Manual Operation y 9 z (Fan Control): Press the up or down arrows to increase or decrease the fan speed Pressing this button when the system is off will turn the system on. Pressing either arrow while using automatic operation will place the fan in manual operation.
Page 198 (Air Conditioning): Press to turn the air conditioning (A/C) compressor on and off. An indicator light comes on to show that the air conditioning is on. Pressing this button when the outside temperature is too cool for air conditioning will make the air conditioning indicator ﬂash three times and then turn off indicating the air conditioning mode is not available.
Page 199: Rear Window Defogger
Rear Window Defogger The rear window defogger uses a warming grid to remove fog from the rear window. < (Rear Window Defogger): Press to turn the rear window defogger on or off. It automatically turns off after it has been activated. The defogger can also be turned off by turning off the engine.
Page 200: Rear Air Conditioning And Heating System And Electronic Climate Controls
Rear Air Conditioning and Heating System and Electronic Climate Controls For vehicles with the rear heat and air conditioning controls, they are integrated with the rear seat audio controls located in the center console. The system can be controlled from the front controls as well as the rear controls.
Page 201: Warning Lights, Gages, And Indicators
Automatic Operation, If Equipped. AUTO: Press the air delivery mode button until this setting is selected to control the inside temperature, air delivery, and fan speed. AUTO appears in the display when automatic operation is active. +/− (Increase/Decrease Temperature): Press the + or −...
Page 202: Instrument Panel Cluster
Instrument Panel Cluster The instrument panel cluster is designed to let show how the vehicle is running. It shows how fast the vehicle is going, about how much fuel the vehicle has and many other things needed to drive safely and economically. United States version shown, Canada similar.
Page 203: Speedometer And Odometer
Speedometer and Odometer The speedometer shows the vehicle’s speed in both miles per hour (mph) and kilometers per hour (km/h). The vehicle’s odometer works together with the Driver Information Center (DIC). The Trip odometer can be set. See “Trip Odometer” under DIC Operation and Displays on page 3-48 for more information.
Page 204: Airbag Readiness Light
Passenger Safety Belt Reminder Light Several seconds after the engine is started, a chime sounds for several seconds to remind the front passenger to buckle their safety belt. This only occurs if the passenger airbag is enabled. See Passenger Sensing System on page 1-87 for more information.
Page 205: Passenger Airbag Status Indicator
CAUTION: If the airbag readiness light stays on after the vehicle is started or comes on while driving, it means the airbag system might not be working properly. The airbags in the vehicle might not inﬂate in a crash, or they could even inﬂate without a crash.
Page 206: Charging System Light
If the word ON or the on symbol is lit on the passenger airbag status indicator, it means that the right front passenger frontal airbag is enabled (may inﬂate). If the word OFF or the off symbol is lit on the airbag status indicator, it means that the passenger sensing system has turned off the right front passenger frontal airbag.
Page 207: Brake System Warning Light
Brake System Warning Light With the ignition on, the brake system warning light comes on when the parking brake is set. If the vehicle is driven with the parking brake engaged, a chime sounds when the vehicle speed is greater than 3 mph (5 km/h).
Page 208: Antilock Brake System (Abs) Warning Light
Antilock Brake System (ABS) Warning Light For vehicles with the Antilock Brake System (ABS), this light comes on brieﬂy when the engine is started. If it does not, have the vehicle serviced by your dealer/retailer. If the system is working normally the indicator light then goes off.
Page 209: Engine Coolant Temperature Gage
Engine Coolant Temperature Gage This gage shows the engine coolant temperature. If the indicator on the gage moves towards the shaded area on the thermostat, it means that the engine coolant has overheated. If the vehicle has been operating under normal driving conditions, pull off the road, stop the vehicle and turn off the engine as soon as possible.
Page 210: Malfunction Indicator Lamp
When the Light Flashes First and Then is On Steady This indicates that there could be a problem with the Tire Pressure Monitor System. The light ﬂashes for about a minute and stays on steady for the remainder of the ignition cycle.
Page 211 This light comes on during a malfunction in one of two ways: Light Flashing: A misﬁre condition has been detected. A misﬁre increases vehicle emissions and could damage the emission control system on the vehicle. Diagnosis and service might be required. To prevent more serious damage to the vehicle: •...
Page 212: Maintenance Schedule
Emissions Inspection and Maintenance Programs Some state/provincial and local governments have or might begin programs to inspect the emission control equipment on the vehicle. Failure to pass this inspection could prevent getting a vehicle registration. Here are some things to know to help the vehicle pass an inspection: •...
Page 213: Security Light
This light comes on brieﬂy while starting the engine. If it does not, have the vehicle serviced by your dealer/retailer. If the system is working normally the indicator light then goes off. If the light comes on and stays on, it means that oil is not ﬂowing through the engine properly.
Page 214: Cruise Control Light
Cruise Control Light The cruise control light comes on whenever the cruise control is set. The light goes out when the cruise control is turned off. See Cruise Control on page 3-13 for more information. Highbeam On Light This light comes on when the high-beam headlamps are in use.
Page 215: Driver Information Center (Dic)
The gage will ﬁrst indicate empty before the vehicle is out of fuel, but the vehicle’s fuel tank should be ﬁlled soon. Here are some situations owners may experience with the fuel gage. None of these indicate a problem with the fuel gage. •...
Page 216: Dic Operation And Displays
DIC Operation and Displays The DIC has different displays which can be accessed by pressing the DIC buttons located on the instrument panel, next to the steering wheel. The DIC displays trip, fuel, and vehicle system information, and warning messages if a system problem is detected.
Page 217 Trip/Fuel Menu Items (Trip/Fuel): Press this button to scroll through the following menu items: Odometer Press the trip/fuel button until ODOMETER displays. This display shows the distance the vehicle has been driven in either miles (mi) or kilometers (km). To switch between English and metric measurements, see “Units”...
Page 218 Average Economy Press the trip/fuel button until AVERAGE ECONOMY displays. This display shows the approximate average miles per gallon (mpg) or liters per 100 kilometers (L/100 km). This number is calculated based on the number of mpg (L/100 km) recorded since the last time this menu item was reset.
Page 219: Side Blind Zone Alert
Vehicle Information Menu Items (Vehicle Information): Press this button to scroll through the following menu items: Oil Life Press the vehicle information button until OIL LIFE REMAINING displays. This display shows an estimate of the oil’s remaining useful life. If you see 99% OIL LIFE REMAINING on the display, that means 99% of the current oil life remains.
Page 220: Tire Pressure
Tire Pressure On vehicles with the Tire Pressure Monitor System (TPMS), the pressure for each tire can be viewed in the DIC. The tire pressure will be shown in either pounds per square inch (psi) or kilopascals (kPa). Press the vehicle information button until the DIC displays FRONT TIRES PSI (kPa) LEFT ## RIGHT ##.
Page 221: Dic Compass
Relearn Remote Key This display allows you to match Remote Keyless Entry (RKE) transmitters to your vehicle. To match an RKE transmitter to your vehicle: 1. Press the vehicle information button until PRESS TO RELEARN REMOTE KEY displays. 2. Press the set/reset button until REMOTE KEY LEARNING ACTIVE is displayed.
Page 222 Compass Zone The zone is set to zone eight upon leaving the factory. Your dealer/retailer will set the correct zone for your location. Under certain circumstances, such as during a long distance cross-country trip or moving to a new state or province, it will be necessary to compensate for compass variance by resetting the zone through the DIC if the zone is not set correctly.
Page 223: Compass Calibration
Compass Calibration The compass can be manually calibrated. Only calibrate the compass in a magnetically clean and safe location, such as an open parking lot, where driving the vehicle in circles is not a danger. It is suggested to calibrate away from tall buildings, utility wires, manhole covers, or other industrial structures, if possible.
Page 224: Dic Warnings And Messages
DIC Warnings and Messages Messages are displayed on the DIC to notify the driver that the status of the vehicle has changed and that some action may be needed by the driver to correct the condition. Multiple messages may appear one after another.
Page 225: Engine Overheated Stop Engine
ENGINE HOT A/C (Air Conditioning) TURNED OFF This message displays when the engine coolant becomes hotter than the normal operating temperature. See Engine Coolant Temperature Gage on page 3-41. To avoid added strain on a hot engine, the air conditioning compressor automatically turns off. When the coolant temperature returns to normal, the air conditioning compressor turns back on.
Page 226: Fuel Level Low
ENGINE POWER IS REDUCED This message displays and a chime sounds when the cooling system temperature gets too hot and the engine further enters the engine coolant protection mode. See Engine Overheating on page 6-30 for further information. This message also displays when the vehicle’s engine power is reduced.
Page 227: Oil Pressure Low Stop Engine
OIL PRESSURE LOW STOP ENGINE Notice: If you drive your vehicle while the engine oil pressure is low, severe engine damage may occur. If a low oil pressure warning appears on the Driver Information Center (DIC), stop the vehicle as soon as possible. Do not drive the vehicle until the cause of the low oil pressure is corrected.
Page 228: Service Brake System
REPLACE BATTERY IN REMOTE KEY This message displays if a Remote Keyless Entry (RKE) transmitter battery is low. The battery needs to be replaced in the transmitter. See “Battery Replacement” under Remote Keyless Entry (RKE) System Operation on page 2-5. RIGHT REAR DOOR OPEN This message displays and a chime sounds if the passenger side rear door is not fully closed and the...
Page 229: Service Suspension System
SERVICE BRAKES SOON This message displays if there is a problem with the brake system. If this message appears, stop as soon as possible and turn off the vehicle. Restart the vehicle and check for the message on the DIC display. If the message is still displayed or appears again when you begin driving, the brake system needs service.
Page 230: Service Tire Monitor System
SERVICE THEFT DETERRENT SYSTEM This message displays when there is a problem with the theft-deterrent system. The vehicle may or may not restart so you may want to take the vehicle to your dealer/retailer before turning off the engine. ® See PASS-Key III+ Electronic Immobilizer Operation on page 2-23 for more information.
Page 231: Stabilitrak Off
STABILITRAK OFF If your vehicle has StabiliTrak, this message displays when you turn off StabiliTrak, or when the stability control has been automatically disabled. To limit wheel spin and realize the full beneﬁts of the stability enhancement system, you should normally leave StabiliTrak on. However, you should turn StabiliTrak off if your vehicle gets stuck in sand, mud, ice, or snow and you want to rock your vehicle to attempt to free it, or if you are driving...
Page 232: Turn Signal On
TIRE LEARNING ACTIVE On vehicles with the Tire Pressure Monitor System (TPMS), this message displays when the TPMS is re-learning the tire positions on your vehicle. The tire positions must be re-learned after rotating the tires or after replacing a tire or sensor. See Tire Inspection and Rotation on page 6-69, Tire Pressure Monitor System on page 6-64, and Inﬂation - Tire Pressure on page 6-62 for more...
Page 233: Dic Vehicle Customization
DIC Vehicle Customization Your vehicle may have customization capabilities that allow you to program certain features to one preferred setting. Customization features can only be programmed to one setting on the vehicle and cannot be programmed to a preferred setting for two different drivers. All of the customization options may not be available on your vehicle.
Page 234: Display Language
DISPLAY LANGUAGE This feature allows you to select the language in which the DIC messages will appear. Press the customization button until the DISPLAY LANGUAGE screen appears on the DIC display. Press the set/reset button once to access the settings for this feature.
Page 235: Remote Door Lock
AUTO DOOR UNLOCK This feature allows you to select whether or not to turn off the automatic door unlocking feature. It also allows you to select which doors and when the doors will automatically unlock. See Programmable Automatic Door Locks on page 2-11 for more information. Press the customization button until AUTO DOOR UNLOCK appears on the DIC display.
Page 236: Remote Door Unlock
To select a setting, press the set/reset button while the desired setting is displayed on the DIC. REMOTE DOOR UNLOCK This feature allows you to select the type of feedback you will receive when unlocking the vehicle with the Remote Keyless Entry (RKE) transmitter. You will not receive feedback when unlocking the vehicle with the RKE transmitter if the doors are open.
Page 237: Approach Lighting
EXIT LIGHTING This feature allows you to select the amount of time you want the exterior lamps to remain on when it is dark enough outside. This happens after the key is turned from ON/RUN to LOCK/OFF. Press the customization button until EXIT LIGHTING appears on the DIC display.
Page 238 AUTO HIGH BEAMS If your vehicle has this feature, it allows you to select ® to have the Intellibeam system turned off or on. See Exterior Lamps on page 3-16 for more information. Press the customization button until AUTO HIGH BEAMS appears on the DIC display.
Page 239 PARK TILT MIRRORS This feature allows you to select whether or not the outside mirror(s) will automatically tilt down when the vehicle is shifted into R (Reverse). See Outside Power Foldaway Mirrors on page 2-40 for more information. Press the customization button until PARK TILT MIRRORS appears on the DIC display.
Page 240 To select a setting, press the set/reset button while the desired setting is displayed on the DIC. EASY EXIT SETUP If your vehicle has this feature, it allows you to select which areas will recall with the automatic easy exit seat feature.
Page 241: Remote Start
REMOTE START If your vehicle has this feature, it allows you to turn the remote start off or on. The remote start feature allows you to start the engine from outside of the vehicle using the Remote Keyless Entry (RKE) transmitter. See Remote Vehicle Start on page 2-8 for more information.
Page 242: Factory Settings
FACTORY SETTINGS This feature allows you to set all of the customization features back to their factory default settings. Press the customization button until FACTORY SETTINGS appears on the DIC display. Press the set/reset button once to access the settings for this feature.
Page 243: Audio System(S)
Audio System(s) Determine which radio the vehicle has and read the following pages to become familiar with its features. CAUTION: Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others. Do not give extended attention to entertainment tasks while driving.
Page 244: Bluetooth Controls
Voice Recognition The Bluetooth system uses voice recognition to interpret voice commands to dial phone numbers and name tags. Noise: Keep interior noise levels to a minimum. The system may not recognize voice commands if there is too much background noise. When to Speak: A short tone sounds after the system responds indicating when it is waiting for a voice command.
Page 245: Pairing A Phone
Pairing Information: • Up to ﬁve cell phones can be paired to the in-vehicle Bluetooth system. • The pairing process is disabled when the vehicle is moving. • The in-vehicle Bluetooth system automatically links with the ﬁrst available paired cell phone in the order the phone was paired.
Page 246: Storing Name Tags
Deleting a Paired Phone 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Bluetooth”. The system responds with “Bluetooth ready” followed by a tone. 3. Say “Delete”. The system asks which phone to delete followed by a tone.
Page 247 Using the Store Command The store command allows a phone number to be stored without entering the digits individually. 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Store”. The system responds with “Store, number please”...
Page 248: Deleting Name Tags
3. Say the ﬁrst digit to be stored. The system will repeat back the digit it heard followed by a tone. Continue entering digits until the number to be stored is complete. • If an unwanted number is recognized by the system, say “Clear”...
Page 249: Making A Call
Using the Delete Command The delete command allows speciﬁc name tags to be deleted. To use the delete command: 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Delete”. The system responds with “Delete, please say the name tag”...
Page 250: Using The Dial Command
Using the Dial Command 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Dial”. The system responds with “Dial using <phone name>”. “Number please” followed by a tone. 3. Say the entire number without pausing. •...
Page 251: Receiving A Call
Using the Call Command 1. Press and hold for two seconds. The system responds with “Ready” followed by a tone. 2. Say “Call”. The system responds with “Call using <phone name>. Please say the name tag” followed by a tone. 3.
Page 252: Call Waiting
Call Waiting Call waiting must be supported on the Bluetooth phone and enabled by the wireless service carrier to work. • Press to answer an incoming call when another call is active. The original call is placed on hold. • Press again to return to the original call.
Page 253: Transferring A Call
Transferring a Call Audio can be transferred between the in-vehicle Bluetooth system and the cell phone. To Transfer Audio to the Cell Phone During a call with the audio in the vehicle: 1. Press . The system responds with “Ready” followed by a tone.
Page 254 Sending a Number During a Call 1. Press . The system responds with “Ready” followed by a tone. 2. Say “Dial”. The system responds with “Say a number to send tones” followed by a tone. 3. Say the number to send. •...
Page 255: Other Information
Clearing the System Unless information is deleted out of the in-vehicle Bluetooth system, it will be retained indeﬁnitely. This includes all saved name tags in the phonebook and phone pairing information. For information on how to delete this information, see the above sections on Deleting a Paired Phone and Deleting Name Tags.
Page 256: Before Driving
Driver Control of the Audio System The driver has basic control of the whole audio system. Press and hold for more than two seconds to turn off the radio, RSE, and the RSA (rear seat audio). See Navigation Audio System on page 4-62 for more information.
Page 257 Push the power button to turn on the headphones. An indicator light located on the headphones comes on. If the light comes on but, there is intermittent sound and/or static on the headphones, or if the indicator light does not come on, the batteries might need to be replaced.
Page 258 Audio/Video (A/V) Jacks The A/V jacks are located on the rear of the ﬂoor console. The A/V jacks allow audio or video signals to be connected from an auxiliary device such as a camcorder or a video game unit to the RSE system. Adapter connectors or cables (not included) may be required to connect the auxiliary device to the A/V jacks.
Page 259: Audio Output
Audio Output Audio from the DVD player or auxiliary inputs can be heard through the following possible sources: • Wireless Headphones • Vehicle Speakers • Vehicle wired headphone jacks on the rear seat audio system, if the vehicle has this feature. The RSE system always transmits the audio signal to the wireless headphones, if there is audio available.
Page 260: Remote Control
Remote Control To use the remote control, aim it at the transmitter window at the rear of the overhead console and press the desired button. Direct sunlight or very bright light can affect the ability of the RSE transmitter to receive signals from the remote control.
Page 261 (Main Menu): Press to access the DVD menu. The DVD menu is different on every DVD. Use the navigation arrows to move the cursor around the DVD menu. After making a selection press the enter button. This button only operates when using a DVD. (Menu Navigation Arrows): Use the arrow buttons to navigate through a menu.
Page 262 (Fast Reverse): Press to fast reverse the DVD or CD. To stop fast reversing a DVD video, press the play/pause button. To stop fast reversing a DVD audio or CD, release the fast reverse button. This button might not work when the DVD is playing the copyright information or the previews.
Page 263 (Clear): Press within three seconds after entering a numeric selection, to clear all numeric inputs. 10 (Double Digit Entries): Press to select chapter or track numbers greater than 9. Press this button before entering the number. Battery Replacement To change the remote control batteries: 1.
Page 264: Dvd Display Error Messages
Problem Recommended Action The auxiliary source is Check that the RSE video running but there is no screen is in the auxiliary picture or sound. source mode. Check the auxiliary input connections at both devices. Sometimes the wireless Check for obstructions, headphone audio cuts low batteries, reception out or buzzes.
Page 265: Cleaning The Video Screen
Cleaning the RSE Overhead Console When cleaning the RSE overhead console surface, use only a clean cloth dampened with clean water. Cleaning the Video Screen When cleaning the video screen, use only a clean cloth dampened with clean water. Use care when directly touching or cleaning the screen, as damage can result.
Page 266 Using the RSE System DVD Player: The loading slot for the DVD player is located at the top of the head restraint. Insert the disc partially into the loading slot with the printed side facing the rear of the vehicle. The DVD player automatically draws the disc in, “Loading”...
Page 267 POWER : Press to turn the power on or off. Each video screen can be powered on or off independently. EJECT : Press to eject a disc from the DVD slot. If a disc is ejected from the player, but not removed, it will automatically reload into the player.
Page 268 Headphone Jack: Wired headphones can be plugged into the headphone jack with one-eighth inch stereo plugs. AV INPUT: (Audio/Video Input Jack): The audio/video input jack is located below the video display screen and allows viewing of auxiliary sources such as portable DVD players, game stations, or video cameras, on each screen.
Page 269: Wireless Headphones
Wireless Headphones The two wireless headphones included with the Headrest DVD RSE system will only work with the Headrest DVD RSE system and are marked for channel 3 and 4. The wireless headphones must be used within a line of sight of the transmitter that is located above the video display screen.
Page 270: Remote Control Buttons
Remote Control Buttons POWER: Press to turn the Headrest DVD RSE system on and off. SOURCE: Press to select between Monitor 3, Monitor 4, or AV INPUT. Any video equipment connected to the AV inputs automatically overrides the source selection. 3-102 SETUP: Press to change the default settings, see “Using the RSE On-Screen Display (OSD) Menus”...
Page 271 SOUND AROUND ON/OFF: Press to turn the FM Transmitter power on or off. > MUTE (For DVD Only): Press to turn off the headphone sound. Press again to turn the sound on again. PIX (Picture Selection): Press to adjust the picture’s On Screen Display (OSD).
Page 272 TITLE: Press to enter the disc title mode. The title feature is disc-speciﬁc, and may not be available on all discs. SUBTITLE: Press to change the subtitle language to another available language or to turn subtitles off. ANGLE: Press to select a different viewing angle for discs that are recorded with different camera angles.
Page 273 PREV (Previous): Press to play the previous chapter or track. To return to previous chapters or tracks one at a time, press and release multiple times until the desired chapter or track is reached. NEXT : Press to play the next chapter or track. To go to the next chapter or track one at a time, press and release multiple times until the desired chapter or track is reached.
Page 274 To set the language for the OSD: 1. Press the SETUP button on the remote control. 2. Use the left/right navigation arrows to navigate the General Setup Page, then use the down navigation arrow to select the OSD language. 3. Press the right navigation arrow and then use the up/down navigation arrows to select English, French, or Spanish.
Page 275 To reset all options to factory defaults: 1. Press the SETUP button on the remote control. 2. Use the left/right and down navigation arrows on the remote control to select the Default sub-menu under the Preference Page. 3. Press the right navigation arrow, then press ENTER to reset.
Page 276 Settings for Parental Control Use the SETUP MENU to access the parental control feature. It allows for control of the type of movie rating content (from G to Adult) that can be viewed and is only accessible when no disc is loaded. To setup the Parental Control: 1.
Page 277 To create a six digit password, use the numeric keypad on the remote control. Press the ENTER button to conﬁrm. The default password is 136900. To change the Parental Control Password: 1. Press the SETUP button on the remote control 2.
Page 278 Playing Audio CD When an audio CD is playing, the display shows the current track and the amount of time that track has been playing, the total amount of time on the disc, and the current time running on the disc. DISPLAY: Press to choose from the following display options: 1.
Page 279 1. Press STOP if a disc is playing. Press the up or down navigation arrows on the remote control to go through the folder list on the left side of the screen. 2. Press ENTER when the desired folder is highlighted.
Page 280 Tips and Troubleshooting Chart Problem Recommended Action IR Sensor Inoperative • • • • No picture • • 3-112 No Sound Check that the batteries are good in the remote control. Check that the remote Control IR Sensor is not Cleaning the Video Screens blocked.
Page 281: Rear Seat Audio (Rsa)
Cleaning the Components Use care when touching or cleaning the components such as the DVD player or the discs. Do not use DVD lens cleaners for DVD players because the lens of the DVD optics can become contaminated by lubricants. Handle CDs and DVDs carefully.
Page 282 (Power): Press the button to turn RSA on and off. Volume: Turn this knob to increase or to decrease the volume of the wired headphones. The left knob controls the left headphones and the right knob controls the right headphones. SRCE (Source): Press this button to switch between the radio (AM/FM), XM™...
Page 283: Audio Steering Wheel Controls
PROG (Program): Press this button to go to the next preset radio station or channel set on the main radio. This function is inactive, with some radios, if the front seat passengers are listening to the radio. When a CD or DVD audio disc is playing, press this button to go to the beginning of the CD or DVD audio.
Page 284: Radio Reception
(Mute/Push to Talk): Press to silence the vehicle speakers only. Press again to turn the sound on. ® For vehicles with OnStar or Bluetooth systems press and hold for longer than two seconds to interact with those systems. See OnStar ®...
Page 285: Xm™ Satellite Radio Antenna System
XM™ Satellite Radio Service XM Satellite Radio Service gives digital radio reception from coast-to-coast in the 48 contiguous United States, and in Canada. Just as with FM, tall buildings or hills can interfere with satellite radio signals, causing the sound to fade in and out.
Page 286 ✍ NOTES 3-118...
Page 287 Section 4 Overview ...4-2 Navigation System Overview ...4-2 Getting Started ...4-4 Cleaning the Display ...4-12 Features and Controls ...4-13 Using the Navigation System ...4-13 Maps ...4-15 Symbols ...4-19 Destination ...4-25 Conﬁgure Menu ...4-43 Global Positioning System (GPS) ...4-59 Navigation System Vehicle Positioning ...4-60 Problems with Route Guidance ...4-61 If the System Needs Service ...4-61...
Page 288: Overview
Overview Navigation System Overview Screen shown with Map Disc Inserted...
Page 289 A. Source (AM, FM, XM, CD, etc.) Touch Screen Button. See Navigation Audio System on page 4-62 for more information. B. Clock Touch Screen Button. See “Setting the Clock” under Conﬁgure Menu on page 4-43 for more information. C. POI (Point of Interest) Touch Screen Button. See “Displaying Points of Interest (POI) on the Map Screen”...
Page 290: Getting Started
T. Map DVD Slot. See “Installing the Map DVD” under Maps on page 4-15 for information on how to install and eject a map DVD. (DVD Map Disc Eject) Key. See Maps on page 4-15 for more information. V. Mark Touch Screen Button. See “Adding Destinations to the Address Book”...
Page 291 All functions are available when the vehicle is parked. Do the following before driving: • Become familiar with the navigation system operation, hard keys on the faceplate, and touch-sensitive screen buttons of the navigation system. • Set up the audio by presetting favorite stations, setting the tone, and adjusting the speakers.
Page 292 When the navigation system is turned on, a screen may appear with the information below, and you must read and acknowledge the information it contains. CAUTION: Taking your eyes off the road for extended periods could cause a crash resulting in injury or death to you or others.
Page 293: Deleting Personal Information
Language — English/Metric To change the language of the navigation screens, see Driver Information Center (DIC) on page 3-47 for more information. To change the navigation screens from English or metric, see DIC Operation and Displays on page 3-48 for more information. Deleting Personal Information This navigation system can record and store personal information such as names and addresses.
Page 294: Storing Radio Station Presets
Storing Radio Station Presets To set preset radio stations, do the following: 1. Press to turn the system on. 2. Press the AUDIO hard key and select the desired band (AM, FM, or XM (if equipped)). 3. Use the (tuning) knob or the SEEK arrows to tune to the desired station.
Page 295 Entering an Address and Point of Interest, and Storing Preset Destinations Entering an Address Enter a destination by inputting the city name ﬁrst: 1. If the radio is already on with a map disc inserted, skip to Step 5. 2. Press to turn the system on.
Page 296 11. Select the Go screen button. A map screen, with the destination marked appears. 12. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route. 13. Select the Start Guidance screen button. You are now ready to start your route. See “Address Entry ”...
Page 297: Storing Preset Destinations
Storing Preset Destinations 1. If the radio is already on with a map disc inserted, skip to Step 5. 2. Press to turn the system on. 3. Insert the DVD map disc. See “Installing the Map DVD” under Maps on page 4-15 for more information.
Page 298: Cleaning The Display
4. A caution may appear. Touch the OK screen button to proceed. 5. Press the DEST hard key. 6. Select one of the available preset destination screen buttons. A map screen, with the destination marked appears. 7. Select the route preference (Fastest, Shortest, or Other).
Page 299: Features And Controls
Features and Controls Using the Navigation System This section presents basic information needed to operate the navigation system. Use the hard keys located on the navigation system along with the available touch-sensitive screen buttons on the navigation screen to operate the system. See Navigation System Overview on page 4-2 for more information.
Page 300 (Phone): Press to access calling through OnStar ® See OnStar System on page 2-52 and Bluetooth on page 3-75 for more information. (Sound): Press to access the Sound screen to adjust bass, midrange, treble, and Digital Signal Processing (DSP). See “Sound Menu” under Navigation Audio System on page 4-62 for more information.
Page 301: Maps
Alpha-Numeric Keyboard Letters of the alphabet, symbols, punctuation, and numbers, when available, displays on the navigation screen as an alpha or numeric keyboard. The alpha keyboard displays when the system requires entry of a city or street name. All characters are touch-sensitive screen buttons. Touch a character to select it.
Page 302: Installing The Dvd Map Disc
Limited Guidance Areas Any area that is not classiﬁed as detailed, is a limited guidance area. Limited guidance streets are displayed on the map but route guidance may not be given on these streets. Some POI categories, such as the city center POI category, and some street addresses are included in the limited guidance areas.
Page 303: Handling The Dvd Map Disc
DVD Map Disc Messages If Disc Read Error appears on the display and/or the map disc comes out, it could be for one of the following reasons: • If the map disc was installed into the CD slot. See “Installing the DVD Map Disc” previously. •...
Page 304 Map Scales + / − (Zoom In/Zoom Out): Touch the zoom in or out screen buttons or the scale on the bar to change the level of map detail. The scale appears on the screen once the zoom in or zoom out screen buttons are selected.
Page 305: Symbols
Symbols The following symbols are the most common symbols that appear on a map screen. The vehicle is shown as this symbol. It indicates the current position and the direction the vehicle is traveling on the map. The destination symbol appears on the map, after a route has been planned, marking the...
Page 306 The distance and time to destination symbol indicates the distance and the estimated time remaining to the ﬁnal destination, depending on the option selected. The straight line to distance symbol indicates the straight-line distance to the destination. This symbol appears before you start driving on the route or if on a road where navigation guidance cannot be given.
Page 307: Map Screen
Three-dimensional (3–D) view mode changes the appearance of the map display to a road level view. The No GPS symbol appears when the vehicle is acquiring or not receiving a Global Positioning System (GPS) satellite signal. See Global Positioning System (GPS) on page 4-59 for more information.
Page 308 1. Select one of the POI categories to display the POI icon at the top of the map screen. Select the POI category again to delete the POI icon. 2. Up to ﬁve categories can display on the map screen. 3.
Page 309: Driving On A Route
Go: Select this screen button, next to the desired POI, to make this POI a destination or a stopover. Select a POI name to receive information about the POI. From this screen you can select: Address Book, ® Go, Map, or Call (if Bluetooth or OnStar calling is activated).
Page 310 When approximately 1/4 mi (400 m) from the next maneuver, the screen displays the name and a detailed view of it. 4-24 3–D Lane Guidance Some major metropolitan areas may include a 3–D lane guidance feature for highway exits and junctions. This feature gives you an enhanced representation of the exits and junctions on the route.
Page 311: Auto Reroute
Dual Mode This dual screen symbol displays when the screen is in dual mode. Dual mode displays the route on half of the screen and a maneuver or Interstate Exit list on the other half. The Interstate Exit list advises of approaching exits. Press this button to switch between dual screen and full screen which displays the entire route.
Page 312 To enter a destination by inputting the city name ﬁrst: 1. Press the DEST hard key. 2. Select the screen button. 3. Select the state/province screen button, if needed, to change the current state or province. A list of all of the available states and provinces appear. Select the state or province.
Page 313 7. Select the Go screen button. The map screen, with the destination marked displays. 8. Select the route preference (Fastest, Shortest, or Other). The system calculates and highlights the route. 9. Select the Start Guidance screen button. The route is now ready to be started. See “Getting Started on Your Route”...
Page 314 To enter a destination by entering a cross street: 1. Press the DEST hard key. 2. Select the screen button. 3. Select the state/province screen button, if needed, to change the current state or province. A list of all of the available states and provinces appear. Select the state or province.
Page 315 Point of Interest (POI) The Point of Interest (POI) destination entry method lets you select a destination from the POI list. Point of Interest: Touch to access the POI (Point of Interest) screen. From this screen you have two options to select/enter a destination. Enter the name using the alpha keyboard or select a category from the category list.
Page 316: Address Book
To use the point of interest destination entry method by selecting a category: 1. Press the DEST hard key. 2. Select the screen button. 3. Select the Browse POI Categories screen button to view the list of POI categories. 4. Select a category. The system displays available POI names in the selected category.
Page 317: Previous Destination
To use the address book entry method: 1. Press the DEST hard key. 2. Select the screen button. A list of the address book addresses display. 3. Select the Go screen button next to the destination. The map screen, with the destination marked displays.
Page 318: From Map
To use the previous destination entry method: 1. Press the DEST hard key. 2. Select the screen button. 3. Select a previous destination from the list. Use the arrow to the right of the destination to view the entire destination name as necessary. Use the scroll arrows to the left to scroll through the list.
Page 319 To use this destination entry method: 1. Press the DEST hard key. 2. Select the screen button. A map screen displays with the scrolling symbol. 3. Use the screen buttons and touch on the map to ﬁnd the area that you would like to select as your destination.
Page 320: Preset Destination
To use the coordinates destination entry method: 1. Press the DEST hard key. 2. Select the From Map screen button. 3. Select the Map Coordinates screen button. 4. Select Latitude and select either N (north) or S (south) to enter the direction of the latitude coordinate.
Page 321 To use the preset destination entry method: 1. Press the DEST hard key. 2. Select the desired preset destination screen button. The screen buttons are labeled with the name that was selected for the destination when it was stored. The map screen, with the destination marked displays.
Page 322 ® Using OnStar Destination Download Press the blue OnStar button and an Advisor can locate a point-of-interest or an address and download the necessary information or coordinates to your navigation system. Once the destination is downloaded, the navigation system will search for the address in the mapping disc’s database.
Page 323: Previous Destinations
Route Guidance Not Active If an OnStar destination is downloaded while route guidance is not active, the navigation system displays an OnStar Destination Download Screen and operations will continue as outlined in the Using OnStar Destination Download section: Route Guidance Active If OnStar downloads a destination while route guidance is already active, the navigation system adds the downloaded destination as the next waypoint in...
Page 324: Getting Started On Your Route
Map Destination Screen Functions If the map screen is used to show destination, it will have map screen capabilities such as Go, Mark, Zoom, Scroll, etc. The address is shown at the top of the screen. Destination Map Screen 4-38 Getting Started on Your Route Once a destination has been entered, there are several functions that can be performed.
Page 325 Turn List Turn List: Touch to view the list of turn maneuvers for the entire route and to avoid turns on the route. (Scroll Arrows): Touch the up and down arrows to scroll through the list of maneuvers. Avoid: Touch this screen button, next to the adjacent street name, to avoid the maneuver.
Page 326: Voice Volume
(Fast Forward Scroll): Select to scroll to the next stopover or to the ﬁnal destination. The forward skip) button changes to a fast speed fast forward. (Fast Forward Skip): Select to go to the next stopover or to the ﬁnal destination. Detour Detour: Select this screen button from the Route screen, then select to detour 1 mile, 3 miles, or 5 miles...
Page 327: Cancel Guidance
To add a stopover: 1. Press the DEST hard key. 2. Select the Add Stopover screen button. This button only appears if a route has been calculated. 3. Using the desired method of entering a destination, enter the stopover. See “Destination” previously for more information.
Page 328: Adding Destinations To The Address Book
Adding Destinations to the Address Book There are two ways to add a destination to the address book: • To add the current vehicle position to the address book, press the Mark screen button from the map screen. The system automatically saves the current vehicle information in the address book.
Page 329: Conﬁgure Menu
To store an address book entry as a preset destination: 1. Select the CONFIG hard key. 2. Select the Nav screen button or press the CONFIG key until Nav is selected or touch the Nav screen button. 3. Select the Edit/View screen button. 4.
Page 330 Sound Press the CONFIG key to enter the conﬁgure menu options, then press the CONFIG key repeatedly until Sound is selected or touch the Sound screen button to make speaker and DSP (Digital Signal Processing) adjustments. See “Sound Menu” under, Navigation Audio System on page 4-62 for more information.
Page 331: Route Preference
Voice Prompt Voice Prompt: Touch the Voice Prompt screen button to change the volume of the voice prompts or to turn voice guidance on and off. Volume: Touch the + (plus) or − (minus) screen buttons to increase or to decrease the volume of the voice prompts.
Page 332 Edit Address Book — Edit/View To edit the name of an address book: 1. Select the CONFIG hard key. 2. Select the NAV screen button. 3. Select the Edit/View Address Book screen button. 4. Select the Address book entry. 5. Touch the Name screen button and use the alpha keyboard to edit or add the name.
Page 333 4. Select the Add Voice Tag screen button. 5. The system will ask for you to state the name. You will have four seconds to state the name. The system will respond back with the name and prompt you to repeat the name for conﬁrmation. To delete an address book entry: 1.
Page 334: Traffic Options
Off-Road Mode To turn the Off-road mode on or off, do the following: 1. Press the CONFIG hard key. 2. Press the Nav screen button. 3. Press the Off-Road mode screen button. The button will be highlighted when the feature is on. When the off-road mode is turned on, the navigation system will show the path being traveled by the vehicle when not on a marked road.
Page 335 Three types of traffic information for major roadways are displayed on the navigation system: • Unscheduled traffic incident data, such as accidents and disabled vehicles • Scheduled traffic incident data, such as road construction and road closures • Traffic ﬂow information (rate of speed data) Traffic information is delivered to the vehicle by the XM™...
Page 336 Traffic Icon The Traffic Icon appears on the Traffic Tab, next to the word Traffic, when traffic is found in the local area. The Traffic Icon has three different condition displays. These are: Condition • No XM NavTraffic™ subscription. • No Traffic is found in the local area.
Page 337 Locations and Information of Traffic Conditions The system may take some time to sort the information. The list of traffic conditions display in the order of distance from the vehicle, up to approximately 75 mi (125 km). With a route planned, the system defaults to list traffic events on your route.
Page 338 While the vehicle is moving, the traffic list up or down, scroll arrows are limited to a maximum of four pages. No more than four pages of traffic events may be viewed while the vehicle is moving. 2. Select a traffic condition to get more detailed information of the event.
Page 339 Traffic Flow Status — This touch screen button is used to enable or disable the green, yellow, red and orange arrows shown beside the roads and used to show the traffic ﬂow or extent of a traffic event. • Black indicates a closed road segment •...
Page 340 On-Route Select the On Route touch screen button to display all events ahead on the current active route. If no traffic events have been reported on route, No Traffic Events Reported On route displays. Name Select the Name touch screen button to display traffic events in the order of distance.
Page 341 After selecting the INFO (information) screen button, the type of traffic condition, the street name, and a description of the traffic condition displays. See “Scrolling the Map” under Maps on page 4-15 for more information. To display traffic events in another state or a great distance away, scroll to the desired area, and then stop scrolling.
Page 342 Detailed Traffic Event Screens Traffic Event Screen The detailed Traffic Event screens are used to display additional details of a traffic event condition. This screen may display if: • Scrolling to an event on the map and then pressing INFO. •...
Page 343 Avoid: This button is used to avoid the location of an event on the route. If selected, a new route is calculated and the related traffic event is avoided. After the new route has been calculated, the navigation system goes to the full map screen and shows the new route. The Avoid button is only available if the event is on the route ahead.
Page 344: Setting The Clock
Brightness/Contrast/Mode Touch this screen button to change the brightness, contrast, and mode of the display. (Brightness): Touch the + (plus) or − (minus) screen buttons to increase or decrease the brightness of the screen. (Contrast): Touch the + (plus) or − (minus) screen buttons to increase or decrease the contrast of the screen.
Page 345: Global Positioning System (Gps)
Global Positioning System (GPS) The navigation system determines the position of the vehicle by using satellite signals, various vehicle signals, and map data. At times, other interferences such as the satellite condition, road conﬁguration, the condition of the vehicle and/or other circumstances can interfere with the navigation system’s ability to determine the accurate position of the vehicle.
Page 346 Vehicle Positioning At times, the position of the vehicle on the map may be inaccurate due to one or more of the following reasons: • Road system has changed. • Vehicle is driving on slippery road surfaces such as in sand, gravel, and/or snow. •...
Page 347 Problems with Route Guidance Inappropriate route guidance may occur under one or more of the following conditions: • You have not turned onto the road indicated. • Route guidance may not be available when using automatic rerouting for the next right or left turn. •...
Page 348 If you have any questions about the operation of the navigation system or the update process, contact the GM Nav Disc Center toll-free phone number, 1-877-NAV-DISC (1-877-628-3472) or go to the center’s website, gmnavdisc.com. If you need any updates or a replacement disc, because the current disc is lost, damaged, or needs to be updated, call the GM Nav Disc Center or order a new disc online.
Page 349: Playing The Radio
Playing the Radio (Power/Volume): Press to turn the audio system on and off. Turn to increase or to decrease the volume. Press and hold for more than two seconds to turn off the navigation system, the Rear Seat Entertainment (RSE) video screen, and Rear Seat Audio (RSA).
Page 350 FM source shown, other sources similar If you do not want to view a split screen or you are not on a map screen, press the AUDIO hard key. AM/FM/XM: Touch the source (AM, FM, or XM, if equipped) screen button or press the AUDIO key repeatedly until the desired source is highlighted.
Page 351 The station information appears on the display. See “Radio Menu” later in this section to add and remove XM categories from the category list. Removed categories do not appear on the category list screen or when the right and left arrow category screen buttons are used.
Page 352: Sound Menu
Sound Menu (Sound): Press this key or press the CONFIG key to access the Sound menu to adjust the treble, midrange, bass, fade, balance, and Digital Signal Processing (DSP). The system automatically stores audio adjustment settings as changes are made for each audio source including AM, FM, XM (if equipped), CD, and AUX.
Page 353: Radio Menu
Digital Signal Processing (DSP) The system has Digital Signal Processing (DSP). DSP provides a choice of four different listening experiences. DSP can be used while listening to the audio system. Not all DSP modes are available for all source types. The type of DSP selected is displayed on the status line.
Page 354 Limit Features While Driving Touch the Limit Features While Driving screen button to turn on and off the ability to limit functions while driving. When this screen button is highlighted, the following functions will be limited while driving: • Music Navigator Scrolling •...
Page 355 Radio Data System (RDS) The audio system has a Radio Data System (RDS). RDS features are available for use only on FM stations that broadcast RDS information. With RDS, the radio can do the following: • Receive announcements concerning local and national emergencies •...
Page 356 XM™ Radio Messages XL (Explicit Language Channels): XL on the radio display, after the channel name, indicates content with explicit language. These channels, or any others, can be blocked at a customer’s request by calling 1-800-852-XMXM (9696). XM Updating: The encryption code in the receiver is being updated and no action is required.
Page 357 CD Player The player can be used for CD, MP3, DVD audio, and as a DVD video player. See DVD Player on page 4-78 for more information about DVD audio and video. Six-Disc CD Player While playing a CD, the navigation system is available. When you insert a CD, the CD tab displays.
Page 358: Playing An Audio Cd
To load multiple discs, do the following: 1. Press and hold the load hard key and follow the screen message displayed. 2. When the system displays “Insert Disc (number)”, insert the disc partway into the slot, label side up. The system will pull it in. 3.
Page 359: Using An Mp3 Cd
(Rewind): Touch and hold this button to rewind quickly through a track selection. You will hear sound at a reduced volume. Release this button to stop rewinding. The display will show the elapsed time of the track. (Forward): Touch and hold this button to fast forward quickly through a track selection.
Page 360 • It is recommended that there is a maximum of 192 ﬁles on a disc. • The ﬁles can be recorded on a CD-R or CD-RW with a maximum capacity of 700MB. • DVD with MP3 are not playable on this system. Root Directory The root directory will be treated as a folder.
Page 361 Playing an MP3 While playing a CD, the navigation system is available. When you insert a CD, the CD tab will display. If you select a DSP setting for the CD, it will be activated each time you play a CD. If you turn off the ignition or radio with a CD in the player, it will stay in the player.
Page 362 (Eject): To eject a disc, do the following: 1. Press the eject hard key. 2. The system will display “Ejecting Disc”. Press the DISC screen button to display the Disc Changer screen. Select the disc to eject. If a selection is not made, the system will eject the disc from the current slot.
Page 363 (Folder/Artist/Album): Select the left or right arrow to go to the previous or next folder, artist, or album on the disc. Press the middle screen button, with the folder, artist, or album name, to sort the MP3 by folder, artist, or album. It may take a few minutes for the system to sort the MP3.
Page 364 DVD Player The player can be used for DVD audio and DVD video. DVD video will not display on the navigation screen unless the vehicle is in PARK (P). It will operate on the rear seat entertainment screens while the vehicle is moving.
Page 365: Playing A Dvd
3. Once a disc is loaded, the system will display “Insert Disc (number)” again. Load the next disc. Repeat this procedure for each disc. The player takes up to six discs, do not try to load more than six. The system will not display the disc types when loading all, until the discs have been read by the system.
Page 366: Dvd Menu Options
DVD Menu Options Once a DVD starts to play, the menu options and cursor screen buttons will automatically appear. To display the menu Options screen button while a DVD is playing, touch anywhere on the screen. Options: Select this screen button to view the menu option screen buttons.
Page 367 Hide Options: Press this screen button to remove all menu options from the display, except Options and Cursor. Top Menu: Touch this button to display the ﬁrst menu of the DVD. This is not available on all DVDs. Menu: Touch this button to display the DVD menu of the current area of the DVD that is playing.
Page 368 (Brightness): Touch the up or down screen arrows to increase or decrease the brightness of the navigation screen. (Contrast): Touch the up or down screen arrows to increase or decrease the contrast of the navigation screen. Auto (Automatic): Touch this screen button for the system to automatically adjust the navigation screen background depending on exterior lighting conditions.
Page 369 Subtitle Language: Touch English, Francais, Espanol, Italiano, or Deutsch to change the default language of the subtitles that the DVD player uses for each disc. The subtitle language must be available on the disc. The subtitle language may vary for each DVD. Menu Language: Touch English, Francais, Espanol, Italiano, or Deutsch to change the default language of the DVD video menus.
Page 370 DVD Messages If Disc Read Error appears on the display and/or the DVD comes out, it could be for one of the following reasons: • If a disc was inserted with an invalid or unknown format. • If the disc is not from a correct region. •...
Page 371 Do not add any label to a CD or DVD, it could get caught in the player. If a CD or DVD is recorded on a personal computer and a description label is needed, try labeling the top of the recorded CD or DVD with a soft marker.
Page 372: Voice Recognition
3. For the second row display select the Rear AUX screen button next to Rear Display 1 and for the third row display select the Rear AUX screen button next to Rear Display 2. Each screen works independently of the other. The second row screen can watch a DVD while the third row screen can use the auxiliary device.
Page 373: Voice Recognition Commands
Helpful Hints for Stating Commands • When a multiple command is available, choose the command that works best. • Words that are in brackets are optional. For example, for the command Radio [band] [select] FM, stating Radio FM or Radio select FM are both valid commands.
Page 374: Radio Commands
Storing Voice Tags From the address book entry information page, press the Add Voice tag screen button. The system responds “Name Please?” and you will have four seconds to record a name. The system asks for conﬁrmation of the name before saving it as a voice tag. Navigation Help Navigation Help: This command instructs the system to assist with navigation commands.
Page 375: Voice Help
CD Commands The following are CD, MP3, and DVD commands that can be accessed by clearly stating the commands exactly as they are written. CD, DVD, Disc: Use this command to select a CD, DVD, or disc that is currently loaded. CD, DVD, Disc, [select] track (one, two, three, etc.): Instructs the system to select a speciﬁc track number.
Page 376 ✍ NOTES 4-90...
Page 377: Driving Your Vehicle
Section 5 Your Driving, the Road, and the Vehicle ...5-2 Driving for Better Fuel Economy ...5-2 Defensive Driving ...5-2 Drunk Driving ...5-3 Control of a Vehicle ...5-3 Braking ...5-4 Antilock Brake System (ABS) ...5-5 Braking in Emergencies ...5-6 ® StabiliTrak System ...5-6 Magnetic Ride Control™...
Page 378: Your Driving, The Road, And The Vehicle
Your Driving, the Road, and the Vehicle Driving for Better Fuel Economy Driving habits can affect fuel mileage. Here are some driving tips to get the best fuel economy possible. • Avoid fast starts and accelerate smoothly. • Brake gradually and avoid abrupt stops. •...
Page 379: Drunk Driving
Drunk Driving CAUTION: Drinking and then driving is very dangerous. Your reﬂexes, perceptions, attentiveness, and judgment can be affected by even a small amount of alcohol. You can have a serious — or even fatal — collision if you drive after drinking. Do not drink and drive or ride with a driver who has been drinking.
Page 380: Braking
Braking See Brake System Warning Light on page 3-39. Braking action involves perception time and reaction time. Deciding to push the brake pedal is perception time. Actually doing it is reaction time. Average reaction time is about three-fourths of a second. But that is only an average.
Page 381: Antilock Brake System (Abs)
Antilock Brake System (ABS) This vehicle has the Antilock Brake System (ABS), an advanced electronic braking system that helps prevent a braking skid. When the engine is started and the vehicle begins to drive away, ABS checks itself. A momentary motor or clicking noise might be heard while this test is going on.
Page 382: Brake Assist
Braking in Emergencies ABS allows the driver to steer and brake at the same time. In many emergencies, steering can help more than even the very best braking. Brake Assist This vehicle has a Brake Assist feature designed to assist the driver in stopping or decreasing vehicle speed in emergency driving conditions.
Page 383 If the system fails to turn on or activate, the StabiliTrak light along with one of the following messages will be displayed on the Driver Information Center (DIC): TRACTION CONTROL OFF, SERVICE TRACTION CONTROL, STABILITRAK OFF, SERVICE STABILITRAK. If these DIC messages appear, make sure the StabiliTrak system has not been turned off using the StabiliTrak on/off button.
Page 384: Traction Control Operation
It is recommended to leave the system on for normal driving conditions, but it may be necessary to turn the system off if the vehicle is stuck in sand, mud, ice or snow, and you want to “rock” the vehicle to attempt to free it.
Page 385: Magnetic Ride Control
Magnetic Ride Control™ The vehicle may have the MagneRide control system. MagneRide constantly checks speed, wheel position, lift/dive and steering of the vehicle. The damping force for each shock absorber and adjustment level is chosen for the best ride and handling. MagneRide also works with the tow/haul switch that, when engaged, will provide more ﬁrmness from the shock absorbers.
Page 386: Steering
Steering Power Steering If the vehicle is a Two-mode Hybrid, see the Two-mode Hybrid manual for more information. If power steering assist is lost because the engine stops or the system is not functioning, the vehicle can be steered but it will take more effort. Steering Tips It is important to take curves at a reasonable speed.
Page 387: Off-Road Recovery
An emergency like this requires close attention and a quick decision. If holding the steering wheel at the recommended 9 and 3 o’clock positions, it can be turned a full 180 degrees very quickly without removing either hand. But you have to act fast, steer quickly, and just as quickly straighten the wheel once you have avoided the object.
Page 388: Passing
Passing Passing another vehicle on a two-lane road can be dangerous. To reduce the risk of danger while passing: • Look down the road, to the sides, and to crossroads for situations that might affect a successful pass. If in doubt, wait. •...
Page 389: Off-Road Driving
While driving on a surface with reduced traction, try your best to avoid sudden steering, acceleration, or braking, including reducing vehicle speed by shifting to a lower gear. Any sudden changes could cause the tires to slide. You may not realize the surface is slippery until the vehicle is skidding.
Page 390 Before You Go Off-Roading • Have all necessary maintenance and service work done. • Make sure there is enough fuel, that ﬂuid levels are where they should be, and that the spare tire, if the vehicle has one, is fully inﬂated. •...
Page 391 Loading Your Vehicle for Off-Road Driving CAUTION: • Cargo on the load ﬂoor piled higher than the seatbacks can be thrown forward during a sudden stop. You or your passengers could be injured. Keep cargo below the top of the seatbacks.
Page 392: Environmental Concerns
Environmental Concerns Off-road driving can provide wholesome and satisfying recreation. However, it also raises environmental concerns. We recognize these concerns and urge every off-roader to follow these basic rules for protecting the environment: • Always use established trails, roads, and areas that have been specially set aside for public off-road recreational driving and obey all posted regulations.
Page 393: Scanning The Terrain
Controlling the vehicle is the key to successful off-road driving. One of the best ways to control the vehicle is to control the speed. At higher speeds: • You approach things faster and have less time to react. • There is less time to scan the terrain for obstacles. •...
Page 394: Driving On Hills
When driving over obstacles or rough terrain, keep a ﬁrm grip on the steering wheel. Ruts, troughs, or other surface features can jerk the wheel out of your hands. When driving over bumps, rocks, or other obstacles, the wheels can leave the ground. If this happens, even with one or two wheels, you cannot control the vehicle as well or at all.
Page 395: Approaching A Hill
Approaching a Hill When you approach a hill, decide if it is too steep to climb, descend, or cross. Steepness can be hard to judge. On a very small hill, for example, there may be a smooth, constant incline with only a small change in elevation where you can easily see all the way to the top.
Page 396 • Sound the horn as you approach the top of the hill to let opposing traffic know you are there. • Use headlamps even during the day to make the vehicle more visible to oncoming traffic. CAUTION: Driving to the top (crest) of a hill at full speed can cause an accident.
Page 397: Driving Downhill
Driving Downhill When off-roading takes you downhill, consider: • How steep is the downhill? Will I be able to maintain vehicle control? • What is the surface like? Smooth? Rough? Slippery? Hard-packed dirt? Gravel? • Are there hidden surface obstacles? Ruts? Logs? Boulders? •...
Page 398: Driving Across An Incline
Driving Across an Incline An off-road trail will probably go across the incline of a hill. To decide whether to try to drive across the incline, consider the following: CAUTION: Driving across an incline that is too steep will make your vehicle roll over. You could be seriously injured or killed.
Page 399: Stalling On An Incline
Stalling on an Incline CAUTION: Getting out on the downhill (low) side of a vehicle stopped across an incline is dangerous. If the vehicle rolls over, you could be crushed or killed. Always get out on the uphill (high) side of the vehicle and stay well clear of the rollover path.
Page 400: Driving In Water
Hard packed snow and ice offer the worst tire traction. On these surfaces, it is very easy to lose control. On wet ice, for example, the traction is so poor that you will have difficulty accelerating. And, if the vehicle does get moving, poor steering and difficult braking can cause it to slide out of control.
Page 401: Driving At Night
If the water is not too deep, drive slowly through it. At faster speeds, water splashes on the ignition system and the vehicle can stall. Stalling can also occur if you get the tailpipe under water. If the tailpipe is under water, you will never be able to start the engine.
Page 402: Driving In Rain And On Wet Roads
Driving in Rain and on Wet Roads Rain and wet roads can reduce vehicle traction and affect your ability to stop and accelerate. Always drive slower in these types of driving conditions and avoid driving through large puddles and deep-standing or ﬂowing water. CAUTION: Wet brakes can cause crashes.
Page 403: Before Leaving On A Long Trip
Before Leaving on a Long Trip To prepare your vehicle for a long trip, consider having it serviced by your dealer/retailer before departing. Things to check on your own include: • Windshield Washer Fluid: Reservoir full? Windows clean — inside and outside? •...
Page 404: Hill And Mountain Roads
Hill and Mountain Roads Driving on steep hills or through mountains is different than driving on ﬂat or rolling terrain. Tips for driving in these conditions include: • Keep the vehicle serviced and in good shape. • Check all ﬂuid levels and brakes, tires, cooling system, and transmission.
Page 405: Winter Driving
Winter Driving Driving on Snow or Ice Drive carefully when there is snow or ice between the tires and the road, creating less traction or grip. Wet ice can occur at about 32°F (0°C) when freezing rain begins to fall, resulting in even less traction. Avoid driving on wet ice or in freezing rain until roads can be treated with salt or sand.
Page 406 Blizzard Conditions Being stuck in snow can be in a serious situation. Stay with the vehicle unless there is help nearby. If possible, use the Roadside Service on page 8-7. To get help and keep everyone in the vehicle safe: •...
Page 407: If Your Vehicle Is Stuck In Sand, Mud, Ice, Or Snow
Repeat this until help arrives but only when you feel really uncomfortable from the cold. Moving about to keep warm also helps. If it takes some time for help to arrive, now and then when you run the engine, push the accelerator pedal slightly so the engine runs faster than the idle speed.
Page 408: Rocking Your Vehicle To Get It Out
Rocking Your Vehicle to Get It Out Turn the steering wheel left and right to clear the area around the front wheels. Turn off any traction or stability system. Shift back and forth between R (Reverse) and a forward gear, spinning the wheels as little as possible. To prevent transmission wear, wait until the wheels stop spinning before shifting gears.
Page 409: Loading The Vehicle
Notice: Never use recovery hooks to tow the vehicle. Your vehicle could be damaged and it would not be covered by warranty. For vehicles with recovery hooks at the front of the vehicle, you can use them if you are stuck off-road and need to be pulled to some place where you can continue driving.
Page 410 Tire and Loading Information Label Label Example A vehicle speciﬁc Tire and Loading Information label is attached to the center pillar (B-pillar). With the driver’s door open, you will ﬁnd the label attached below the door lock post (striker). 5-34 The tire and loading information label shows the number of occupant seating positions (A), and the maximum vehicle capacity weight (B) in kilograms...
Page 411 Steps for Determining Correct Load Limit Locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on your vehicle’s placard. Determine the combined weight of the driver and passengers that will be riding in your vehicle.
Page 412 Example 1 Item Description Vehicle Capacity Weight for Example 1 = Subtract Occupant Weight 150 lbs (68 kg) × 2 = Available Occupant and Cargo Weight = 5-36 Total Item 1,000 lbs (453 kg) 300 lbs (136 kg) 700 lbs (317 kg Example 2 Description Vehicle Capacity...
Page 413 Example 3 Item Description Vehicle Capacity Weight for Example 3 = Subtract Occupant Weight 200 lbs (91 kg) × 5 = Available Cargo Weight = Refer to your vehicle’s tire and loading information label for speciﬁc information about your vehicle’s capacity weight and seating positions. The combined weight of the driver, passengers, and cargo should never exceed your vehicle’s capacity weight.
Page 414 Certiﬁcation/Tire Label A vehicle speciﬁc Certiﬁcation/Tire label is attached to the rear edge of the driver’s door. The label shows the size of your vehicle’s original tires and the inﬂation pressures needed to obtain the gross weight capacity of your vehicle. This is called Gross Vehicle Weight Rating (GVWR).
Page 415 Using heavier suspension components to get added durability might not change your weight ratings. Ask your dealer to help you load your vehicle the right way. If you put things inside your vehicle — like suitcases, tools, packages, or anything else —...
Page 416: Towing
The system is activated when the ignition key is turned to RUN and will automatically adjust vehicle height thereafter. The system may exhaust (lower vehicle height) for up to 10 minutes after the ignition key has been turned to LOCK. You may hear the air compressor operating when the height is being adjusted.
Page 417 All-Wheel-Drive Vehicles Dinghy and Dolly Towing Notice: Towing an all-wheel-drive vehicle with all four wheels on the ground, or even with only two of its wheels on the ground, will damage drivetrain components. Do not tow an all-wheel-drive vehicle with any of its wheels on the ground. All-wheel-drive vehicles are not designed to be towed with any wheels on the ground.
Page 418: Dinghy Towing
Two-Wheel-Drive Vehicles Dinghy Towing Notice: If a two-wheel-drive vehicle is towed with all four wheels on the ground, the transmission could be damaged. The repairs would not be covered by the vehicle warranty. Do not tow a two-wheel-drive vehicle with all four wheels on the ground. Two-wheel-drive vehicles should not be towed with all four wheels on the ground.
Page 419: Level Control
Two-wheel-drive vehicles should not be towed with the rear wheels on the ground. Two-wheel-drive transmissions have no provisions for internal lubrication while being towed. Dolly Towing (Rear Wheels Off the Ground) Use the following procedure to dinghy tow a two-wheel-drive vehicle from the rear: 1.
Page 420: Autoride
® Autoride With this feature, improved vehicle ride and handling is provided under a variety of passenger and loading conditions. The system is fully automatic and uses a computer controller to continuously monitor vehicle speed, wheel to body position, lift/dive and steering position of the vehicle.
Page 421: Pulling A Trailer
To identify the trailering capacity of the vehicle, read the information in “Weight of the Trailer” that appears later in this section. Trailering is different than just driving the vehicle by itself. Trailering means changes in handling, acceleration, braking, durability and fuel economy. Successful, safe trailering takes correct equipment, and it has to be used properly.
Page 422: Weight Of The Trailer
Weight of the Trailer How heavy can a trailer safely be? It depends on how the rig is used. For example, speed, altitude, road grades, outside temperature and how much the vehicle is used to pull a trailer are all important. It can depend on any special equipment on the vehicle, and the amount of tongue weight the vehicle can carry.
Page 423: Weight Of The Trailer Tongue
Weight of the Trailer Tongue The tongue load (A) of any trailer is an important weight to measure because it affects the total gross weight of the vehicle. The Gross Vehicle Weight (GVW) includes the curb weight of the vehicle, any cargo carried in it, and the people who will be riding in the vehicle.
Page 424 Trailering may be limited by the vehicle’s ability to carry tongue weight. Tongue weight cannot cause the vehicle to exceed the GVWR (Gross Vehicle Weight Rating) or the RGAWR (Rear Gross Axle Weight Rating). The effect of additional weight may reduce the trailering capacity more than the total of the additional weight.
Page 425 The effect of tongue weight is about 1.5 times the actual weight. Dividing the 900 lbs (408 kg) by 1.5 leaves only 600 lbs (272 kg) of tongue weight that can be handled. Since tongue weight is usually at least 10 percent of total loaded trailer weight, expect that the largest trailer the vehicle can properly handle is 6,000 lbs (2 721 kg).
Page 426 When pulling a trailer that, when loaded, will weigh more than 5,000 lbs (2 270 kg) be sure to use a properly mounted weight-distributing hitch and sway control of the proper size. This equipment is very important for proper vehicle loading and good handling when driving.
Page 427 Safety Chains Always attach chains between the vehicle and the trailer. Cross the safety chains under the tongue of the trailer to help prevent the tongue from contacting the road if it becomes separated from the hitch. Instructions about safety chains may be provided by the hitch manufacturer or by the trailer manufacturer.
Page 428: Driving With A Trailer
Operating the vehicle in Tow/Haul when lightly loaded or with no trailer at all will not cause damage. However, there is no beneﬁt to the selection of Tow/Haul when the vehicle is unloaded. Such a selection when unloaded may result in unpleasant engine and transmission driving characteristics and reduced fuel economy.
Page 429: Making Turns
Towing a trailer requires a certain amount of experience. Get to know the rig before setting out for the open road. Get acquainted with the feel of handling and braking with the added weight of the trailer. And always keep in mind that the vehicle you are driving is now longer and not as responsive as the vehicle is by itself.
Page 430: Driving On Grades
Driving On Grades Reduce speed and shift to a lower gear before starting down a long or steep downgrade. If the transmission is not shifted down, the brakes might have to be used so much that they would get hot and no longer work well. Vehicles can tow in D (Drive).
Page 431 CAUTION: It can be dangerous to get out of the vehicle if the shift lever is not fully in P (Park) with the parking brake ﬁrmly set. The vehicle can roll. If the engine has been left running, the vehicle can move suddenly.
Page 432: Maintenance When Trailer Towing
Maintenance When Trailer Towing The vehicle needs service more often when pulling a trailer. See this manual’s Maintenance Schedule or Index for more information. Things that are especially important in trailer operation are automatic transmission ﬂuid, engine oil, axle lubricant, belts, cooling system and brake system.
Page 433: Trailer Recommendations
Electric Brake Control Wiring Provisions These wiring provisions are included with the vehicle as part of the heavy-duty trailer wiring package. These provisions are for an electric brake controller. The red/black stripe power feed will not be connected to the battery until the ring terminal is unstowed and connected to the underhood electrical center.
Page 434 ✍ NOTES 5-58...
Page 435: Service And Appearance Care
Section 6 Service ...6-3 Accessories and Modiﬁcations ...6-3 California Proposition 65 Warning ...6-4 California Perchlorate Materials Requirements ...6-4 Doing Your Own Service Work ...6-4 Adding Equipment to the Outside of the Vehicle ...6-5 Fuel ...6-5 Gasoline Octane ...6-5 Gasoline Speciﬁcations ...6-6 California Fuel ...6-6 Additives ...6-6 Fuel E85 (85% Ethanol) ...6-7...
Page 436 Section 6 Tire Pressure Monitor System ...6-64 Tire Pressure Monitor Operation ...6-65 Tire Inspection and Rotation ...6-69 When It Is Time for New Tires ...6-70 Buying New Tires ...6-71 Different Size Tires and Wheels ...6-73 Uniform Tire Quality Grading ...6-73 Wheel Alignment and Tire Balance ...6-75 Wheel Replacement ...6-75 Tire Chains ...6-76...
Page 437: Service
Service For service and parts needs, visit your dealer/retailer. You will receive genuine GM parts and GM-trained and supported service people. Genuine GM parts have one of these marks: Accessories and Modiﬁcations When non-dealer/non-retailer accessories are added to the vehicle, they can affect vehicle performance and safety, including such things as airbags, braking, stability, ride and handling, emissions systems, aerodynamics, durability, and electronic systems like antilock brakes,...
Page 438: California Proposition 65 Warning
California Proposition 65 Warning Most motor vehicles, including this one, contain and/or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Engine exhaust, many parts and systems (including some inside the vehicle), many ﬂuids, and some component wear by-products contain and/or emit these chemicals.
Page 439: Adding Equipment To The Outside Of The Vehicle
This vehicle has an airbag system. Before attempting to do your own service work, see Servicing Your Airbag-Equipped Vehicle on page 1-93. Keep a record with all parts receipts and list the mileage and the date of any service work performed. See Maintenance Record on page 7-17.
Page 440: Gasoline Speciﬁcations
Gasoline Speciﬁcations At a minimum, gasoline should meet ASTM speciﬁcation D 4814 in the United States or CAN/CGSB-3.5 or 3.511 in Canada. Some gasolines contain an octane-enhancing additive called methylcyclopentadienyl manganese tricarbonyl (MMT). We recommend against the use of gasolines containing MMT. See Additives on page 6-6 for additional information.
Page 441: Fuel E85 (85% Ethanol)
However, E85 (85% ethanol) and other fuels containing more than 10% ethanol must not be used in vehicles that were not designed for those fuels. Notice: This vehicle was not designed for fuel that contains methanol. Do not use fuel containing methanol.
Page 442: Fuels In Foreign Countries
At a minimum, E85 should meet ASTM Speciﬁcation D 5798. By deﬁnition, this means that fuel labeled E85 will have an ethanol content between 70% and 85%. Filling the fuel tank with fuel mixtures that do not meet ASTM speciﬁcations can affect driveability and could cause the malfunction indicator lamp to come on.
Page 443: Filling The Tank
Filling the Tank CAUTION: Fuel vapor burns violently and a fuel ﬁre can cause bad injuries. To help avoid injuries to you and others, read and follow all the instructions on the pump island. Turn off the engine when you are refueling.
Page 444 To open the fuel door, push the rearward center edge in and release and it will open. To remove the fuel cap, turn it slowly counterclockwise. The fuel cap has a spring in it; if the cap is released too soon, it will spring back to the right. While refueling, hang the tethered fuel cap from the hook on the fuel door.
Page 445: Filling A Portable Fuel Container
If the vehicle has a Driver Information Center (DIC), the TIGHTEN GAS CAP message displays if the fuel cap is not properly installed. CAUTION: If a ﬁre starts while you are refueling, do not remove the nozzle. Shut off the ﬂow of fuel by shutting off the pump or by notifying the station attendant.
Page 446: Checking Things Under The Hood
Checking Things Under the Hood CAUTION: An electric fan under the hood can start up and injure you even when the engine is not running. Keep hands, clothing, and tools away from any underhood electric fan. 6-12 CAUTION: Things that burn can get on hot engine parts and start a ﬁre.
Page 447: Hood Release
Hood Release To open the hood: 1. Pull the handle with this symbol on it. It is located inside the vehicle to the lower left of the steering wheel. 2. Then go to the front of the vehicle and locate the secondary hood release, near the center of the grille.
Page 448: Engine Compartment Overview
Engine Compartment Overview If the vehicle is a Two-mode Hybrid, see the Two-mode Hybrid manual for more information. When you open the hood on the 6.2L engine this is what you will see: 6-14...
Page 449: Engine Oil
A. Engine Air Cleaner/Filter on page 6-19. B. Coolant Surge Tank and Pressure Cap. See Cooling System on page 6-24. C. Remote Positive (+) Terminal. See Jump Starting on page 6-40. D. Battery on page 6-39. E. Engine Oil Fill Cap. See “When to Add Engine Oil” under Engine Oil on page 6-15.
Page 450: When To Add Engine Oil
When to Add Engine Oil If the oil is below the cross-hatched area at the tip of the dipstick, add at least one quart/liter of the recommended oil. This section explains what kind of oil to use. For engine oil crankcase capacity, see Capacities and Speciﬁcations on page 6-113.
Page 451: What Kind Of Engine Oil To Use
What Kind of Engine Oil to Use Look for three things: • GM4718M This vehicle’s engine requires a special oil meeting GM Standard GM4718M. Oils meeting this standard may be identiﬁed as synthetic. However, not all synthetic oils will meet this GM standard. Use only an oil that meets GM Standard GM4718M.
Page 452: Engine Oil Life System
Engine Oil Additives / Engine Oil Flushes Do not add anything to the oil. The recommended oils with the starburst symbol that meet GM standards are all that is needed for good performance and engine protection. Engine oil system ﬂushes are not recommended and could cause engine damage not covered by the vehicle warranty.
Page 453: Engine Air Cleaner/Filter
If the CHANGE ENGINE OIL SOON message comes back on when the vehicle is started, the Engine Oil Life System has not reset. Repeat the procedure. What to Do with Used Oil Used engine oil contains certain elements that can be unhealthy for your skin and could even cause cancer.
Page 454: Automatic Transmission Fluid
3. Remove the engine air cleaner/ﬁlter from the housing. Care should be taken to dislodge as little dirt as possible. 4. Clean the engine air cleaner/ﬁlter sealing surfaces and the housing. 5. Inspect or replace the engine air cleaner/ﬁlter. 6. Reinstall the cover and tighten the screws. 6-20 CAUTION: Operating the engine with the air cleaner/ﬁlter off...
Page 455: How To Check Automatic Transmission Fluid
Notice: Use of the incorrect automatic transmission ﬂuid may damage the vehicle, and the damages may not be covered by the vehicle’s warranty. Always use the automatic transmission ﬂuid listed in Recommended Fluids and Lubricants on page 7-13. Change the ﬂuid and ﬁlter at the intervals listed in the Maintenance Schedule.
Page 456: Cold Check Procedure
Cold Check Procedure Use this procedure only as a reference to determine if the transmission has enough ﬂuid to be operated safely until a hot check procedure can be made. The hot check procedure is the most accurate method to check the ﬂuid level.
Page 457 Hot Check Procedure Use this procedure to check the transmission ﬂuid level when the transmission ﬂuid temperature is between 160°F and 200°F (71°C and 93°C). The hot check is the most accurate method to check the ﬂuid level. The hot check should be performed at the ﬁrst opportunity in order to verify the cold check.
Page 458: Cooling System
Consistency of Readings Always check the ﬂuid level at least twice using the procedures described. Consistency (repeatable readings) is important to maintaining proper ﬂuid level. If ﬂuid is added, it may take 15 minutes or longer to obtain an accurate reading because of residual ﬂuid draining down the dipstick tube.
Page 459: Engine Coolant
CAUTION: An electric engine cooling fan under the hood can start up even when the engine is not running and can cause injury. Keep hands, clothing, and tools away from any underhood electric fan. CAUTION: Heater and radiator hoses, and other engine parts, can be very hot.
Page 460: What To Use
What to Use CAUTION: Adding only plain water to the cooling system can be dangerous. Plain water, or some other liquid such as alcohol, can boil before the proper coolant mixture will. The vehicle’s coolant warning system is set for the proper coolant mixture. With plain water or the wrong mixture, the engine could get too hot but you would not get the overheat warning.
Page 461: Checking Coolant
Checking Coolant The vehicle must be on a level surface when checking the coolant level. Check to see if coolant is visible in the coolant surge tank. If the coolant inside the coolant surge tank is boiling, do not do anything else until it cools down. If coolant is visible but the coolant level is not at or above the FULL COLD mark, add a 50/50 mixture of clean, drinkable water and DEX-COOL...
Page 462 How to Add Coolant to the Surge Tank CAUTION: You can be burned if you spill coolant on hot engine parts. Coolant contains ethylene glycol and it will burn if the engine parts are hot enough. Do not spill coolant on a hot engine. Notice: This vehicle has a speciﬁc coolant ﬁll procedure.
Page 463 If no coolant is visible in the surge tank, add coolant as follows: 1. You can remove the coolant surge tank pressure cap when the cooling system, including the coolant surge tank pressure cap and upper radiator hose, is no longer hot. Turn the pressure cap slowly counterclockwise about one full turn.
Page 464: Engine Overheating
4. With the coolant surge tank pressure cap off, start the engine and let it run until you can feel the upper radiator hose getting hot. Watch out for the engine cooling fan. By this time, the coolant level inside the coolant surge tank may be lower.
Page 465: If Steam Is Coming From The Engine Compartment
You may decide not to lift the hood when this warning appears, but instead get service help right away. See Roadside Service on page 8-7. If you do decide to lift the hood, make sure the vehicle is parked on a level surface. Then check to see if the engine cooling fans are running.
Page 466: If No Steam Is Coming From The Engine Compartment
If No Steam Is Coming From The Engine Compartment The ENGINE OVERHEATED STOP ENGINE or the ENGINE OVERHEATED IDLE ENGINE message, along with a low coolant condition, can indicate a serious problem. If you get an engine overheat warning, but see or hear no steam, the problem may not be too serious.
Page 467: Overheated Engine Protection Operating Mode
Overheated Engine Protection Operating Mode If an overheated engine condition exists and the ENGINE POWER IS REDUCED message is displayed, an overheat protection mode which alternates ﬁring groups of cylinders helps prevent engine damage. In this mode, you will notice a loss in power and engine performance.
Page 468: Windshield Washer Fluid
When to Check Power Steering Fluid It is not necessary to regularly check power steering ﬂuid unless you suspect there is a leak in the system or you hear an unusual noise. A ﬂuid loss in this system could indicate a problem. Have the system inspected and repaired.
Page 469: Adding Washer Fluid
Adding Washer Fluid The vehicle has a low washer ﬂuid message in the DIC that comes on when the washer ﬂuid is low. The message is displayed for 15 seconds at the start of each ignition cycle. When the WASHER FLUID LOW ADD FLUID message displays, you will need to add washer ﬂuid to the windshield washer ﬂuid reservoir.
Page 470: Brakes
Brakes Brake Fluid The brake master cylinder reservoir is ﬁlled with DOT 3 brake ﬂuid. See Engine Compartment Overview on page 6-14 for the location of the reservoir. 6-36 There are only two reasons why the brake ﬂuid level in the reservoir might go down: •...
Page 471: Checking Brake Fluid
CAUTION: If too much brake ﬂuid is added, it can spill on the engine and burn, if the engine is hot enough. You or others could be burned, and the vehicle could be damaged. Add brake ﬂuid only when work is done on the brake hydraulic system. See “Checking Brake Fluid”...
Page 472: Brake Wear
What to Add Use only new DOT 3 brake ﬂuid from a sealed container. See Recommended Fluids and Lubricants on page 7-13. Always clean the brake ﬂuid reservoir cap and the area around the cap before removing it. This helps keep dirt from entering the reservoir.
Page 473: Brake Adjustment
Properly torqued wheel nuts are necessary to help prevent brake pulsation. When tires are rotated, inspect brake pads for wear and evenly tighten wheel nuts in the proper sequence to torque speciﬁcations in Capacities and Speciﬁcations on page 6-113. Brake linings should always be replaced as complete axle sets.
Page 474: Vehicle Storage
Vehicle Storage CAUTION: Batteries have acid that can burn you and gas that can explode. You can be badly hurt if you are not careful. See Jump Starting on page 6-40 for tips on working around a battery without getting hurt. Infrequent Usage: If the vehicle is driven infrequently, remove the black, negative (−) cable from the battery.
Page 475 Notice: If the other vehicle’s system is not a 12-volt system with a negative ground, both vehicles can be damaged. Only use vehicles with 12-volt systems with negative grounds to jump start your vehicle. 2. Get the vehicles close enough so the jumper cables can reach, but be sure the vehicles are not touching each other.
Page 476 The remote negative (-) terminal is a stud located on the right front of the engine, where the negative battery cable attaches. See Engine Compartment Overview on page 6-14 for more information on the location of the remote positive (+) and remote negative (−) terminals.
Page 477 CAUTION: (Continued) Battery ﬂuid contains acid that can burn you. Do not get it on you. If you accidentally get it in your eyes or on your skin, ﬂush the place with water and get medical help immediately. CAUTION: Fans or other moving engine parts can injure you badly.
Page 478 8. Now connect the black negative (−) cable to the negative (−) terminal of the good battery. Use a remote negative (−) terminal if the vehicle has one. Do not let the other end touch anything until the next step. The other end of the negative (−) cable does not go to the dead battery.
Page 479: All-Wheel Drive
To disconnect the jumper cables from both vehicles do the following: 1. Disconnect the black negative (−) cable from the vehicle that had the bad battery. 2. Disconnect the black negative (−) cable from the vehicle with the good battery. 3.
Page 480: Rear Axle
What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use. See Recommended Fluids and Lubricants on page 7-13. Rear Axle When to Check Lubricant It is not necessary to regularly check rear axle ﬂuid unless you suspect there is a leak or you hear an unusual noise.
Page 481: Front Axle
What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use. See Recommended Fluids and Lubricants on page 7-13. Front Axle When to Check and Change Lubricant It is not necessary to regularly check front axle ﬂuid unless you suspect there is a leak or you hear an unusual noise.
Page 482: Headlamp Aiming
What to Use Refer to the Maintenance Schedule to determine what kind of lubricant to use. See Recommended Fluids and Lubricants on page 7-13. Headlamp Aiming The vehicle has a visual optical headlamp aiming system. The aim of the headlamps have been preset at the factory and should need no further adjustment.
Page 483 Headlamp aiming is done with the vehicle’s low-beam headlamps. The high-beam headlamps will be correctly aimed if the low-beam headlamps are aimed properly. To adjust the vertical aim: 1. Open the hood. See Hood Release on page 6-13 for more information. 2.
Page 484 7. Locate the vertical headlamp aiming screws, which are under the hood near each headlamp assembly. The adjustment screw can be turned with a E8 Torx socket. 8. Turn the vertical aiming screw until the headlamp beam is aimed to the horizontal tape line. Turn it clockwise or counterclockwise to raise or lower the angle of the beam.
Page 485: Bulb Replacement
Bulb Replacement For the proper type of replacement bulbs, see Replacement Bulbs on page 6-53. For any bulb changing procedure not listed in this section, contact your dealer/retailer. High Intensity Discharge (HID) Lighting CAUTION: The low beam high intensity discharge lighting system operates at a very high voltage.
Page 486 2. Remove the two screws from the taillamp assembly. 3. Pull the taillamp assembly rearward until you disengage the inner pins on the taillamp assembly from the vehicle. 4. Press the release tab, if the bulb socket has one, and turn the socket counterclockwise to remove it from the taillamp assembly.
Page 487: License Plate Lamp
License Plate Lamp 1. Remove the two screws holding each of the license plate lamps to the molding that is part of the liftgate. 2. Twist and pull the license plate lamp forward through the molding opening. 3. Turn the bulb socket counterclockwise and pull the bulb straight out of the socket.
Page 488: Windshield Wiper Blade Replacement
Windshield Wiper Blade Replacement Windshield wiper blades should be inspected for wear or cracking. See Scheduled Maintenance on page 7-4. Replacement blades come in different types and are removed in different ways. To replace the wiper blade assembly: 1. Pull the windshield wiper arm connector away from the windshield.
Page 489: Backglass Wiper Blade Replacement
Backglass Wiper Blade Replacement 1. Lift the wiper blade assembly up and out of the park rest position. 2. Pull the wiper blade assembly away from the backglass. The backglass wiper blade will not lock in a vertical position, so care should be used when pulling it away from the vehicle.
Page 490: Tires
Tires Your new vehicle comes with high-quality tires made by a leading tire manufacturer. If you ever have questions about your tire warranty and where to obtain service, see your vehicle Warranty booklet for details. For additional information refer to the tire manufacturer. CAUTION: •...
Page 491: Tire Sidewall Labeling
Tire Sidewall Labeling Useful information about a tire is molded into the sidewall. The following illustration is an example of a typical P-Metric tire sidewall. Passenger (P-Metric) Tire (A) Tire Size The tire size code is a combination of letters and numbers used to deﬁne a particular tire’s width, height, aspect ratio, construction type, and service description.
Page 492 (G) Maximum Cold Inﬂation Load Limit Maximum load that can be carried and the maximum pressure needed to support that load. For information on recommended tire pressure see Inﬂation - Tire Pressure on page 6-62 and Loading the Vehicle on page 5-33. Tire Size The following examples show the different parts of a tire size.
Page 493: Tire Terminology And Deﬁnitions
Tire Terminology and Deﬁnitions Air Pressure The amount of air inside the tire pressing outward on each square inch of the tire. Air pressure is expressed in pounds per square inch (psi) or kilopascal (kPa). Accessory Weight This means the combined weight of optional accessories.
Page 494 GAWR RR Gross Axle Weight Rating for the rear axle. See Loading the Vehicle on page 5-33. Intended Outboard Sidewall an asymmetrical tire, that must always face outward when mounted on a vehicle. Kilopascal (kPa) The metric unit for air pressure. Light Truck (LT-Metric) Tire light duty trucks and some multipurpose passenger vehicles.
Page 495 Radial Ply Tire A pneumatic tire in which the ply cords that extend to the beads are laid at 90 degrees to the centerline of the tread. A metal support for a tire and upon which the tire beads are seated. Sidewall The portion of a tire between the tread and the bead.
Page 496: Inﬂation - Tire Pressure
Inﬂation - Tire Pressure If your vehicle is a Two-mode Hybrid, see the Two-mode Hybrid manual for more information. Tires need the correct amount of air pressure to operate effectively. Notice: Do not let anyone tell you that under-inﬂation or over-inﬂation is all right. It is not.
Page 497: How To Check
How to Check Use a good quality pocket-type gage to check tire pressure. You cannot tell if your tires are properly inﬂated simply by looking at them. Radial tires may look properly inﬂated even when they are underinﬂated. Check the tire’s inﬂation pressure when the tires are cold.
Page 498: Tire Pressure Monitor System
Tire Pressure Monitor System The Tire Pressure Monitor System (TPMS) uses radio and sensor technology to check tire pressure levels. The TPMS sensors monitor the air pressure in your vehicle’s tires and transmit tire pressure readings to a receiver located in the vehicle. Each tire, including the spare (if provided), should be checked monthly when cold and inﬂated to the inﬂation pressure recommended by the vehicle manufacturer on...
Page 499: Tire Pressure Monitor Operation
Federal Communications Commission (FCC) and Industry and Science Canada The Tire Pressure Monitor System (TPMS) operates on a radio frequency and complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2.
Page 500: Tpms Malfunction Light And Message
Using the DIC, tire pressure levels can be viewed by the driver. For additional information and details about the DIC operation and displays see DIC Operation and Displays on page 3-48 and DIC Warnings and Messages on page 3-56. The low tire pressure warning light may come on in cool weather when the vehicle is ﬁrst started, and then turn off as you start to drive.
Page 501: Tpms Sensor Matching Process
• One or more TPMS sensors are missing or damaged. The DIC message and the TPMS malfunction light should go off when the TPMS sensors are installed and the sensor matching process is performed successfully. See your dealer/ retailer for service. •...
Page 502 You have two minutes to match the ﬁrst tire/wheel position, and ﬁve minutes overall to match all four tire/wheel positions. If it takes longer than two minutes, to match the ﬁrst tire and wheel, or more than ﬁve minutes to match all four tire and wheel positions the matching process stops and you need to start over.
Page 503: Tire Inspection And Rotation
Tire Inspection and Rotation We recommend that you regularly inspect your vehicle’s tires, including the spare tire, for signs of wear or damage. See When It Is Time for New Tires on page 6-70 for more information. Tires should be rotated every 5,000 to 8,000 miles (8 000 to 13 000 km).
Page 504: When It Is Time For New Tires
Reset the Tire Pressure Monitor System. See Tire Pressure Monitor Operation on page 6-65. Make certain that all wheel nuts are properly tightened. See “Wheel Nut Torque” under Capacities and Speciﬁcations on page 6-113. CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time.
Page 505: Buying New Tires
You need new tires if any of the following statements are true: • You can see the indicators at three or more places around the tire. • You can see cord or fabric showing through the tire’s rubber. • The tread or sidewall is cracked, cut, or snagged deep enough to show cord or fabric.
Page 506 GM recommends replacing tires in sets of four. This is because uniform tread depth on all tires will help keep your vehicle performing most like it did when the tires were new. Replacing less than a full set of tires can affect the braking and handling performance of your vehicle.
Page 507: Different Size Tires And Wheels
Different Size Tires and Wheels If you add wheels or tires that are a different size than your original equipment wheels and tires, this could affect the way your vehicle performs, including its braking, ride and handling characteristics, stability, and resistance to rollover. Additionally, if your vehicle has electronic systems such as anti-lock brakes, rollover airbags, traction control, and electronic stability control, the performance of these systems can be affected.
Page 508 Treadwear The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a speciﬁed government test course. For example, a tire graded 150 would wear one and a half (1.5) times as well on the government course as a tire graded 100.
Page 509: Wheel Replacement
Wheel Alignment and Tire Balance The tires and wheels on your vehicle were aligned and balanced carefully at the factory to give you the longest tire life and best overall performance. Adjustments to wheel alignment and tire balancing will not be necessary on a regular basis.
Page 510: Tire Chains
Used Replacement Wheels CAUTION: Putting a used wheel on the vehicle is dangerous. You cannot know how it has been used or how far it has been driven. It could fail suddenly and cause a crash. If you have to replace a wheel, use a new GM original equipment wheel.
Page 511: If A Tire Goes Flat
If a Tire Goes Flat It is unusual for a tire to blowout while you are driving, especially if you maintain your vehicle’s tires properly. If air goes out of a tire, it is much more likely to leak out slowly.
Page 512: Changing A Flat Tire
Changing a Flat Tire If your vehicle is a Two-mode Hybrid, see the Two-mode Hybrid manual for more information. If a tire goes ﬂat, avoid further tire and wheel damage by driving slowly to a level place. Turn on the hazard warning ﬂashers.
Page 513: Removing The Spare Tire And Tools
Removing the Spare Tire and Tools The equipment you will need is stored under the storage tray, which is located on the driver’s side trim panel (over the rear wheelhouse). Regular Wheelbase shown, Extended Wheelbase similar. 1. Remove the tray to access the tools by pulling up on the ﬁnger depression under the jack symbol.
Page 514 The tools you will be using include the following: A. Jack D. Jack Handle B. Wheel Blocks Extensions C. Jack Handle E. Wheel Wrench 6-80 To access the spare tire: A. Hoist Assembly G. Tire/Wheel Retainer B. Hoist Shaft H. Spare Tire (Valve C.
Page 515 1. To reach the hoist shaft access cover (C), you will ﬁrst need to remove the hitch cover. Remove it by turning the two fasteners located at the bottom of the cover counterclockwise and then pull the cover down and rotate towards you. 2.
Page 516 5. Insert the open end of the extension (J) through the hole in the rear bumper (I) (hoist shaft access hole). Be sure the hoist end (J) of the extension (D) connects to the hoist shaft (B). The ribbed square end of the extension is used to lower the spare tire.
Page 517 8. Tilt the tire toward the vehicle with some slack in the cable to access the tire/wheel retainer (G). Separate the retainer from the guide pin by sliding the retainer up the pin while pressing down on the latch. Once the retainer is separated from the pin, tilt the retainer and pull it through the center of the wheel along with the cable and latch.
Page 518: Removing The Flat Tire And Installing The Spare Tire
Removing the Flat Tire and Installing the Spare Tire 1. Do a safety check before proceeding. See Changing a Flat Tire on page 6-78 for more information. 2. To remove the center cap, place the chiseled end of the wheel wrench in the slot on the wheel and gently pry the cap out.
Page 519 CAUTION: Getting under a vehicle when it is jacked up is dangerous. If the vehicle slips off the jack, you could be badly injured or killed. Never get under a vehicle when it is supported only by a jack. CAUTION: Raising your vehicle with the jack improperly positioned can damage the vehicle and even make the vehicle fall.
Page 520 5. Remove all of the wheel nuts. 6. Take off the ﬂat tire. Rear Position Rear Tire Flat: If the ﬂat tire is on a rear tire of the vehicle, you will need to use the jack handle (B) and both jack handle extensions (C).
Page 521 CAUTION: Rust or dirt on a wheel, or on the parts to which it is fastened, can make wheel nuts become loose after time. The wheel could come off and cause an accident. When changing a wheel, remove any rust or dirt from places where the wheel attaches to the vehicle.
Page 522 CAUTION: Wheel nuts that are improperly or incorrectly tightened can cause the wheels to become loose or come off. The wheel nuts should be tightened with a torque wrench to the proper torque speciﬁcation after replacing. Follow the torque speciﬁcation supplied by the aftermarket manufacturer when using accessory locking wheel nuts.
Page 523: Secondary Latch System
Secondary Latch System Your vehicle has an underbody-mounted tire hoist assembly equipped with a secondary latch system. It is designed to stop the spare tire from suddenly falling off your vehicle. For the secondary latch to work, the spare must be installed with the valve stem pointing down.
Page 524 5. If the spare does not lower, turn the wrench counterclockwise until approximately 6 inches (15 cm) of cable is exposed. 6. Stand the wheel blocks on their shortest ends, with the backs facing each other. 7. Place the bottom edge of the jack (A) on the wheel blocks (B), separating them so that...
Page 525 9. Position the center lift point of the jack under the center of the spare tire. 10. Turn the wrench clockwise to raise the jack until it lifts the end ﬁtting. 11. Continue raising the jack until the spare tire stops moving upward and is held ﬁrmly in place.
Page 526: Storing A Flat Or Spare Tire And Tools
Storing a Flat or Spare Tire and Tools CAUTION: Storing a jack, a tire, or other equipment in the passenger compartment of the vehicle could cause injury. In a sudden stop or collision, loose equipment could strike someone. Store all these in the proper place.
Page 527 1. Put the tire (H) on the ground at the rear of the vehicle with the valve stem pointed down and to the rear. 2. Tilt the tire toward the vehicle. Separate the tire/wheel retainer (G) from the guide pin. Pull the pin through the center of the wheel.
Page 528 4. Insert the open end of the extension (J) through the hole in the rear bumper (I) (hoist shaft access hole). 5. Raise the tire part way upward. Make sure the retainer is fully seated across the underside of the wheel and centered in the wheel opening. 6.
Page 529 To store the tools: A. Wheel Blocks E. Jack B. Tool Bag with F. Wing Nut Retaining Jack Tools Wheel Blocks C. Retaining Bracket G. Jack Knob D. Wing Nut Retaining Tool Bag 1. Return the tools (wheel wrench, jack handle, and jack handle extensions) to the tool bag (B).
Page 530: Spare Tire
Spare Tire Your vehicle, when new, had a fully-inﬂated spare tire. A spare tire may lose air over time, so check its inﬂation pressure regularly. See Inﬂation - Tire Pressure on page 6-62 and Loading the Vehicle on page 5-33 for information regarding proper tire inﬂation and loading your vehicle.
Page 531 Notice: Using abrasive cleaners when cleaning glass surfaces on the vehicle, could scratch the glass and/or cause damage to the rear window defogger. When cleaning the glass on the vehicle, use only a soft cloth and glass cleaner. Many cleaners contain solvents that may become concentrated in the vehicle’s breathing space.
Page 532: Fabric/Carpet
Fabric/Carpet Use a vacuum cleaner with a soft brush attachment frequently to remove dust and loose dirt. A canister vacuum with a beater bar in the nozzle may only be used on ﬂoor carpet and carpeted ﬂoor mats. For any soil, always try to remove it ﬁrst with plain water or club soda.
Page 533: Instrument Panel, Vinyl, And Other Plastic Surfaces
TEHAMA™ Leather The leather surface on the seat was not designed to be aggressively cleaned using any commercial product. Use a well wrung cloth dampened with water to remove dust. Do not use a wet cloth or saturate the leather surface with water.
Page 534: Wood Panels
Wood Panels Use a clean cloth moistened in warm, soapy water (use mild dish washing soap). Dry the wood immediately with a clean cloth. Speaker Covers Vacuum around a speaker cover gently, so that the speaker will not be damaged. Clean spots with just water and mild soap.
Page 535: Cleaning Exterior Lamps/Lenses
Rinse the vehicle well, before washing and after to remove all cleaning agents completely. If they are allowed to dry on the surface, they could stain. Dry the ﬁnish with a soft, clean chamois or an all-cotton towel to avoid surface scratches and water spotting. High pressure car washes may cause water to enter the vehicle.
Page 536: Windshield, Backglass, And Wiper Blades
Windshield, Backglass, and Wiper Blades Clean the outside of the windshield and backglass with glass cleaner. Clean the rubber blades using a lint free cloth or paper towel soaked with windshield washer ﬂuid or a mild detergent. Wash the windshield thoroughly when you clean the blades.
Page 537: Tires
The surface of these wheels is similar to the painted surface of the vehicle. Do not use strong soaps, chemicals, abrasive polishes, abrasive cleaners, cleaners with acid, or abrasive cleaning brushes on them because they could damage the surface. Do not use chrome polish on aluminum wheels. Notice: Using chrome polish on aluminum wheels could damage the wheels.
Page 538: Underbody Maintenance
Underbody Maintenance Chemicals used for ice and snow removal and dust control can collect on the underbody. If these are not removed, corrosion and rust can develop on the underbody parts such as fuel lines, frame, ﬂoor pan, and exhaust system even though they have corrosion protection.
Page 539: Service Parts Identiﬁcation Label
Service Parts Identiﬁcation Label This label is on the inside of the glove box. It is very helpful if parts need to be ordered. The label has the following information: • Vehicle Identiﬁcation Number (VIN) • Model designation • Paint information •...
Page 540: Fuses And Circuit Breakers
Fuses and Circuit Breakers If the vehicle is a Two-mode Hybrid, see the Two-mode Hybrid manual for more information. The wiring circuits in the vehicle are protected from short circuits by a combination of fuses, circuit breakers and fusible thermal links. This greatly reduces the chance of ﬁres caused by electrical problems.
Page 541 The vehicle may not use all of the fuses shown. Fuses Rear Seats Rear Accessory Power Outlet Steering Wheel Controls Backlight Driver Door Module Fuses Usage Usage Dome Lamps, Driver Side Turn Signal Driver Side Turn Signal, Stoplamp Instrument Panel Back Lighting Passenger Side Turn Signal, Stoplamp Passenger Door Module, Driver...
Page 542: Top View
Fuses Power Door Lock 1 (Lock Feature) Driver Information Center (DIC) Rear Wiper Cooled Seats Driver Seat Module, Remote Keyless Entry System Driver Power Door Lock (Unlock Feature) Circuit Breaker Driver Side Power Window Circuit LT DR Breaker Harness Connector LT DR Driver Door Harness Connection BODY...
Page 543: Underhood Fuse Block
Harness Usage Connector HEADLINER 3 Headliner Harness Connector 3 HEADLINER 2 Headliner Harness Connector 2 HEADLINER 1 Headliner Harness Connector 1 SEO/UPFITTER Special Equipment Option Upﬁtter Harness Connector Circuit Breaker Usage Passenger Side Power Window Circuit Breaker Passenger Seat Circuit Breaker Driver Seat Circuit Breaker Rear Sliding Window Underhood Fuse Block...
Page 544 Fuses Right Trailer Stop/Turn Lamp Electronic Stability Suspension Control, Automatic Level Control Exhaust Left Trailer Stop/Turn Lamp Engine Controls 6-110 Usage Fuses Usage Engine Control Module, Throttle Control Trailer Brake Controller Front Washer Oxygen Sensors Antilock Brakes System 2 Trailer Back-up Lamps Driver Side Low-Beam Headlamp Engine Control Module (Battery) Fuel Injectors, Ignition Coils...
Page 545 Fuses Usage Fuel Injectors, Ignition Coils (Left Side) Trailer Park Lamps Driver Side Park Lamps Passenger Side Park Lamps Fog Lamps Horn Passenger Side High-Beam Headlamp Daytime Running Lamps (DRL) Driver Side High-Beam Headlamp Daytime Running Lamps 2 Sunroof Key Ignition System, Theft Deterrent System Windshield Wiper SEO B2 Upﬁtter Usage (Battery)
Page 546 J-Case Fuses Starter Stud 2 (Trailer Brakes) Left Bussed Electrical Center 1 Electric Running Boards Heated Windshield Washer System Transfer Case Stud 1 (Trailer Connector Battery Power) Mid-Bussed Electrical Center 1 Climate Control Blower Power Liftgate Module Left Bussed Electrical Center 2 6-112 Usage Relays...
Page 547: Capacities And Speciﬁcations
Capacities and Speciﬁcations The following approximate capacities are given in English and metric conversions. See Recommended Fluids and Lubricants on page 7-13 for more information. Application Air Conditioning Refrigerant Cooling System Engine Oil with Filter Fuel Tank Regular Extended Transmission Fluid (Pan Removal and Replacement) Transfer Case Fluid Wheel Nut Torque All capacities are approximate.
Page 548 ✍ NOTES 6-114...
Page 549 Section 7 Maintenance Schedule ...7-2 Introduction ...7-2 Maintenance Requirements ...7-2 Your Vehicle and the Environment ...7-2 Using the Maintenance Schedule ...7-3 Scheduled Maintenance ...7-4 Additional Required Services ...7-6 Maintenance Footnotes ...7-8 Maintenance Schedule Owner Checks and Services ...7-10 At Each Fuel Fill ...7-10 At Least Once a Month ...7-10 At Least Once a Year ...7-11 Recommended Fluids and Lubricants ...7-13...
Page 550: Maintenance Schedule
Maintenance Schedule Introduction Important: Keep engine oil at the proper level and change as recommended. Have you purchased the GM Protection Plan? The Plan supplements the vehicle warranties. See the Warranty and Owner Assistance booklet or your dealer/retailer for details. Maintenance Requirements Notice: Maintenance intervals, checks, inspections, replacement parts, and recommended ﬂuids and...
Page 551: Using The Maintenance Schedule
Using the Maintenance Schedule We want to help keep this vehicle in good working condition. But we do not know exactly how you will drive it. You might drive very short distances only a few times a week. Or you might drive long distances all the time in very hot, dusty weather.
Page 552: Scheduled Maintenance
Owner Checks and Services on page 7-10 tells what should be checked, when to check it, and what can easily be done to help keep the vehicle in good condition. The proper replacement parts, ﬂuids, and lubricants to use are listed in Recommended Fluids and Lubricants on page 7-13 and Maintenance Replacement Parts on page 7-15.
Page 553 When the CHANGE ENGINE OIL SOON message appears, the following services, checks, and inspections are required: ❑ Change engine oil and ﬁlter. See Engine Oil on page 6-15. Reset oil life system. See Engine Oil Life System on page 6-18. An Emission Control Service.
Page 554: Additional Required Services
Additional Required Services The following services should be performed at the ﬁrst maintenance service after the indicated miles (kilometers) shown for each item. Service and Miles (Kilometers) Inspect fuel system for damage or leaks. Inspect exhaust system for loose or damaged components.
Page 555 Additional Required Services (cont’d) Service and Miles (Kilometers) Change transfer case ﬂuid (severe service). See footnotes (m) and (n). Change transfer case ﬂuid (normal service). See footnote (m). Inspect evaporative control system. An Emission Control Service. See footnotes † and (g). Replace spark plugs and inspect spark plug wires.
Page 556: Maintenance Footnotes
Maintenance Footnotes † The U.S. Environmental Protection Agency or the California Air Resources Board has determined that the failure to perform this maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful life. We, however, urge that all recommended maintenance services be performed at the indicated intervals and the maintenance be recorded.
Page 557 (f) Lubricate all key lock cylinders, hood latch assembly, secondary latch, pivots, spring anchor, release pawl, rear compartment hinges, outer tailgate handle pivot points, latch bolt, fuel door hinge, and folding seat hardware. More frequent lubrication may be required when exposed to a corrosive environment.
Page 558: Engine Oil Level Check
Owner Checks and Services These owner checks and services should be performed at the intervals speciﬁed to help ensure vehicle safety, dependability, and emission control performance. Your dealer/retailer can assist with these checks and services. Be sure any necessary repairs are completed at once. Whenever any ﬂuids or lubricants are added to the vehicle, make sure they are the proper ones, as shown in Recommended Fluids and Lubricants on page 7-13.
Page 559: At Least Once A Year
At Least Once a Year Starter Switch Check CAUTION: When you are doing this inspection, the vehicle could move suddenly. If the vehicle moves, you or others could be injured. 1. Before starting this check, be sure there is enough room around the vehicle.
Page 560: Ignition Transmission Lock Check
Ignition Transmission Lock Check While parked, and with the parking brake set, try to turn the ignition to LOCK/OFF in each shift lever position. • The ignition should turn to LOCK/OFF only when the shift lever is in P (Park). •...
Page 561: Recommended Fluids And Lubricants
Recommended Fluids and Lubricants Fluids and lubricants identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Usage Fluid/Lubricant The engine requires a special engine oil meeting GM Standard GM4718M. Oils meeting this standard can be identiﬁed as synthetic, and should also be identiﬁed with the American Petroleum Institute (API) Certiﬁed for...
Page 562 Usage Fluid/Lubricant SAE 75W-90 Synthetic Axle Lubricant Front and (GM Part No. U.S. 89021677, Rear Axle in Canada 89021678) meeting GM Speciﬁcation 9986115. ® DEXRON -VI Automatic Transfer Case Transmission Fluid. Multi-Purpose Lubricant, Superlube Hood Hinges (GM Part No. U.S. 12346241, in Canada 10953474).
Page 563: Maintenance Replacement Parts
Maintenance Replacement Parts Replacement parts identiﬁed below by name, part number, or speciﬁcation can be obtained from your dealer/retailer. Part Engine Air Cleaner/Filter Oil Filter Spark Plugs Wiper Blades Front – 21.6 in (55.0 cm) Rear – 11.8 in (30.0 cm) Maintenance Replacement Parts GM Part Number ACDelco Part Number...
Page 564: Engine Drive Belt Routing
Engine Drive Belt Routing If your vehicle is a Two-mode Hybrid, see the Two-mode Hybrid manual for more information. 7-16...
Page 565: Maintenance Record
Maintenance Record After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of services performed in the boxes provided. See Maintenance Requirements on page 7-2. Any additional information from Owner Checks and Services on page 7-10 can be added on the following record pages. You should retain all maintenance receipts.
Page 566 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Stamp Services Performed Reading 7-18...
Page 567 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Stamp Services Performed Reading 7-19...
Page 568 Maintenance Record (cont’d) Odometer Date Serviced By Maintenance Stamp Services Performed Reading 7-20...
Page 569: Customer Assistance Information
Section 8 Customer Assistance and Information ...8-2 Customer Satisfaction Procedure ...8-2 Online Owner Center ...8-5 Customer Assistance for Text Telephone (TTY) Users ...8-6 Customer Assistance Offices ...8-6 GM Mobility Reimbursement Program ...8-7 Roadside Service ...8-7 Scheduling Service Appointments ...8-10 Courtesy Transportation Program ...8-10 Collision Damage Repair ...8-12 Customer Assistance Information Reporting Safety Defects ...8-14...
Page 570: Customer Assistance And Information
Information Customer Satisfaction Procedure Your satisfaction and goodwill are important to your dealer and to Cadillac. Normally, any concerns with the sales transaction or the operation of the vehicle will be resolved by the dealer’s sales or service departments. Sometimes, however, despite the best intentions of all concerned, misunderstandings can occur.
Page 571 STEP THREE (U.S. Owners): Both General Motors and your dealer are committed to making sure you are completely satisﬁed with your new vehicle. However, if you continue to remain unsatisﬁed after following the procedure outlined in Steps One and Two, you can ﬁle with the Better Business Bureau (BBB) Auto Line Program to enforce your rights.
Page 572 STEP THREE (Canadian Owners): General Motors Participation in the Mediation/ Arbitration Program In the event that you do not feel your concerns have been addressed after the following the procedure outlined in Steps One and Two. General Motors of Canada Limited wants you to be aware of its participation in a no-charge mediation/Arbitration program.
Page 573: Online Owner Center
— all in one convenient place. • Digital owner manual, warranty information, and more • Online service and maintenance records • Find Cadillac dealers for service nationwide • Exclusive privileges and offers • Recall notices for your speciﬁc vehicle • ®...
Page 574: Customer Assistance For Text Telephone (Tty) Users
Canada can dial 1-800-263-3830.) Customer Assistance Offices Cadillac encourages customers to call the toll-free number for assistance. However, if a customer wishes to write or e-mail Cadillac, the letter should be addressed to: United States — Customer Assistance Cadillac Customer Assistance Center Cadillac Motor Car Division P.O.
Page 575: Gm Mobility Reimbursement Program
GM Mobility Reimbursement Program This program, available to qualiﬁed applicants, can reimburse you up to $1,000 of the cost of eligible aftermarket adaptive equipment required for your vehicle, such as hand controls or a wheelchair/scooter lift. The offer is available for a very limited period of time from the date of vehicle purchase/lease.
Page 576: Cadillac Owner Privileges
Roadside Assistance program at any time without notiﬁcation. Cadillac and General Motors of Canada Limited reserve the right to limit services or payment to an owner or driver if they decide the claims are made too often, or the same type of claim is made many times.
Page 577: Services Not Included In Roadside Assistance
Cadillac Technician Roadside Service (U.S. only) Cadillac’s exceptional Roadside Service is more than an auto club or towing service. It provides every Cadillac owner in the United States with the advantage of contacting a Cadillac advisor and, where available, a Cadillac trained dealer technician who can provide on-site service.
Page 578: Scheduling Service Appointments
Scheduling Service Appointments When your vehicle requires warranty service, contact your dealer/retailer and request an appointment. By scheduling a service appointment and advising your service consultant of your transportation needs, your dealer/retailer can help minimize your inconvenience. If your vehicle cannot be scheduled into the service department immediately, keep driving it until it can be scheduled for service, unless, of course, the problem is safety-related.
Page 579: Transportation Options
Transportation Options Warranty service can generally be completed while you wait. However, if you are unable to wait, GM helps to minimize your inconvenience by providing several transportation options. Depending on the circumstances, your dealer can offer you one of the following: Shuttle Service Participating dealers can provide shuttle service to get you to your destination with minimal interruption of...
Page 580: Collision Damage Repair
Additional Program Information All program options, such as shuttle service, may not be available at every dealer. Please contact your dealer for speciﬁc information about availability. All Courtesy Transportation arrangements will be administered by appropriate dealer personnel. General Motors reserves the right to unilaterally modify, change, or discontinue Courtesy Transportation at any time and to resolve all questions of claim eligibility pursuant to the terms and conditions described...
Page 581: Repair Facility
Repair Facility GM also recommends that you choose a collision repair facility that meets your needs before you ever need collision repairs. Your GM dealer/retailer may have a collision repair center with GM-trained technicians and state of the art equipment, or be able to recommend a collision repair center that has GM-trained technicians and comparable equipment.
Page 582: Reporting Safety Defects
Managing the Vehicle Damage Repair Process In the event that your vehicle requires damage repairs, GM recommends that you take an active role in its repair. If you have a pre-determined repair facility of choice, take your vehicle there, or have it towed there. Specify to the facility that any required replacement collision parts be original equipment parts, either new Genuine GM parts or recycled original GM parts.
Page 583: Reporting Safety Defects To The Canadian Government
Cadillac Customer Assistance Center Cadillac Motor Car Division P.O. Box 33169 Detroit, MI 48232-5169 In Canada, call 1-888-446-2000, or write: Canadian Cadillac Customer Communication Centre, CA1-163-005 General Motors of Canada Limited 1908 Colonel Sam Drive Oshawa, Ontario L1H 8P7 Service Publications Ordering...
Page 584: Vehicle Data Recording And Privacy
Current and Past Model Order Forms Technical Service Bulletins and Manuals are available for current and past model GM vehicles. To request an order form, specify year and model name of the vehicle. ORDER TOLL FREE: 1-800-551-4123 Monday-Friday 8:00 AM - 6:00 PM Eastern Time For Credit Card Orders Only (VISA-MasterCard-Discover), visit Helm, Inc.
Page 585: Event Data Recorders
Event Data Recorders This vehicle has an Event Data Recorder (EDR). The main purpose of an EDR is to record, in certain crash or near crash-like situations, such as an airbag deployment or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems performed.
Page 586: Onstar
® OnStar If your vehicle has OnStar and you subscribe to the OnStar services, please refer to the OnStar Terms and Conditions for information on data collection and use. ® See also OnStar System on page 2-52 in this manual for more information.
Page 587 Accessories and Modiﬁcations ... 6-3 Accessory Power ... 2-26 Accessory Power Outlets ... 3-25 Additional Required Services, Scheduled Maintenance ... 7-6 Additives, Fuel ... 6-6 Add-On Electrical Equipment ... 6-105 Adjustable Throttle and Brake Pedal ... 2-27 Air Cleaner/Filter, Engine ... 6-19 Airbag Adding Equipment to Your Airbag-Equipped Vehicle ...
Page 588 Appearance Care (cont.) Weatherstrips ... 6-100 Windshield, Backglass, and Wiper Blades ... 6-102 Wood Panels ... 6-100 Ashtray ... 3-26 Assist Handles ... 2-63 Audio System ... 3-75 Audio Steering Wheel Controls ... 3-115 Radio ... 4-62 XM™ Satellite Radio Antenna System ... 3-117 Audio Systems Radio Reception ...
Page 589 Bulb Replacement ... 6-53 Back-Up Lamps - Ambulance Body ... 6-51 Fog Lamps ... 3-22 Headlamp Aiming ... 6-48 Headlamps ... 6-51 High Intensity Discharge (HID) Lighting ... 6-51 License Plate Lamps ... 6-53 Buying New Tires ... 6-71 Calibration ... 3-53 California Perchlorate Materials Requirements ...
Page 590 Cleaning (cont.) Weatherstrips ... 6-100 Windshield, Backglass, and Wiper Blades ... 6-102 Wood Panels ... 6-100 Climate Control System Outlet Adjustment ... 3-31 Rear Air Conditioning and Heating System, Electronic ... 3-32 Climate Control Systems Dual Automatic ... 3-27 Clock ... 3-26 Collision Damage Repair ...
Page 591 Drive Systems All-Wheel Drive ... 6-45 Driver Information Center (DIC) ... 3-47 DIC Operation and Displays ... 3-48 DIC Vehicle Customization ... 3-65 DIC Warnings and Messages ... 3-56 Driving At Night ... 5-25 Before a Long Trip ... 5-27 Better Fuel Economy ...
Page 592 Engine (cont.) Cooling System ... 6-24 Drive Belt Routing ... 7-16 Exhaust ... 2-38 Fan Noise ... 6-33 Oil ... 6-15 Overheated Protection Operating Mode ... 6-33 Overheating ... 6-30 Starting ... 2-26 Engine Oil Life System ... 6-18 Entry Lighting ... 3-23 Event Data Recorders ...
Page 593 Gages Engine Coolant Temperature ... 3-41 Fuel ... 3-46 Speedometer ... 3-35 Tachometer ... 3-35 Trip Odometer ... 3-35 Garage Door Opener ... 2-55 Garment Hooks ... 2-63 Gasoline Octane ... 6-5 Speciﬁcations ... 6-6 Getting Started, Navigation ... 4-4 Global Positioning System (GPS) ...
Page 594 Hood Checking Things Under ... 6-12 Release ... 6-13 Horn ... 3-6 How to Wear Safety Belts Properly ... 1-35 Ignition Positions ... 2-25 Infants and Young Children, Restraints ... 1-55 Inﬂation - Tire Pressure ... 6-62 Instrument Panel Brightness ... 3-23 Cluster ...
Page 595 Lights (cont.) Flash-to-Pass ... 3-9 Fog Lamps ... 3-45 Highbeam On ... 3-46 High/Low Beam Changer ... 3-8 Lights On Reminder ... 3-45 Oil Pressure ... 3-44 On Reminder ... 3-21 Passenger Airbag Status Indicator ... 3-37 Safety Belt Reminders ... 3-35 Security ...
Page 596 Mirrors (cont.) Outside Heated Mirrors ... 2-42 Outside Power Foldaway Mirrors ... 2-40 Park Tilt ... 2-41 Navigation Getting Started ... 4-4 System Overview ... 4-2 Using the System ... 4-13 Navigation System, Privacy ... 8-18 New Vehicle Break-In ... 2-24 Object Detection, Side Blind Zone Alert (SBZA) ...
Page 597 Parking Assist ... 2-42 Brake ... 2-34 Over Things That Burn ... 2-38 Passenger Airbag Status Indicator ... 3-37 Passenger Sensing System ... 1-87 Passing ... 5-12 ® PASS-Key III+ Electronic Immobilizer ... 2-22 ® PASS-Key III+ Electronic Immobilizer Operation ... 2-23 Perchlorate Materials Requirements, California ...
Page 598 Rearview Mirrors (cont.) Reclining Seatbacks, Power ... 1-8 Recommended Fluids and Lubricants ... 7-13 Recovery Hooks ... 5-32 Recreational Vehicle Towing ... 5-40 Reimbursement Program, GM Mobility ... 8-7 Remote Keyless Entry (RKE) System ... 2-4 Remote Vehicle Start ... 2-8 Removing the Flat Tire and Installing the Spare Tire ...
Page 599 Seats (cont.) Head Restraints ... 1-2 Heated and Cooled Seats ... 1-6 Heated Seats ... 1-5 Heated Seats - Rear ... 1-10 Power Lumbar ... 1-4 Power Reclining Seatbacks ... 1-8 Power Seats ... 1-3 Third Row Seat ... 1-25 Secondary Latch System ...
Page 600 Storage Areas Center Console ... 2-63 Cupholders ... 2-62 Glove Box ... 2-62 Luggage Carrier ... 2-64 Rear ... 2-65 Rear Seat Armrest ... 2-65 Stuck in Sand, Mud, Ice, or Snow ... 5-31 Sun Visors ... 2-20 Sunroof ... 2-65 Symbols ...
Page 601 Tow/Haul Mode ... 2-33 Tow/Haul Mode Light ... 3-46 Towing Recreational Vehicle ... 5-40 Towing a Trailer ... 5-44 Trailer Recommendations ... 5-57 Your Vehicle ... 5-40 Traction Magnetic Ride Control ... 5-9 Road Sensing Suspension ... 5-9 ® StabiliTrak System ...
Page 602 Warning Lights, Gages, and Indicators ... 3-33 Warnings DIC Warnings and Messages ... 3-56 Hazard Flashers ... 3-6 Safety and Symbols ... iv Wheels Alignment and Tire Balance ... 6-75 Different Size ... 6-73 Replacement ... 6-75 When It Is Time for New Tires ... 6-70 Where to Put the Child Restraint ...
