Chapter 2: Installation and wiring

CTM module wiring

The CTM City Tie Module is an interface between the control panel
notification appliance circuit and a master box. It provides off-
premises signal transmission for systems that must comply with
NFPA requirements for Auxiliary Protective Systems. The CTM
activates a local energy fire alarm box. For detailed information and
wiring, refer to the CTM Installation Sheet (P/N 3101025).
Requirements
When connecting a CTM to the panel, the following hardware and
programming requirements must be met:
• The NAC used must be dedicated to CTM use only
• All alarm zones must be programmed to activate the dedicated
NAC
• The NAC used must not be programmed for signal silence
Wiring

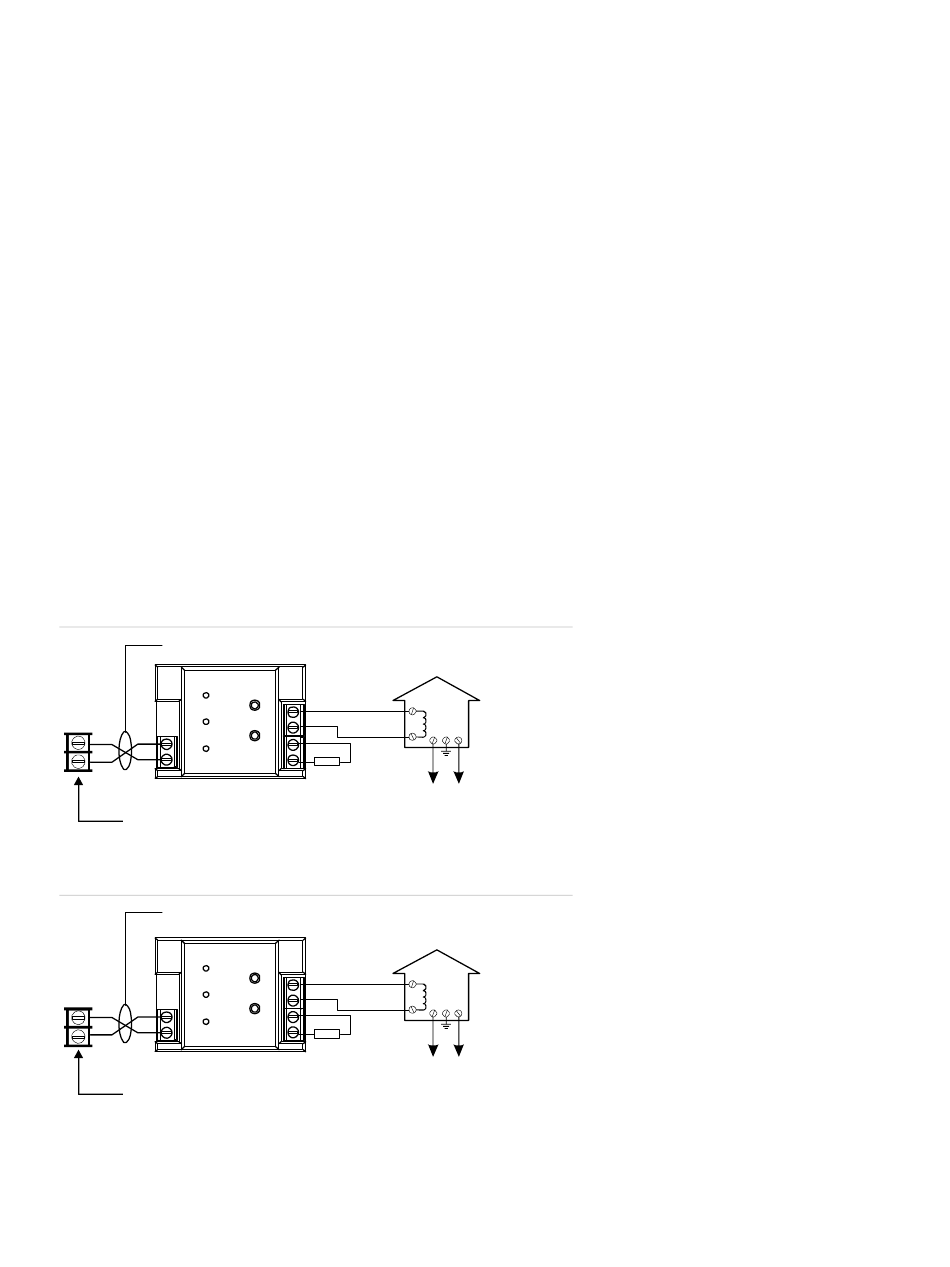

The following wiring diagrams show how the polarity switches
during an alarm condition.
Panel in normal condition
Normal condition
CTM
_
+
2
_
1
+
[3]
[5]
[4]
Notification
appliance circuit
Panel in alarm condition
Alarm condition
CTM
_
+
2
_
1
+
[3]
[5]
[4]
Notification
appliance circuit
76
Master box
_
_
[1] [2]
1
2
+
3
+
4
[6]
Public fire alarm
reporting system
Master box
+
+ [1] [2]
1
2 _
_
3
4
[6]
Public fire alarm
reporting system
