Sharp R-1500AT Service Manual page 50

R1500AT

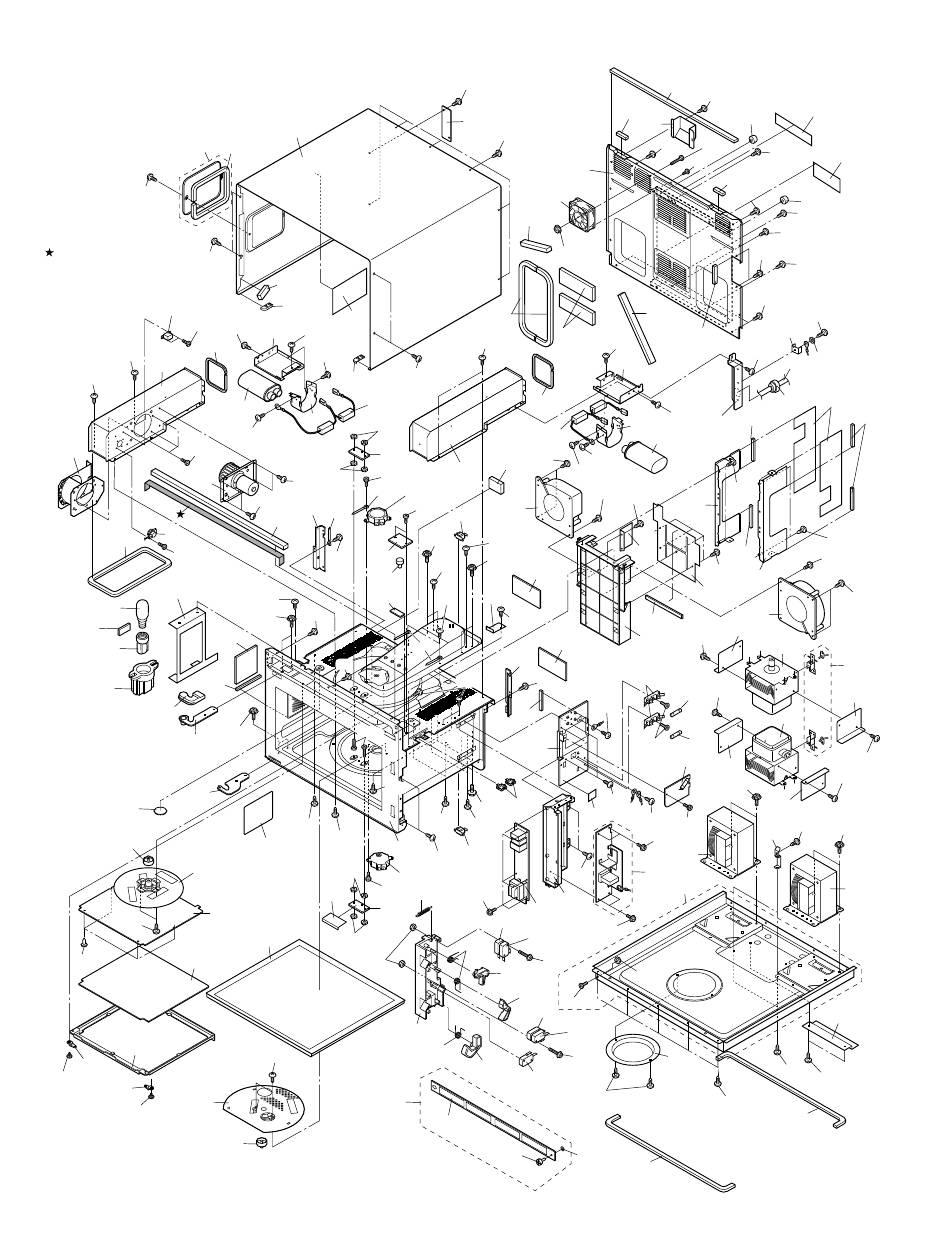

[1] OVEN PARTS
2-2
7-21
Vinyl insulation tape:
7-21
20mm (W) x 520mm (L)
Please get the vinyl insulation
tape from a local vender
TF3
