Installation Manual
UL 1978 "Standard for Grease Ducts" , UL 710, "Exhaust Hoods for
Commercial Cooking Equipment" , ULC-S647-05 and/or UL197
ENSURE ELECTRICAL SUPPLY CONFORMS WITH ELECTRICAL CHARACTERISTICS SHOWN ON THE RATING PLATE,
AND N.E.C. REQUIREMENTS.
THE INSTALLATION OF THE HOOD AND DUCT WORK LEADING TO AND EXITING THE ECOLOAIR SYSTEM TO BE
INSTALLED IN ACCORDANCE WITH NFPA 96 AND LOCAL CODES.

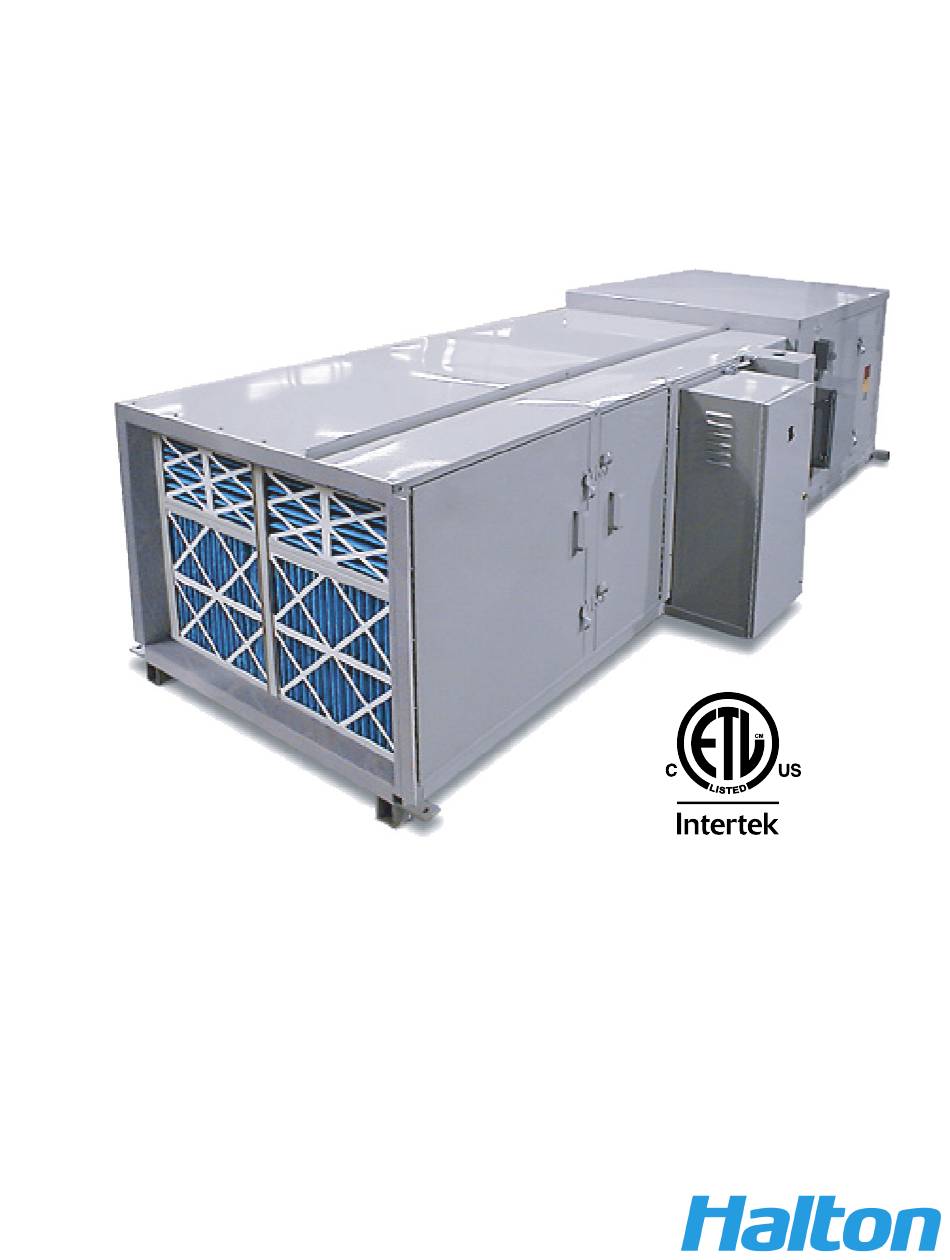

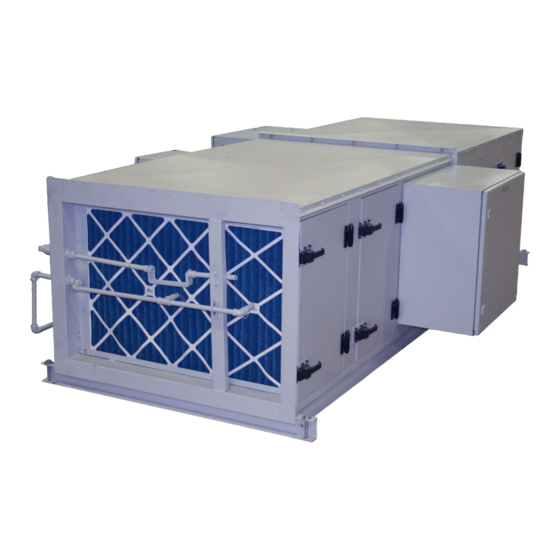

EcoloAir Unit
3000CFM, 4000CFM, 5000CFM, 6000CFM, 8000CFM,
10000CFM, 12000CFM, 15000CFM, 18000CFM,
20000CFM, 24000CFM, 28000CFM, 32000CFM,
36000CFM, 40000CFM
Advertisement
Related Manuals for Halton EcoloAir 3000CFM
Summary of Contents for Halton EcoloAir 3000CFM
- Page 1 Installation Manual UL 1978 “Standard for Grease Ducts” , UL 710, “Exhaust Hoods for Commercial Cooking Equipment” , ULC-S647-05 and/or UL197 ENSURE ELECTRICAL SUPPLY CONFORMS WITH ELECTRICAL CHARACTERISTICS SHOWN ON THE RATING PLATE, AND N.E.C. REQUIREMENTS. THE INSTALLATION OF THE HOOD AND DUCT WORK LEADING TO AND EXITING THE ECOLOAIR SYSTEM TO BE INSTALLED IN ACCORDANCE WITH NFPA 96 AND LOCAL CODES.
- Page 2 FIGURE 1 FIELD CONNECTION OF FILTER AND FAN MODULES BLANK SIDE (INTERIOR INSULATION BLANK SIDE INSULATED LINING LINING) AND SKIN OPTIONAL AND SKIN (STANDARD) B FAN TOP INSULATION LINING FILTER TOP INSULTATION LINING (OPTION FOR EXTERIOR ICN) (STANDARD 1) SEE NOTE FOR CONNECTION FLANGE INTERIOR FILTER TOP PANEL METHOD OF CONNECTIONS...
-
Page 3: Electrical Connections
ELECTRICAL CONNECTIONS 1. Run the main power supply to the control panel and connect to the line voltage terminal block, wire size to be determined by the electrical rating on thee panel rating plate and to conform to national electrical standards. -
Page 4: Air Filter Installation
AIR FILTER INSTALLATION 1. Care should be taken to install the filters in the proper sequence. They should be installed in the following order: a) Beginning at the exhaust inlet, the first filter (Pre Filter) is the Merv 7 b) Next is the filter labelled Medium Filter, Merv 14 c) Followed by the filter labelled Absolute Filter, Merv 16 2. -
Page 5: Schematic Wiring Diagrams
If the start-up is performed by someone other than an “authorized” agent the Warranty is null and void. Halton agent must have a minimum notice of five (5) days to schedule start-up. Should the equipment not be ready for start-up at the specified time any additional expenses incurred will be charged to the dealer who purchased the equipment. - Page 6 HALTON LIMITED WARRANTY Halton (“Manufacturer”). Warrants only to its direct purchasers and to no others, that all products manufactured by the Manufacturer shall be free from defect in materials and workmanship for a period of twelve (12) months from the date of the original installation and start-up or eighteen (18) months from date of shipment, whichever occurs first.
