ENSURE ELECTRICAL SUPPLY CONFORMS WITH ELECTRICAL CHARACTERISTICS
SHOWN ON THE RATING PLATE, AND N.E.C. REQUIREMENTS.
THE INSTALLATION OF THE HOOD AND DUCT WORK LEADING TO AND EXITING THE
ECOLOAIR SYSTEM TO BE INSTALLED IN ACCORDANCE WITH NFPA 96 AND LOCAL

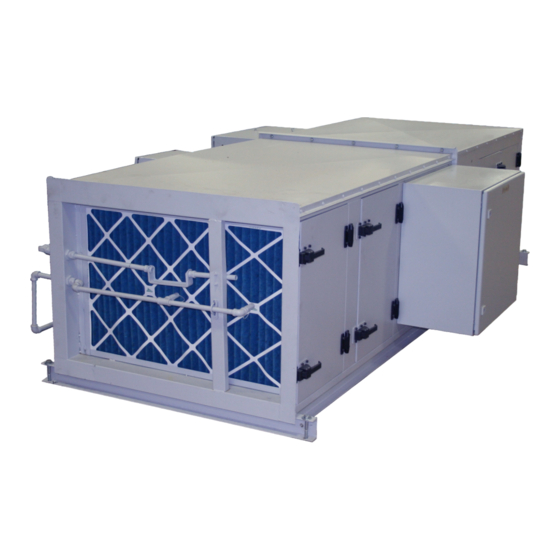

EcoloAir Unit
3000CFM, 4000CFM, 5000CFM, 6000CFM, 8000CFM,
10000CFM, 12000CFM, 15000CFM, 18000CFM,
20000CFM, 24000CFM, 28000CFM, 32000CFM,
36000CFM, 40000CFM
Form#: OM021_ECOLOGY
Date: 05-2017 - Rev 5
Installation Manual
for Ecology
Manual provides
Installation Instructions
Installation Instructions
Installation Instructions
Installation Instructions
UL 1978 "Standard for Grease Ducts" , UL 710, "Exhaust Hoods for
Commercial Cooking Equipment" , ULC-S647-05 and/or UL197
CODES.
Advertisement
Table of Contents
Related Manuals for Halton EcoloAir 3000CFM
Summary of Contents for Halton EcoloAir 3000CFM
- Page 1 Installation Manual for Ecology Manual provides Installation Instructions Installation Instructions Installation Instructions Installation Instructions UL 1978 “Standard for Grease Ducts” , UL 710, “Exhaust Hoods for Commercial Cooking Equipment” , ULC-S647-05 and/or UL197 ENSURE ELECTRICAL SUPPLY CONFORMS WITH ELECTRICAL CHARACTERISTICS SHOWN ON THE RATING PLATE, AND N.E.C.
- Page 2 Halton cannot provide engineering or design for equipment pads, curbs or supporting structures. Note: 30” of clearance must be maintained on the access door side of each module to allow maintenance access and service to fi lters, odor control solution, carbon fi lter and fan motor/blower components.
- Page 3 FIGURE 1 FIELD CONNECTION OF FILTER AND FAN MODULES FIGURE 1A DRAWING FOR: FILTER MODULE TO FAN SECTION OR FILTER MODULE TO ODOR CONTROL TO FAN SECTION EcoloAir Installation Manual...
-
Page 4: Electrical Connections
ELECTRICAL CONNECTIONS 1. The main power supply to the EcoloAir control panel connects to the line voltage terminal block in the control panel; the wire size will be determined by the electrical rating on the panel rating plate and must conform to national electrical standards. -
Page 5: Duct Connections
DUCT CONNECTIONS The exhaust duct connection at the inlet entrance to the EcoloAir system must be continuously welded all around and liquid tight (See figure 2). Remove all filtration media from the filter module before welding. Be sure all flammable materials are removed from area before welding on this unit. Take all reasonable precautions while welding to prevent fire or injury. -
Page 6: Air Filter Installation
AIR FILTER INSTALLATION 1. Care should be taken to install the fi lters in the proper sequence. They should be installed in the following order: a) Beginning at the exhaust inlet, the fi rst fi lter (Pre Filter) is the Merv 8 b) Next is the fi lter labelled Bag Filter, Merv 14 c) Followed by the fi lter labelled Final Filter, Merv 16 2. - Page 7 6. The switch to turn on the compressor must be placed in the “On” position. 7 . Close the cabinet door and lock with the key. NOTE: The standard EcoloAir unit comes with the Ecolo Odor Control pre-mounted and installed. EcoloAir Installation Manual...
-
Page 8: Schematic Wiring Diagrams
For field wiring diagrams and field connections refer to Halton’s job specific shop drawings shipped with the unit or contact the factory for job specific drawings. Be prepared to provide the original Halton drawing numbers, serial numbers, job name or job order number (found on quote or shipping information) to identify proper job drawings. - Page 9 If the start-up is performed by personnel other than an “authorized” agent the Warranty is null and void. Halton must have a minimum notice of two weeks to schedule start-up. Should the equipment not be ready for start-up at the specified time any additional expenses incurred will be charged to the dealer who purchased the equipment.
- Page 10 WARRANTY ACTIVATION FORM This form must be completed and returned to Halton in order for your warranty to be valid. Job & Location Information: Job Name: Street Name: Zip Code: City: State: Equipment Start-Up Date: Product Serial Numbers: Contact Information:...
- Page 11 All products sold but not manufactured by Manufacturer will be warranted for a period of twelve (12) months from date of shipment. (Halton’s Warranty Card must be completely filled out and returned to Halton within 3 weeks after the equipment start-up date for your warranty to be valid *IMPORTANT NOTE: “IF”...
