Operating Instructions

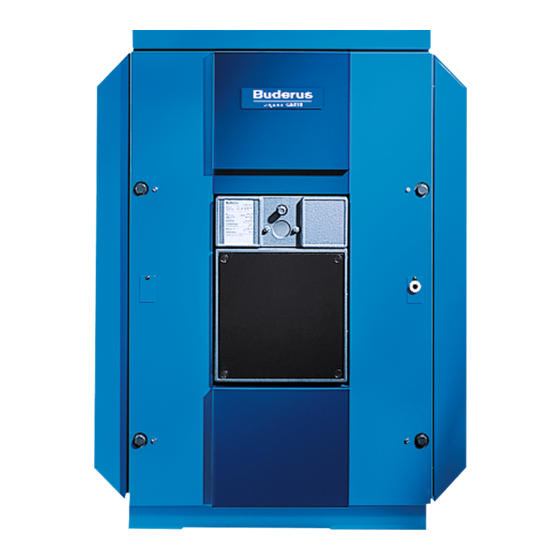

Logano G515
Low temperature boilers for
oil/gas fired power burners
WARNING: If installation, adjustment, modification, oper-
ation or maintenance of the heating system is carried out
by an unqualified person, this may result in personal injury
or property damage.
Precisely follow the instructions of this manual.
If support or additional information is required, contact a
qualified service company, service provider or the gas
company.
WARNING:
Observe the safety instructions of this manual before
commissioning the heating device.
The operating manual is a component of the technical
documentation and must be handed over to the operator
of the heating system. The handling of the heating system
according to the operating manual must be explained to
the owner or operator. Make sure that he has been famil-
iarized with all information required for the operation of the
heating system.
This manual is available in the English and French
language.
Please keep this manual for future reference.
6 720 642 624-00.1O
Low-temperature
oil/gas boiler
For users
Please read carefully
before use.
Advertisement
Table of Contents
Related Manuals for Buderus Logano G515
Summary of Contents for Buderus Logano G515
- Page 1 This manual is available in the English and French language. Please keep this manual for future reference. 6 720 642 624-00.1O Logano G515 For users Please read carefully Low temperature boilers for before use. oil/gas fired power burners...
-
Page 2: Table Of Contents
......10 Correcting burner faults ....11 Logano G515 - Subject to technical modifications... -
Page 3: Explanation Of Symbols And Safety Information
Operator errors can result in personal injury and damage to property. B Ensure that children never operate this appliance unsupervised or play with it. B Ensure that only people who know to operate this appliance correctly have access to it. Logano G515 - Subject to technical modifications... - Page 4 B Use only original Buderus spare parts. Damage caused by the use of spare parts not supplied by Buderus are excluded from the Buderus warranty. Explosive and easily combustible materials B Never use or store easily flammable materials (paper, thinners, paints etc.) near the appliance.
-
Page 5: Product Description
Any other purpose is considered improper use. Any resulting damage is excluded from the manufacturer's warranty. The Logano G515 can be operated with oil, gas, and combination burners. For a list of the approved burners, please contact Bosch Thermotechnology Corp. -
Page 6: The Correct Fill And Make-Up Water
Q kW 8.2–9.5 ------------------------------------------------- - ⋅ 3 13 1,194 < Q ≤ 3412 Ca HCO > 8.8 (> 150) (350 < Q ≤ 1000) Tab. 2 Requirements for fill, make-up and heating water Logano G515 - Subject to technical modifications... -
Page 7: The Correct Fuel
Use the following fuel: Stamp/Signature/Date Tab. 3 Fuel to be used (entered by heating system installer) We recommend you seek the advice of your system installer if you intend changing the fuel for your system. Logano G515 - Subject to technical modifications... -
Page 8: System Start-Up
Air pockets may form in the heating system from the fill or make-up water releasing gases. • Once the system is losing minimal volume, check the operating pressure of the heating water once a month. Logano G515 - Subject to technical modifications... -
Page 9: Starting Up The Control Panel And The Burner
B Set the ON/OFF switch ( Fig. 4, [2]) to "I" (ON). 6 720 642 624-03.1O Fig. 4 Control panel (for example: Logamatic 4000) Boiler water thermostat ON/OFF switch Follow the control panel operating instructions. Logano G515 - Subject to technical modifications... -
Page 10: Shutting Down The System
In other dangerous situations, immediately close the main fuel shut-off valve and the power supply of the heating system using the emergency shutoff switch or by disengaging the heating system circuit breaker Chapter 1.2, page 3). Logano G515 - Subject to technical modifications... -
Page 11: Correcting Burner Faults
If the burner does not restart after three attempts, refer to the technical documentation provided with the burner to find out how to reset it. Logano G515 - Subject to technical modifications... - Page 12 United States and Canada Bosch Thermotechnology Corp. 50 Wentworth Avenue Londonderry, NH 03053 Tel. 603-552-1100 Fax 603-584-1681 www.buderus.us U.S.A. Products manufactured by Bosch Thermotechnik GmbH Sophienstrasse 30-32 D-35576 Wetzlar www.buderus.com Bosch Thermotechnology Corp. reserves the right to make changes without notice due to continuing...
