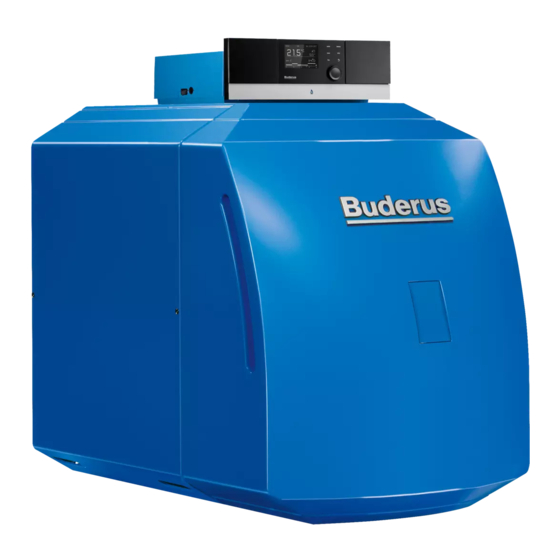

Low emissions and high efficiency condensing oil boiler
Hide thumbs Also See for Logano GB125 BE US:
Table of Contents

Advertisement

Quick Links

Operating Instructions

Logano GB125 BE US/CA
Low Emissions and
High Efficiency
Condensing Oil Boiler
DANGER!
If these instructions are not followed exactly, a fire
or explosion may be caused with serious property
damage or loss of life and serious injury.
Do not store or use gasoline or any other flammable
liquids or vapors in the vicinity of this system or any
other heating system.
The heating system must only be installed and ser-
viced by a trained and certified technician.
For the owner and operator
Please read carefully prior
to operating the boiler.
